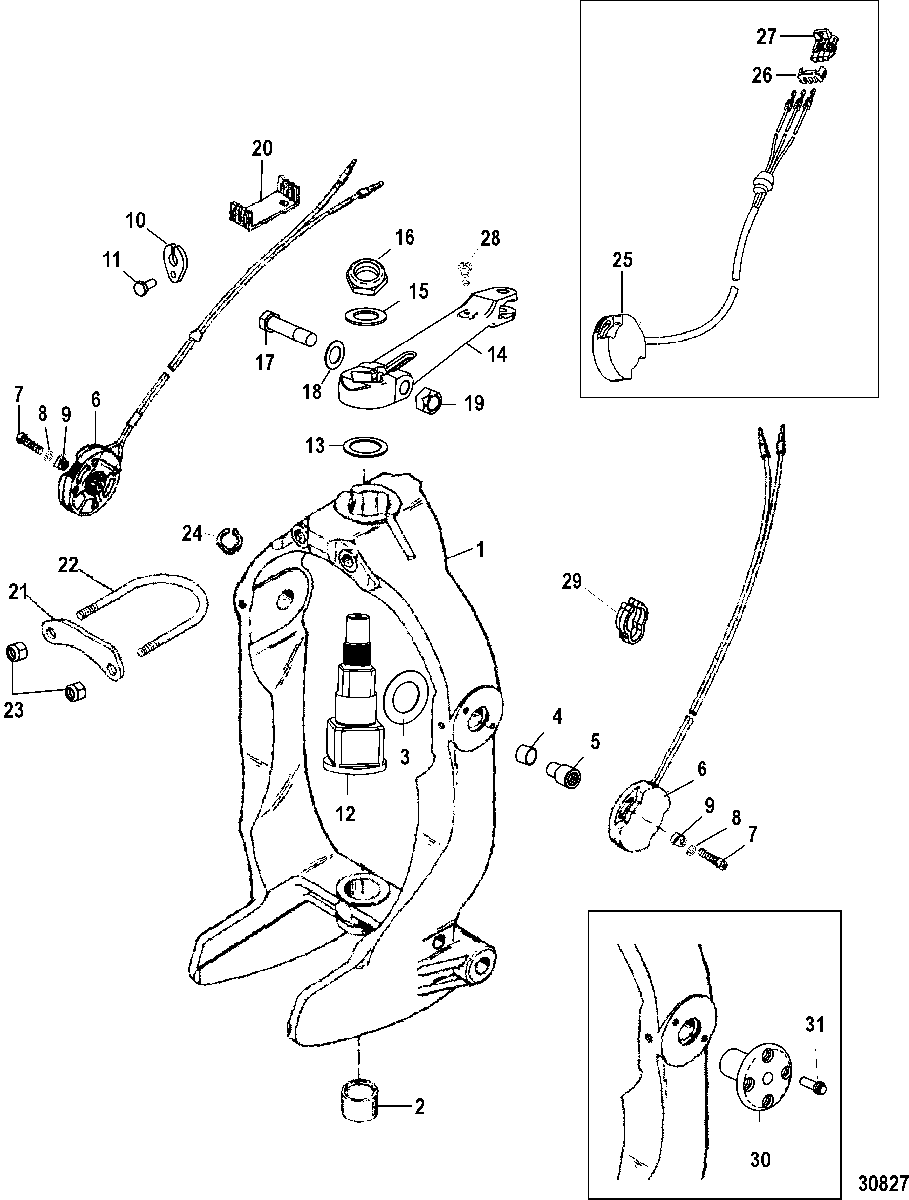

Gimbal Ring and Steering Lever для Mercruiser - BRAVO TWO 0W250000 & Up
-
№АртикулНазвание
-
18M0062440 GIMBAL RING ASSEMBLY
SN# 0W461976 & BelowGIMBAL RING ASSEMBLY
SN# 0W461976 & Below -
18M0062440 GIMBAL RING ASSEMBLY
SN# 0W461977 & UpGIMBAL RING ASSEMBLY
SN# 0W461977 & Up -
18M0063519 GIMBAL RING ASSEMBLY
(SEACORE)GIMBAL RING ASSEMBLY
(SEACORE) -
1822374A17 GIMBAL RING ASSEMBLY
(High Performance With or Without Trim Sender)GIMBAL RING ASSEMBLY
(High Performance With or Without Trim Sender) -
223-847638 BUSHINGBUSHING
-
312-41721 WASHERWASHER
-
423-847637 BUSHINGBUSHING
-
510-86801 SCREW, Hinge PinSCREW, Hinge Pin
-
6805320A03 SWITCH ASSEMBLY, Trim and Limit
(Magnum Series Transom)SWITCH ASSEMBLY, Trim and Limit
(Magnum Series Transom) -
710-37978 SCREW, (#10-32 x .750) Stainless SteelSCREW, (#10-32 x .750) Stainless Steel
-
813-26996 LOCKWASHER, (#10) Stainless SteelLOCKWASHER, (#10) Stainless Steel
-
957008 RETAINERRETAINER
-
1054-12078 CLAMPCLAMP
-
1110-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
1298230A1 SHAFT ASSEMBLY, Upper SwivelSHAFT ASSEMBLY, Upper Swivel
-
12866718A01 SHAFT ASSEMBLY, Upper Swivel
(SEACORE)SHAFT ASSEMBLY, Upper Swivel
(SEACORE) -
1312-98548 WASHER, (1.125 )WASHER, (1.125 )
-
14866322A01 LEVER ASSEMBLY, SteeringLEVER ASSEMBLY, Steering
-
1512-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
1611-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
1710-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
1812-861854 WASHER, (.453 x .750 x .032) Stainless SteelWASHER, (.453 x .750 x .032) Stainless Steel
-
1911-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
2079146 RETAINERRETAINER
-
21816510T BRACKETBRACKET
-
2210-805164 U BOLT
SN# 0W461976 & BelowU BOLT
SN# 0W461976 & Below -
2210-8M0120158 U BOLT
SN# 0W461977 & UpU BOLT
SN# 0W461977 & Up -
2311-862903 NUT, (.375-24)
SN# 0W461976 & BelowNUT, (.375-24)
SN# 0W461976 & Below -
2311-859116 NUT, (.437-20)
SN# 0W461977 & UpNUT, (.437-20)
SN# 0W461977 & Up -
2311-34933 NUT, (.437-20) Stainless Steel
(SEACORE)NUT, (.437-20) Stainless Steel
(SEACORE) -
2454-818557 CLAMPCLAMP
-
258M0107462 SENDER ASSEMBLY, Trim, Analog
(SmartCraft Series Transom) SN# 2A417473 & BelowSENDER ASSEMBLY, Trim, Analog
(SmartCraft Series Transom) SN# 2A417473 & Below -
258M0095310 SENDER ASSEMBLY, Trim, Digital
SN# 2A417474 & UpSENDER ASSEMBLY, Trim, Digital
SN# 2A417474 & Up -
26831957 RETAINERRETAINER
-
278307973 CONNECTORCONNECTOR
-
2810-45742 SCREW, (.190-32 x .312)SCREW, (.190-32 x .312)
-
2810-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
2954-818557001 CLAMPCLAMP
-
308219971 PIN, Hinge
(High Performance)PIN, Hinge
(High Performance) -
3110-840907 SCREW, (.250-20 x .750)
(High Performance)SCREW, (.250-20 x .750)
(High Performance) -
NS805134A4 ROTOR KIT, Trim Sender
(Magnum Series)ROTOR KIT, Trim Sender
(Magnum Series) -
NS805130A6 SENDER KIT, Dual StationSENDER KIT, Dual Station
