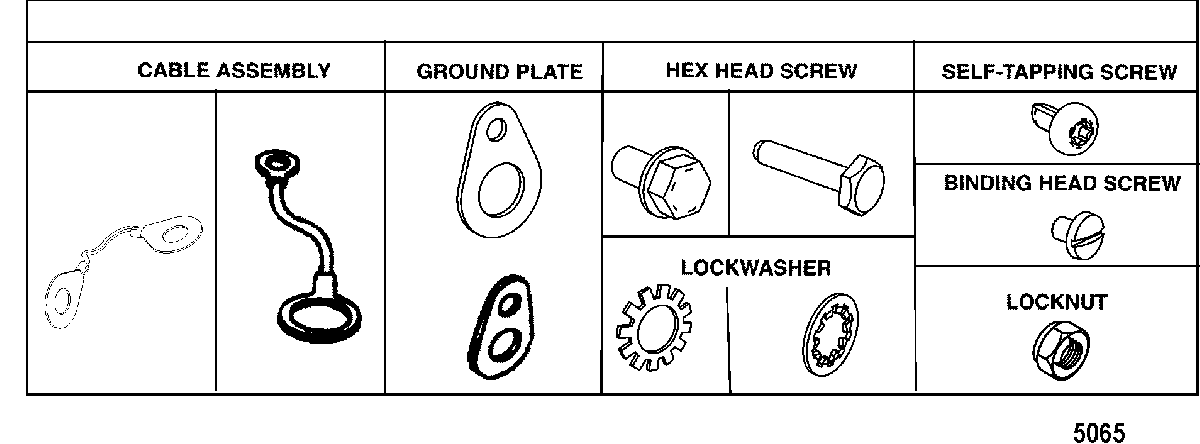

Continuity Kit для Mercruiser - BRAVO TWO 0W250000 & Up
-
№АртикулНазвание
-
-99940A2 CONTINUITY KITCONTINUITY KIT
-
-10-8M0113176 SCREW, (#10-24 x .38)SCREW, (#10-24 x .38)
-
-847062A1 BONDING KITBONDING KIT
-
-10-24231 SCREW, (#10-32 x .250)SCREW, (#10-32 x .250)
-
-10-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
-10-45862 SCREW, (#10-32 x .875)SCREW, (#10-32 x .875)
-
-11-8267086 NUT, (#10-32)NUT, (#10-32)
-
-13-58308 LOCKWASHER, Internal (#10)LOCKWASHER, Internal (#10)
-
-13-78968 LOCKWASHER, Internal (.250)LOCKWASHER, Internal (.250)
-
-10-85486 SCREW, (.250-20 x .380) Stainless SteelSCREW, (.250-20 x .380) Stainless Steel
-
-13-35479 LOCKWASHER, (.375)LOCKWASHER, (.375)
