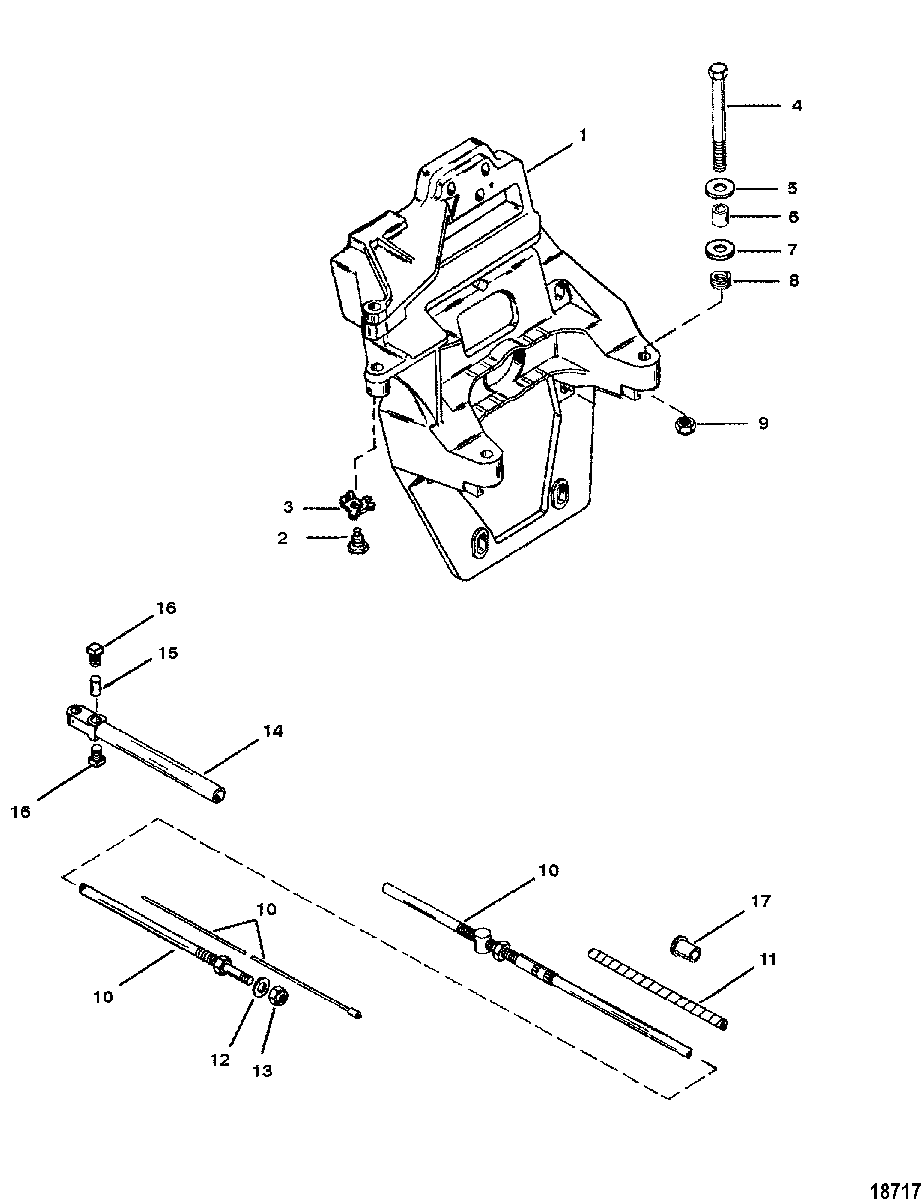

TRANSOM PLATE AND SHIFT CABLE для Mercruiser - BRAVO TWO 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • 1
    8M0138839 PLATE ASSEMBLY, Transom
    PLATE ASSEMBLY, Transom
  • 2
    10-8M0113173 BOLT
    BOLT
  • 3
    14-42254 WASHER
    WASHER
  • 4
    10-97934 SCREW, (.500-20 x 5.370) Special
    SCREW, (.500-20 x 5.370) Special
  • 5
    12-35777 WASHER, (.5156 x 1.375 x .125) Aluminum
    WASHER, (.5156 x 1.375 x .125) Aluminum
  • 6
    23-99299 SPACER, (.520 x .870 x .630)
    SPACER, (.520 x .870 x .630)
  • 7
    12-32834 WASHER, (.9375 x 1.750 x .172)
    WASHER, (.9375 x 1.750 x .172)
  • 8
    13-33734 LOCKWASHER, (.500)
    LOCKWASHER, (.500)
  • 9
    11-863332 NUT, (.500-20)
    NUT, (.500-20)
  • 10
    865437A02 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 11
    90412 WRAPPING, (1.16 Feet Bulk)
    WRAPPING, (1.16 Feet Bulk)
  • 12
    12-815472 WASHER
    WASHER
  • 13
    11-49910 NUT, (.375-24)
    NUT, (.375-24)
  • -
    43433A01 GUIDE KIT
    GUIDE KIT
  • 14
    43433 GUIDE
    GUIDE
  • 15
    43436 ANCHOR
    ANCHOR
  • 16
    10-20518 SET SCREW, (#8-32)
    SET SCREW, (#8-32)
  • 17
    14705 INSERT
    INSERT
