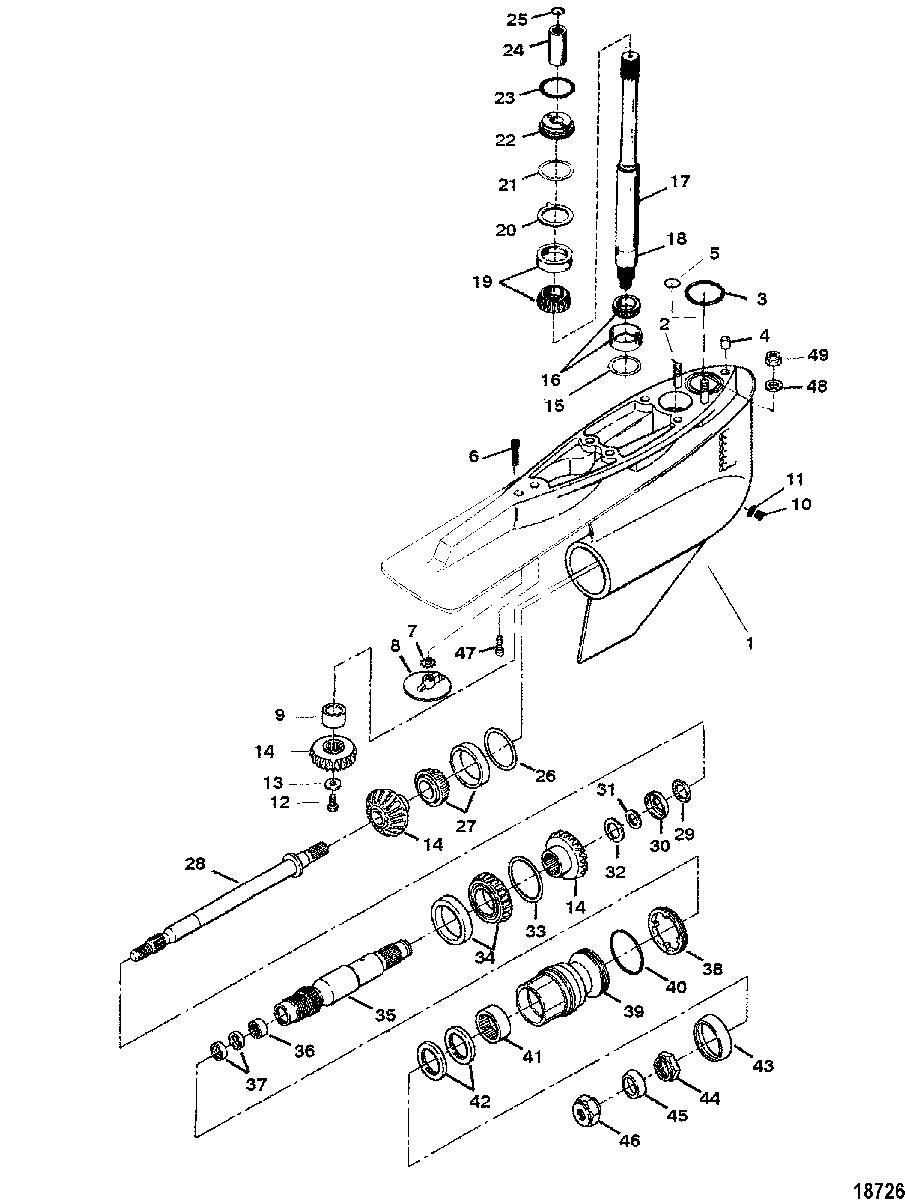

GEAR HOUSING(BRAVO III)(ONE PIECE HOUSING) для Mercruiser - BRAVO TWO 0F730000 THRU 0M100000
-
№АртикулНазвание
-
-1656-8M0046733 GEAR HOUSING ASSEMBLY (1.36:1 - 1.50:1 Ratio)GEAR HOUSING ASSEMBLY (1.36:1 - 1.50:1 Ratio)
-
-1656-8M0046735 GEAR HOUSING ASSEMBLY (1.65:1 Ratio)GEAR HOUSING ASSEMBLY (1.65:1 Ratio)
-
-1656-8M0046738 GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio)
-
-1656-8M0046682 GEAR HOUSING ASSEMBLY (2.43:1 Ratio)GEAR HOUSING ASSEMBLY (2.43:1 Ratio)
-
11656-8M0046683 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
526-455771 SEALSEAL
-
610-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
713-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
897-76214Q5 ANODE KITANODE KIT
-
931-86754T BEARING, RollerBEARING, Roller
-
1022-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1112-191833 WASHER, FiberWASHER, Fiber
-
1210-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1312-805068 WASHERWASHER
-
1443-805448A1 GEAR SET, (15/19) (1.36:1 - 1.50:1 Ratio)GEAR SET, (15/19) (1.36:1 - 1.50:1 Ratio)
-
1443-824517A1 GEAR SET, (18/25) (1.65:1 Ratio)GEAR SET, (18/25) (1.65:1 Ratio)
-
1443-822535A1 GEAR SET, (16/27) (1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR SET, (16/27) (1.81:1 - 2.00:1 - 2.20:1 Ratio)
-
1443-828336A1 GEAR SET, (13/24) (2.43:1 Ratio)GEAR SET, (13/24) (2.43:1 Ratio)
-
1515-92914A1 SHIM KITSHIM KIT
-
1631-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1745-858517A3 DRIVESHAFTDRIVESHAFT
-
1831-815901 RACE, BearingRACE, Bearing
-
1931-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2014-86739 TAB WASHERTAB WASHER
-
2115-86749A1 SHIM KITSHIM KIT
-
2223-8M0046302 SPACERSPACER
-
2325-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
2488243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2553-88242 RING, RetainingRING, Retaining
-
2615-87157A1 SHIM KITSHIM KIT
-
2731-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2844-865322T PROPELLER SHAFT (INNER)PROPELLER SHAFT (INNER)
-
2931-805322 BEARING, Caged RollerBEARING, Caged Roller
-
3023-8050721 BUSHINGBUSHING
-
3115-805627A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3253-8M2012170 RING, RetainingRING, Retaining
-
3315-805078A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3431-8M0103477 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3544-865315A02 PROPELLER SHAFT (OUTER)PROPELLER SHAFT (OUTER)
-
3631-57410 BEARING, RollerBEARING, Roller
-
3726-8M0033407 SEAL, OilSEAL, Oil
-
388M2013382 RETAINERRETAINER
-
39865876A01 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
4025-805331 O-RINGO-RING
-
4131-805079T BEARING, RollerBEARING, Roller
-
4226-861694 SEAL, OilSEAL, Oil
-
43805100 THRUST HUB (FRONT)THRUST HUB (FRONT)
-
4411-8M0105210 PROP NUT (FRONT)PROP NUT (FRONT)
-
45805101T THRUST HUB (REAR)THRUST HUB (REAR)
-
4611-862907 PROP NUT (REAR)PROP NUT (REAR)
-
4710-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
4812-861854 WASHERWASHER
-
4911-35053 NUT, (.437-20)NUT, (.437-20)
-
-26-76868A04 SEAL KITSEAL KIT
-
-97-809666A02 PROP NUT/ANODE KIT, AluminumPROP NUT/ANODE KIT, Aluminum
-
-97-809666A03 PROP NUT/ANODE KIT, MagnesiumPROP NUT/ANODE KIT, Magnesium
