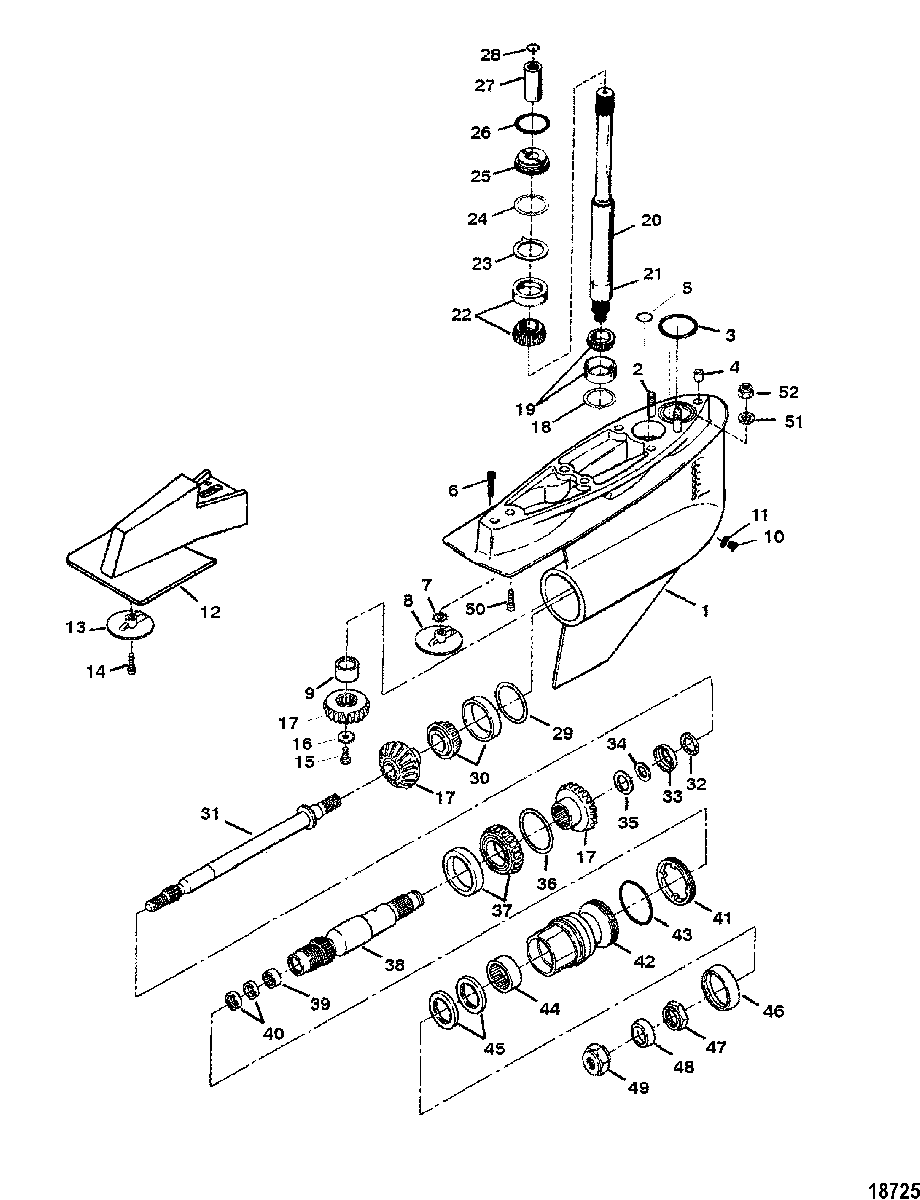

GEAR HOUSING(BRAVO III)(TWO PIECE HOUSING) для Mercruiser - BRAVO TWO 0F730000 THRU 0M100000
-
№АртикулНазвание
-
-1656-8M0046733 GEAR HOUSING ASSEMBLY (1.36:1 - 1.50:1 Ratio)GEAR HOUSING ASSEMBLY (1.36:1 - 1.50:1 Ratio)
-
-1656-8M0046735 GEAR HOUSING ASSEMBLY (1.65:1 Ratio)GEAR HOUSING ASSEMBLY (1.65:1 Ratio)
-
-1656-8M0046738 GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR HOUSING ASSEMBLY (1.81:1 - 2.00:1 - 2.20:1 Ratio)
-
-1656-8M0046682 GEAR HOUSING ASSEMBLY (2.43:1 Ratio)GEAR HOUSING ASSEMBLY (2.43:1 Ratio)
-
11656-8M0046683 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-33465 O-RINGO-RING
-
426-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
526-455771 SEALSEAL
-
610-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
713-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
897-76214Q5 ANODE KITANODE KIT
-
931-86754T BEARING, RollerBEARING, Roller
-
1022-8M0058389 FITTING KIT, Magnetic, Plug Fill/DrainFITTING KIT, Magnetic, Plug Fill/Drain
-
1112-191833 WASHER, FiberWASHER, Fiber
-
12805702A1 PLATE ASSEMBLY, ExtensionPLATE ASSEMBLY, Extension
-
1397-762144 ANODEANODE
-
1410-806327 SCREW, (.437-14 x 1.750)SCREW, (.437-14 x 1.750)
-
1510-34353 SCREW, (.375-16 x 1.00)SCREW, (.375-16 x 1.00)
-
1612-805068 WASHERWASHER
-
1743-805448A1 GEAR SET, (15/19) (1.36:1 - 1.50:1 Ratio)GEAR SET, (15/19) (1.36:1 - 1.50:1 Ratio)
-
1743-824517A1 GEAR SET, (18/25) (1.65:1 Ratio)GEAR SET, (18/25) (1.65:1 Ratio)
-
1743-822535A1 GEAR SET, (16/27) (1.81:1 - 2.00:1 - 2.20:1 Ratio)GEAR SET, (16/27) (1.81:1 - 2.00:1 - 2.20:1 Ratio)
-
1743-828336A1 GEAR SET, (13/24) (2.43:1 Ratio)GEAR SET, (13/24) (2.43:1 Ratio)
-
1815-92914A1 SHIM KITSHIM KIT
-
1931-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2045-858517A3 DRIVESHAFTDRIVESHAFT
-
2131-815901 RACE, BearingRACE, Bearing
-
2231-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2314-86739 TAB WASHERTAB WASHER
-
2415-86749A1 SHIM KITSHIM KIT
-
2523-8M0046302 SPACERSPACER
-
2625-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
2788243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2853-88242 RING, RetainingRING, Retaining
-
2915-87157A1 SHIM KITSHIM KIT
-
3031-8M0103471 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3144-865322T PROPELLER SHAFT (INNER)PROPELLER SHAFT (INNER)
-
3231-805322 BEARING, Caged RollerBEARING, Caged Roller
-
3323-8050721 BUSHINGBUSHING
-
3415-805627A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3553-8M2012170 RING, RetainingRING, Retaining
-
3615-805078A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
3731-8M0103477 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
3844-865315A02 PROPELLER SHAFT (OUTER)PROPELLER SHAFT (OUTER)
-
3931-57410 BEARING, RollerBEARING, Roller
-
4026-8M0033407 SEAL, OilSEAL, Oil
-
418M2013382 RETAINERRETAINER
-
42865876A01 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
4325-805331 O-RINGO-RING
-
4431-805079T BEARING, RollerBEARING, Roller
-
4526-861694 SEAL, OilSEAL, Oil
-
46805100 THRUST HUB (FRONT)THRUST HUB (FRONT)
-
4711-8M0105210 PROP NUT (FRONT)PROP NUT (FRONT)
-
48805101T THRUST HUB (REAR)THRUST HUB (REAR)
-
4911-862907 PROP NUT (REAR)PROP NUT (REAR)
-
5010-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
5112-861854 WASHERWASHER
-
5211-35053 NUT, (.437-20)NUT, (.437-20)
-
-26-76868A04 SEAL KITSEAL KIT
-
-97-809666A02 PROP NUT/ANODE KIT, AluminumPROP NUT/ANODE KIT, Aluminum
-
-97-809666A03 PROP NUT/ANODE KIT, MagnesiumPROP NUT/ANODE KIT, Magnesium
