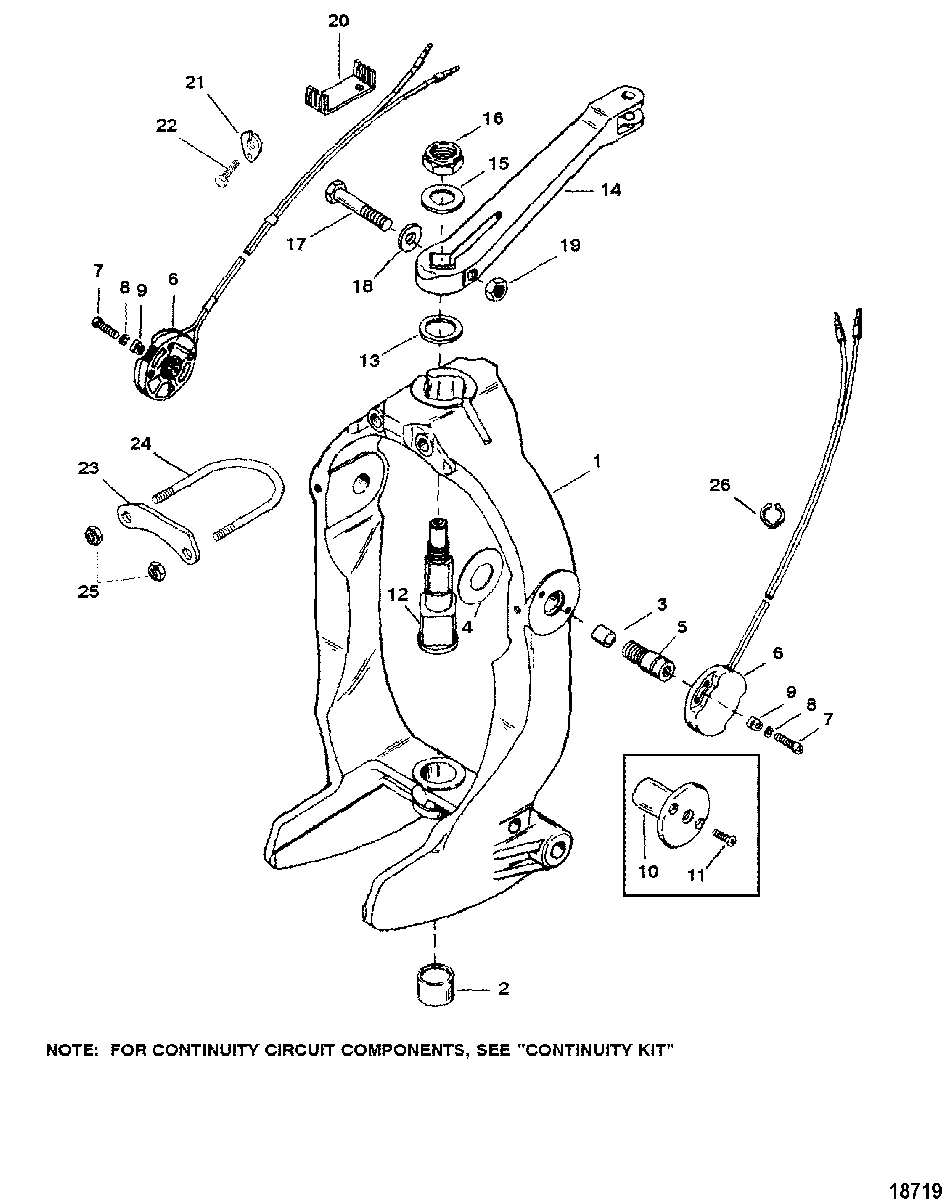

GIMBAL RING AND STEERING LEVER для Mercruiser - BRAVO TWO 0F730000 THRU 0M100000
-
№АртикулНазвание
-
18M0062440 GIMBAL RING ASSEMBLY
(FOR USE WITH TRIM SENDERS)GIMBAL RING ASSEMBLY
(FOR USE WITH TRIM SENDERS) -
223-847638 BUSHING, Use With Magnum Gimbal Ring
(FOR USE WITH TRIM SENDERS)BUSHING, Use With Magnum Gimbal Ring
(FOR USE WITH TRIM SENDERS) -
223-99352 BEARING, Use With Standard Gimbal Ring
(FOR USE WITH TRIM SENDERS)BEARING, Use With Standard Gimbal Ring
(FOR USE WITH TRIM SENDERS) -
323-847637 BUSHING
(FOR USE WITH TRIM SENDERS)BUSHING
(FOR USE WITH TRIM SENDERS) -
412-41721 WASHER
(FOR USE WITH TRIM SENDERS)WASHER
(FOR USE WITH TRIM SENDERS) -
510-86801 SCREW, Hinge Pin
(FOR USE WITH TRIM SENDERS)SCREW, Hinge Pin
(FOR USE WITH TRIM SENDERS) -
6805320A03 SWITCH ASSEMBLY
(FOR USE WITH TRIM SENDERS)SWITCH ASSEMBLY
(FOR USE WITH TRIM SENDERS) -
NS805134A4 ROTOR KIT
(FOR USE WITH TRIM SENDERS)ROTOR KIT
(FOR USE WITH TRIM SENDERS) -
710-37978 SCREW, (#10-32 x .750) Stainless Steel
(FOR USE WITH TRIM SENDERS)SCREW, (#10-32 x .750) Stainless Steel
(FOR USE WITH TRIM SENDERS) -
813-26996 LOCKWASHER, (#10) Stainless Steel
(FOR USE WITH TRIM SENDERS)LOCKWASHER, (#10) Stainless Steel
(FOR USE WITH TRIM SENDERS) -
957008 RETAINER
(FOR USE WITH TRIM SENDERS)RETAINER
(FOR USE WITH TRIM SENDERS) -
1822374A17 GIMBAL RING ASSEMBLY
(HI PERFORMANCE) (FOR USE WITHOUT TRIM SENDERS)GIMBAL RING ASSEMBLY
(HI PERFORMANCE) (FOR USE WITHOUT TRIM SENDERS) -
223-847638 BUSHING
(FOR USE WITHOUT TRIM SENDERS)BUSHING
(FOR USE WITHOUT TRIM SENDERS) -
412-41721 WASHER
(FOR USE WITHOUT TRIM SENDERS)WASHER
(FOR USE WITHOUT TRIM SENDERS) -
10821997 PIN, Hinge
(FOR USE WITHOUT TRIM SENDERS)PIN, Hinge
(FOR USE WITHOUT TRIM SENDERS) -
1110-821579 SCREW, (#10-24 x .500)
(FOR USE WITHOUT TRIM SENDERS)SCREW, (#10-24 x .500)
(FOR USE WITHOUT TRIM SENDERS) -
1298230A1 SHAFT ASSEMBLY, UpperSHAFT ASSEMBLY, Upper
-
1312-98548 WASHER, (1.125 )WASHER, (1.125 )
-
14866322A01 LEVER ASSEMBLYLEVER ASSEMBLY
-
1512-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
1611-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
1710-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
1812-861854 WASHERWASHER
-
1911-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
2079146 RETAINERRETAINER
-
2154-12078 CLAMPCLAMP
-
2210-28635 SCREW, (.250-20 x .620) Stainless SteelSCREW, (.250-20 x .620) Stainless Steel
-
23816510T BRACKETBRACKET
-
2410-805164 U BOLTU BOLT
-
2511-862903 NUT, (.375-24)NUT, (.375-24)
-
2654-818557 CLAMPCLAMP
-
-805130A6 SENDER KIT, Dual StationSENDER KIT, Dual Station
