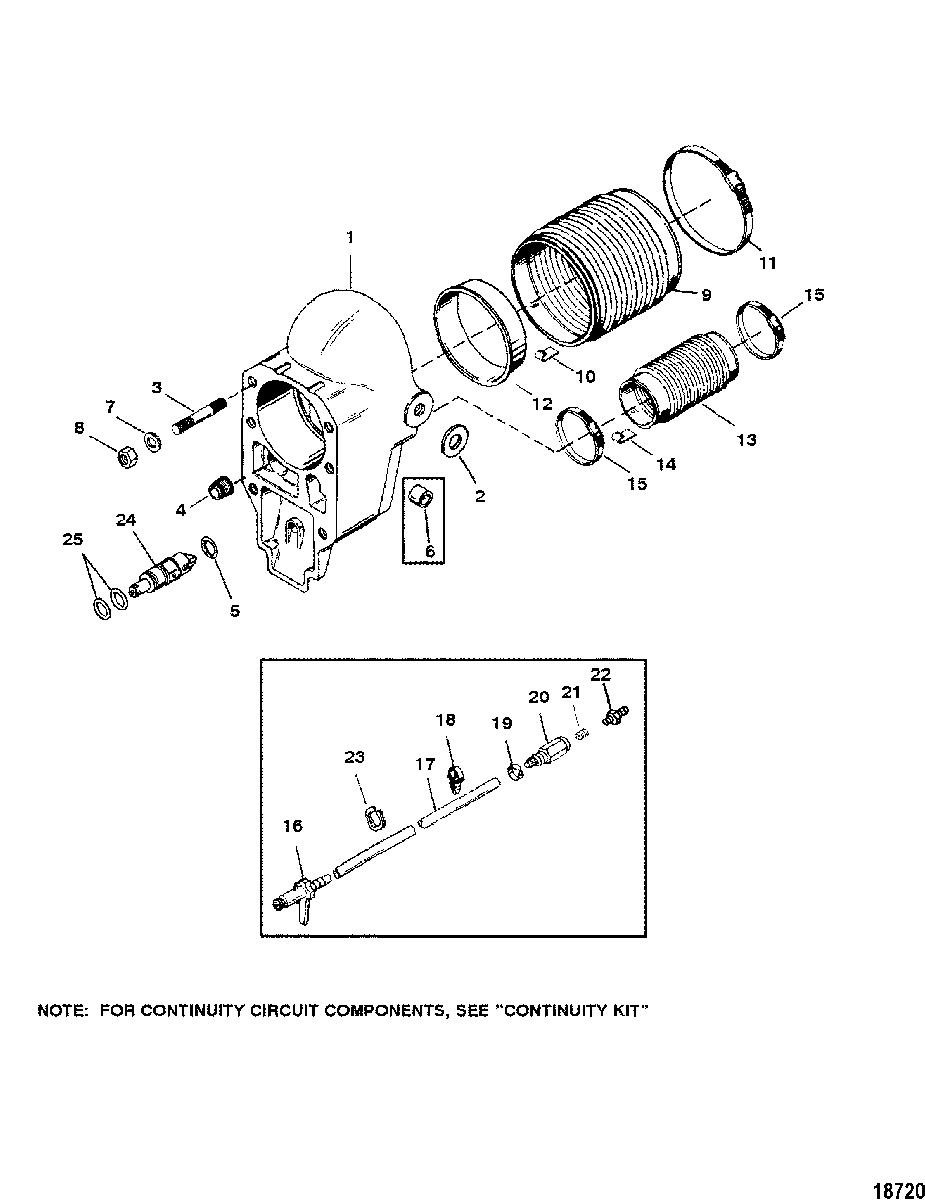

BELL HOUSING для Mercruiser - BRAVO TWO 0F730000 THRU 0M100000

  • №
    Артикул
    Название
  • 1
    41646A9 BELL HOUSING ASSEMBLY
    (USE WITH TRIM SENDERS)
    BELL HOUSING ASSEMBLY
    (USE WITH TRIM SENDERS)
  • 1
    41646A11 BELL HOUSING ASSEMBLY
    (USE WITHOUT TRIM SENDERS)
    BELL HOUSING ASSEMBLY
    (USE WITHOUT TRIM SENDERS)
  • 2
    12-806241 WASHER
    (USE WITH TRIM SENDERS)
    WASHER
    (USE WITH TRIM SENDERS)
  • 3
    16-59579 STUD, (.437-14/.437-20 x 2.812)
    STUD, (.437-14/.437-20 x 2.812)
  • 4
    41674T INSERT
    INSERT
  • 5
    25-62705 O-RING
    O-RING
  • 6
    23-847637 BUSHING
    (USE WITHOUT TRIM SENDERS)
    BUSHING
    (USE WITHOUT TRIM SENDERS)
  • 7
    12-35935 WASHER, (.435 x .875 x .105) Stainless Steel
    WASHER, (.435 x .875 x .105) Stainless Steel
  • 8
    11-859116 NUT, (.4375-20)
    NUT, (.4375-20)
  • 9
    8M0062406 BELLOWS ASSEMBLY
    BELLOWS ASSEMBLY
  • 10
    54-8M0126505 CLIP, Grounding
    CLIP, Grounding
  • 11
    54-815504372 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 12
    862209 SLEEVE
    SLEEVE
  • 13
    18654A1 BELLOWS ASSEMBLY
    BELLOWS ASSEMBLY
  • 13
    78458A1 TUBE
    TUBE
  • 14
    54-8M0126505 CLIP, Grounding
    CLIP, Grounding
  • 15
    54-815504348 CLAMP, Worm Gear
    CLAMP, Worm Gear
  • 16
    815303T ADAPTOR
    ADAPTOR
  • 17
    32-5495025 TUBING, (25.00 Feet Bulk)
    TUBING, (25.00 Feet Bulk)
  • 18
    54-12994 CLIP
    CLIP
  • 19
    865261 CLAMP
    CLAMP
  • 20
    865261 FITTING ASSEMBLY
    FITTING ASSEMBLY
  • 21
    22-56800 PLUG, Pipe (.0625-27)
    PLUG, Pipe (.0625-27)
  • 22
    22-814382 CONNECTOR
    CONNECTOR
  • 23
    54-818557 CLAMP
    CLAMP
  • 24
    18920A1 VALVE ASSEMBLY
    (USE WITH OIL RESERVOIR)
    VALVE ASSEMBLY
    (USE WITH OIL RESERVOIR)
  • 25
    25-48171 O-RING, (.364. x .070)
    (USE WITH OIL RESERVOIR)
    O-RING, (.364. x .070)
    (USE WITH OIL RESERVOIR)
