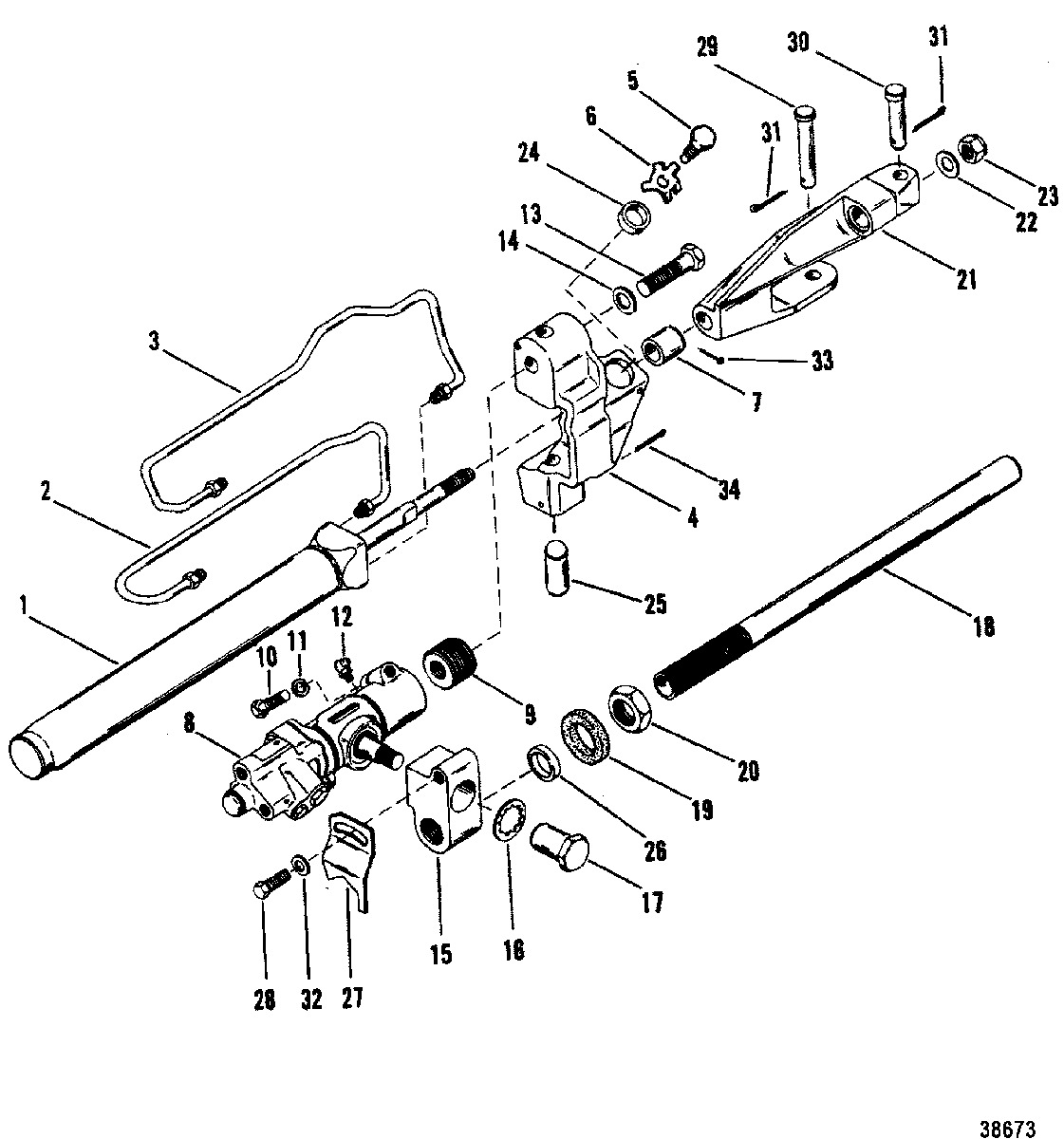

POWER STEERING COMPONENTS(OLD DESIGN) для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
157969A12 CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT)CYLINDER ASSEMBLY, Booster (25-58224A1 SEAL REPAIR KIT)
-
232-92054 TUBE, ExtendingTUBE, Extending
-
332-92055 TUBE, RetractingTUBE, Retracting
-
494953A1 BRACKET ASSEMBLYBRACKET ASSEMBLY
-
510-8M0113173 BOLTBOLT
-
614-42254 WASHERWASHER
-
723-88282 SLEEVESLEEVE
-
8816458A1 VALVE ASSEMBLY (25-58226A1 SEAL REPAIR KIT)VALVE ASSEMBLY (25-58226A1 SEAL REPAIR KIT)
-
988280 ADAPTORADAPTOR
-
1010-37612 SCREW, (.375-16 x 1.250)SCREW, (.375-16 x 1.250)
-
1 113-35048 LOCKWASHER, (.375)LOCKWASHER, (.375)
-
1222-67305 FITTING, GreaseFITTING, Grease
-
1310-88281 SCREW, (.500-20 x 1.750)SCREW, (.500-20 x 1.750)
-
1412-20959 WASHERWASHER
-
1588285 ADAPTORADAPTOR
-
1613-76629 LOCKWASHER, Internal Tooth (.750)LOCKWASHER, Internal Tooth (.750)
-
1711-55111 NUTNUT
-
1896511 TUBE ASSEMBLY, SteeringTUBE ASSEMBLY, Steering
-
1988287 GUIDEGUIDE
-
2011-32882 NUT, (.875-14)NUT, (.875-14)
-
2195848A1 CLEVIS ASSEMBLYCLEVIS ASSEMBLY
-
2212-20086 WASHER, (.390 x .620 x .060)WASHER, (.390 x .620 x .060)
-
2311-53300 NUT, (.375-24)NUT, (.375-24)
-
2423-95803 BUSHINGBUSHING
-
2517-88283 PIN, RetainingPIN, Retaining
-
2623-88286 BUSHINGBUSHING
-
2792766 LOCKLOCK
-
2810-41209 SCREWSCREW
-
2917-89229 PIN, ClevisPIN, Clevis
-
3017-52798 PIN, ClevisPIN, Clevis
-
3118-46950 COTTER PINCOTTER PIN
-
3212-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
3318-34212 COTTER PINCOTTER PIN
-
348M0063381 ACTUATOR ASSEMBLY, Power SteeringACTUATOR ASSEMBLY, Power Steering
