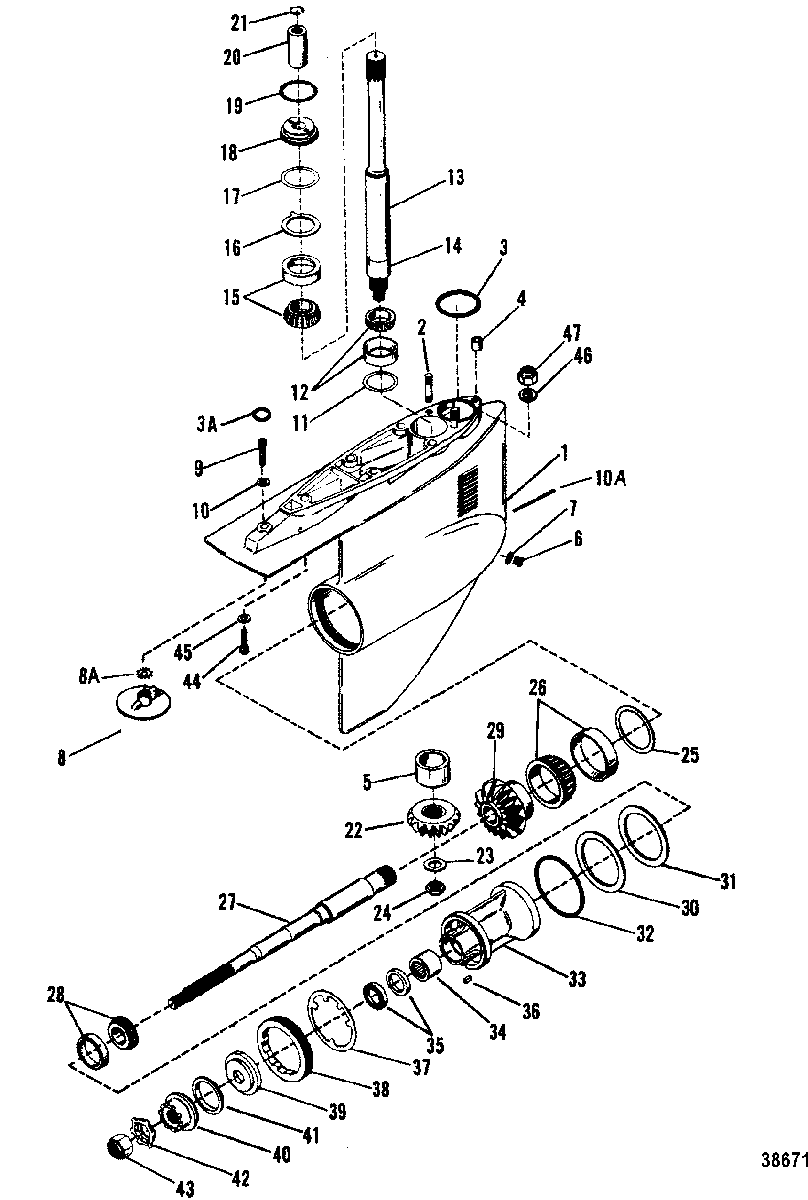

GEAR HOUSING(BRAVO II) для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
--1641-8294A7 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
--1641-8294A16 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
11641-8294A18 GEAR HOUSING ASSEMBLY (CASTING #1641-8293C)GEAR HOUSING ASSEMBLY (CASTING #1641-8293C)
-
11641-8294A9 GEAR HOUSING ASSEMBLY (CASTING #1641-8293C1 OR C2S)GEAR HOUSING ASSEMBLY (CASTING #1641-8293C1 OR C2S)
-
11641-8294A14 GEAR HOUSING ASSEMBLY (CASTING #1641-8293C2)GEAR HOUSING ASSEMBLY (CASTING #1641-8293C2)
-
216-8M0133358 STUD, (.437-14/.437-20 x 2.060)STUD, (.437-14/.437-20 x 2.060)
-
325-822370 O-RING, (2.362 x .103)O-RING, (2.362 x .103)
-
3A26-455771 SEALSEAL
-
426-36556 SEAL, (.500 Inch Outside Diameter)SEAL, (.500 Inch Outside Diameter)
-
426-805344 SEAL, (.625 Outside Diameter)SEAL, (.625 Outside Diameter)
-
531-35246 BEARING, RollerBEARING, Roller
-
531-86754T BEARING, RollerBEARING, Roller
-
622-8M0058389 SCREWSCREW
-
712-191833 WASHER, FiberWASHER, Fiber
-
897-76214Q5 TRIM TAB ASSEMBLYTRIM TAB ASSEMBLY
-
8A13-806210 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
910-90084 SCREW, (.437-14 x 1.500)SCREW, (.437-14 x 1.500)
-
1012-861854 WASHERWASHER
-
10A23-850186 TUBETUBE
-
1115-92914A1 SHIM KITSHIM KIT
-
1231-8M0103470 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1345-812561A3 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1495795 RING, BearingRING, Bearing
-
1345-888434A1 DRIVESHAFT ASSEMBLYDRIVESHAFT ASSEMBLY
-
1431-815901 RACE, BearingRACE, Bearing
-
1531-8M0103473 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
1614-86739 TAB WASHERTAB WASHER
-
1715-86749A1 SHIM KITSHIM KIT
-
1823-8M0046302 SPACERSPACER
-
1925-20826 O-RING, (2.230 x .139)O-RING, (2.230 x .139)
-
2088243A3 COUPLING ASSEMBLYCOUPLING ASSEMBLY
-
2153-88242 RING, RetainingRING, Retaining
-
2243-41656T GEAR, Pinion (16 TEETH)GEAR, Pinion (16 TEETH)
-
2312-86746 WASHERWASHER
-
2411-20739 NUT, (.750-16)NUT, (.750-16)
-
2515-55499A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
2631-8M0103475 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2744-62820T1 PROPELLER SHAFTPROPELLER SHAFT
-
2831-8M0103474 BEARING ASSEMBLY, Tapered RollerBEARING ASSEMBLY, Tapered Roller
-
2943-41657T GEAR, DRIVE (27 TEETH)GEAR, DRIVE (27 TEETH)
-
3066103A1 THRUST RING ASSEMBLYTHRUST RING ASSEMBLY
-
3123-66093T RING, LoadRING, Load
-
3225-34821 O-RINGO-RING
-
33863913A04 CARRIER ASSEMBLY, BearingCARRIER ASSEMBLY, Bearing
-
3431-54042T BEARING, RollerBEARING, Roller
-
3526-814242 SEAL, Oil, Fish-Line CutterSEAL, Oil, Fish-Line Cutter
-
3526-821092 SEAL, OilSEAL, Oil
-
3628-30281 KEYKEY
-
3714-54167 TAB WASHERTAB WASHER
-
3854163 RETAINERRETAINER
-
3955074T THRUST HUBTHRUST HUB
-
4012-55073A2 WASHER ASSEMBLYWASHER ASSEMBLY
-
4112-55072 WASHERWASHER
-
4214-34817 TAB WASHERTAB WASHER
-
4311-82671127 NUT, (1.0-14)NUT, (1.0-14)
-
4410-90085 SCREW, (.4375-14 x 2.75)SCREW, (.4375-14 x 2.75)
-
4513-47659 LOCKWASHER, (.437)LOCKWASHER, (.437)
-
4612-861854 WASHERWASHER
-
4711-35053 NUT, (.437-20)NUT, (.437-20)
-
4826-76868A04 SEAL KITSEAL KIT
