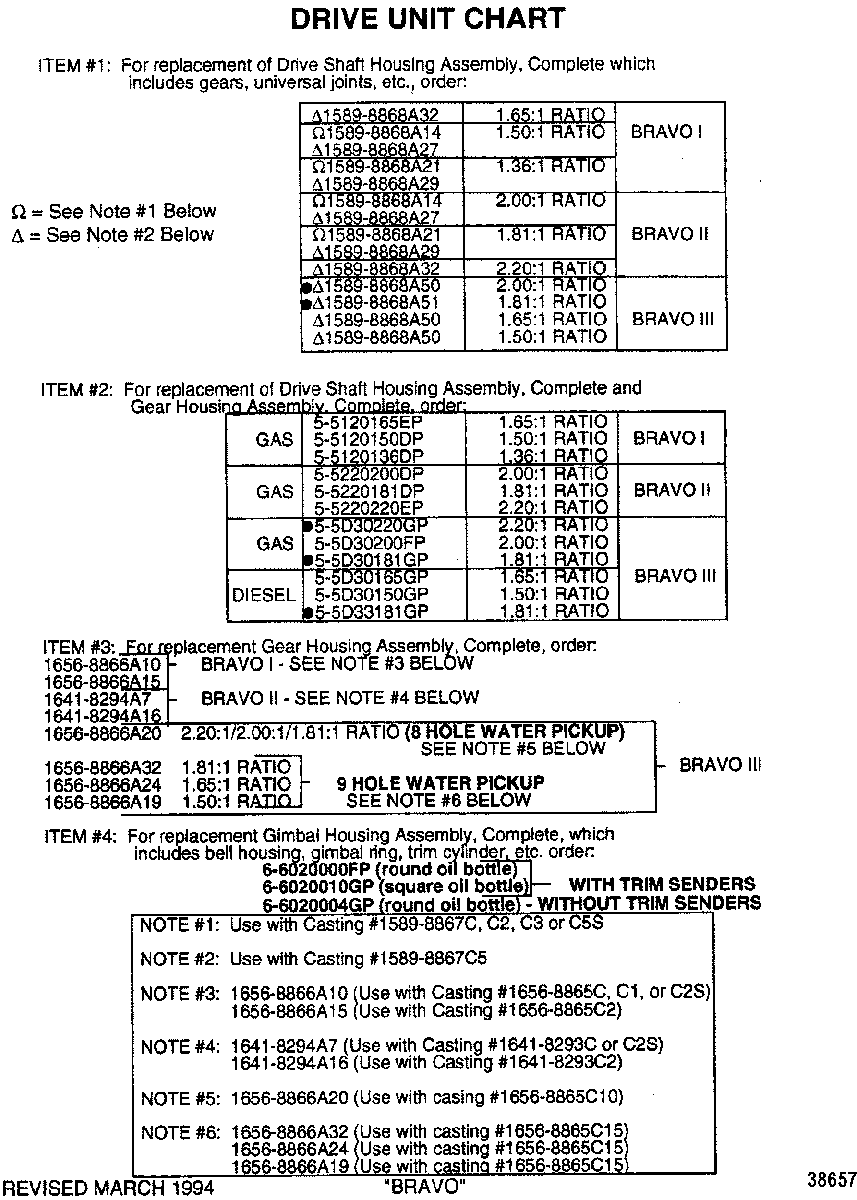

DRIVE UNIT CHART для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
-1589-863836A52 HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio)
(BRAVO I)HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio)
(BRAVO I) -
-1589-861856A01 HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio)
(BRAVO I)HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio)
(BRAVO I) -
-1589-863836A51 HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio)
(BRAVO I)HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio)
(BRAVO I) -
-1589-8868G3 HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio)
(BRAVO I)HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio)
(BRAVO I) -
-1589-863836A50 HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio)
(BRAVO I)HOUSING ASSEMBLY, Driveshaft (1.36:1 Ratio)
(BRAVO I) -
-1589-861856A01 HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio)
(BRAVO II)HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio)
(BRAVO II) -
-1589-863836A51 HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio)
(BRAVO II)HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio)
(BRAVO II) -
-1589-8868G3 HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio)
(BRAVO II)HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio)
(BRAVO II) -
-1589-863836A50 HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio)
(BRAVO II)HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio)
(BRAVO II) -
-1589-863836A52 HOUSING ASSEMBLY, Driveshaft (2.20:1 Ratio)
(BRAVO II)HOUSING ASSEMBLY, Driveshaft (2.20:1 Ratio)
(BRAVO II) -
-1589-863836A51 HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio)
(BRAVO III)HOUSING ASSEMBLY, Driveshaft (2.00:1 Ratio)
(BRAVO III) -
-1589-863836A50 HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio)
(BRAVO III)HOUSING ASSEMBLY, Driveshaft (1.81:1 Ratio)
(BRAVO III) -
-1589-863836A51 HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio)
(BRAVO III)HOUSING ASSEMBLY, Driveshaft (1.65:1 Ratio)
(BRAVO III) -
-1589-863836A51 HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio)
(BRAVO III)HOUSING ASSEMBLY, Driveshaft (1.50:1 Ratio)
(BRAVO III) -
-5120165EP DRIVESHAFT/GEAR HSG (1.65:1 Ratio)
(BRAVO 1) (GAS)DRIVESHAFT/GEAR HSG (1.65:1 Ratio)
(BRAVO 1) (GAS) -
-5120150DP DRIVESHAFT/GEAR HSG (1.50:1 Ratio)
(BRAVO I) (GAS)DRIVESHAFT/GEAR HSG (1.50:1 Ratio)
(BRAVO I) (GAS) -
-5120136DP DRIVESHAFT/GEAR HSG (1.36:1 Ratio)
(BRAVO I) (GAS)DRIVESHAFT/GEAR HSG (1.36:1 Ratio)
(BRAVO I) (GAS) -
-5220200DP END MODEL, BRAVO STERN DRIVE (2.00:1 Ratio)
(BRAVO II) (GAS)END MODEL, BRAVO STERN DRIVE (2.00:1 Ratio)
(BRAVO II) (GAS) -
-5220181DP END MODEL, BRAVO STERN DRIVE (1.81:1 Ratio)
(BRAVO II) (GAS)END MODEL, BRAVO STERN DRIVE (1.81:1 Ratio)
(BRAVO II) (GAS) -
-5220220EP DRIVESHAFT/GEAR HSG (2.20:1 Ratio)
(BRAVO II) (GAS)DRIVESHAFT/GEAR HSG (2.20:1 Ratio)
(BRAVO II) (GAS) -
-5D30220GP DRIVESHAFT/GEAR HSG (2.20:1 Ratio)
(BRAVO III) (GAS)DRIVESHAFT/GEAR HSG (2.20:1 Ratio)
(BRAVO III) (GAS) -
-5D30200FP DRIVESHAFT/GEAR HSG (2.00:1 Ratio)
(BRAVO III) (GAS)DRIVESHAFT/GEAR HSG (2.00:1 Ratio)
(BRAVO III) (GAS) -
-5D30181GP DRIVESHAFT/GEAR HSG (1.81:1 Ratio)
(BRAVO III) (GAS)DRIVESHAFT/GEAR HSG (1.81:1 Ratio)
(BRAVO III) (GAS) -
-5D30165GP DRIVESHAFT/GEAR HSG (1.65:1 Ratio)
(BRAVO III) (DIESEL)DRIVESHAFT/GEAR HSG (1.65:1 Ratio)
(BRAVO III) (DIESEL) -
-5D30150GP DRIVESHAFT/GEAR HSG (1.50:1 Ratio)
(BRAVO III) (DIESEL)DRIVESHAFT/GEAR HSG (1.50:1 Ratio)
(BRAVO III) (DIESEL) -
-5D33181GP DRIVESHAFT/GEAR HSG (1.81:1 Ratio)
(BRAVO III) (DIESEL)DRIVESHAFT/GEAR HSG (1.81:1 Ratio)
(BRAVO III) (DIESEL) -
-1656-8866A10 GEAR HOUSING ASSEMBLY
(BRAVO I)GEAR HOUSING ASSEMBLY
(BRAVO I) -
-1656-8866A63 GEAR HOUSING ASSEMBLY
(BRAVO I)GEAR HOUSING ASSEMBLY
(BRAVO I) -
-1641-8294A7 GEAR HOUSING ASSEMBLY
(BRAVO II)GEAR HOUSING ASSEMBLY
(BRAVO II) -
-1641-8294A16 GEAR HOUSING ASSEMBLY
(BRAVO II)GEAR HOUSING ASSEMBLY
(BRAVO II) -
-1656-8M0046738 GEAR HOUSING ASSEMBLY, 8 Hole Water Pickup (2.20:1/2.00:1/1.81:1 Ratio)
(BRAVO III)GEAR HOUSING ASSEMBLY, 8 Hole Water Pickup (2.20:1/2.00:1/1.81:1 Ratio)
(BRAVO III) -
-1656-8M0046738 GEAR HSG, 9 Hole Water Pickup (1.81:1)
(BRAVO III)GEAR HSG, 9 Hole Water Pickup (1.81:1)
(BRAVO III) -
-1656-8M0046735 GEAR HSG, 9 Hole Water Pickup (1.65:1 Ratio) Use with Casting #1656-8865C15
(BRAVO III)GEAR HSG, 9 Hole Water Pickup (1.65:1 Ratio) Use with Casting #1656-8865C15
(BRAVO III) -
-1656-8M0046733 GEAR HSG, 9 Hole Water Pickup (1.50:1 Ratio)
(BRAVO III)GEAR HSG, 9 Hole Water Pickup (1.50:1 Ratio)
(BRAVO III) -
-6020000FP GIMBAL HSG, Round Oil Bottle With Trim SendersGIMBAL HSG, Round Oil Bottle With Trim Senders
-
-6020010GP GIMBAL HSG, Square Bottle With Trim SendersGIMBAL HSG, Square Bottle With Trim Senders
-
-6020004GP GIMBAL HSG, Round Oil Bottle Without Trim SendersGIMBAL HSG, Round Oil Bottle Without Trim Senders
