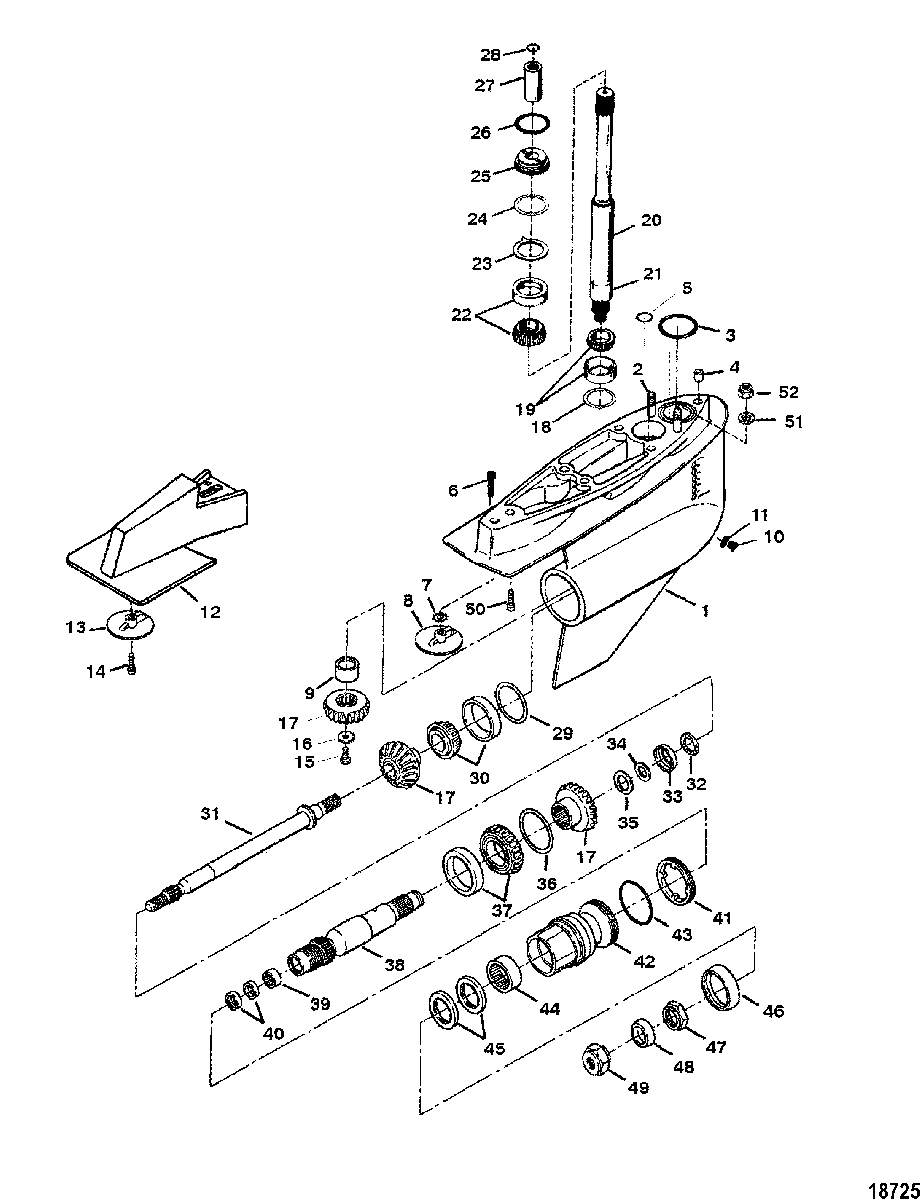

GEAR HOUSING(BRAVO III) для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999

№

Артикул

Название
--

1656-8M0046738 GEAR HOUSING ASSEMBLY
(GAS)

GEAR HOUSING ASSEMBLY
(GAS)
--

1656-8M0046738 GEAR HSG (1.8:1 Ratio)
(DIESEL)

GEAR HSG (1.8:1 Ratio)
(DIESEL)
--

1656-8M0046735 GEAR HSG (1.65:1 Ratio)
(DIESEL)

GEAR HSG (1.65:1 Ratio)
(DIESEL)
--

1656-8M0046733 GEAR HSG (1.50:1 Ratio)
(DIESEL)

GEAR HSG (1.50:1 Ratio)
(DIESEL)
1

1656-8M0046683 GEAR HOUSING ASSEMBLY, 8 Hole Water Pick-Up

GEAR HOUSING ASSEMBLY, 8 Hole Water Pick-Up
1

1656-8M0046683 GEAR HOUSING ASSEMBLY, 9 Hole Water Pick-Up

GEAR HOUSING ASSEMBLY, 9 Hole Water Pick-Up
2

16-8M0133358 STUD, (.437-14/.437-20 x 2.060)

STUD, (.437-14/.437-20 x 2.060)
3

25-822370 O-RING, (2.362 x .103)

O-RING, (2.362 x .103)
4

26-805344 SEAL, (.625 Outside Diameter)

SEAL, (.625 Outside Diameter)
5

26-455771 SEAL

SEAL
6

10-806327 SCREW, (.437-14 x 1.750)

SCREW, (.437-14 x 1.750)
7

13-806210 LOCKWASHER, (.437)

LOCKWASHER, (.437)
8

97-76214Q5 TRIM TAB ASSEMBLY

TRIM TAB ASSEMBLY
9

31-86754T BEARING, Roller

BEARING, Roller
10

22-8M0058389 SCREW

SCREW
11

12-191833 WASHER, Fiber

WASHER, Fiber
12

805702A1 PLATE ASSEMBLY, Extension

PLATE ASSEMBLY, Extension
13

97-762144 ANODE

ANODE
14

10-806327 SCREW, (.437-14 x 1.750)

SCREW, (.437-14 x 1.750)
15

10-34353 SCREW, (.375-16 x 1.00)

SCREW, (.375-16 x 1.00)
16

12-805068 WASHER

WASHER
17

43-822535A1 GEAR SET, (16/27)
(GAS)

GEAR SET, (16/27)
(GAS)
17

43-822535A1 GEAR SET, (16/27) (1.81:1 Ratio)
(DIESEL)

GEAR SET, (16/27) (1.81:1 Ratio)
(DIESEL)
17

43-824517A1 GEAR SET, (18/25) (1.65:1 Ratio)
(DIESEL)

GEAR SET, (18/25) (1.65:1 Ratio)
(DIESEL)
17

43-805448A1 GEAR SET, (15/19) (1.50:1 Ratio)
(DIESEL)

GEAR SET, (15/19) (1.50:1 Ratio)
(DIESEL)
18

15-92914A1 SHIM KIT

SHIM KIT
19

31-8M0103470 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller
20

45-858517A3 DRIVESHAFT

DRIVESHAFT
21

31-815901 RACE, Bearing

RACE, Bearing
22

31-8M0103473 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller
23

14-86739 TAB WASHER

TAB WASHER
24

15-86749A1 SHIM KIT

SHIM KIT
25

23-8M0046302 SPACER

SPACER
26

25-20826 O-RING, (2.230 x .139)

O-RING, (2.230 x .139)
27

88243A3 COUPLING ASSEMBLY

COUPLING ASSEMBLY
28

53-88242 RING, Retaining

RING, Retaining
29

15-87157A1 SHIM KIT

SHIM KIT
30

31-8M0103471 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller
31

44-865322T PROPELLER SHAFT, Inner

PROPELLER SHAFT, Inner
32

31-805322 BEARING, Caged Roller

BEARING, Caged Roller
33

23-8050721 BUSHING

BUSHING
34

15-805627A1 SHIM ASSEMBLY

SHIM ASSEMBLY
35

53-8M2012170 RING, Retaining

RING, Retaining
36

15-805078A1 SHIM ASSEMBLY

SHIM ASSEMBLY
37

31-8M0103477 BEARING ASSEMBLY, Tapered Roller

BEARING ASSEMBLY, Tapered Roller
38

44-865315A02 PROPELLER SHAFT, Outer

PROPELLER SHAFT, Outer
39

31-57410 BEARING, Roller

BEARING, Roller
40

26-8M0033407 SEAL, Oil

SEAL, Oil
41

8M2013382 RETAINER

RETAINER
42

865876A01 CARRIER ASSEMBLY, Bearing

CARRIER ASSEMBLY, Bearing
43

25-805331 O-RING

O-RING
44

31-805079T BEARING, Roller

BEARING, Roller
45

26-861694 SEAL, Oil

SEAL, Oil
46

805100 THRUST HUB, Front

THRUST HUB, Front
47

11-8M0105210 PROP NUT, Front

PROP NUT, Front
48

805101T THRUST HUB, Rear

THRUST HUB, Rear
49

11-862907 PROP NUT, Rear

PROP NUT, Rear
50

10-90084 SCREW, (.437-14 x 1.500)

SCREW, (.437-14 x 1.500)
51

12-861854 WASHER

WASHER
52

11-35053 NUT, (.437-20)

NUT, (.437-20)
-

26-76868A04 SEAL KIT

SEAL KIT
-

26-16709A2 SEAL KIT

SEAL KIT
-

97-809666A02 PROP NUT/ANODE KIT, Aluminum

PROP NUT/ANODE KIT, Aluminum
-

97-809666A03 PROP NUT/ANODE KIT, Magnesium

PROP NUT/ANODE KIT, Magnesium
