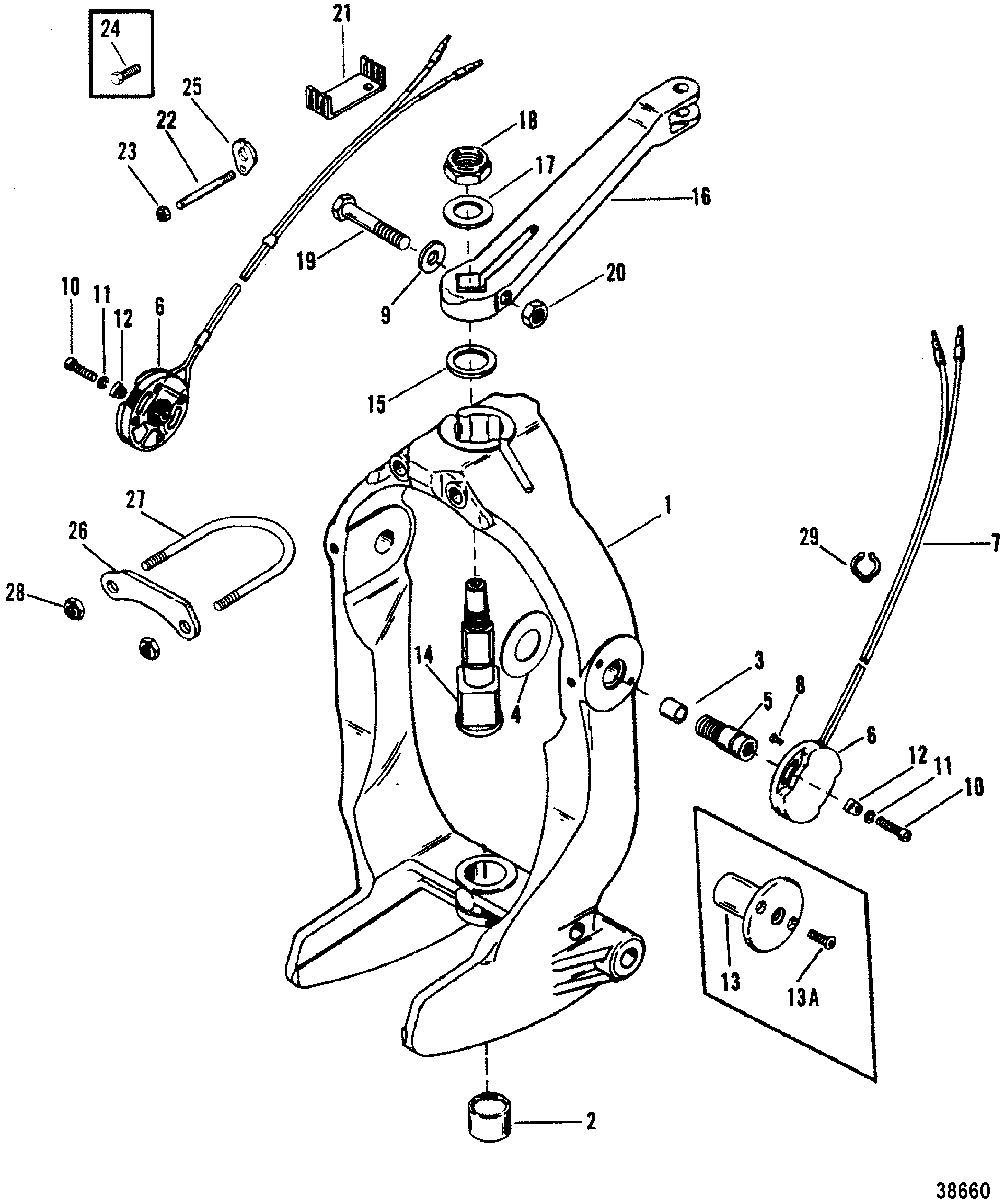

GIMBAL RING AND STEERING LEVER для Mercruiser - BRAVO TWO 0B664190 THRU 0F729999
-
№АртикулНазвание
-
18M0062440 GLMBAL RING ASSEMBLY, For Use With Trim SendersGLMBAL RING ASSEMBLY, For Use With Trim Senders
-
223-99352 BEARING, For Use With Trim SendersBEARING, For Use With Trim Senders
-
323-847637 BUSHING, For Use With Trim SendersBUSHING, For Use With Trim Senders
-
412-41721 WASHER, For Use With Trim SendersWASHER, For Use With Trim Senders
-
510-86801 SCREW, Hinge Pin, For Use With Trim SendersSCREW, Hinge Pin, For Use With Trim Senders
-
664947 SENDER, For Use With Trim Senders
(OLD DESIGN)SENDER, For Use With Trim Senders
(OLD DESIGN) -
784-19216 HARNESS ASSEMBLY, For Use With Trim Senders
(OLD DESIGN)HARNESS ASSEMBLY, For Use With Trim Senders
(OLD DESIGN) -
810-46942 SCREW, (#6-20 x .3125), For Use With Trim Senders
(OLD DESIGN)SCREW, (#6-20 x .3125), For Use With Trim Senders
(OLD DESIGN) -
6805320A03 SWITCH ASSEMBLY, For Use With Trim SendersSWITCH ASSEMBLY, For Use With Trim Senders
-
912-861854 WASHER, For Use With Trim SendersWASHER, For Use With Trim Senders
-
1010-37978 SCREW, (#10-32 x .750) Stainless Steel, For Use With Trim SendersSCREW, (#10-32 x .750) Stainless Steel, For Use With Trim Senders
-
1113-26996 LOCKWASHER, (#10) Stainless Steel, For Use With Trim SendersLOCKWASHER, (#10) Stainless Steel, For Use With Trim Senders
-
1257008 RETAINER, For Use With Trim SendersRETAINER, For Use With Trim Senders
-
1822374A17 GIMBAL RING ASSEMBLY, For Use Without Trim SendersGIMBAL RING ASSEMBLY, For Use Without Trim Senders
-
223-847638 BUSHING, For Use Without Trim SendersBUSHING, For Use Without Trim Senders
-
412-41721 WASHER, For Use Without Trim SendersWASHER, For Use Without Trim Senders
-
13821997 PIN, Hinge, For Use Without Trim SendersPIN, Hinge, For Use Without Trim Senders
-
13A10-821579 SCREW, (#10-24 x .500), For Use Without Trim SendersSCREW, (#10-24 x .500), For Use Without Trim Senders
-
1498230A1 SHAFT ASSEMBLYSHAFT ASSEMBLY
-
1512-98548 WASHER, (1.125 )WASHER, (1.125 )
-
16866322A01 LEVER ASSEMBLYLEVER ASSEMBLY
-
1712-85344 WASHER, (.750 Inside Diameter)WASHER, (.750 Inside Diameter)
-
1811-8M2014641 NUT, (.750-16)NUT, (.750-16)
-
1910-807204 SCREW, (.437-20 x 2.00)SCREW, (.437-20 x 2.00)
-
2011-8M2008293 NUT, (.437-20)NUT, (.437-20)
-
2179146 RETAINERRETAINER
-
2216-8M0034450 STUD, (.250-20/.250-28 x 1.01)STUD, (.250-20/.250-28 x 1.01)
-
2311-8267119 NUT, (.250-28)NUT, (.250-28)
-
2410-28635 SCREW, (.250-20 x .620) Stainless Steel
(NEW DESIGN)SCREW, (.250-20 x .620) Stainless Steel
(NEW DESIGN) -
2554-12078 CLAMPCLAMP
-
26816510T BRACKETBRACKET
-
2710-805164 U BOLTU BOLT
-
2811-862903 NUT, (.375-24)NUT, (.375-24)
-
2954-818557 CLAMPCLAMP
