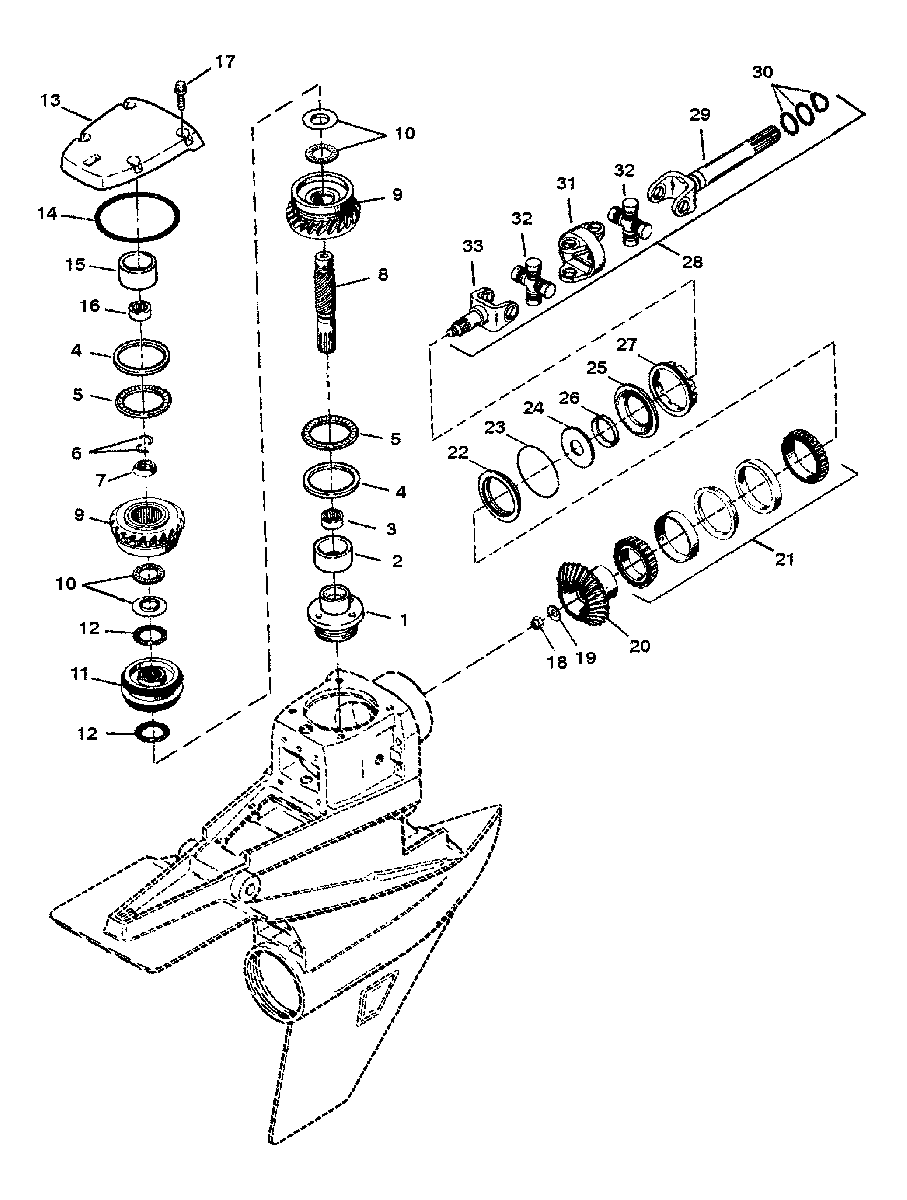

UPPER GEARS AND COMPONENTS для Mercruiser - BLACKHAWK 1994-1995 ALL

  • №
    Артикул
    Название
  • 1
    805082A1 ADAPTOR ASSEMBLY
    ADAPTOR ASSEMBLY
  • 2
    31-815900 BEARING
    BEARING
  • 3
    31-87156 BEARING-ROLLER
    BEARING-ROLLER
  • 4
    23-87560091 BEARING-THRUST
    (.091 THICK-RED)
    BEARING-THRUST
    (.091 THICK-RED)
  • 4
    23-87560094 BEARING-THRUST
    (.094 THICK-LIGHT BLUE)
    BEARING-THRUST
    (.094 THICK-LIGHT BLUE)
  • 4
    23-87560097 BEARING-THRUST
    (.097 THICK-GREEN)
    BEARING-THRUST
    (.097 THICK-GREEN)
  • 5
    31-86771 BEARING-THRUST
    BEARING-THRUST
  • 6
    97351 KEEPER
    KEEPER
  • 7
    23-86770 COLLAR-THRUST
    COLLAR-THRUST
  • 8
    45-812773T DRIVESHAFT-UPPER
    DRIVESHAFT-UPPER
  • 9
    43-883479A3 GEAR
    (30 TEETH) (1.65:1 RATIO) (S/N 0F392505 AND BELOW)
    GEAR
    (30 TEETH) (1.65:1 RATIO) (S/N 0F392505 AND BELOW)
  • 9
    43-883473A3 GEAR
    (32 TEETH) (1.50:1 RATIO) (32 TEETH) (1.65:1 RATIO) (S/N 0F392506 AND UP)
    GEAR
    (32 TEETH) (1.50:1 RATIO) (32 TEETH) (1.65:1 RATIO) (S/N 0F392506 AND UP)
  • 9
    43-883476A3 GEAR
    (29 TEETH) (1.36:1 RATIO) (1.81:1 RATIO)
    GEAR
    (29 TEETH) (1.36:1 RATIO) (1.81:1 RATIO)
  • 10
    31-86768A2 BEARING ASSEMBLY-THRUST
    BEARING ASSEMBLY-THRUST
  • 11
    52-807375A3 CLUTCH ASSEMBLY
    CLUTCH ASSEMBLY
  • 12
    24-818829 SPRING
    SPRING
  • 13
    92068A6 COVER-TOP
    COVER-TOP
  • 14
    25-97387 O-RING
    O-RING
  • 15
    31-815900 BEARING
    BEARING
  • 16
    31-87156 BEARING-ROLLER
    BEARING-ROLLER
  • 17
    10-8M0113180 SCREW (3/8-16 X 1 IN.)
    SCREW (3/8-16 X 1 IN.)
  • 18
    11-22339 NUT (5/8-18)
    NUT (5/8-18)
  • 19
    12-44539 WASHER
    WASHER
  • 20
    43-818664 GEAR-PINION
    (23 TEETH) (1.65:1 RATIO) (S/N 0F392505 AND BELOW
    GEAR-PINION
    (23 TEETH) (1.65:1 RATIO) (S/N 0F392505 AND BELOW
  • 20
    43-826642T GEAR-PINION
    (27 TEETH) (1.50:1 RATIO) (27 TEETH) (1.65:1 RATIO) (S/N 0F392506 AND UP)
    GEAR-PINION
    (27 TEETH) (1.50:1 RATIO) (27 TEETH) (1.65:1 RATIO) (S/N 0F392506 AND UP)
  • 20
    43-815661T GEAR-PINION
    (27 TEETH) (1.36:1 RATIO) (1.81:1 RATIO)
    GEAR-PINION
    (27 TEETH) (1.36:1 RATIO) (1.81:1 RATIO)
  • 21
    31-8M0103472 BEARING-TAPERED ROLLER
    BEARING-TAPERED ROLLER
  • 22
    86780 RING-SEALING
    RING-SEALING
  • 23
    25-861844 O-RING
    O-RING
  • 24
    12-41613 WASHER
    WASHER
  • 25
    86779A1 CARRIER ASSEMBLY
    CARRIER ASSEMBLY
  • 26
    26-807006 SEAL-OIL
    SEAL-OIL
  • 27
    11-92004 RING NUT
    RING NUT
  • 28
    864244A2 UNIVERSAL JOINT ASSEMBLY
    UNIVERSAL JOINT ASSEMBLY
  • 29
    59830A7 YOKE ASSEMBLY (COUPLER END)
    YOKE ASSEMBLY (COUPLER END)
  • 30
    25-29845 O-RING
    O-RING
  • 30
    25-35027 O-RING (1.046 I.D.)
    O-RING (1.046 I.D.)
  • 31
    393831 SOCKET-CENTER
    SOCKET-CENTER
  • 32
    75832T1 CROSS AND BEARING
    CROSS AND BEARING
  • 33
    12784 YOKE (GEAR END)
    YOKE (GEAR END)
  • -
    26-16709A2 SEAL KIT
    SEAL KIT
  • -
    3527-806123A5 DRIVE HOUSING
    DRIVE HOUSING
