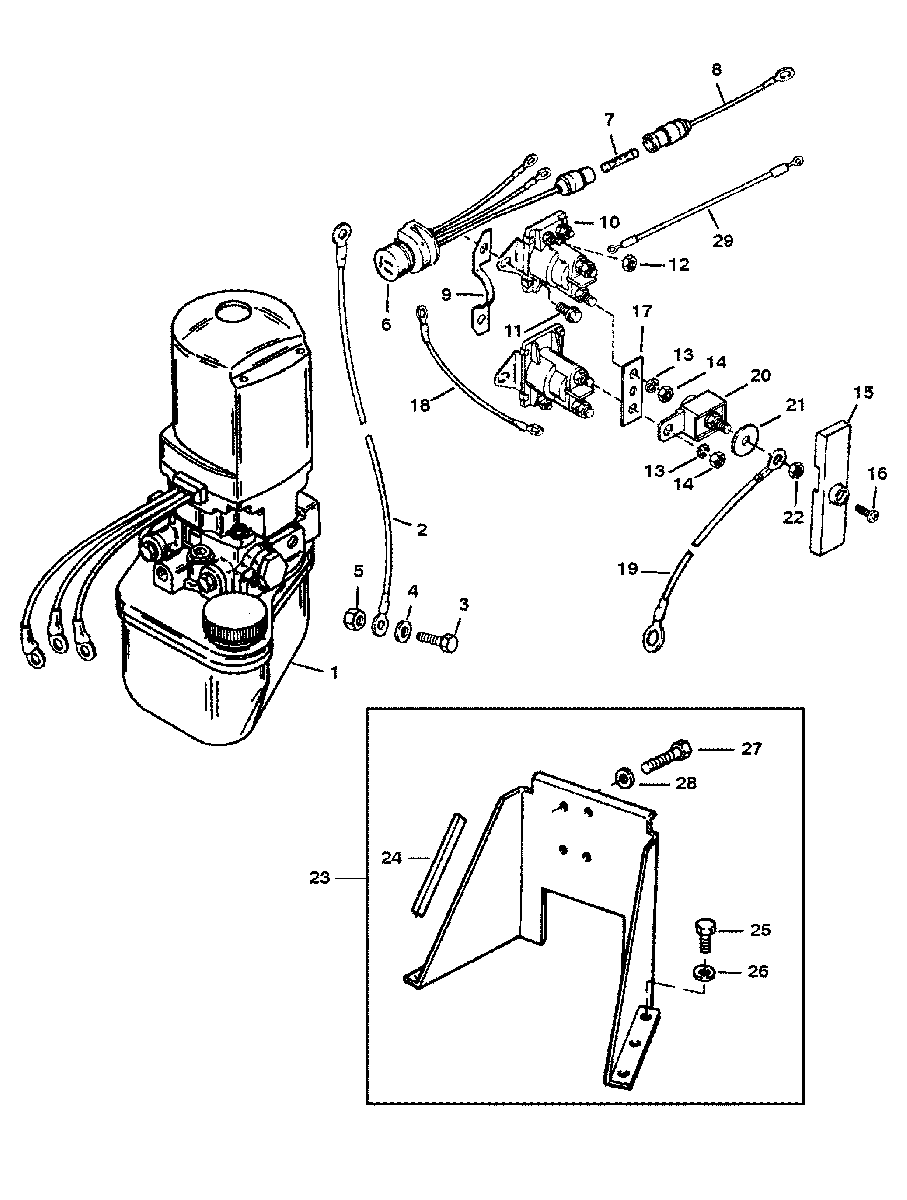

HYDRAULIC PUMP AND BRACKET для Mercruiser - BLACKHAWK 1994-1995 ALL

  • №
    Артикул
    Название
  • 1
    865380A13 PUMP ASSEMBLY-POWER TRIM
    (SEE "HYDRAULID PUMP" FOR BREAKDOWN)
    PUMP ASSEMBLY-POWER TRIM
    (SEE "HYDRAULID PUMP" FOR BREAKDOWN)
  • 2
    84-79138A9 CABLE ASSEMBLY-BATTERY
    (BLACK - NEGATIVE)
    CABLE ASSEMBLY-BATTERY
    (BLACK - NEGATIVE)
  • 3
    10-90285 SCREW (5/16-18 X 5/8 IN.)
    SCREW (5/16-18 X 5/8 IN.)
  • 4
    12-56720 WASHER
    WASHER
  • 5
    11-68292 NUT (5/16-18)
    NUT (5/16-18)
  • 6
    84-79147A3 HARNESS ASSEMBLY
    HARNESS ASSEMBLY
  • 7
    88-79091 FUSE (20 AMP.)
    FUSE (20 AMP.)
  • 8
    84-95084A2 CABLE ASSEMBLY
    CABLE ASSEMBLY
  • 9
    88075 RETAINER
    RETAINER
  • 10
    89-96158T SOLENOID
    SOLENOID
  • 11
    10-41508 SCREW (1/4-20 X 1/2 IN.)
    SCREW (1/4-20 X 1/2 IN.)
  • 12
    11-26419 NUT(#8-32)
    NUT(#8-32)
  • 13
    13-26992 LOCKWASHER (1/4 IN.)
    LOCKWASHER (1/4 IN.)
  • 14
    11-94330 NUT (1/4-20)
    NUT (1/4-20)
  • 15
    85-861680 BOOT
    BOOT
  • 16
    10-48409 SCREW (#10-16 X 5/8 IN.)
    SCREW (#10-16 X 5/8 IN.)
  • 17
    94275 CONNECTOR
    CONNECTOR
  • 18
    84-86322A15 CABLE ASSEMBLY (BLACK) (5-1/2 IN.)
    CABLE ASSEMBLY (BLACK) (5-1/2 IN.)
  • 19
    84-79139A12 CABLE ASSEMBLY-BATTERY
    (RED - POSITIVE)
    CABLE ASSEMBLY-BATTERY
    (RED - POSITIVE)
  • 20
    88-79023T10 FUSE (110 AMP.)
    FUSE (110 AMP.)
  • 21
    12-96457 WASHER
    WASHER
  • 22
    11-21825 NUT (1/4-28)
    NUT (1/4-28)
  • 23
    862548A1 BRACKET ASSEMBLY (FLOOR MOUNTED)
    BRACKET ASSEMBLY (FLOOR MOUNTED)
  • 24
    58491 BUMPER
    BUMPER
  • 25
    10-59784 SCREW (1/4-10 X 1 IN.)
    SCREW (1/4-10 X 1 IN.)
  • 26
    12-29245 WASHER
    WASHER
  • 27
    10-35386 SCREW (5/16-18 X 1 IN.)
    SCREW (5/16-18 X 1 IN.)
  • 28
    13-39107 LOCKWASHER (5/16 IN.)
    LOCKWASHER (5/16 IN.)
  • 29
    84-86322A24 CABLE ASSEMBLY (BLACK) (4 IN.)
    CABLE ASSEMBLY (BLACK) (4 IN.)
  • -
    865380A25 COMPLETE HYDRAULIC PUMP
    (INCLUDES ALL PARTS ON THIS PAGE)
    COMPLETE HYDRAULIC PUMP
    (INCLUDES ALL PARTS ON THIS PAGE)
