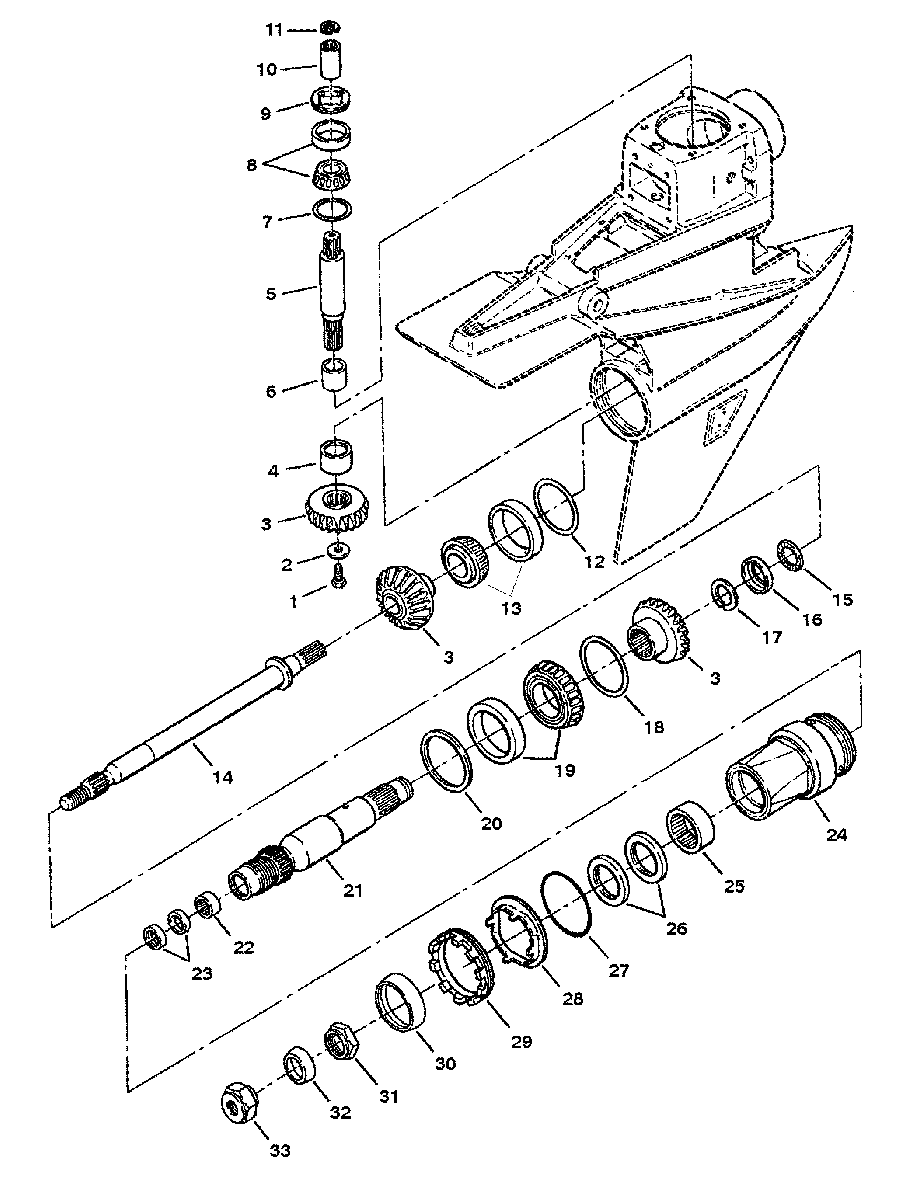

LOWER GEARS AND COMPONENTS для Mercruiser - BLACKHAWK 1994-1995 ALL

  • №
    Артикул
    Название
  • 1
    10-34353 SCREW (3/8-16 X 1 IN.)
    SCREW (3/8-16 X 1 IN.)
  • 2
    12-805068 WASHER
    WASHER
  • 3
    43-805448A1 GEAR SET
    (1.36:1 - 1.50:1 RATIO) 15/19/19 TEETH (1.65:1 RATIO) (S/N 0F392505 AND BELOW)
    GEAR SET
    (1.36:1 - 1.50:1 RATIO) 15/19/19 TEETH (1.65:1 RATIO) (S/N 0F392505 AND BELOW)
  • 3
    43-824517A1 GEAR SET
    (1.65:1 RATIO) (S/N 0F392506 AND UP) 18/25/25 TEETH
    GEAR SET
    (1.65:1 RATIO) (S/N 0F392506 AND UP) 18/25/25 TEETH
  • 3
    43-822535A1 GEAR SET
    (1.81:1 RATIO) 16/27/27 TEETH
    GEAR SET
    (1.81:1 RATIO) 16/27/27 TEETH
  • 4
    31-86754T BEARING-ROLLER
    BEARING-ROLLER
  • 5
    45-805067A1 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 6
    31-815901 BEARING
    BEARING
  • 7
    15-8M0063267 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 8
    31-36387A1 BEARING ASSEMBLY-TAPERED ROLLER
    BEARING ASSEMBLY-TAPERED ROLLER
  • 9
    11-805538 NUT-RETAINER
    NUT-RETAINER
  • 10
    88243A3 COUPLING ASSEMBLY
    COUPLING ASSEMBLY
  • 11
    53-88242 RING-RETAINING
    RING-RETAINING
  • 12
    15-87157A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 13
    31-8M0103471 BEARING ASSEMBLY-TAPERED ROLLER
    BEARING ASSEMBLY-TAPERED ROLLER
  • 14
    44-865322T SHAFT-PROPELLER (INNER)
    SHAFT-PROPELLER (INNER)
  • 15
    31-805322 BEARING-THRUST
    BEARING-THRUST
  • 16
    23-8050721 BUSHING
    BUSHING
  • 17
    53-8M2012170 RING-RETAINING
    RING-RETAINING
  • 18
    15-805078A1 SHIM ASSEMBLY
    SHIM ASSEMBLY
  • 19
    31-8M0103477 BEARING-TAPERED ROLLER
    BEARING-TAPERED ROLLER
  • 20
    23-805081 BUSHING-THRUST
    BUSHING-THRUST
  • 21
    44-865315A02 SHAFT-PROPELLER (OUTER)
    SHAFT-PROPELLER (OUTER)
  • 22
    31-57410 BEARING-ROLLER
    BEARING-ROLLER
  • 23
    26-8M0033407 SEAL-OIL
    SEAL-OIL
  • 24
    805099A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 25
    31-805079T BEARING-ROLLER
    BEARING-ROLLER
  • 26
    26-861694 SEAL-OIL
    SEAL-OIL
  • 27
    25-69201 O-RING
    O-RING
  • 28
    14-805103 WASHER-TAB
    WASHER-TAB
  • 29
    805104 RETAINER
    RETAINER
  • 30
    805100 HUB-THRUST (FRONT)
    HUB-THRUST (FRONT)
  • 31
    11-8M0105210 NUT-PROPELLER (FRONT)
    NUT-PROPELLER (FRONT)
  • 32
    805101T HUB-THRUST (REAR)
    HUB-THRUST (REAR)
  • 33
    11-862907 NUT-PROPELLER (REAR)
    NUT-PROPELLER (REAR)
  • -
    26-16709A2 SEAL KIT
    SEAL KIT
  • -
    3527-806123A5 DRIVE HOUSING
    DRIVE HOUSING
