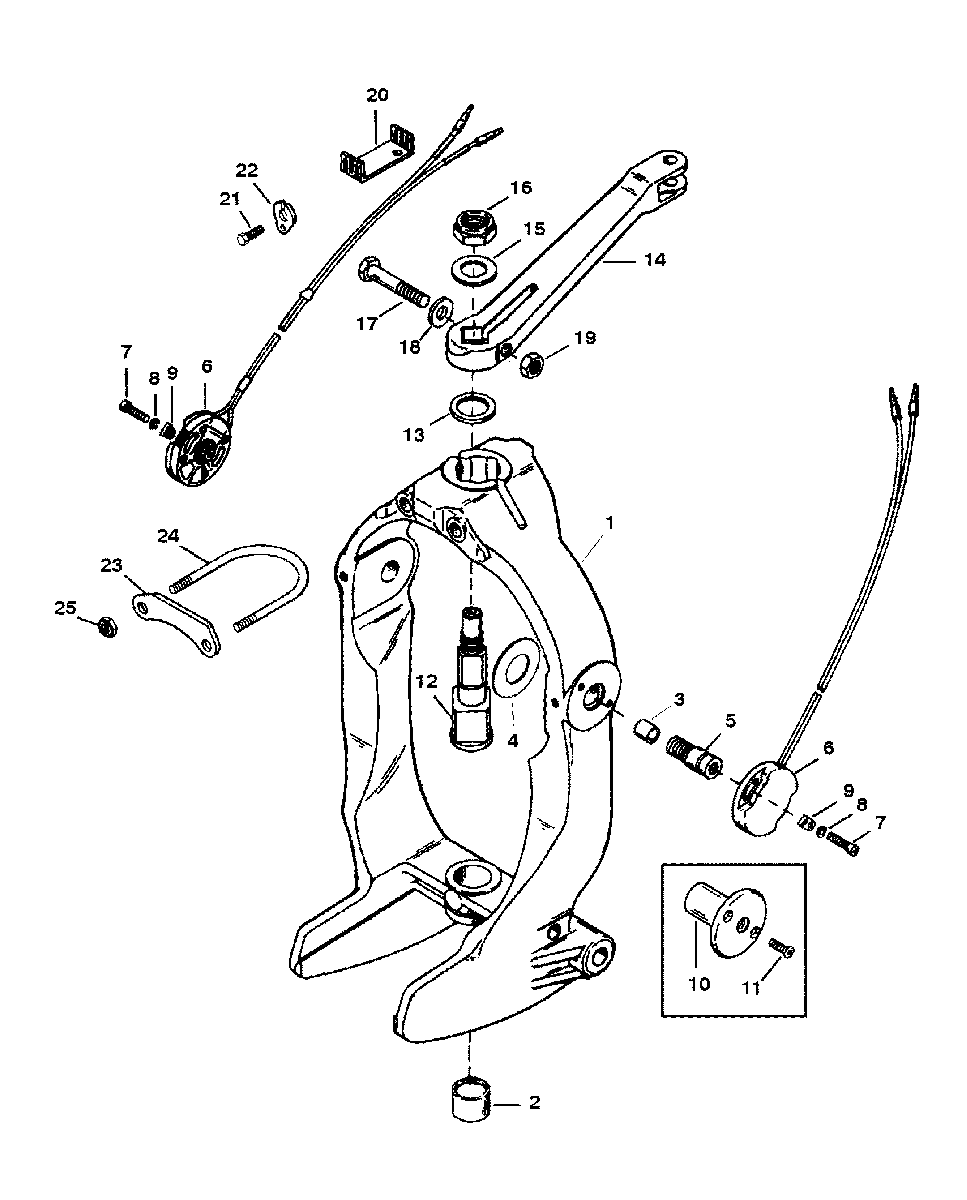

GIMBAL RING AND STEERING LEVER для Mercruiser - BLACKHAWK 1994-1995 ALL

  • №
    Артикул
    Название
  • 1
    8M0062440 GLMBAL RING ASSEMBLY
    (MAGNUM) FOR USE WITH TRIM SENDERS
    GLMBAL RING ASSEMBLY
    (MAGNUM) FOR USE WITH TRIM SENDERS
  • 2
    23-847638 BUSHING
    FOR USE WITH TRIM SENDERS
    BUSHING
    FOR USE WITH TRIM SENDERS
  • 2
    23-99352 BEARING-ROLLER
    FOR USE WITH TRIM SENDERS
    BEARING-ROLLER
    FOR USE WITH TRIM SENDERS
  • 3
    23-847637 BEARING
    FOR USE WITH TRIM SENDERS
    BEARING
    FOR USE WITH TRIM SENDERS
  • 4
    12-41721 WASHER
    FOR USE WITH TRIM SENDERS
    WASHER
    FOR USE WITH TRIM SENDERS
  • 5
    10-86801 HINGE PIN
    FOR USE WITH TRIM SENDERS
    HINGE PIN
    FOR USE WITH TRIM SENDERS
  • 6
    805320A03 SWITCH KIT ASSEMBLY-TRIM SENDER / TRIM LIMIT
    FOR USE WITH TRIM SENDERS
    SWITCH KIT ASSEMBLY-TRIM SENDER / TRIM LIMIT
    FOR USE WITH TRIM SENDERS
  • 7
    10-37978 SCREW(#10-32 X 3/4 IN.)
    FOR USE WITH TRIM SENDERS
    SCREW(#10-32 X 3/4 IN.)
    FOR USE WITH TRIM SENDERS
  • 8
    13-26996 LOCKWASHER (#10)
    FOR USE WITH TRIM SENDERS
    LOCKWASHER (#10)
    FOR USE WITH TRIM SENDERS
  • 9
    57008 RETAINER
    FOR USE WITH TRIM SENDERS
    RETAINER
    FOR USE WITH TRIM SENDERS
  • 1
    822374A17 GIMBAL RING ASSEMBLY
    FOR USE WITHOUT TRIM SENDERS
    GIMBAL RING ASSEMBLY
    FOR USE WITHOUT TRIM SENDERS
  • 2
    23-847638 BEARING-ROLLER
    FOR USE WITHOUT TRIM SENDERS
    BEARING-ROLLER
    FOR USE WITHOUT TRIM SENDERS
  • 4
    12-41721 WASHER
    FOR USE WITHOUT TRIM SENDERS
    WASHER
    FOR USE WITHOUT TRIM SENDERS
  • 10
    821997 HINGE PIN
    FOR USE WITHOUT TRIM SENDERS
    HINGE PIN
    FOR USE WITHOUT TRIM SENDERS
  • 11
    10-821579 SCREW (#10-24 X 1/2 IN.)
    FOR USE WITHOUT TRIM SENDERS
    SCREW (#10-24 X 1/2 IN.)
    FOR USE WITHOUT TRIM SENDERS
  • 12
    98230A1 SHAFT-SWIVEL (UPPER)
    SHAFT-SWIVEL (UPPER)
  • 13
    12-98548 WASHER (.060)
    WASHER (.060)
  • 14
    866322A01 LEVER-STEERING
    LEVER-STEERING
  • 15
    12-85344 WASHER (.765)
    WASHER (.765)
  • 16
    11-8M2014641 NUT (3/4-16)
    NUT (3/4-16)
  • 17
    10-807204 SCREW (7/16-20 X 2 IN.)
    SCREW (7/16-20 X 2 IN.)
  • 18
    12-861854 WASHER
    WASHER
  • 19
    11-8M2008293 NUT (7/16-20)
    NUT (7/16-20)
  • 20
    79146 RETAINER
    RETAINER
  • 21
    10-28635 SCREW (1/4-20 X 5/8 IN.)
    SCREW (1/4-20 X 5/8 IN.)
  • 22
    54-12078 CLAMP
    CLAMP
  • 23
    816510T BRACKET
    BRACKET
  • 24
    10-805164 U-BOLT
    U-BOLT
  • 25
    11-862903 NUT (3/8-24)
    NUT (3/8-24)
  • -
    805130A6 DUAL STATION SENDER KIT
    DUAL STATION SENDER KIT
