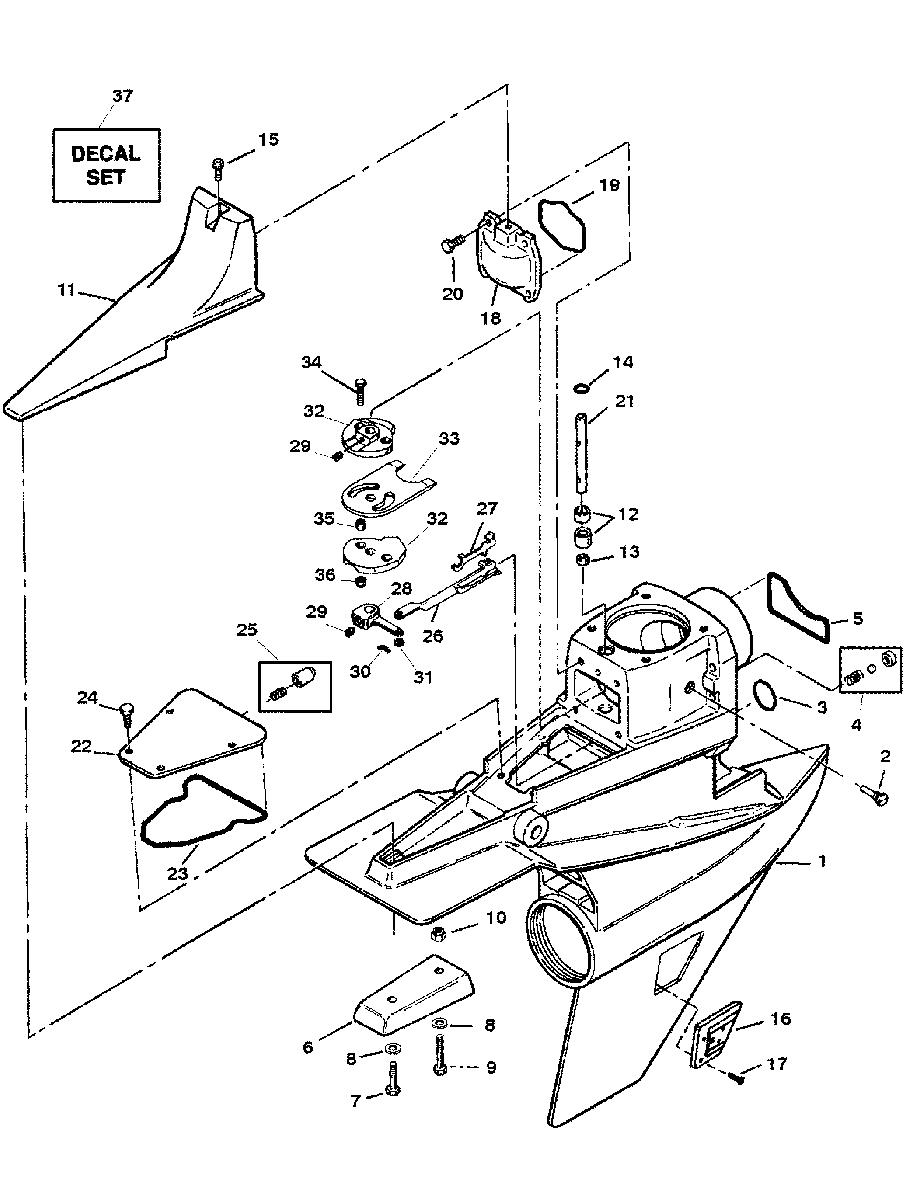

DRIVE HOUSING AND COMPONENTS для Mercruiser - BLACKHAWK 1994-1995 ALL
-
№АртикулНазвание
-
13527-806123A5 DRIVE HOUSING ASSEMBLYDRIVE HOUSING ASSEMBLY
-
222-8M0058389 SCREW KIT-DRAINSCREW KIT-DRAIN
-
-12-191833 WASHERWASHER
-
325-457101 O-RINGO-RING
-
424-17997A1 SPRING KITSPRING KIT
-
516755Q1 SEALSEAL
-
697-806187A1 ANODE ASSEMBLYANODE ASSEMBLY
-
710-68496 SCREW (3/8-24 X 2-1/4 IN.)SCREW (3/8-24 X 2-1/4 IN.)
-
813-35479 LOCKWASHER (3/8 IN.)LOCKWASHER (3/8 IN.)
-
910-90072 SCREW (3/8-24 X 1-3/4 IN.)SCREW (3/8-24 X 1-3/4 IN.)
-
1011-82671013 NUT (3/8-24)NUT (3/8-24)
-
11806124T COVER-REARCOVER-REAR
-
1223-861209A1 BUSHING KITBUSHING KIT
-
1326-127091 SEAL-OILSEAL-OIL
-
1425-62705 O-RINGO-RING
-
1510-92160 SCREW (1/4-20 X 3/4 IN.)SCREW (1/4-20 X 3/4 IN.)
-
16805619T WATER PICK-UP
(STARBOARD)WATER PICK-UP
(STARBOARD) -
16805620T WATER PICK-UP
(PORT)WATER PICK-UP
(PORT) -
1710-805724 SCREW (#10-32 X 5/16 IN.)SCREW (#10-32 X 5/16 IN.)
-
1710-805725 SCREW (#10-32 X 5/8 IN.)SCREW (#10-32 X 5/8 IN.)
-
18805084T COVER-CAMCOVER-CAM
-
1925-70937 O-RINGO-RING
-
2010-28782 SCREW (5/16-18 X 7/8 IN.)SCREW (5/16-18 X 7/8 IN.)
-
2112711 SHAFT-SHIFTERSHAFT-SHIFTER
-
22806150T COVERCOVER
-
2325-805197 O-RINGO-RING
-
2410-28782 SCREW (5/16-18 X 7/8 IN.)SCREW (5/16-18 X 7/8 IN.)
-
25865711A02 DETENT ASSEMBLYDETENT ASSEMBLY
-
26861175A2 LINK BARLINK BAR
-
2786776 LATCHLATCH
-
28861175A2 LEVER-SHIFTLEVER-SHIFT
-
2910-38615 SCREW (1/4-28 X 3/4 IN.)SCREW (1/4-28 X 3/4 IN.)
-
2910-805543 SCREW (1/4-28 X 1-1/4 IN.)SCREW (1/4-28 X 1-1/4 IN.)
-
3018-26953 PIN-COTTERPIN-COTTER
-
3112-20583 WASHERWASHER
-
32806552A1 YOKE & CAM ASSEMBLYYOKE & CAM ASSEMBLY
-
33806552 YOKE-SHIFTERYOKE-SHIFTER
-
3410-805733 SCREW (1/4-28 X 1)SCREW (1/4-28 X 1)
-
3523-12706 SPACERSPACER
-
3611-826709109 NUT (1/4-28)NUT (1/4-28)
-
3737-821127A94 DECAL SETDECAL SET
-
-26-16709A2 SEAL KITSEAL KIT
