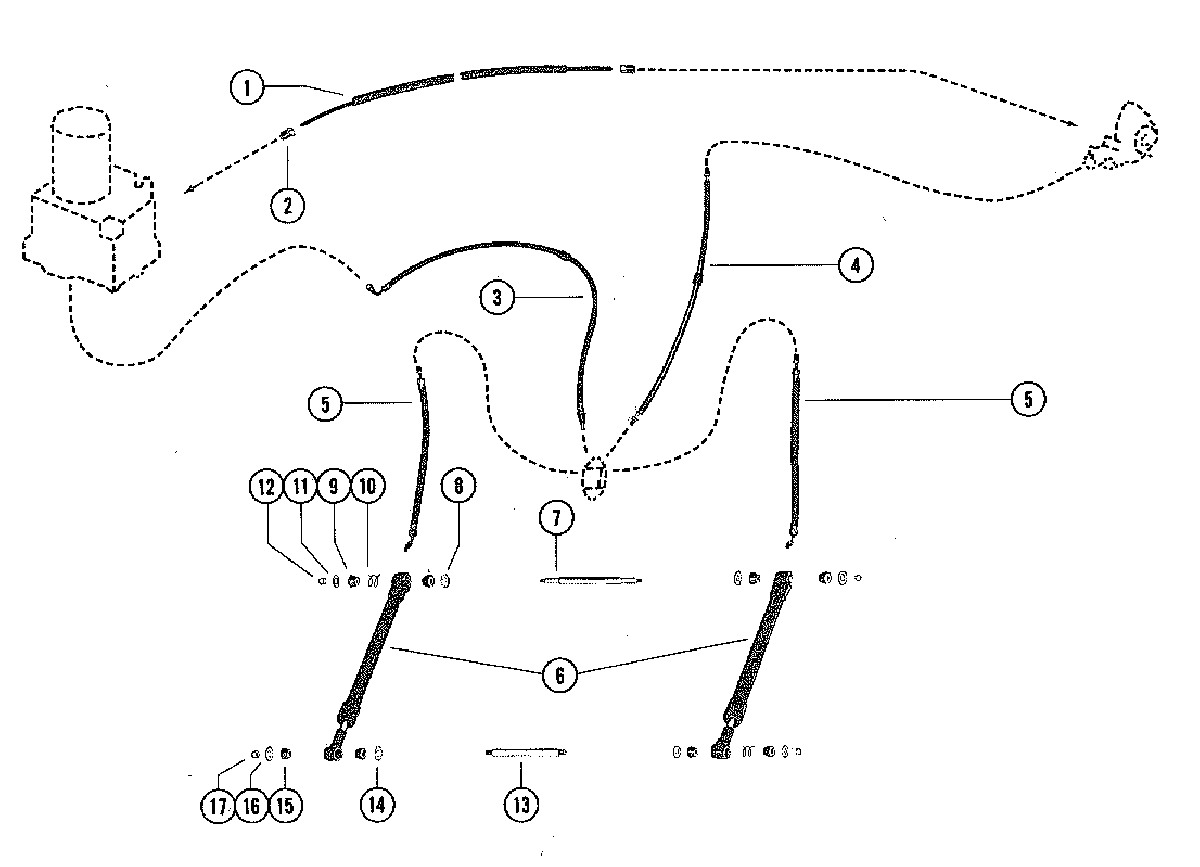

TRIM CYLINDERS AND HYDRAULIC HOSES для Mercruiser - 898/228 1977 4782330 THRU 4898729
-
№АртикулНазвание
-
132-8M0111655 TUBING, HYDRAULIC PUMP TO VALVETUBING, HYDRAULIC PUMP TO VALVE
-
222-49718 NUT, COMPRESSION - HYDRAULIC TUBE ATTACHINGNUT, COMPRESSION - HYDRAULIC TUBE ATTACHING
-
332-59841 HOSE, HYDRAULIC - CONNECTOR TO REVERSE LOCK VALVE (44")HOSE, HYDRAULIC - CONNECTOR TO REVERSE LOCK VALVE (44")
-
432-59842 HOSE, HYDRAULIC - CONNECTOR TO TRIM SENDER (29 1/2")HOSE, HYDRAULIC - CONNECTOR TO TRIM SENDER (29 1/2")
-
532-86036Q HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")HOSE, HYDRAULIC - CONNECTOR TO TRIM CYLINDER (12 1/2")
-
645706A14 TRIM CYLINDER ASSEMBLY, COMPLETE
SEE PAGE 19 FOR REPAIR KIT BREAKDOWNTRIM CYLINDER ASSEMBLY, COMPLETE
SEE PAGE 19 FOR REPAIR KIT BREAKDOWN -
-45522A3 PIVOT END REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT BREAKDOWNPIVOT END REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT BREAKDOWN -
-77332A1 OUTER TUBE REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT BREAKDOWNOUTER TUBE REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT BREAKDOWN -
-25-60342A2 "O" RING REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT BREAKDOWN"O" RING REPAIR KIT, TRIM CYLINDER
SEE PAGE 19 FOR REPAIR KIT BREAKDOWN -
717-45735 PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")PIN, FRONT ANCHOR - TRIM CYLINDER TO GIMBAL RING (10 11/32")
-
812-45737 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
923-89574 BUSHING, RUBBER - FRONT ANCHOR PINBUSHING, RUBBER - FRONT ANCHOR PIN
-
1024-46312 SPRING, FRONT ANCHOR PINSPRING, FRONT ANCHOR PIN
-
1112-46765 WASHER, FRONT ANCHOR PINWASHER, FRONT ANCHOR PIN
-
1211-82671013 NUT, FRONT ANCHOR PINNUT, FRONT ANCHOR PIN
-
1317-45738 PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HSG. (7 1/2")PIN, REAR ANCHOR - TRIM CYLINDER TO DRIVE SHAFT HSG. (7 1/2")
-
1412-45737 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1523-89574 BUSHING, RUBBER - REAR ANCHOR PINBUSHING, RUBBER - REAR ANCHOR PIN
-
1612-46765 WASHER, REAR ANCHOR PINWASHER, REAR ANCHOR PIN
-
1711-82671013 NUT, REAR ANCHOR PINNUT, REAR ANCHOR PIN
