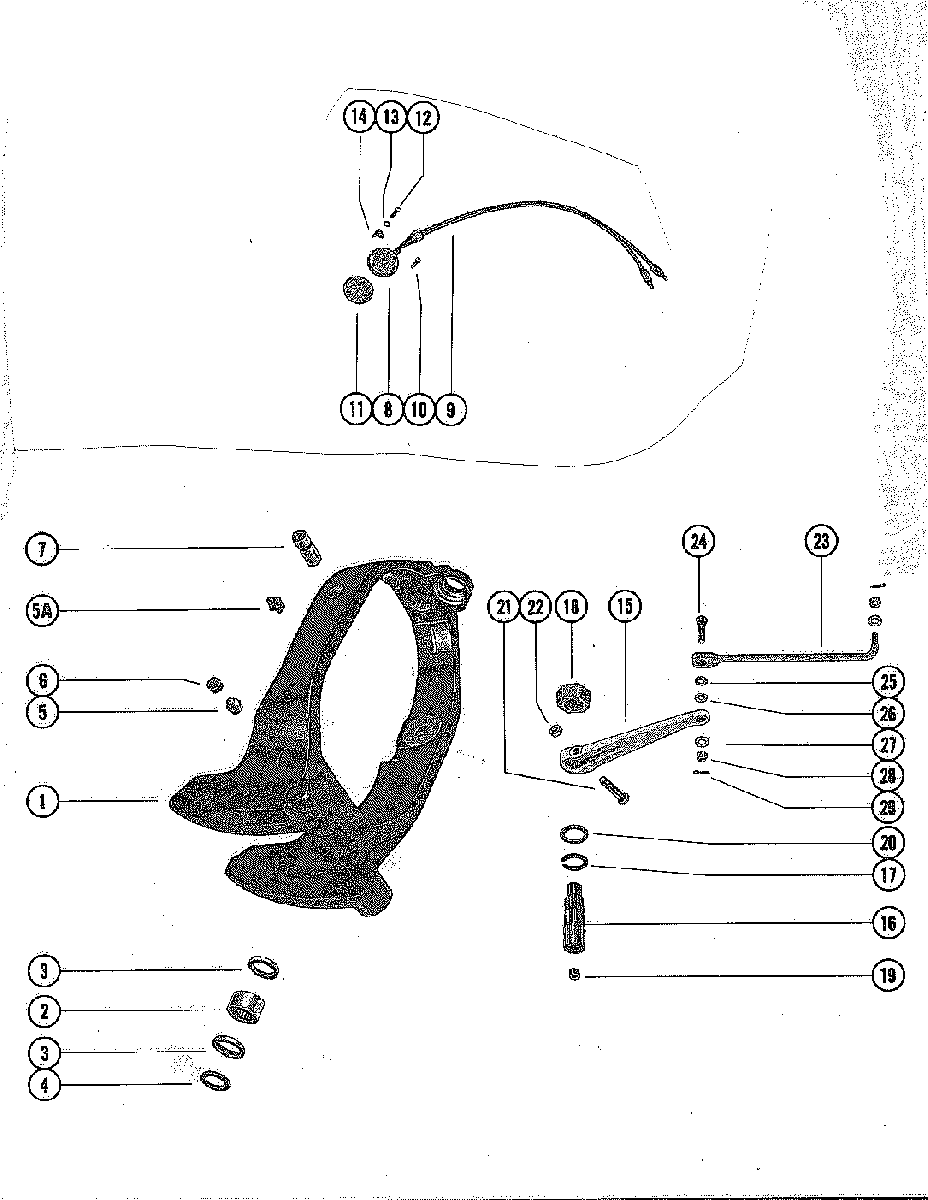

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 898/228 1977 4782330 THRU 4898729
-
№АртикулНазвание
-
188302A1 GIMBAL RING ASSEMBLYGIMBAL RING ASSEMBLY
-
231-32538 BEARING, ROLLER - GIMBAL RINGBEARING, ROLLER - GIMBAL RING
-
326-32541 OIL SEAL, GIMBAL RINGOIL SEAL, GIMBAL RING
-
423-39273 SPACER, GIMBAL RINGSPACER, GIMBAL RING
-
522-69059 FITTING, GREASE - GIMBAL RING (1/8-27)FITTING, GREASE - GIMBAL RING (1/8-27)
-
5A22-74036 FITTING, GREASE - GIMBAL RING (1/4-28)FITTING, GREASE - GIMBAL RING (1/4-28)
-
619-77633Q LUBRICAP, GIMBAL RING GREASE FITTINGLUBRICAP, GIMBAL RING GREASE FITTING
-
777123 PIN, HINGE - THREADED (WITH GREASE GROOVE)PIN, HINGE - THREADED (WITH GREASE GROOVE)
-
864947 SENDER, DUMMY (STARBOARD)SENDER, DUMMY (STARBOARD)
-
984-19280 HARNESS, DUMMY SENDERHARNESS, DUMMY SENDER
-
1010-46942 SCREW, HARNESS ATTACHING (5/16")SCREW, HARNESS ATTACHING (5/16")
-
863115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
-
984-19292 HARNESS, TRIM LIMIT SWITCHHARNESS, TRIM LIMIT SWITCH
-
1010-63400 SCREW, HARNESS ATTACHING (5/32")SCREW, HARNESS ATTACHING (5/32")
-
1185-63990 INSLUATOR, SWITCH AND SENDERINSLUATOR, SWITCH AND SENDER
-
1210-37978 SCREW, SWITCH AND SENDER TO GIMBAL RING (3/4")SCREW, SWITCH AND SENDER TO GIMBAL RING (3/4")
-
1313-26996 LOCKWASHER, SWITCH AND SENDER SCREWLOCKWASHER, SWITCH AND SENDER SCREW
-
1457008 RETAINER, SWITCH AND SENDER SCREWRETAINER, SWITCH AND SENDER SCREW
-
1588433 STEERING LEVERSTEERING LEVER
-
1688302A1 SHAFT, UPPER SWIVELSHAFT, UPPER SWIVEL
-
1753-72413 RETAINING RING, UPPER SWIVEL SHAFTRETAINING RING, UPPER SWIVEL SHAFT
-
1811-8M2014641 NUT, UPPER SWIVEL SHAFTNUT, UPPER SWIVEL SHAFT
-
1922-32561 PLUG, PIPE - UPPER SWIVEL SHAFTPLUG, PIPE - UPPER SWIVEL SHAFT
-
2012-47683 WASHER, UPPER SWIVEL SHAFT (.031)WASHER, UPPER SWIVEL SHAFT (.031)
-
2012-32997 WASHER, UPPER SWIVEL SHAFT (.063)WASHER, UPPER SWIVEL SHAFT (.063)
-
2110-807204 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2")SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2")
-
2211-20696 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREWNUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
-
2378790A6 STEERING LINK ROD ASSEMBLYSTEERING LINK ROD ASSEMBLY
-
2410-66389 SCREW, LEVER TO LINK RODSCREW, LEVER TO LINK ROD
-
2512-34966 WASHER, STEERING LINK ROD (NYLON)WASHER, STEERING LINK ROD (NYLON)
-
2613-54667 WASHER, SPRING - STEERING LINK RODWASHER, SPRING - STEERING LINK ROD
-
2712-20086 WASHER, STEERING LINK ROD (STEEL)WASHER, STEERING LINK ROD (STEEL)
-
2811-55438 NUT, STEERING LINK RODNUT, STEERING LINK ROD
-
2918-45882 COTTER PIN, LINK ROD AND SCREWCOTTER PIN, LINK ROD AND SCREW
