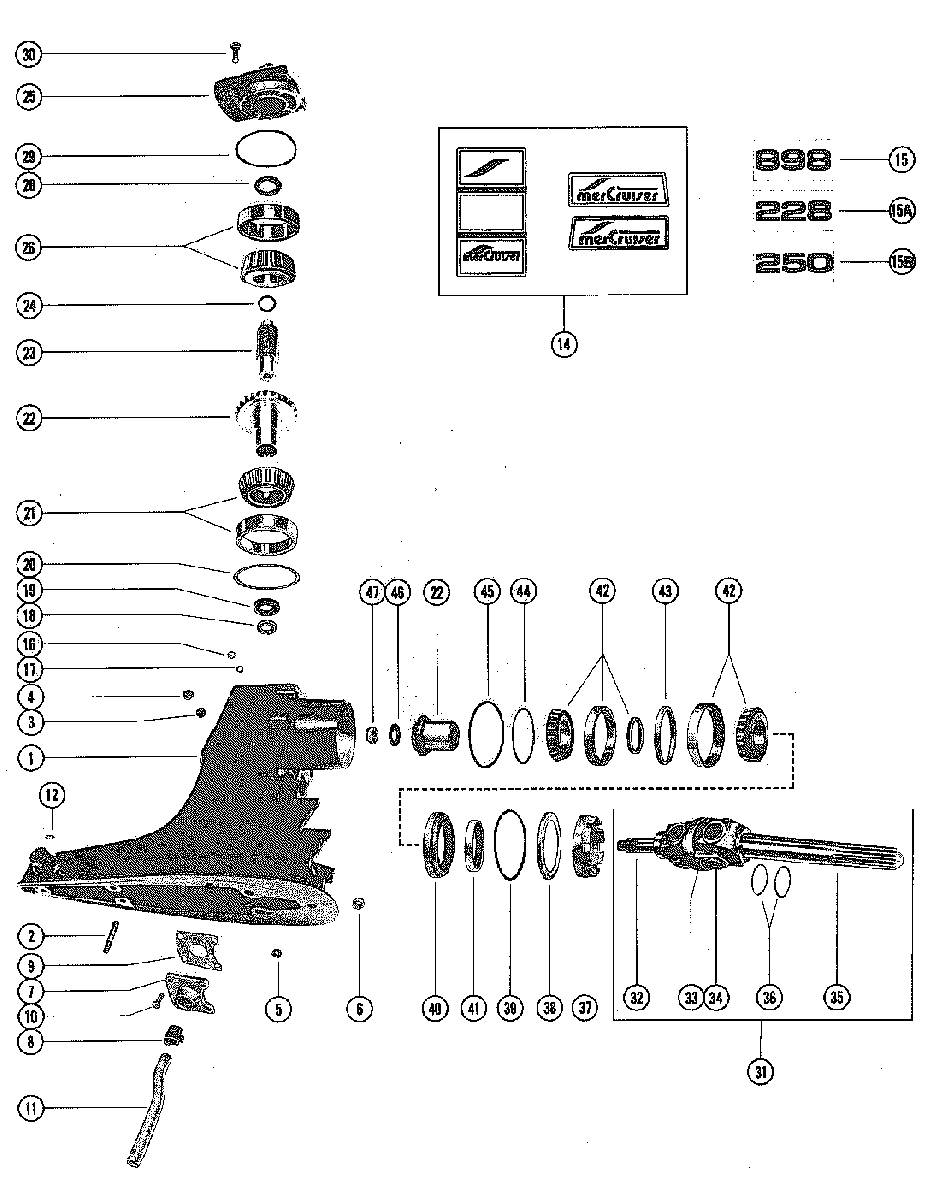

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - 898/228 1977 4782330 THRU 4898729

  • №
    Артикул
    Название
  • 1
    1547-9412A18 DRIVE SHAFT HOUSING ASSEMBLY
    DRIVE SHAFT HOUSING ASSEMBLY
  • 2
    16-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
    STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
  • 3
    22-31704 PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)
    PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)
  • 4
    19-32652 WELCH PLUG, DRIVE SHAFT HOUSING
    WELCH PLUG, DRIVE SHAFT HOUSING
  • 5
    23-32632 BUSHING, DRIVE SHAFT HOUSING
    BUSHING, DRIVE SHAFT HOUSING
  • 6
    11-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
    NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD
  • 7
    42724A3 COVER ASSEMBLY, WATER POCKET COVER
    COVER ASSEMBLY, WATER POCKET COVER
  • 8
    26-36557 SEAL, RUBBER - WATER POCKET COVER
    SEAL, RUBBER - WATER POCKET COVER
  • 9
    27-558101 GASKET, WATER POCKET COVER
    GASKET, WATER POCKET COVER
  • 10
    10-28668 SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")
    SCREW, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")
  • 11
    32-54236 TUBE, WATER - WATER POCKET COVER
    TUBE, WATER - WATER POCKET COVER
  • 12
    19-32298 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
    PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING
  • 14
    37-76731A1 DECAL SET, DRIVE SHAFT HOUSING
    DECAL SET, DRIVE SHAFT HOUSING
  • 15
    37-77649 DECAL, DRIVE SHAFT HOUSING "898"
    DECAL, DRIVE SHAFT HOUSING "898"
  • 15A
    37-76998 DECAL, DRIVE SHAFT HOUSING "228"
    DECAL, DRIVE SHAFT HOUSING "228"
  • 15B
    37-77275 DECAL, DRIVE SHAFT HOUSING "250"
    DECAL, DRIVE SHAFT HOUSING "250"
  • 16
    10-79953Q04 SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
    SCREW, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE
  • 17
    12-191833 WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
    WASHER, DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE SCRE
  • 18
    26-965031 OIL SEAL, DRIVE SHAFT HOUSING - LOWER
    OIL SEAL, DRIVE SHAFT HOUSING - LOWER
  • 19
    26-32511 OIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSING
    OIL SEAL, GEAR CHAMBER - DRIVE SHAFT HOUSING
  • 20
    15-36178A02 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
  • 21
    31-35990A1 ROLLER BEARING ASSEMBLY, PINION GEAR
    MERCRUSIER 898/228
    ROLLER BEARING ASSEMBLY, PINION GEAR
    MERCRUSIER 898/228
  • 22
    43-18411A2 GEAR ASSEMBLY, COMPLETE (1.50 RATIO)
    MERCRUSIER 898/228
    GEAR ASSEMBLY, COMPLETE (1.50 RATIO)
    MERCRUSIER 898/228
  • 21
    31-66818A1 ROLLER BEARING ASSEMBLY, PINION GEAR
    MERCRUSIER 250
    ROLLER BEARING ASSEMBLY, PINION GEAR
    MERCRUSIER 250
  • 22
    43-8M0080756 GEAR ASSEMBLY, COMPLETE (1.32 RATIO)
    MERCRUSIER 250
    GEAR ASSEMBLY, COMPLETE (1.32 RATIO)
    MERCRUSIER 250
  • 23
    45-55796 DRIVE SHAFT, UPPER
    DRIVE SHAFT, UPPER
  • 24
    25-55801 "O" RING, UPPER DRIVE SHAFT
    "O" RING, UPPER DRIVE SHAFT
  • 25
    76098A1 COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING
    COVER ASSEMBLY, TOP - DRIVE SHAFT HOUSING
  • 26
    31-61100A1 BEARING ASSEMBLY, DRIVE SHAFT
    BEARING ASSEMBLY, DRIVE SHAFT
  • 28
    15-45691A1 SHIM, BEARING CUP TO TOP COVER
    SHIM, BEARING CUP TO TOP COVER
  • 29
    25-32546 "O" RING, TOP COVER SEALING
    "O" RING, TOP COVER SEALING
  • 30
    10-8M0113174 SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
    SCREW, TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")
  • 31
    814819A2 UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
    UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR
  • 32
    46020T02 YOKE, UNIVERSAL JOINT - GEAR END
    YOKE, UNIVERSAL JOINT - GEAR END
  • 33
    393831 SOCKET, CENTER - UNIVERSAL JOINT
    SOCKET, CENTER - UNIVERSAL JOINT
  • 34
    75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
    CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT
  • 35
    59830A7 YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END
    YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END
  • 36
    25-25439 "O" RING, UNIVERSAL JOINT
    "O" RING, UNIVERSAL JOINT
  • 37
    8168112 RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT
    RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT
  • 38
    35983 RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
    RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER
  • 39
    25-70937 "O" RING, OIL SEAL CARRIER
    "O" RING, OIL SEAL CARRIER
  • 40
    66081A2 CARRIER ASSEMBLY, OIL SEAL
    CARRIER ASSEMBLY, OIL SEAL
  • 41
    26-823894 OIL SEAL, CARRIER
    OIL SEAL, CARRIER
  • 42
    31-35988A12 ROLLER BEARING ASSEMBLY, DRIVE GEAR
    MERCRUISER 898/228
    ROLLER BEARING ASSEMBLY, DRIVE GEAR
    MERCRUISER 898/228
  • 43
    23-35985 SPACER, ROLLER BEARING CUPS
    MERCRUISER 898/228
    SPACER, ROLLER BEARING CUPS
    MERCRUISER 898/228
  • 42
    31-35988A3 ROLLER BEARING ASSEMBLY, DRIVE GEAR
    MERCRUSIER 250
    ROLLER BEARING ASSEMBLY, DRIVE GEAR
    MERCRUSIER 250
  • 43
    23-66824 SPACER, ROLLER BEARING CUPS
    MERCRUSIER 250
    SPACER, ROLLER BEARING CUPS
    MERCRUSIER 250
  • 44
    15-35980A1 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING (.002-3-5-10-15)
  • 45
    23-8M0124132 SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
    SHIM, BEARING CUP TO DRIVE SHAFT HOUSING
  • 46
    12-45810 WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT
    WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT
  • 47
    11-22339 NUT, DRIVE GEAR TO UNIVERSAL JOINT
    NUT, DRIVE GEAR TO UNIVERSAL JOINT
