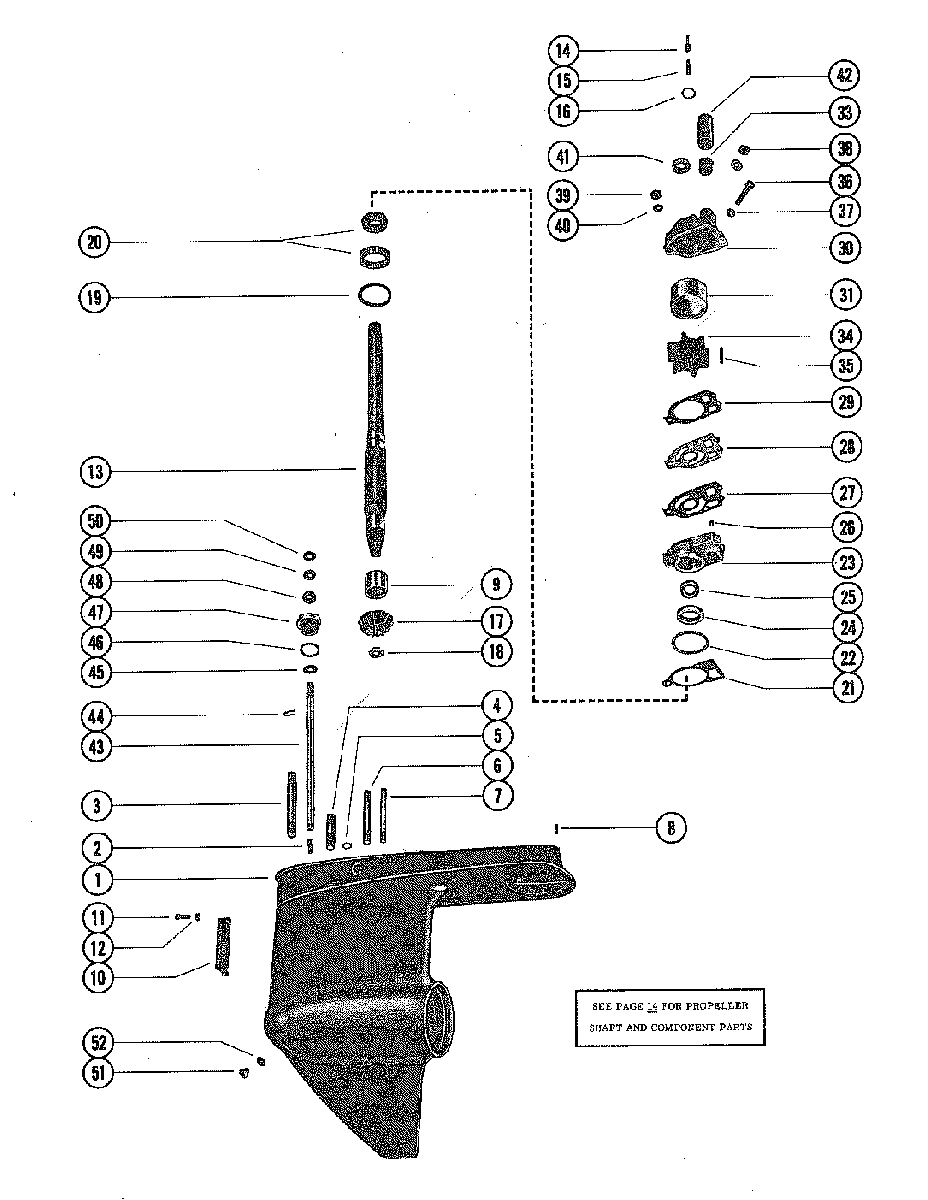

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 898/228 1977 4782330 THRU 4898729
-
№АртикулНазвание
-
-1623-8951A43 GEAR HOUSING ASSEMBLY, COMPLETE (SEE NOTE BELOW0)GEAR HOUSING ASSEMBLY, COMPLETE (SEE NOTE BELOW0)
-
11623-5356A4 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
217-379721 PIN, SHIFT CRANK - GEAR HOUSINGPIN, SHIFT CRANK - GEAR HOUSING
-
316-46911 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16")STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (3 3/16")
-
416-56298 STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32"0)STUD, GEAR HOUSING TO DRIVE SHAFT HOUSING (1 31/32"0)
-
526-455771 SEAL, GEAR HOUSINGSEAL, GEAR HOUSING
-
616-8M0034463 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
-
716-69501 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
-
817-8M0084726 PIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSINGPIN, DOWEL - GEAR HOUSING TO DRIVE SHAFT HOUSING
-
931-35934A1 BEARING, ROLLER - DRIVE SHAFTBEARING, ROLLER - DRIVE SHAFT
-
1066884 INSERT, WATER PICKUP (PORT SIDE)INSERT, WATER PICKUP (PORT SIDE)
-
1066885 INSERT, WATER PICKUP (STARBOARD SIDE)INSERT, WATER PICKUP (STARBOARD SIDE)
-
1110-76156 SCREW, INSERT TO GEAR HOUSING (1 7/8")SCREW, INSERT TO GEAR HOUSING (1 7/8")
-
1211-859124 NUT, INSERT SCREWNUT, INSERT SCREW
-
1345-41939F1 DRIVE SHAFT ASSEMBLYDRIVE SHAFT ASSEMBLY
-
1417-30545 PIN, DRIVE SHAFTPIN, DRIVE SHAFT
-
1524-34576 SPRING, COMPRESSION - DRIVE SHAFTSPRING, COMPRESSION - DRIVE SHAFT
-
1625-30613 "O" RING, UPPER - DRIVE SHAFT"O" RING, UPPER - DRIVE SHAFT
-
1743-96084A4 GEAR, PINION - DRIVE SHAFTGEAR, PINION - DRIVE SHAFT
-
1811-35921 NUT, PINION GEAR TO DRIVE SHAFTNUT, PINION GEAR TO DRIVE SHAFT
-
1915-57007A1 SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20)SHIM, DRIVE SHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20)
-
2031-53079A1 TAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFTTAPERED ROLLER BEARING ASSEMBLY, DRIVE SHAFT
-
2127-856704 GASKET, WATER PUMP BASE TO GEAR HOUSINGGASKET, WATER PUMP BASE TO GEAR HOUSING
-
2225-33145 "O" RING, WATER PUMP BASE"O" RING, WATER PUMP BASE
-
2346-57234A1 WATER PUMP BASE ASSEMBLYWATER PUMP BASE ASSEMBLY
-
2426-89238 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2526-16977 OIL SEAL, WATER PUMP BASEOIL SEAL, WATER PUMP BASE
-
2617-8M0084627 DOWEL PIN, WATER PUMP BASE TO WATER PUMP BODYDOWEL PIN, WATER PUMP BASE TO WATER PUMP BODY
-
2727-8M0090319 GASKET, LOWER - WATER PUMP BASE TO FACE PLATEGASKET, LOWER - WATER PUMP BASE TO FACE PLATE
-
28324351 PLATE, FACE - WATER PUMP BASE TO WATER PUMP BODYPLATE, FACE - WATER PUMP BASE TO WATER PUMP BODY
-
2927-858524 GASKET, UPPER - FACE PLATE TO WATER PUMP BODYGASKET, UPPER - FACE PLATE TO WATER PUMP BODY
-
3046-96148T1 WATER PUMP BODY ASSEMBLYWATER PUMP BODY ASSEMBLY
-
3148752T INSERT, WATER PUMP BODYINSERT, WATER PUMP BODY
-
3326-38970 SEAL, RUBBER - WATER INLET TUBESEAL, RUBBER - WATER INLET TUBE
-
3447-89984T4 IMPELLER, WATER PUMPIMPELLER, WATER PUMP
-
3528-8M0032834 PIN, IMPELLER DRIVEPIN, IMPELLER DRIVE
-
3610-30720 SCREW, WATER PUMP BODY TO GEAR HOUSING(2 1/4)SCREW, WATER PUMP BODY TO GEAR HOUSING(2 1/4)
-
3712-36001 WASHER, WATER PUMP BODY SCREWWASHER, WATER PUMP BODY SCREW
-
3811-35888 NUT, WATER PUMP BODY STUDS (1/4-28)NUT, WATER PUMP BODY STUDS (1/4-28)
-
3911-826709111 NUT, WATER PUMP BODY STUDS (5/16-24)NUT, WATER PUMP BODY STUDS (5/16-24)
-
4012-29245 WASHER, WATER PUMP BODY STUDWASHER, WATER PUMP BODY STUD
-
4125-30271 RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)RING, RUBBER - CENTRIFUGAL SLINGER (DRIVE SHAFT)
-
4223-29804T SLEEVE, GUIDE - WATER INLET TUBESLEEVE, GUIDE - WATER INLET TUBE
-
43774811 SHAFT, SHIFT - LOWERSHAFT, SHIFT - LOWER
-
4453-29641 CLIP, RETAINING - SHIFT SHAFTCLIP, RETAINING - SHIFT SHAFT
-
4512-27880 WASHER, LOWER SHIFT SHAFT AND CRANKWASHER, LOWER SHIFT SHAFT AND CRANK
-
4625-25439 "O" RING, SHIFT SHAFT BUSHING"O" RING, SHIFT SHAFT BUSHING
-
4723-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFTBUSHING ASSEMBLY, SHIFT SHAFT
-
4826-892361 OIL SEAL, SHIFT SHAFT BUSHINGOIL SEAL, SHIFT SHAFT BUSHING
-
4912-31266 WASHER, RUBBER - SHIFT SHAFT BUSHINGWASHER, RUBBER - SHIFT SHAFT BUSHING
-
5012-8M0042641 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
5110-79953Q04 SCREW, GEAR HOUSING GREASE FILLER AND VENT HOLESCREW, GEAR HOUSING GREASE FILLER AND VENT HOLE
-
5212-191833 WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREWWASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
