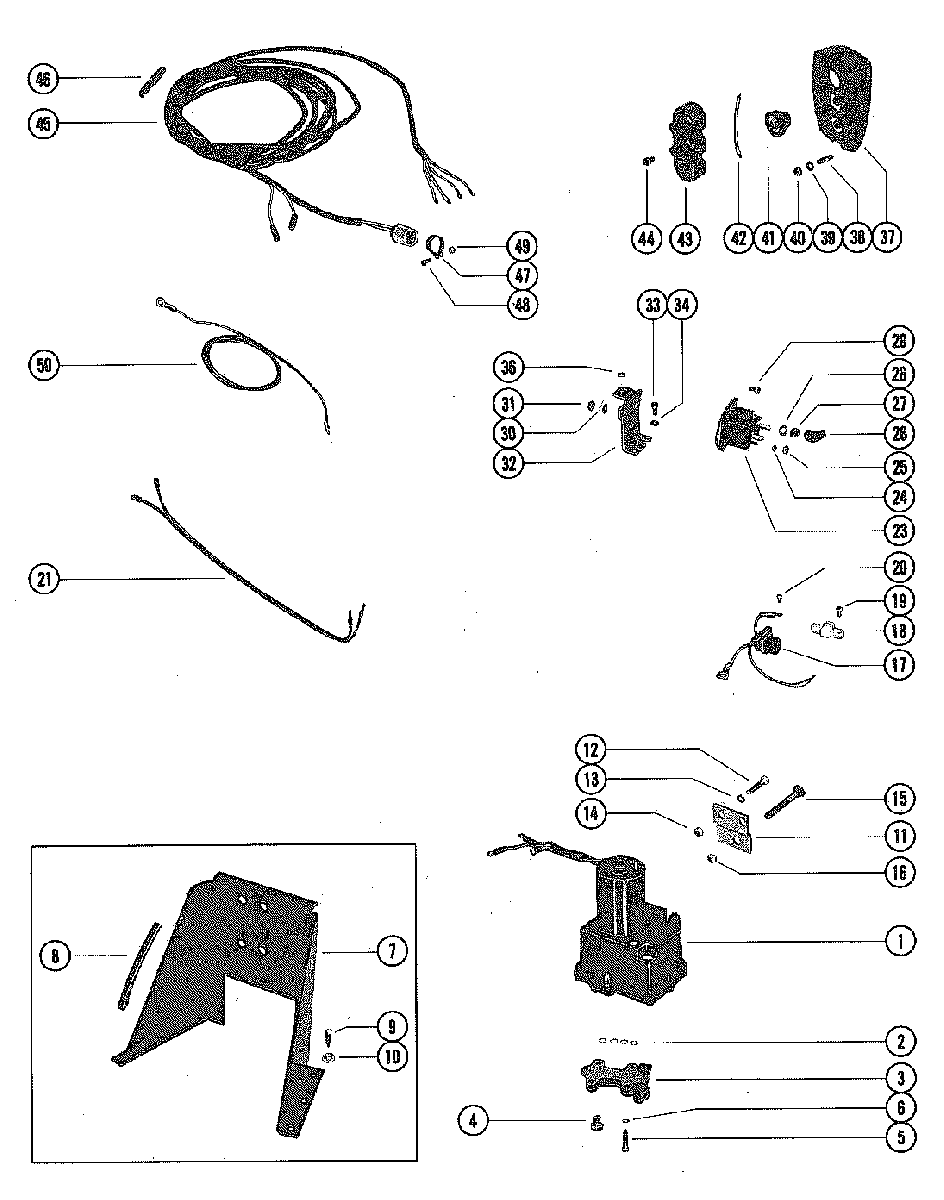

HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL для Mercruiser - 898/228 1977 4782330 THRU 4898729
-
№АртикулНазвание
-
193247A7 HYDRAULIC PUMP ASSEMBLYHYDRAULIC PUMP ASSEMBLY
-
225-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE"O" RING, HYDRAULIC PUMP TO CONTROL VALVE
-
348077T3 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
-25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE (SEE REFERENCE #2)"O" RING, HYDRAULIC PUMP TO CONTROL VALVE (SEE REFERENCE #2)
-
422-38609 PLUG, CONTROL VALVEPLUG, CONTROL VALVE
-
510-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
-
613-26992 LOCKWASHER, CONTROL VALVE SCREWLOCKWASHER, CONTROL VALVE SCREW
-
7862548A1 BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTING)BRACKET ASSEMBLY, MOUNTING - HYDRAULIC PUMP (FLOOR MOUNTING)
-
858491 BUMPER, RUBBER - PUMP MOUNTING BRACKETBUMPER, RUBBER - PUMP MOUNTING BRACKET
-
910-59784 SCREW, PUMP MOUNTING BRACKET ATTACHING (1")SCREW, PUMP MOUNTING BRACKET ATTACHING (1")
-
1012-29245 WASHER, PUMP MOUNTING BRACKETWASHER, PUMP MOUNTING BRACKET
-
1145377T BRACKET, MOUNTING - HYDRAULIC PUMP (TRANSOM MOUNTING)BRACKET, MOUNTING - HYDRAULIC PUMP (TRANSOM MOUNTING)
-
1210-35386 SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1")SCREW, HYDRAULIC PUMP TO MOUNTING BRACKET (1")
-
1313-39107 LOCKWASHER, HYDRAULIC PUMP SCREWLOCKWASHER, HYDRAULIC PUMP SCREW
-
1411-21908 NUT, HYDRAULIC PUMP SCREWNUT, HYDRAULIC PUMP SCREW
-
1510-68298 SCREW, PUMP MOUNTING BRACKET TO TRANSOM (3 1/4")SCREW, PUMP MOUNTING BRACKET TO TRANSOM (3 1/4")
-
1611-35304 NUT, PUMP MOUNTING BRACKET SCREWNUT, PUMP MOUNTING BRACKET SCREW
-
1784-74023A1 CONNECTOR AND HARNESS (GREEN LEAD 5 1/2" LONG)CONNECTOR AND HARNESS (GREEN LEAD 5 1/2" LONG)
-
1845559 TERMINAL BLOCK, HYDRAULIC PUMPTERMINAL BLOCK, HYDRAULIC PUMP
-
1910-48409 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
-
2010-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
-
2184-93542A1 WIRING HARNES, HYDRAULIC PUMPWIRING HARNES, HYDRAULIC PUMP
-
2389-853654A1 STARTER SOLENOIDSTARTER SOLENOID
-
2413-26996 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
2511-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
2613-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
2711-68292 NUT, STARTER SOLENOID TERMINAL (5/16"-18)NUT, STARTER SOLENOID TERMINAL (5/16"-18)
-
2846265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
2910-98256 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")SCREW, STARTER SOLENOID TO MOUNTING BRACKET (1/2")
-
3013-26992 LOCKWASHER, STARTER SSOLENOID SCREWLOCKWASHER, STARTER SSOLENOID SCREW
-
3111-21825 NUT,STARTER SOLENOID SCREWNUT,STARTER SOLENOID SCREW
-
3274407T BRACKET, MOUNTING- STARTER SOLENOIDBRACKET, MOUNTING- STARTER SOLENOID
-
3310-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
-
3413-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
3611-24656 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
--55642A13 CONTROL PANEL ASSEMBLY, COMPLETECONTROL PANEL ASSEMBLY, COMPLETE
-
3755642A17 PANEL ASSEMBLY, CONTROLPANEL ASSEMBLY, CONTROL
-
3816-55422 STUD, CONTROL PANEL TO BOAT (2")STUD, CONTROL PANEL TO BOAT (2")
-
3912-24676 WASHER, CONTROL PANEL STUDWASHER, CONTROL PANEL STUD
-
4011-27164 NUT, CONTROL PANEL STUDNUT, CONTROL PANEL STUD
-
4155738A1 SWITCH, PUSH BUTTON - CONTROL PANELSWITCH, PUSH BUTTON - CONTROL PANEL
-
4248078 JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3 1/4")JUMPER WIRE, PUSH BUTTON SWITCH (RED - 3 1/4")
-
4253107 JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")JUMPER WIRE, PUSH BUTTON SWITCH (PURPLE - 3")
-
4355641 RETAINER, PUSH BUTTON SWITCHRETAINER, PUSH BUTTON SWITCH
-
4410-62568 SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")SCREW, SWITCH RETAINER TO CONTROL PANEL (1/2")
-
4584-87394A20 HARNESS, CONTROL PANELHARNESS, CONTROL PANEL
-
4633865 BINDER, NYLON - CONTROL PANEL HARNESSBINDER, NYLON - CONTROL PANEL HARNESS
-
4795814 CLAMP, HARNESS ATTACHINGCLAMP, HARNESS ATTACHING
-
4810-29227 SCREW, HARNESS ATTACHING CLAMP (1/2")SCREW, HARNESS ATTACHING CLAMP (1/2")
-
4911-34388 NUT, HARNESS ATTACHING CLAMP SCREWNUT, HARNESS ATTACHING CLAMP SCREW
-
5084-79138A1 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
5084-79139A9 BATTERY LEAD (NEGATIVE)BATTERY LEAD (NEGATIVE)
