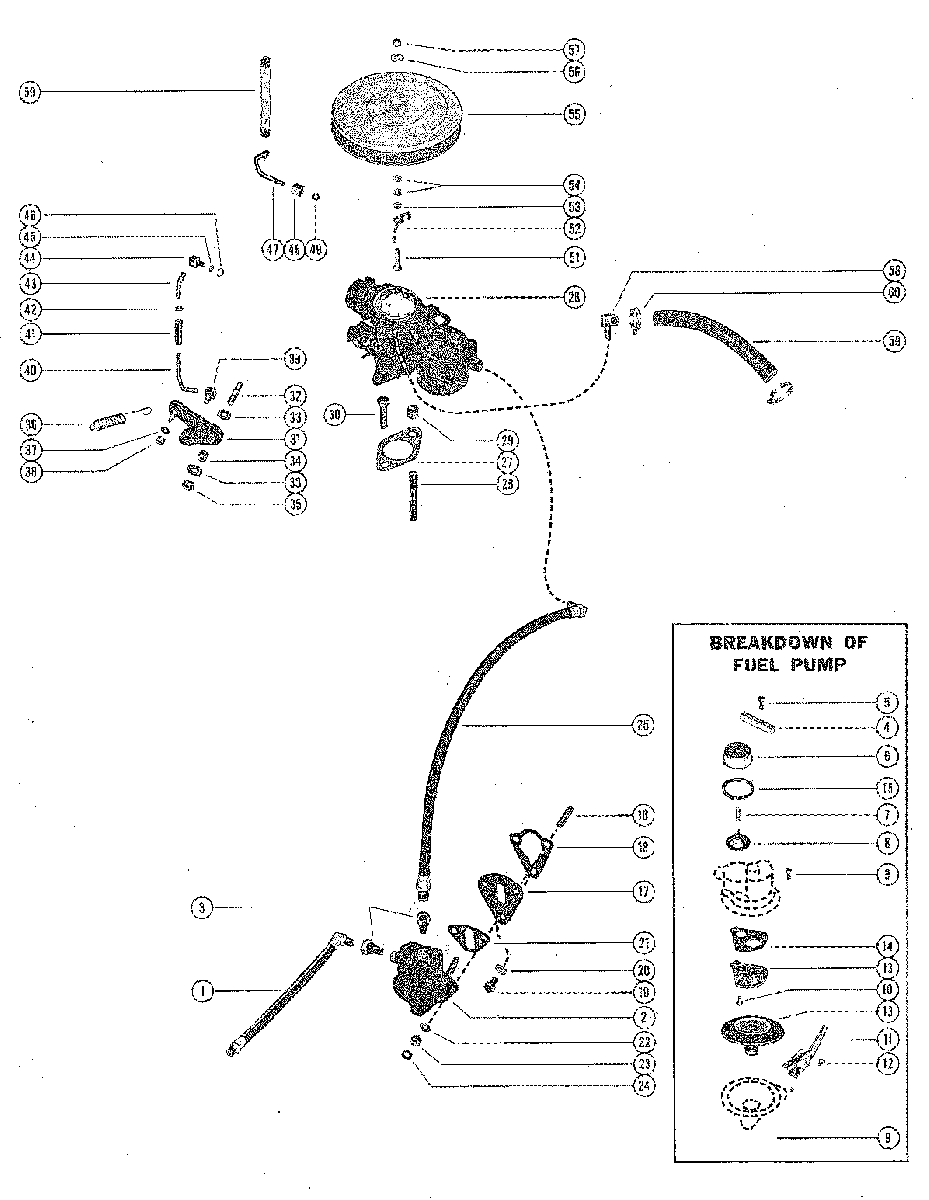

FUEL PUMP, FUEL LINES AND CARBURETOR (S/N-2322195 & BELOW) для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029
-
№АртикулНазвание
-
132-46135 FUEL LINE, INLET- FUEL TANK TO FUEL PUMP (16 1/2")FUEL LINE, INLET- FUEL TANK TO FUEL PUMP (16 1/2")
-
246666A1 FUEL PUMP ASSEMBLYFUEL PUMP ASSEMBLY
-
322-46941 FITTING, FUEL PUMP INLET AND OUTLETFITTING, FUEL PUMP INLET AND OUTLET
-
446669 CLAMP ASSEMBLY, FUEL PUMP CAPCLAMP ASSEMBLY, FUEL PUMP CAP
-
510-46670 SCREW, CLAMP TO FUEL PUMPSCREW, CLAMP TO FUEL PUMP
-
646671 CAP, FUEL PUMP FILTERCAP, FUEL PUMP FILTER
-
724-46673 SPRING, TENSION- FUEL PUMP FILTERSPRING, TENSION- FUEL PUMP FILTER
-
846674 FILTER, FUEL PUMPFILTER, FUEL PUMP
-
910-46675 SCREW, FUEL PUMP CLAMPINGSCREW, FUEL PUMP CLAMPING
-
1010-46678 SCREW, CHECK VALUE PLATE TO FUEL PUMPSCREW, CHECK VALUE PLATE TO FUEL PUMP
-
1146668 ARM, FUEL PUMPARM, FUEL PUMP
-
1210-46676 SCREW, ARM TO FUEL PUMPSCREW, ARM TO FUEL PUMP
-
1327-46667 REPAIR KIT, FUEL PUMPREPAIR KIT, FUEL PUMP
-
1427-46677 GASKET, CHECK VALUE PLATE TO FUEL PUMPGASKET, CHECK VALUE PLATE TO FUEL PUMP
-
1527-46672 GASKET, FUEL FUEL PUMP FILTER CAPGASKET, FUEL FUEL PUMP FILTER CAP
-
1616-46522 STUD, FUEL PUMP TO CYLINDER BLOCKSTUD, FUEL PUMP TO CYLINDER BLOCK
-
1746520 PLATE, MOUNTING- FUEL PUMPPLATE, MOUNTING- FUEL PUMP
-
1827-58511 GASKET, FUEL PUMP MOUNTING PLATEGASKET, FUEL PUMP MOUNTING PLATE
-
1910-46517 SCREW, FUEL PUMP MOUNTING PLATE TO CYLINDER BLOCK (20MM)SCREW, FUEL PUMP MOUNTING PLATE TO CYLINDER BLOCK (20MM)
-
2013-46523 LOCKWASHER, FUEL PUMP MOUNTING PLATE SCREWLOCKWASHER, FUEL PUMP MOUNTING PLATE SCREW
-
2127-37137 GASKET, FUEL PUMPGASKET, FUEL PUMP
-
2212-20084 WASHER, FUEL PUMP STUDWASHER, FUEL PUMP STUD
-
2311-37140 NUT, FUEL PUMP STUDNUT, FUEL PUMP STUD
-
2411-46679 NUT, LOCKING - FUEL PUMP STUD 2NUT, LOCKING - FUEL PUMP STUD 2
-
2532-46135 FUEL LINE, FUEL PUMP TO CARBURETOR (16 1/2")FUEL LINE, FUEL PUMP TO CARBURETOR (16 1/2")
-
261346-2770 CARBURETOR ASSEMBLY
SEE C10 FOR PARTS BREAKDOWNCARBURETOR ASSEMBLY
SEE C10 FOR PARTS BREAKDOWN -
2727-45865 GASKET, CARBURETORGASKET, CARBURETOR
-
2816-32908 TSUD, CARBURETOR TO INTAKE MANIFOLD COVER (1 5/16")TSUD, CARBURETOR TO INTAKE MANIFOLD COVER (1 5/16")
-
2911-23161 NUT, CARBURETOR STUDNUT, CARBURETOR STUD
-
3010-34354 SCREW, CARBURETOR TO INTAKE MANIFOLD COVER (1 1/2")SCREW, CARBURETOR TO INTAKE MANIFOLD COVER (1 1/2")
-
3146130 LEVER, THROTTLELEVER, THROTTLE
-
3216-21553 STUD, THROTTLE LEVER TO EXHAUST MANIFOLD BODY (1 1/2)STUD, THROTTLE LEVER TO EXHAUST MANIFOLD BODY (1 1/2)
-
3312-26825 WASHER, THROTTLE LEVER STUDWASHER, THROTTLE LEVER STUD
-
3423-31831 SLEEVE, THROTTLE LEVER STUDSLEEVE, THROTTLE LEVER STUD
-
3511-826709111 NUT, THROTTLE LEVER STUDNUT, THROTTLE LEVER STUD
-
3624-33453 SPRING, THROTTLE RETURN- THROTTLE LEVERSPRING, THROTTLE RETURN- THROTTLE LEVER
-
3712-30164 WASHER, THROTTLE CABLE TO THROTTLE LEVERWASHER, THROTTLE CABLE TO THROTTLE LEVER
-
3811-20110 NUT, THROTTLE CABLE TO THROTTLE LEVERNUT, THROTTLE CABLE TO THROTTLE LEVER
-
3927947 SWIVEL, LINK ROD TO THROTTLE LEVERSWIVEL, LINK ROD TO THROTTLE LEVER
-
4046127 LINK ROD, THROTTLE LEVER SWIVEL TO ADJUSTING SLEEVE (LOWER)LINK ROD, THROTTLE LEVER SWIVEL TO ADJUSTING SLEEVE (LOWER)
-
4133393 SLEEVE, ADJUSTING- LINK RODSLEEVE, ADJUSTING- LINK ROD
-
4211-25168 NUT, JAM- ADJUSTING SLEEVE TO UPPER LINK RODNUT, JAM- ADJUSTING SLEEVE TO UPPER LINK ROD
-
4346128 LINK ROD, CARBURETOR SWIVEL TO ADJUSTING SLEEVE (UPPER)LINK ROD, CARBURETOR SWIVEL TO ADJUSTING SLEEVE (UPPER)
-
4438983 SWIVEL, LINK ROD TO CARBURETORSWIVEL, LINK ROD TO CARBURETOR
-
4512-30164 WASHER, LINK ROD SWIVELWASHER, LINK ROD SWIVEL
-
4611-20110 NUT, LINK ROD SWIVEL TO CARBURETORNUT, LINK ROD SWIVEL TO CARBURETOR
-
4732-45872A1 PIPE ASSEMBLY, CHOKE - CARBURETOR TO INTAKE MANIFOLD COVERPIPE ASSEMBLY, CHOKE - CARBURETOR TO INTAKE MANIFOLD COVER
-
4811-21310 NUT, CHOKE PIPE TO CARBURETORNUT, CHOKE PIPE TO CARBURETOR
-
4923-21309 SLEEVE, CHOKE PIPESLEEVE, CHOKE PIPE
-
5032-38984 COVERING, CHOKE PIPECOVERING, CHOKE PIPE
-
5110-35156 SCREW, FLAME ARRESTOR TO CARBURETOR (1 1/4")SCREW, FLAME ARRESTOR TO CARBURETOR (1 1/4")
-
5246129 WIRE, MOUNTING- FLAME ARRESTORWIRE, MOUNTING- FLAME ARRESTOR
-
5312-22937 WASHER, FLAME ARRESTOR SCREW (BOTTOM)WASHER, FLAME ARRESTOR SCREW (BOTTOM)
-
5411-8267139 NUT, JAM- FLAME ARRESTOR SCREWNUT, JAM- FLAME ARRESTOR SCREW
-
5545630 FLAME ARRESTOR, CARBURETORFLAME ARRESTOR, CARBURETOR
-
5612-22937 WASHER, FLAME ARRESTOR SCREW (TOP)WASHER, FLAME ARRESTOR SCREW (TOP)
-
5711-826709109 NUT, FLAME ARRESTOR SCREWNUT, FLAME ARRESTOR SCREW
-
5822-46126 FITTING, CARBURETOR TO VENT HOSE 1FITTING, CARBURETOR TO VENT HOSE 1
-
5932-46716A1 HOSE, VENT - CARBURETOR TO TOP COVER (6 3/4") 1HOSE, VENT - CARBURETOR TO TOP COVER (6 3/4") 1
-
6054-815504310 CLAMP, VENT HOSE TO CARBURETOR AND TOP COVER 2CLAMP, VENT HOSE TO CARBURETOR AND TOP COVER 2
