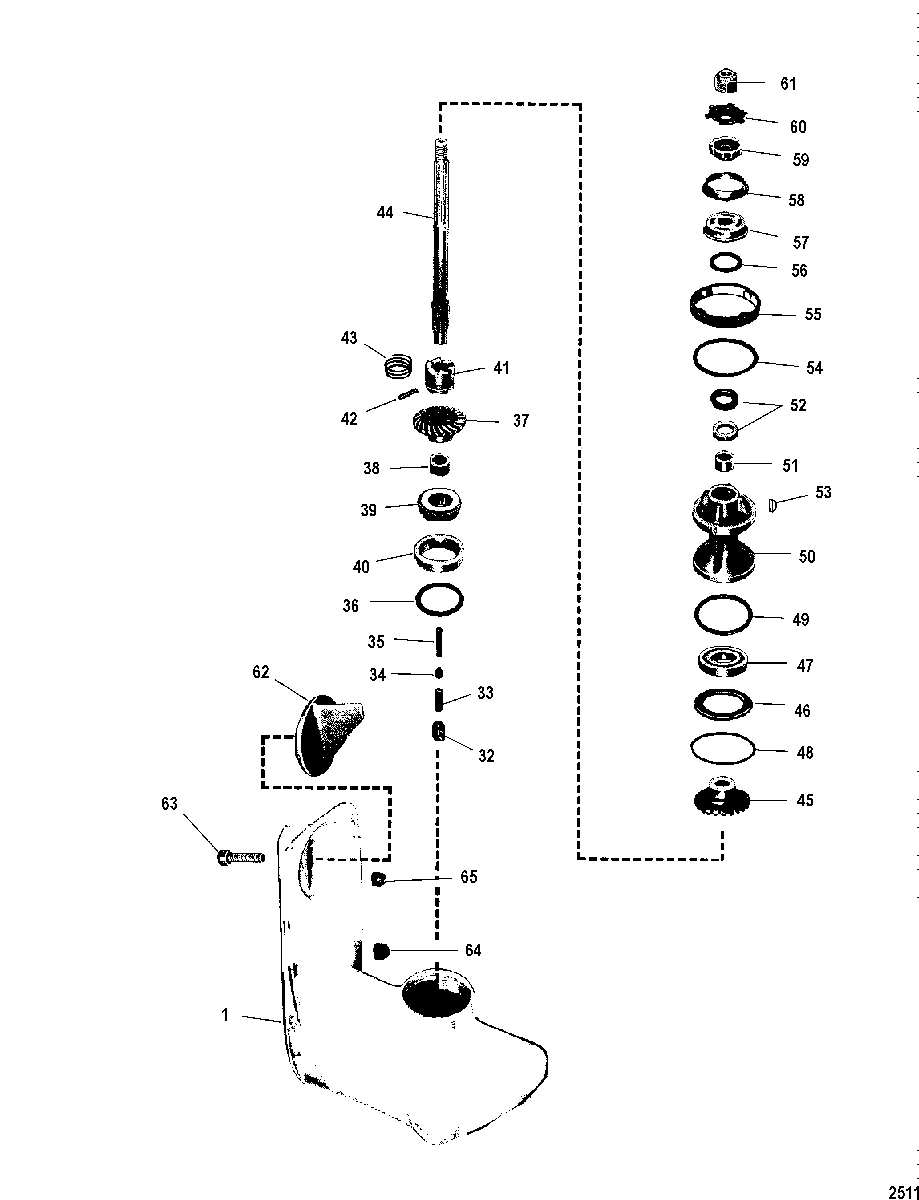

GEAR HOUSING ASSEMBLY-PROP для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029

  • №
    Артикул
    Название
  • 0
    1634-2766A5 GEAR HOUSING-COMPLETE
    GEAR HOUSING-COMPLETE
  • 1
    1634-2766A1 GEAR HOUSING (BASIC)
    GEAR HOUSING (BASIC)
  • 32
    760394 SHIFT CAM
    SHIFT CAM
  • 33
    30625 CAM FOLLOWER
    CAM FOLLOWER
  • 34
    30624 SLIDE-Cross Pin
    SLIDE-Cross Pin
  • 35
    24-30622 SPRING-Cam Follower
    SPRING-Cam Follower
  • 36
    15-30923A1 SHIM SET-Bearing Cup to Gear Housing
    SHIM SET-Bearing Cup to Gear Housing
  • 37
    43-55424A2 FORWARD GEAR
    FORWARD GEAR
  • 38
    31-30895T ROLLER BEARING-Forward Gear
    ROLLER BEARING-Forward Gear
  • 39
    31-30894A1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 40
    NSS CUP
    CUP
  • 41
    52-822539T CLUTCH
    CLUTCH
  • 42
    17-8M0100263 CROSS PIN-Clutch to Prop Shaft
    CROSS PIN-Clutch to Prop Shaft
  • 43
    24-30893 SPRING-Cross Pin
    SPRING-Cross Pin
  • 44
    44-45683 PROP SHAFT
    PROP SHAFT
  • 45
    43-55428 REVERSE GEAR
    REVERSE GEAR
  • 46
    12-71143A1 THRUST WASHER-Bearing Carrier to Gear Housing
    THRUST WASHER-Bearing Carrier to Gear Housing
  • 47
    30-31265 BALL BEARING-Reverse Gear
    BALL BEARING-Reverse Gear
  • 48
    15-29955A1 SHIM SET-Thrust Washer to Gear housing
    SHIM SET-Thrust Washer to Gear housing
  • 49
    25-29976 O RING-Bearing Carrier
    O RING-Bearing Carrier
  • 50
    45607A1 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 51
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 52
    26-76868 OIL SEAL
    OIL SEAL
  • 53
    28-30281 KEY-Bearing Carrier
    KEY-Bearing Carrier
  • 54
    12-29957 WASHER-Gear Housing Cover
    WASHER-Gear Housing Cover
  • 55
    52699 COVER-Gear Housing
    COVER-Gear Housing
  • 56
    12-31013 THRUST WASHER-Bearing Carrier
    THRUST WASHER-Bearing Carrier
  • 57
    30581A1 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 58
    12-29590 CUPPED WASHER
    CUPPED WASHER
  • 59
    12-31211Q03 SPLINED WASHER-Prop Shaft
    SPLINED WASHER-Prop Shaft
  • 60
    14-816629Q TAB WASHER-Prop Shaft
    TAB WASHER-Prop Shaft
  • 61
    11-29594 PROP NUT
    PROP NUT
  • 62
    45684A1 TRIM TAB
    TRIM TAB
  • 63
    10-32470 SCREW-Trim Tab to Gear Housing (1-3/4 IN.)
    SCREW-Trim Tab to Gear Housing (1-3/4 IN.)
  • 64
    11-34933 NUT-Drive Shaft Housing to Gear Housing Stud (7/16 IN.)
    NUT-Drive Shaft Housing to Gear Housing Stud (7/16 IN.)
  • 65
    11-82671013 NUT-Drive Shaft Housing to Gear Housing Stud (3/8 IN.)
    NUT-Drive Shaft Housing to Gear Housing Stud (3/8 IN.)
  • 0
    48-33242A3 PROPELLER ASSEMBLY
    (9-1/2 IN. PITCH)
    PROPELLER ASSEMBLY
    (9-1/2 IN. PITCH)
  • 0
    48-77338A45 PROPELLER ASSEMBLY
    (11 IN. PITCH)
    PROPELLER ASSEMBLY
    (11 IN. PITCH)
  • 0
    48-77338A45 PROPELLER ASSEMBLY
    (13 IN. PITCH)
    PROPELLER ASSEMBLY
    (13 IN. PITCH)
  • 0
    48-77340A45 PROPELLER ASSEMBLY
    (15 IN. PITCH)
    PROPELLER ASSEMBLY
    (15 IN. PITCH)
  • 0
    48-77344A45 PROPELLER ASSEMBLY
    (17 IN. PITCH)
    PROPELLER ASSEMBLY
    (17 IN. PITCH)
  • 0
    48-65588A1 PROPELLER ASSEMBLY
    (19 IN. PITCH)(3 BLADES)
    PROPELLER ASSEMBLY
    (19 IN. PITCH)(3 BLADES)
  • 0
    48-65588A1 PROPELLER ASSEMBLY
    (19 IN. PITCH)(2 BLADES)
    PROPELLER ASSEMBLY
    (19 IN. PITCH)(2 BLADES)
  • 0
    48-77346A45 PROPELLER ASSEMBLY
    (21 IN. PITCH)(3 BLADES)
    PROPELLER ASSEMBLY
    (21 IN. PITCH)(3 BLADES)
  • 0
    48-77346A45 PROPELLER ASSEMBLY
    (21 IN. PITCH)(2 BLADES)
    PROPELLER ASSEMBLY
    (21 IN. PITCH)(2 BLADES)
  • 0
    48-77348A45 PROPELLER ASSEMBLY
    (23 IN. PITCH)
    PROPELLER ASSEMBLY
    (23 IN. PITCH)
