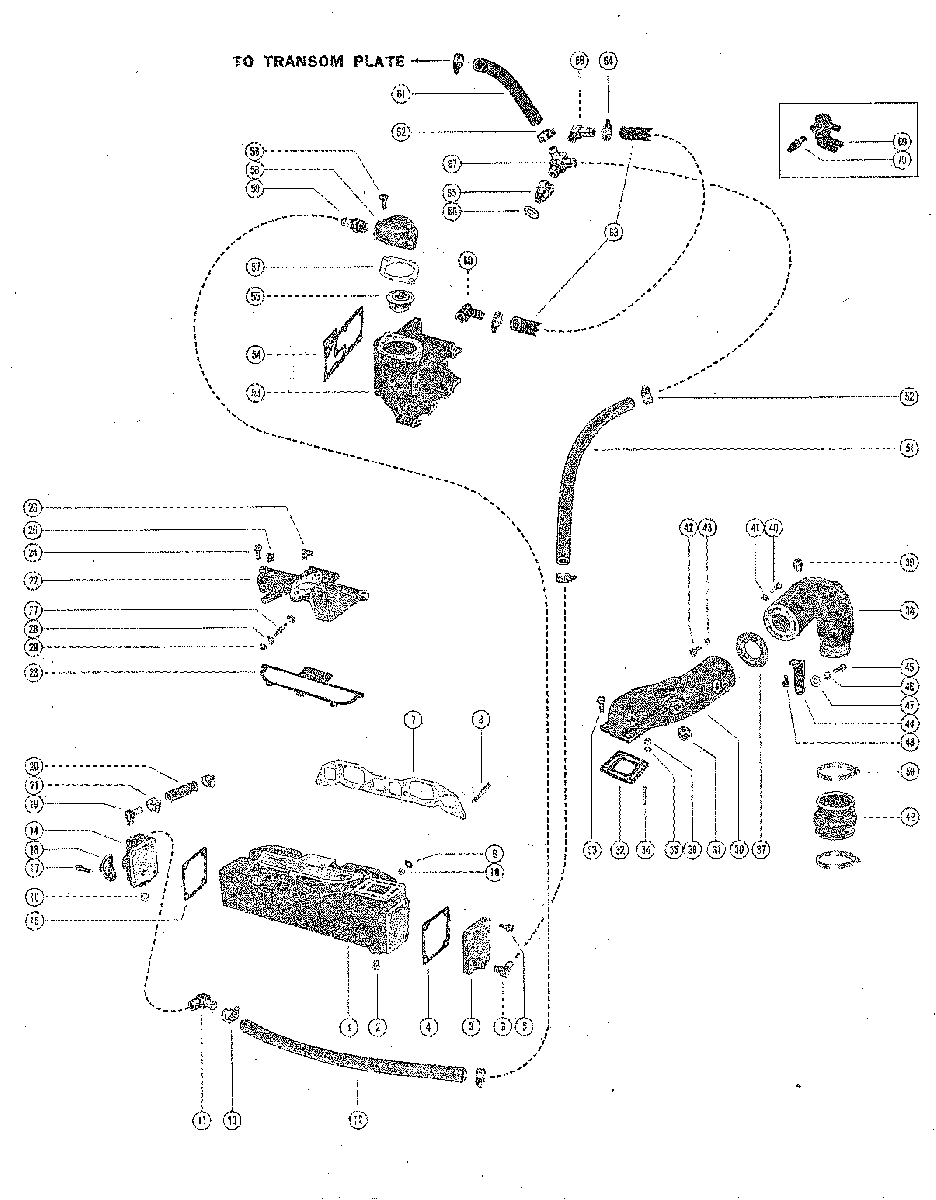

EXHAUST MANIFOLD, INTAKE MANIFOLD AND EXHAUST ELBOW для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029

  • №
    Артикул
    Название
  • 1
    45657 EXHAUST MANIFOLD
    SEE NOTE SERIAL 00000000-02322195
    EXHAUST MANIFOLD
    SEE NOTE SERIAL 00000000-02322195
  • 1
    48469 EXHAUST MANIFOLD
    SEE NOTE SERIAL 02322196-09999999
    EXHAUST MANIFOLD
    SEE NOTE SERIAL 02322196-09999999
  • 2
    22-328022 PLUG, DRAIN-EXHAUST-EXHAUST MANIFOLD
    PLUG, DRAIN-EXHAUST-EXHAUST MANIFOLD
  • 3
    45631 END CAP, EXHAUST MANIFOLD
    END CAP, EXHAUST MANIFOLD
  • 4
    27-45647 GASKET, END CAP
    GASKET, END CAP
  • 5
    10-39970 SCREW, END CAP TO EXHAUST MANIFOLD (1")
    SCREW, END CAP TO EXHAUST MANIFOLD (1")
  • 6
    22-46131 ELBOW, END CAP
    ELBOW, END CAP
  • 7
    27-46601 GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
    GASKET, EXHAUST MANIFOLD TO CYLINDER HEAD
  • 8
    16-37087 STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (42MM)
    STUD, EXHAUST MANIFOLD TO CYLINDER HEAD (42MM)
  • 9
    12-20084 WASHER, EXHAUST MAINFOLD STUD
    WASHER, EXHAUST MAINFOLD STUD
  • 10
    11-46603 NUT, EXHAUST MANIFOLD STUD
    NUT, EXHAUST MANIFOLD STUD
  • 11
    22-32715 ELBOW, WATER DISTRIBUTION BLOCK
    ELBOW, WATER DISTRIBUTION BLOCK
  • 12
    32-47642 HOSE, THERMOSTAT COVER TO WATER DISTRIBUTION BLOCK (19 1/2')
    HOSE, THERMOSTAT COVER TO WATER DISTRIBUTION BLOCK (19 1/2')
  • 13
    54-815504310 CLAMP, HOSE TO THERMOSTAT COVER AND WATER DISTRIBUTION BLOCK
    CLAMP, HOSE TO THERMOSTAT COVER AND WATER DISTRIBUTION BLOCK
  • 14
    45623 BLOCK, WATER DISTRIBUTION - EXHAUST MANIFOLD
    BLOCK, WATER DISTRIBUTION - EXHAUST MANIFOLD
  • 15
    27-45647 GASKET, WATER DISTRIBUTION BLOCK
    GASKET, WATER DISTRIBUTION BLOCK
  • 16
    22-384071 PLUG, PIPE - WATER DISTRIBUTION BLOCK
    PLUG, PIPE - WATER DISTRIBUTION BLOCK
  • 17
    10-39970 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1")
    SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1")
  • 17
    10-47174A1 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (2 3/8")
    SERIAL 00000000-02322195
    SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (2 3/8")
    SERIAL 00000000-02322195
  • 17
    10-47174A1 SCREW ASSEMBLY, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD
    SERIAL 02322196-09999999
    SCREW ASSEMBLY, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD
    SERIAL 02322196-09999999
  • 17
    10-45981 SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1 1/4")
    SCREW, WATER DISTRIBUTION BLOCK TO EXHAUST MANIFOLD (1 1/4")
  • 18
    54-72531 EYE, LIFTING - WATER DISTRIBUTION BLOCK SCREW
    EYE, LIFTING - WATER DISTRIBUTION BLOCK SCREW
  • 19
    22-46131 ELBOW, WATER DISTRIBUTION BLOCK
    ELBOW, WATER DISTRIBUTION BLOCK
  • 20
    32-46716A1 HOSE, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (2 3/4")
    HOSE, WATER DISTRIBUTION BLOCK TO CYLINDER HEAD (2 3/4")
  • 21
    54-815504206 CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND CYLINDER HEAD
    CLAMP, HOSE TO WATER DISTRIBUTION BLOCK AND CYLINDER HEAD
  • 22
    45864 COVER, INTAKE MANIFOLD
    SERIAL 00000000-02322195
    COVER, INTAKE MANIFOLD
    SERIAL 00000000-02322195
  • 23
    27-49018 GASKET, INTAKE MANIFOLD COVER
    SERIAL 00000000-02322195
    GASKET, INTAKE MANIFOLD COVER
    SERIAL 00000000-02322195
  • 22
    47595 COVER, INTAKE MANIFOLD
    SERIAL 02322195-09999999
    COVER, INTAKE MANIFOLD
    SERIAL 02322195-09999999
  • 23
    27-49018 GASKET, INTAKE MANIFOLD COVER
    SERIAL 02322195-09999999
    GASKET, INTAKE MANIFOLD COVER
    SERIAL 02322195-09999999
  • 24
    10-39970 SCREW, INTAKE MANIFOLD COVER/EXHAUST MANIFOLD (1")
    SCREW, INTAKE MANIFOLD COVER/EXHAUST MANIFOLD (1")
  • 25
    22-36382 PLUG, INTAKE MANIFOLD COVER (1/4-28)
    PLUG, INTAKE MANIFOLD COVER (1/4-28)
  • 26
    22-22890 CONNECTOR, INTAKE MANIFOLD COVER TO CHOKE PIPE
    CONNECTOR, INTAKE MANIFOLD COVER TO CHOKE PIPE
  • 27
    16-38525 STUD, THROTTLE CABLE TO INTAKE MANIFOLD COVER
    STUD, THROTTLE CABLE TO INTAKE MANIFOLD COVER
  • 28
    12-24664 WASHER, THROTTLE CABLE STUD
    WASHER, THROTTLE CABLE STUD
  • 29
    11-826709109 NUT, THROTTLE CABLE STUD
    NUT, THROTTLE CABLE STUD
  • 30
    45616 ELBOW, MANIFOLD
    SERIAL 00000000-02322195
    ELBOW, MANIFOLD
    SERIAL 00000000-02322195
  • 30
    45616 ELBOW, MANIFOLD
    SERIAL 02322196-09999999
    ELBOW, MANIFOLD
    SERIAL 02322196-09999999
  • 31
    22-416223 PLUG, PIPE - MANIFOLD ELBOW (3/4-14)
    PLUG, PIPE - MANIFOLD ELBOW (3/4-14)
  • 32
    27-45649 GASKET, MANIFOLD ELBOW
    GASKET, MANIFOLD ELBOW
  • 33
    10-45981 SCREW, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/4")
    SCREW, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/4")
  • 34
    16-21553 STUD, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/2")
    STUD, MANIFOLD ELBOW TO EXHAUST MANIFOLD (1 1/2")
  • 35
    13-35389 LOCKWASHER, MANIFOLD ELBOW STUD
    LOCKWASHER, MANIFOLD ELBOW STUD
  • 36
    11-22053 NUT, MANIFOLD ELBOW STUD
    NUT, MANIFOLD ELBOW STUD
  • 37
    27-45648 GASKET, EXHAUST ELBOW TO MANIFOLD ELBOW
    GASKET, EXHAUST ELBOW TO MANIFOLD ELBOW
  • 38
    45617 ELBOW, EXHAUST
    ELBOW, EXHAUST
  • 39
    22-384071 PLUG, PIPE - EXHAUST ELBOW (1/2-14)
    PLUG, PIPE - EXHAUST ELBOW (1/2-14)
  • 40
    10-35386 SCREW, EXHAUST ELBOW TO MANIFOLD ELBOW (1")
    SERIAL 00000000-02322195
    SCREW, EXHAUST ELBOW TO MANIFOLD ELBOW (1")
    SERIAL 00000000-02322195
  • 40
    16-21553 STUD, EXHAUST ELBOW TO MANIFOLD ELBOW (1 1/2")
    SERIAL 02322196-09999999
    STUD, EXHAUST ELBOW TO MANIFOLD ELBOW (1 1/2")
    SERIAL 02322196-09999999
  • 41
    13-35389 LOCKWASHER, EXHAUST ELBOW SCREW
    LOCKWASHER, EXHAUST ELBOW SCREW
  • 42
    10-20639 SCREW, MANIFOLD ELBOW TO EXHAUST ELBOW (1 1/8")
    SCREW, MANIFOLD ELBOW TO EXHAUST ELBOW (1 1/8")
  • 43
    11-22053 NUT, MANIFOLD ELBOW SCREW
    NUT, MANIFOLD ELBOW SCREW
  • 44
    45644 BRACKET, MOUNTING - EXHAUST ELBOW
    BRACKET, MOUNTING - EXHAUST ELBOW
  • 45
    10-34353 SCREW, MOUNTING BRACKET TO REAR MOUNT HOUSING (1")
    SCREW, MOUNTING BRACKET TO REAR MOUNT HOUSING (1")
  • 46
    13-35048 LOCKWASHER, MOUNTING BRACKET SCREW
    LOCKWASHER, MOUNTING BRACKET SCREW
  • 47
    12-38622 WASHER, MOUNTING BRACKET SCREW
    WASHER, MOUNTING BRACKET SCREW
  • 48
    10-35765A1 SCREW, MOUNTING BRACKET TO EXHAUST ELBOW (3/4")
    SCREW, MOUNTING BRACKET TO EXHAUST ELBOW (3/4")
  • 49
    38184 BELLOWS, EXHAUST
    BELLOWS, EXHAUST
  • 50
    54-815504352 CLAMP, EXHAUST BELLOWS TO TRANSOM PLATE AND EXHAUST ELBOW
    CLAMP, EXHAUST BELLOWS TO TRANSOM PLATE AND EXHAUST ELBOW
  • 51
    32-46716A1 HOSE, END CAP TO CHECK VALVE TEE (16 1/2")
    HOSE, END CAP TO CHECK VALVE TEE (16 1/2")
  • 52
    54-815504206 CLAMP, HOSE TO END CAP AND CHECK VALVE TEE
    CLAMP, HOSE TO END CAP AND CHECK VALVE TEE
  • 53
    45618 HOUSING, FRONT MOUNT
    HOUSING, FRONT MOUNT
  • 54
    27-45645 GASKET, FRONT MOUNT HOUSING TO CYLINDER HEAD
    GASKET, FRONT MOUNT HOUSING TO CYLINDER HEAD
  • 55
    8M0089715 THERMOSTAT
    THERMOSTAT
  • 56
    45629 COVER, THERMOSTAT
    COVER, THERMOSTAT
  • 57
    27-38556 GASKET, THERMOSTAT COVER
    GASKET, THERMOSTAT COVER
  • 58
    10-21077 SCREW, THERMOSTAT COVER TO FRONT MOUNT HOUSING (7/8")
    SCREW, THERMOSTAT COVER TO FRONT MOUNT HOUSING (7/8")
  • 59
    22-33066 FITTING, THERMOSTAT COVER
    FITTING, THERMOSTAT COVER
  • 60
    22-38565 FITTING, FRONT MOUNT HOUSING
    FITTING, FRONT MOUNT HOUSING
  • 61
    32-46716A1 HOSE, CHECK VALVE TEE TO TRANSOM (9")
    HOSE, CHECK VALVE TEE TO TRANSOM (9")
  • 62
    54-815504206 CLAMP, HOSE TO CHECK VALVE TEE AND TRANSOM
    CLAMP, HOSE TO CHECK VALVE TEE AND TRANSOM
  • 63
    32-46716A1 HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
    SERIAL 00000000-02640854
    HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
    SERIAL 00000000-02640854
  • 64
    54-815504206 CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
    SERIAL 00000000-02640854
    CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
    SERIAL 00000000-02640854
  • 65
    45654 CHECK VALVE, CYLINDER BLOCK
    SERIAL 00000000-02640854
    CHECK VALVE, CYLINDER BLOCK
    SERIAL 00000000-02640854
  • 66
    12-46519 WASHER, CHECK VALVE
    SERIAL 00000000-02640854
    WASHER, CHECK VALVE
    SERIAL 00000000-02640854
  • 67
    22-45639 TEE, CHECK VALVE
    SERIAL 00000000-02640854
    TEE, CHECK VALVE
    SERIAL 00000000-02640854
  • 68
    22-46131 ELBOW, CHECK VALVE TEE
    SERIAL 00000000-02640854
    ELBOW, CHECK VALVE TEE
    SERIAL 00000000-02640854
  • 63
    32-54189 HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
    SERIAL 02640855-09999999
    HOSE, CHECK VALVE ELBOW TO FRONT MOUNT HOUSING (6 3/4")
    SERIAL 02640855-09999999
  • 64
    54-815504206 CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
    SERIAL 02640855-09999999
    CLAMP, HOSE TO CHECK VALVE ELBOW AND FRONT MOUNTING HOUSING
    SERIAL 02640855-09999999
  • 69
    21-57790A1 CHECK VALVE ASSEMBLY, CYLINDER BLOCK
    SERIAL 02640855-09999999
    CHECK VALVE ASSEMBLY, CYLINDER BLOCK
    SERIAL 02640855-09999999
  • 70
    22-54107 ADAPTOR, CHECK VAVLE
    SERIAL 02640855-09999999
    ADAPTOR, CHECK VAVLE
    SERIAL 02640855-09999999
  • -
    27-46564A1 GASKET SET (CYLINDER HEAD)
    GASKET SET (CYLINDER HEAD)
  • -
    27-46601A1 GASKET SET (MANIFOLD)
    GASKET SET (MANIFOLD)
  • -
    27-46536A1 GASKET SET (MISCELLANEOUS)
    GASKET SET (MISCELLANEOUS)
