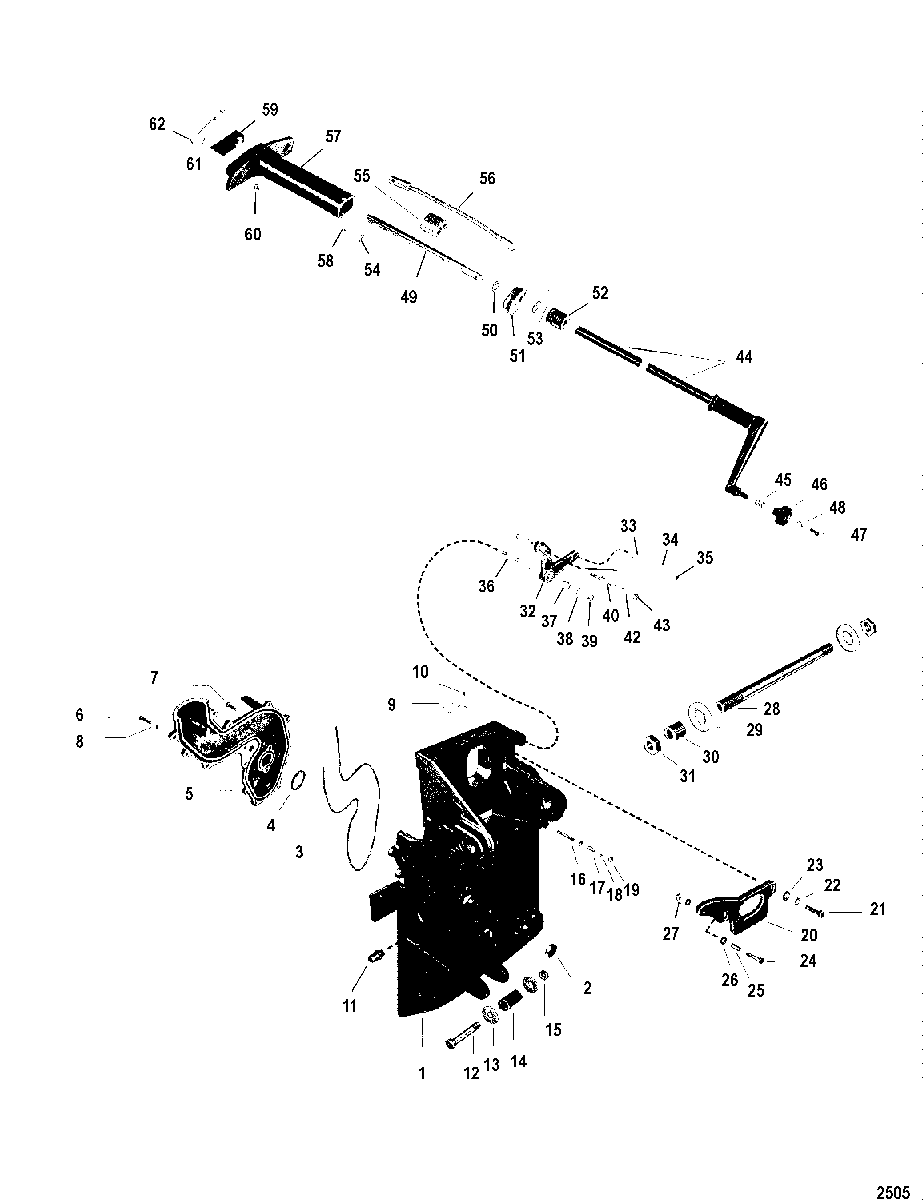

TRANSOM PLATE ASSEMBLY AND MANUAL TILT для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029
-
№АртикулНазвание
-
147154A2 TRANSOM PLATE ASSEMBLY
(S/N-2228315 & Below)TRANSOM PLATE ASSEMBLY
(S/N-2228315 & Below) -
147154A2 TRANSOM PLATE ASSEMBLY
(S/N-2228316 & Up)TRANSOM PLATE ASSEMBLY
(S/N-2228316 & Up) -
226-38235 OIL SEAL
(S/N-2228315 & Below)OIL SEAL
(S/N-2228315 & Below) -
226-46970 OIL SEAL
(S/N-2228316 & Up)OIL SEAL
(S/N-2228316 & Up) -
338371 EXHAUST SEAL
(S/N-2228315 & Below)EXHAUST SEAL
(S/N-2228315 & Below) -
338371 EXHAUST SEAL
(S/N-2228316 & Up)EXHAUST SEAL
(S/N-2228316 & Up) -
425-31144 O RING-Exhaust CoverO RING-Exhaust Cover
-
538165 EXHAUST COVEREXHAUST COVER
-
610-38870 SCREW-Exhaust Cover to Transom Plate (7/8 IN.)SCREW-Exhaust Cover to Transom Plate (7/8 IN.)
-
710-38870 SCREW-Exhaust Cover to Transom Plate (3/4 IN.)SCREW-Exhaust Cover to Transom Plate (3/4 IN.)
-
811-30506 NUT-Exhaust Cover ScrewNUT-Exhaust Cover Screw
-
938-38234 NAME PLATENAME PLATE
-
1010-22290 DRIVE SCREW-Name Plate to Transom PlateDRIVE SCREW-Name Plate to Transom Plate
-
1122-30570 COUPLING-Water Inlet HoseCOUPLING-Water Inlet Hose
-
1210-38245 SCREW-Flywheel Housing to Transom Plate (3-3/4 IN.)SCREW-Flywheel Housing to Transom Plate (3-3/4 IN.)
-
1312-38246 WASHER-Fiber-Flywheel Housing ScrewWASHER-Fiber-Flywheel Housing Screw
-
1423-38247 SLEEVE-Flywheel Housing ScrewSLEEVE-Flywheel Housing Screw
-
1511-38248 NUT-Flywheel Housing ScrewNUT-Flywheel Housing Screw
-
1616-20353 STUD-Shift Cable to Transom Plate (1-3/4 IN.)STUD-Shift Cable to Transom Plate (1-3/4 IN.)
-
1723-31866 SPACER-Shift Cable StudSPACER-Shift Cable Stud
-
1812-39143 WASHER-Shift Cable StudWASHER-Shift Cable Stud
-
1911-8267089 NUT-Shift Cable StudNUT-Shift Cable Stud
-
2038372 ANCHOR-Sender Housing-Transom PlateANCHOR-Sender Housing-Transom Plate
-
2110-60411 SCREW-Sender Housing Anchor to Transom Plate (1-1/4 IN.)SCREW-Sender Housing Anchor to Transom Plate (1-1/4 IN.)
-
2213-26993 LOCKWASHER-Sender Housing Anchor ScrewLOCKWASHER-Sender Housing Anchor Screw
-
2312-26825 WASHER-Sender Housing Anchor ScrewWASHER-Sender Housing Anchor Screw
-
2410-22659 SCREW-Sender Housing to Anchor (1-5/8 IN.)SCREW-Sender Housing to Anchor (1-5/8 IN.)
-
2523-31866 SPACER-Sender Housing ScrewSPACER-Sender Housing Screw
-
2612-39143 WASHER-Sender Housing ScrewWASHER-Sender Housing Screw
-
2711-8267089 NUT-Sender Housing ScrewNUT-Sender Housing Screw
-
2832-38186 STEERING CABLE GUIDE TUBESTEERING CABLE GUIDE TUBE
-
2912-38239 WASHER-Fiber-Steering Cable Guide TubeWASHER-Fiber-Steering Cable Guide Tube
-
3023-38684 SLEEVE-Steering Cable Tube-Transom PlateSLEEVE-Steering Cable Tube-Transom Plate
-
3111-8M0041651 NUT-Steering Cable Guide TubeNUT-Steering Cable Guide Tube
-
3238194 SHIFT CABLE LEVER-Transom Plate
(S/N-2640854 & Below)SHIFT CABLE LEVER-Transom Plate
(S/N-2640854 & Below) -
3249704A1 SHIFT CABLE LEVER-Transom Plate
(S/N-2640855 & Up)SHIFT CABLE LEVER-Transom Plate
(S/N-2640855 & Up) -
3316-66021 STUD
(S/N-2640855 & Up)STUD
(S/N-2640855 & Up) -
3412-39143 WASHER-Shift Lever Stud
(S/N-2640855 & Up)WASHER-Shift Lever Stud
(S/N-2640855 & Up) -
3511-8267089 NUT-Shift Lever Stud
(S/N-2640855 & Up)NUT-Shift Lever Stud
(S/N-2640855 & Up) -
3616-32698 STUD-Shift Cable Lever to Transom PlateSTUD-Shift Cable Lever to Transom Plate
-
3723-31758 SPACER-Shift Cable Lever StudSPACER-Shift Cable Lever Stud
-
3812-26825 WASHER-Shift Cable Lever StudWASHER-Shift Cable Lever Stud
-
3911-82670911 NUT-Shift Cable Lever StudNUT-Shift Cable Lever Stud
-
4016-34069 STUD-Sender Housing to Shift Cable LeverSTUD-Sender Housing to Shift Cable Lever
-
4112-39143 WASHER-Sender Housing StudWASHER-Sender Housing Stud
-
4223-31866 SPACER-Sender Housing StudSPACER-Sender Housing Stud
-
4311-8267089 NUT-Sender Housing StudNUT-Sender Housing Stud
-
-49202A2 MANUAL TILT ASSEMBLYMANUAL TILT ASSEMBLY
-
4446292A1 MANUAL TILT CRANK ASSEMBLYMANUAL TILT CRANK ASSEMBLY
-
4523-31757 BUSHING-NylonBUSHING-Nylon
-
4638212 KNOBKNOB
-
4710-46378 SCREW-Knob to manual Tilt Crank (15/16 IN.)SCREW-Knob to manual Tilt Crank (15/16 IN.)
-
4823-28214 SPACER-Manual Tilt CrankSPACER-Manual Tilt Crank
-
4910-38183 SCREW-Manual TiltSCREW-Manual Tilt
-
5012-24501 WASHER-Manual Tilt ScrewWASHER-Manual Tilt Screw
-
5138159 CAP-Manual Tilt ScrewCAP-Manual Tilt Screw
-
5238438 COUPLING-Manual Tilt ScrewCOUPLING-Manual Tilt Screw
-
5317-38444 DOWL PIN-Coupling to Manual Tilt ScrewDOWL PIN-Coupling to Manual Tilt Screw
-
5417-38825 DOWEL PIN-Manual Tilt ScrewDOWEL PIN-Manual Tilt Screw
-
5511-38232 NUT-Manual Tilt Screw & Manual Tilt CableNUT-Manual Tilt Screw & Manual Tilt Cable
-
5638219A1 MANUAL TILT CABLE ASSEBMLYMANUAL TILT CABLE ASSEBMLY
-
5749202A3 MANUAL TILT HOUSING ASSEMBLYMANUAL TILT HOUSING ASSEMBLY
-
NS12-49199 WASHER-RubberWASHER-Rubber
-
5810-45742 SCREW-Cap to Manual Tilt Housing (5/16 IN.)SCREW-Cap to Manual Tilt Housing (5/16 IN.)
-
5938182 GUIDE-Manual Tilt CableGUIDE-Manual Tilt Cable
-
6010-35092 SCREW-Cable Guide to Manual Tilt Housing (1/2 IN.)SCREW-Cable Guide to Manual Tilt Housing (1/2 IN.)
-
6117-38447 PIN-Manual Tilt Cable to Drive Shaft HousingPIN-Manual Tilt Cable to Drive Shaft Housing
-
6211-826709106 NUT-Manual Tilt Cable PinNUT-Manual Tilt Cable Pin
