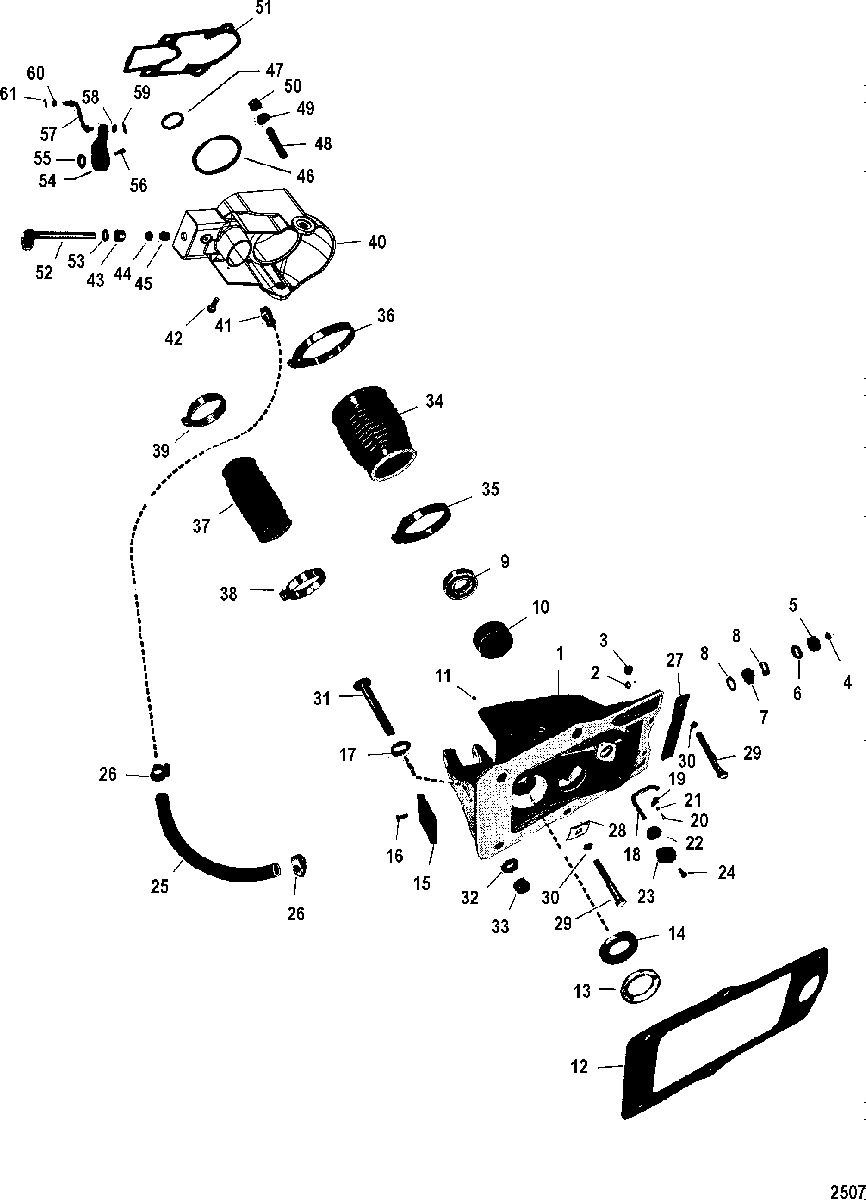

GIMBAL/BELL HOUSING ASSEMBLY для Mercruiser - 80 (Sterndrive) 1966-1969 2063741 THRU 2898029

  • №
    Артикул
    Название
  • 1
    49201A4 GIMBAL HOUSING ASSEMBLY
    (S/N-238045 & Below)
    GIMBAL HOUSING ASSEMBLY
    (S/N-238045 & Below)
  • 1
    49201A4 GIMBAL HOUSING ASSEMBLY
    (S/N-238046 & Up)
    GIMBAL HOUSING ASSEMBLY
    (S/N-238046 & Up)
  • 2
    22-74036 GREASE FITTING
    GREASE FITTING
  • 3
    19-77633Q LUBRICAP
    LUBRICAP
  • 4
    19-38860 WELCH PLUG-Top
    WELCH PLUG-Top
  • 5
    23-38634 BUSHING-Upper
    BUSHING-Upper
  • 6
    26-32540 OIL SEAL-Upper Gimbal Housing Bushing
    OIL SEAL-Upper Gimbal Housing Bushing
  • 7
    23-38196 BUSHING-Lower
    BUSHING-Lower
  • 8
    26-32911 OIL SEAL-Lower Gimbal Housing Bushing
    OIL SEAL-Lower Gimbal Housing Bushing
  • 9
    30-31561 BALL BEARING
    BALL BEARING
  • 10
    38188 MOUNT-Rubber-Gimbal Housing Ball Bearing
    MOUNT-Rubber-Gimbal Housing Ball Bearing
  • 11
    10-35046 DRIVE SCREW-Exhaust Flange
    DRIVE SCREW-Exhaust Flange
  • 12
    27-70975 GASKET-Gimbal Housing to Transom
    GASKET-Gimbal Housing to Transom
  • 13
    38413 PILOT RING
    PILOT RING
  • 14
    26-38294 SEAL-Water
    SEAL-Water
  • 15
    34762A1 PLATE ASSEMBLY-Inhibitor
    PLATE ASSEMBLY-Inhibitor
  • 16
    10-34763 SCREW-Inhibitor Plate to Gimbal Housing (3/4 IN.)
    SCREW-Inhibitor Plate to Gimbal Housing (3/4 IN.)
  • 17
    12-38403 WASHER-Rubber-Gimbal Housing Bolt
    (S/N-238045 & Below)
    WASHER-Rubber-Gimbal Housing Bolt
    (S/N-238045 & Below)
  • 17
    12-49199 WASHER-Rubber-Gimbal Housing Bolt
    (S/N-238046 & Up)
    WASHER-Rubber-Gimbal Housing Bolt
    (S/N-238046 & Up)
  • 18
    32-38841 WATER TUBE
    WATER TUBE
  • 19
    54-38840 CLAMP-Water Tube to Gimbal Housing
    CLAMP-Water Tube to Gimbal Housing
  • 20
    10-38601 SCREW-Water Tube Clamp to Gimbal Housing (5/8 IN.)
    SCREW-Water Tube Clamp to Gimbal Housing (5/8 IN.)
  • 21
    13-26992 LOCKWASHER-Water Tube Clamp Screw
    LOCKWASHER-Water Tube Clamp Screw
  • 22
    23-38265 BUSHING-Seal-Water Tube
    BUSHING-Seal-Water Tube
  • 23
    38209 COVER-Water Tube
    COVER-Water Tube
  • 24
    10-34290 SCREW-Water Tube Cover to Gimbal Housing (5/8 IN.)
    SCREW-Water Tube Cover to Gimbal Housing (5/8 IN.)
  • 25
    32-46716A1 HOSE-Water-Gimbal Housing to Bell Housing (10-1/4 IN.)
    HOSE-Water-Gimbal Housing to Bell Housing (10-1/4 IN.)
  • NS
    37-1368211 EMBLEM-Gimbal Housing
    EMBLEM-Gimbal Housing
  • 26
    54-815504206 CLAMP-Water Tube to Gimbal Housing & Bell Housing
    CLAMP-Water Tube to Gimbal Housing & Bell Housing
  • 27
    38584 PLATE-Supporting-Transom Screw (Top)
    PLATE-Supporting-Transom Screw (Top)
  • 28
    12-38585 WASHER-Square-Transom Screw
    WASHER-Square-Transom Screw
  • 29
    10-38197 SCREW-Transom to Gimbal Housing (3-1/2 IN.)
    SCREW-Transom to Gimbal Housing (3-1/2 IN.)
  • 30
    13-30381 LOCKWASHER-Transom Screw
    LOCKWASHER-Transom Screw
  • 31
    10-48565A1 BOLT-Gimbal Housing to Transom Plate (4-1/4 IN.)
    (S/N-2328045 & Below)
    BOLT-Gimbal Housing to Transom Plate (4-1/4 IN.)
    (S/N-2328045 & Below)
  • 31
    10-48565A1 BOLT-Gimbal Housing to Transom Plate (4-1/2 IN.)
    (S/N-2328046 & Up)
    BOLT-Gimbal Housing to Transom Plate (4-1/2 IN.)
    (S/N-2328046 & Up)
  • 32
    12-36041 WASHER-Gimbal Housing Bolt
    (S/N-2328046 & Up)
    WASHER-Gimbal Housing Bolt
    (S/N-2328046 & Up)
  • 32
    12-21900 WASHER-Gimbal Housing Bolt
    WASHER-Gimbal Housing Bolt
  • 33
    11-34087 NUT-Gimbal Housing Bolt
    NUT-Gimbal Housing Bolt
  • 34
    38176A1 BELLOWS ASSEMBLY-Universal Joint
    BELLOWS ASSEMBLY-Universal Joint
  • 35
    54-815504352 CLAMP-Universal Joint Bellows to Gimbal Housing
    CLAMP-Universal Joint Bellows to Gimbal Housing
  • 36
    54-815504360 CLAMP-Universal Joint Bellows to Bell Housing
    CLAMP-Universal Joint Bellows to Bell Housing
  • 37
    38177 EXHAUST BELLOWS
    EXHAUST BELLOWS
  • 38
    54-815504336 CLAMP-Exhaust Bellows to Gimbal Housing
    CLAMP-Exhaust Bellows to Gimbal Housing
  • 39
    54-815504336 CLAMP-Exhaust Bellows to Bell Housing
    CLAMP-Exhaust Bellows to Bell Housing
  • 40
    38162A3 BELL HOUSING ASSEMBLY
    BELL HOUSING ASSEMBLY
  • 41
    22-30570 COUPLING-Water Hose to Bell Housing
    COUPLING-Water Hose to Bell Housing
  • 42
    10-35046 DRIVE SCREW-Bell Housing Flange
    DRIVE SCREW-Bell Housing Flange
  • 43
    23-814308 BUSHING-Upper Shift Shaft-Bell Housing (5/8 IN.)
    BUSHING-Upper Shift Shaft-Bell Housing (5/8 IN.)
  • 44
    26-45587 OIL SEAL
    OIL SEAL
  • 45
    23-805041A2 BUSHING-Upper Shift Shaft-Bell Housing (5/16 IN.)
    BUSHING-Upper Shift Shaft-Bell Housing (5/16 IN.)
  • 46
    25-31305 O RING (LARGE)
    O RING (LARGE)
  • 47
    25-22762 O RING (SMALL)
    O RING (SMALL)
  • 48
    16-59579 STUD-Bell Housing to Drive Shaft Housing (2-7/8 IN.)
    STUD-Bell Housing to Drive Shaft Housing (2-7/8 IN.)
  • 49
    12-35935 WASHER-Bell Housing Stud
    WASHER-Bell Housing Stud
  • 50
    11-34933 NUT-Bell Housing Stud
    NUT-Bell Housing Stud
  • 51
    27-45749A1 GASKET-Bell Housing to Drive Shaft Housing
    GASKET-Bell Housing to Drive Shaft Housing
  • 52
    45696A1 UPPER SHIFT SHAFT ASSEMBLY
    UPPER SHIFT SHAFT ASSEMBLY
  • 53
    12-29330 WASHER-Upper Shift Shaft (13/16 IN. O.D.)
    WASHER-Upper Shift Shaft (13/16 IN. O.D.)
  • 54
    45697 UPPER SHIFT SHAFT LEVER
    UPPER SHIFT SHAFT LEVER
  • 55
    12-39116 WASHER-Upper Shift Lever (1 IN. O.D.)
    WASHER-Upper Shift Lever (1 IN. O.D.)
  • 56
    10-8M0084649 SCREW-Shift Lever to Shift Shaft
    SCREW-Shift Lever to Shift Shaft
  • 57
    38262A1 LINK ROD ASSEMBLY
    LINK ROD ASSEMBLY
  • 58
    12-30164 WASHER-Link Rod (3/8 IN. O.D.)
    WASHER-Link Rod (3/8 IN. O.D.)
  • 59
    18-210711 COTTER PIN- Link Rod to Upper Shift Shaft Lever
    COTTER PIN- Link Rod to Upper Shift Shaft Lever
  • 60
    12-30164 WASHER-Link Rod (3/8 IN. O.D.)
    WASHER-Link Rod (3/8 IN. O.D.)
  • 61
    18-210711 COTTER PIN-Link Rod to Receiver Housing
    COTTER PIN-Link Rod to Receiver Housing
  • NS
    37-39395 DECAL-Serial Number
    DECAL-Serial Number
