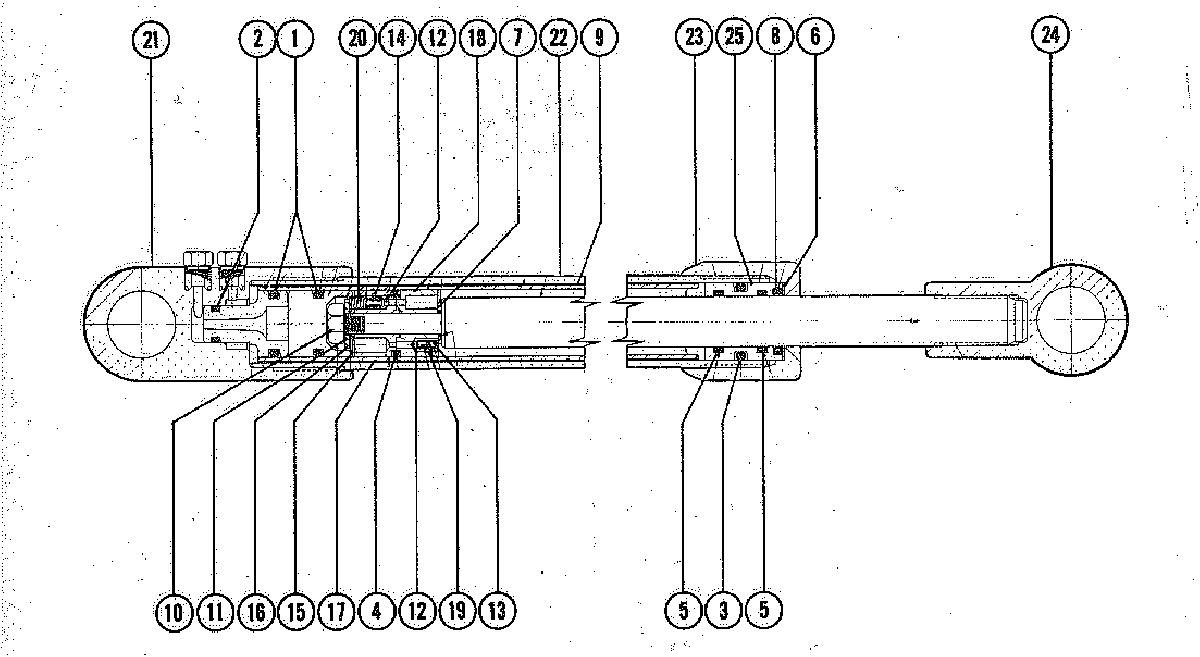

POWER TRIM CYLINDER REPAIR KITS для Mercruiser - 250 1977 4791300 THRU 4898729

  • №
    Артикул
    Название
  • -
    45522A3 OVERHAUL KIT
    OVERHAUL KIT
  • -
    25-60342A2 "O" RING KIT
    "O" RING KIT
  • 1
    N.S.S. "O"RING (3/4" X 1 X 5/32")
    "O"RING (3/4" X 1 X 5/32")
  • 2
    N.S.S. "O"RING (3/8" X 9/16" X 3/32")
    "O"RING (3/8" X 9/16" X 3/32")
  • 3
    N.S.S. "O"RING (7/8" X 11/8" X 1/8")
    "O"RING (7/8" X 11/8" X 1/8")
  • 4
    N.S.S. "O"RING (13/16" X 3/32 SQ.)
    "O"RING (13/16" X 3/32 SQ.)
  • 5
    N.S.S. "O" RING (3/4" X 15/16" X 1/8").
    "O" RING (3/4" X 15/16" X 1/8").
  • 6
    N.S.S. WASHER, PLAIN-END CAP
    WASHER, PLAIN-END CAP
  • 7
    N.S.S. WASHER, SEALING
    WASHER, SEALING
  • 8
    N.S.S. ROD SCRAPER
    ROD SCRAPER
  • 9
    N.S.S. TUBE, INNER
    TUBE, INNER
  • 10
    N.S.S. NUT, PISTON ROD
    NUT, PISTON ROD
  • 11
    N.S.S. WASHER, PISTON ROD NUT
    WASHER, PISTON ROD NUT
  • 12
    N.S.S. BALL, STEEL
    BALL, STEEL
  • 13
    N.S.S. SPRING, BY-PASS
    SPRING, BY-PASS
  • 14
    N.S.S. RIVET, TUBULAR
    RIVET, TUBULAR
  • 15
    N.S.S. WASHER, SHOCK PISTON
    WASHER, SHOCK PISTON
  • 16
    N.S.S. WASHER, SHOCK PISTON
    WASHER, SHOCK PISTON
  • 17
    N.S.S. POSTON, SHOCK-IMPACT
    POSTON, SHOCK-IMPACT
  • 18
    N.S.S. PISTON, SHOCK-RETURN
    PISTON, SHOCK-RETURN
  • 19
    N.S.S. EYELET
    EYELET
  • 20
    N.S.S. SPRING,COMPRESSION
    SPRING,COMPRESSION
  • --
    77442A1 TUBE KIT
    TUBE KIT
  • 21
    N.S.S. END CAP-GIMBAL RING
    END CAP-GIMBAL RING
  • 22
    N.S.S. TUBE, OUTER
    TUBE, OUTER
  • 23
    N.S.S. END CAP
    END CAP
  • 24
    45522T1 PIVOT END
    PIVOT END
  • 25
    45726 BEARING, PISTON ROD
    BEARING, PISTON ROD
