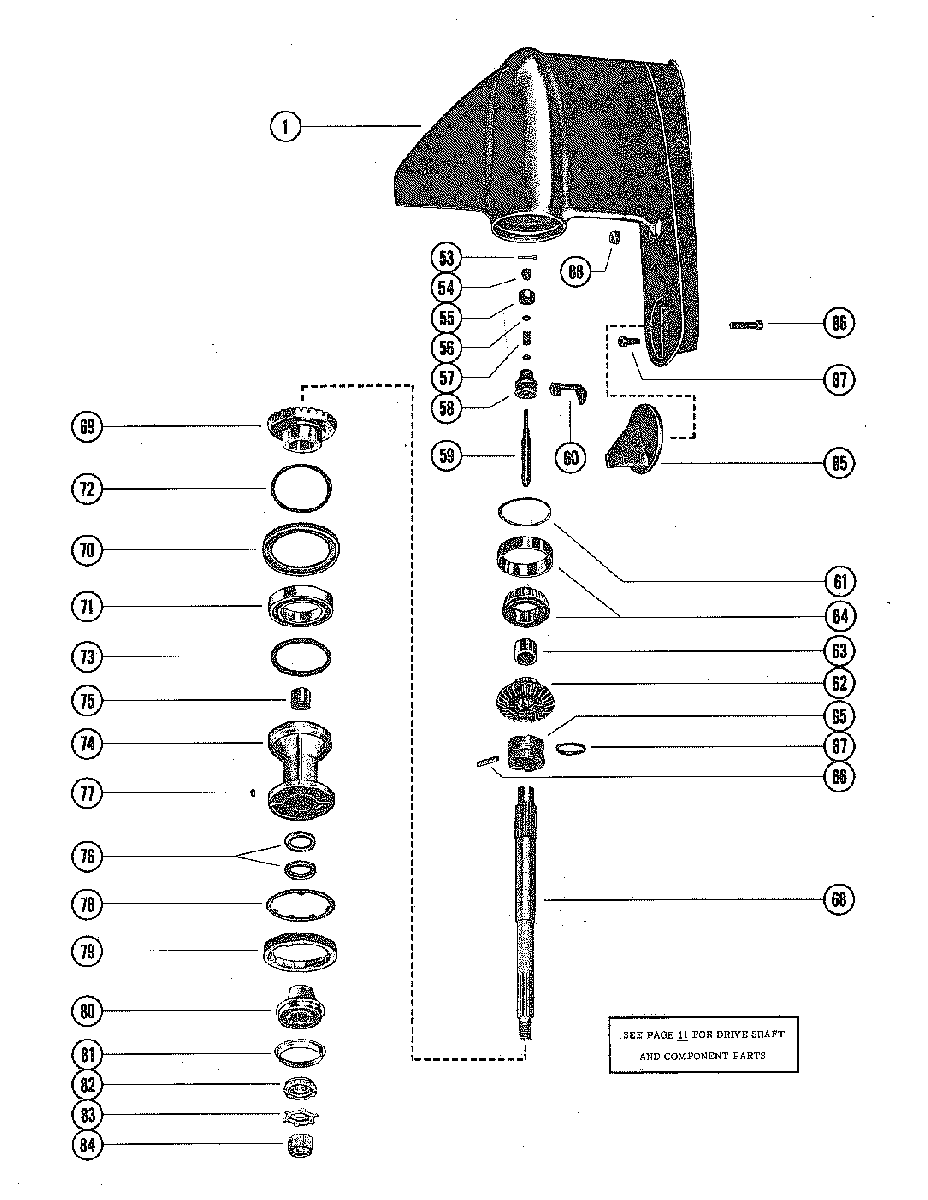

GEAR HOUSING ASSEMBLY для Mercruiser - 250 1977 4791300 THRU 4898729

  • №
    Артикул
    Название
  • -
    1623-8951A43 GEAR HOUSING
    GEAR HOUSING
  • 1
    1623-5356A4 GEAR HOUSING
    GEAR HOUSING
  • 53
    18-469501 COTTER PIN, CLUTCH ACTUATING SHAFT
    COTTER PIN, CLUTCH ACTUATING SHAFT
  • 54
    N.S.S. SLEEVE, ADJUSTING
    REPLACED BY 19755A2
    SLEEVE, ADJUSTING
    REPLACED BY 19755A2
  • 55
    N.S.S. RETAINER, SPRING
    REPLACED BY 19755A2
    RETAINER, SPRING
    REPLACED BY 19755A2
  • 56
    N.S.S. WASHER
    REPLACED BY 19755A2
    WASHER
    REPLACED BY 19755A2
  • 57
    N.S.S. SPRING
    REPLACED BY 19755A2
    SPRING
    REPLACED BY 19755A2
  • 58
    N.S.S. SPOOL
    REPLACED BY 19755A2
    SPOOL
    REPLACED BY 19755A2
  • 59
    N.S.S. SHAFT
    REPLACED BY 19755A2
    SHAFT
    REPLACED BY 19755A2
  • 60
    8M2009865 SHIFT CRANK
    SHIFT CRANK
  • 61
    15-47397A1 SHIM
    SHIM
  • 62
    43-96084A4 FORWARD GEAR
    FORWARD GEAR
  • 63
    31-30895T ROLLER BEARING, FORWARD GEAR
    ROLLER BEARING, FORWARD GEAR
  • 64
    31-35928T1 TAPERED ROLLER BEARING ASSEMBLY
    TAPERED ROLLER BEARING ASSEMBLY
  • 65
    52-853594T CLUTCH
    CLUTCH
  • 66
    17-8M0100263 CROSS PIN
    CROSS PIN
  • 67
    24-30893 SPRING, RETAINER - CROSS PIN
    SPRING, RETAINER - CROSS PIN
  • 68
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 69
    43-61026T REVERSE GEAR
    REVERSE GEAR
  • 70
    35915 THRUST RING, BEARING CARRIER
    THRUST RING, BEARING CARRIER
  • 71
    30-88957T BALL BEARING, REVERSE GEAR
    BALL BEARING, REVERSE GEAR
  • 72
    15-31535A1 SHIM
    SHIM
  • 73
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 74
    73020A14 BEARING CARRIER ASSEMBLY
    BEARING CARRIER ASSEMBLY
  • 75
    31-30956T ROLLER BEARING
    ROLLER BEARING
  • 76
    26-76868 OIL SEAL
    OIL SEAL
  • 77
    28-30281 KEY
    KEY
  • 78
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 79
    8M2000347 COVER,GEAR HOUSING
    COVER,GEAR HOUSING
  • 80
    56292Q04 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 81
    12-35965 WASHER, CUPPED
    WASHER, CUPPED
  • 82
    12-31211Q03 WASHER,SPLINED - PROPELLER SHAFT
    WASHER,SPLINED - PROPELLER SHAFT
  • 83
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 84
    11-52707Q1 PROPELLER NUT
    PROPELLER NUT
  • 85
    97-31640Q4 TRIM TAB ASSEMBLY
    TRIM TAB ASSEMBLY
  • 86
    10-32470 SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
    SCREW, TRIM TAB TO GEAR HOUSING (1-3/4")
  • 87
    10-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 88
    11-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD)
    NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD)
