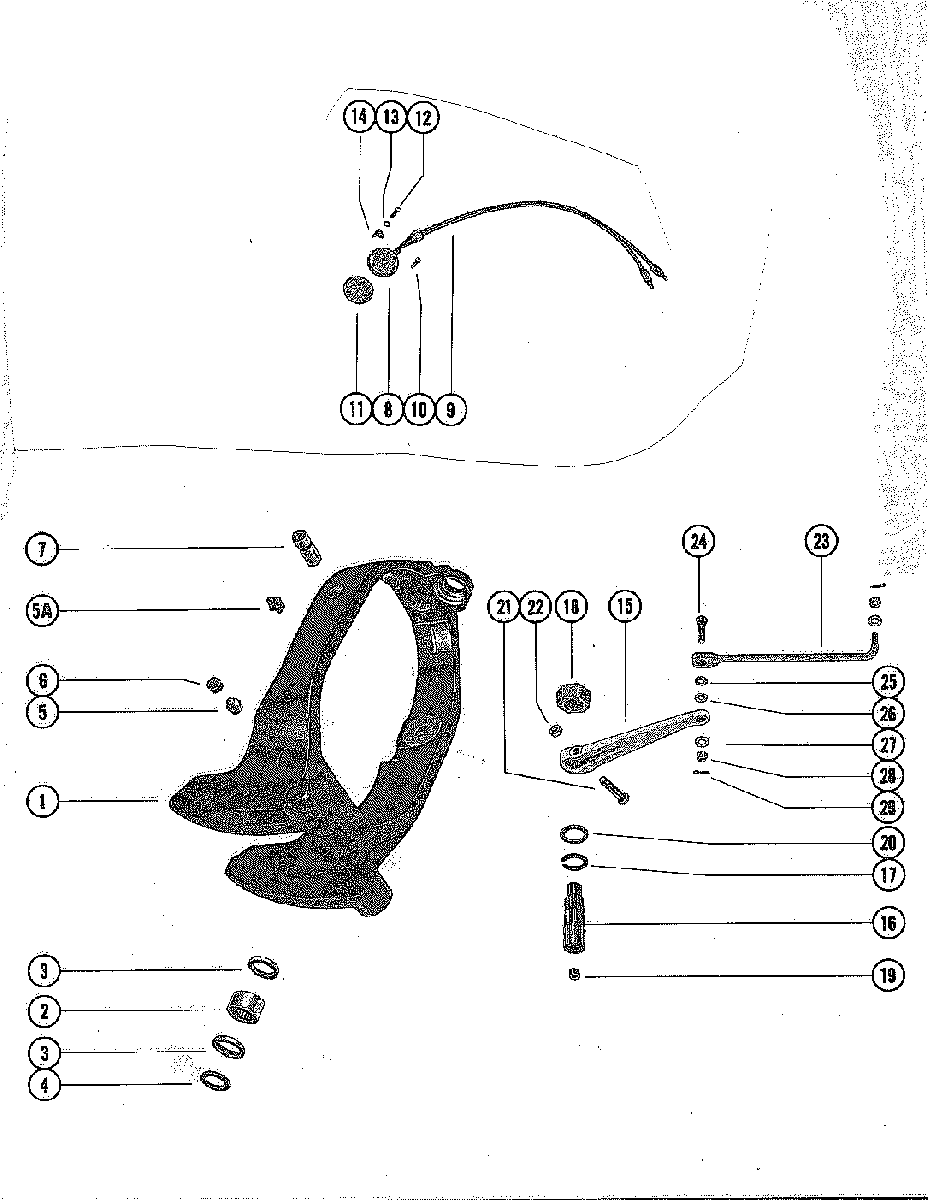

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 250 1977 4791300 THRU 4898729

  • №
    Артикул
    Название
  • 1
    88302A1 GIMBAL RING ASSEMBLY
    GIMBAL RING ASSEMBLY
  • 2
    31-32538 BEARING, ROLLER - GIMBAL RING
    BEARING, ROLLER - GIMBAL RING
  • 3
    26-32541 OIL SEAL, GIMBAL RING
    OIL SEAL, GIMBAL RING
  • 4
    23-39273 SPACER, GIMBAL RING
    SPACER, GIMBAL RING
  • 5
    22-69059 FITTING, GREASE - GIMBAL RING (1/8-27)
    FITTING, GREASE - GIMBAL RING (1/8-27)
  • 5A
    22-74036 FITTING, GREASE - GIMBAL RING (1/4-28)
    FITTING, GREASE - GIMBAL RING (1/4-28)
  • 6
    19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING
    LUBRICAP, GIMBAL RING GREASE FITTING
  • 7
    77123 PIN, HINGE - THREADED (WITH GREASE GROOVE)
    PIN, HINGE - THREADED (WITH GREASE GROOVE)
  • 8
    64947 SENDER, DUMMY (STARBOARD)
    SENDER, DUMMY (STARBOARD)
  • 9
    84-19280 HARNESS, DUMMY SENDER
    HARNESS, DUMMY SENDER
  • 10
    10-46942 SCREW, HARNESS ATTACHING (5/16")
    SCREW, HARNESS ATTACHING (5/16")
  • 8
    63115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
    SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
  • 9
    84-19292 HARNESS, TRIM LIMIT SWITCH
    HARNESS, TRIM LIMIT SWITCH
  • 10
    10-63400 SCREW, HARNESS ATTACHING (5/32")
    SCREW, HARNESS ATTACHING (5/32")
  • 11
    85-63990 INSLUATOR, SWITCH AND SENDER
    INSLUATOR, SWITCH AND SENDER
  • 12
    10-37978 SCREW, SWITCH AND SENDER TO GIMBAL RING (3/4")
    SCREW, SWITCH AND SENDER TO GIMBAL RING (3/4")
  • 13
    13-26996 LOCKWASHER, SWITCH AND SENDER SCREW
    LOCKWASHER, SWITCH AND SENDER SCREW
  • 14
    57008 RETAINER, SWITCH AND SENDER SCREW
    RETAINER, SWITCH AND SENDER SCREW
  • 15
    88433 STEERING LEVER
    STEERING LEVER
  • 16
    88302A1 SHAFT, UPPER SWIVEL
    SHAFT, UPPER SWIVEL
  • 17
    53-72413 RETAINING RING, UPPER SWIVEL SHAFT
    RETAINING RING, UPPER SWIVEL SHAFT
  • 18
    11-8M2014641 NUT, UPPER SWIVEL SHAFT
    NUT, UPPER SWIVEL SHAFT
  • 19
    22-32561 PLUG, PIPE - UPPER SWIVEL SHAFT
    PLUG, PIPE - UPPER SWIVEL SHAFT
  • 20
    12-47683 WASHER, UPPER SWIVEL SHAFT (.031)
    WASHER, UPPER SWIVEL SHAFT (.031)
  • 20
    12-32997 WASHER, UPPER SWIVEL SHAFT (.063)
    WASHER, UPPER SWIVEL SHAFT (.063)
  • 21
    10-807204 SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2")
    SCREW, STEERING LEVER TO UPPER SWIVEL SHAFT (2")
  • 22
    11-20696 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
    NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
  • 23
    78790A6 STEERING LINK ROD ASSEMBLY
    STEERING LINK ROD ASSEMBLY
  • 24
    10-66389 SCREW, LEVER TO LINK ROD
    SCREW, LEVER TO LINK ROD
  • 25
    12-34966 WASHER, STEERING LINK ROD (NYLON)
    WASHER, STEERING LINK ROD (NYLON)
  • 26
    13-54667 WASHER, SPRING - STEERING LINK ROD
    WASHER, SPRING - STEERING LINK ROD
  • 27
    12-20086 WASHER, STEERING LINK ROD (STEEL)
    WASHER, STEERING LINK ROD (STEEL)
  • 28
    11-55438 NUT, STEERING LINK ROD
    NUT, STEERING LINK ROD
  • 29
    18-45882 COTTER PIN, LINK ROD AND SCREW
    COTTER PIN, LINK ROD AND SCREW
