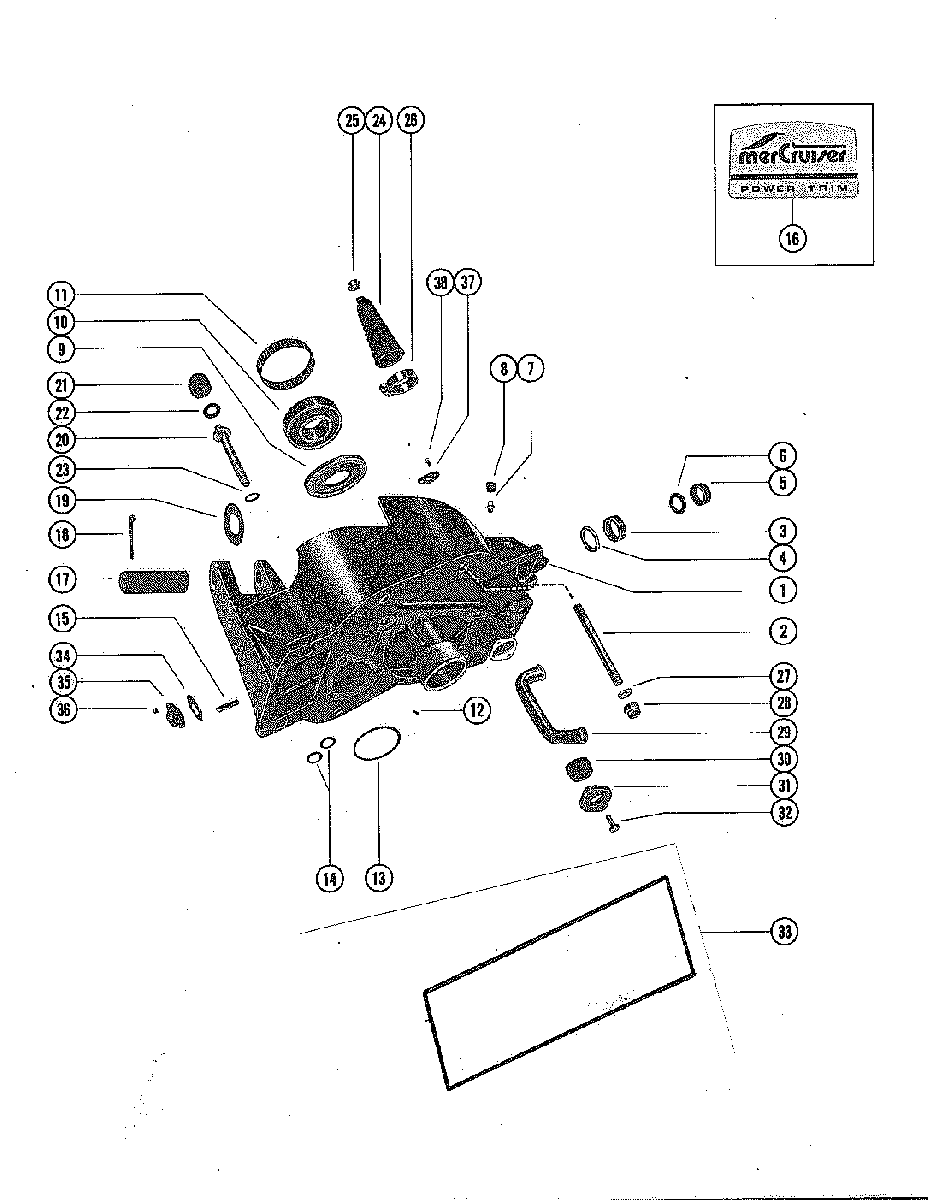

GIMBAL HOUSING ASSEMBLY для Mercruiser - 250 1977 4791300 THRU 4898729
-
№АртикулНазвание
-
170862A1 GIMBAL HOUSING ASSEMBLYGIMBAL HOUSING ASSEMBLY
-
216-56296 STUD, GIMBAL HOUSING TO TRANSOM PLATE (4 3/4")STUD, GIMBAL HOUSING TO TRANSOM PLATE (4 3/4")
-
331-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)BEARING, ROLLER - GIMBAL HOUSING (LOWER)
-
426-32911 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARINGOIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
-
531-21145 ROLLER BEARING, GIMBAL HOUSING (UPPER)ROLLER BEARING, GIMBAL HOUSING (UPPER)
-
626-54925 OIL SEAL, UPPER GIMBAL HOUSING BEARINGOIL SEAL, UPPER GIMBAL HOUSING BEARING
-
722-74036 FITTING, GREASE - GIMBAL HOUSING (STAINLESS STEEL)FITTING, GREASE - GIMBAL HOUSING (STAINLESS STEEL)
-
819-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTINGLUBRICAP, GIMBAL HOUSING GREASE FITTING
-
926-88416 SEAL, GREASE - GIMBAL HOUSINGSEAL, GREASE - GIMBAL HOUSING
-
1030-879194A02 BEARING ASSEMBLY, BALL - GIMBAL HOUSINGBEARING ASSEMBLY, BALL - GIMBAL HOUSING
-
1161075 TOLERANCE RING, GIMBAL HOUSING BEARINGTOLERANCE RING, GIMBAL HOUSING BEARING
-
1210-25612 SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGESCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
-
1325-20863 "O" RING, GIMBAL HOUSING"O" RING, GIMBAL HOUSING
-
1425-23145 "O" RING, GIMBAL HOUSING"O" RING, GIMBAL HOUSING
-
1516-56766 STUD, HYDRAULIC CONNECTOR TO GIMBAL HOUSINGSTUD, HYDRAULIC CONNECTOR TO GIMBAL HOUSING
-
1637-87018 DECAL, GIMBAL HOUSINGDECAL, GIMBAL HOUSING
-
1717-45212 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
-
1818-34212 COTTER PIN, RETAINING - LOWER SWIVEL PINCOTTER PIN, RETAINING - LOWER SWIVEL PIN
-
1912-32518 WASHER, GIMBAL HOUSING TO LOWER SWIVEL PINWASHER, GIMBAL HOUSING TO LOWER SWIVEL PIN
-
208M0030655 BOLT ASSEMBLY, ANODIC - GIMBAL HOUSING TO TRANSOM PLATEBOLT ASSEMBLY, ANODIC - GIMBAL HOUSING TO TRANSOM PLATE
-
2197-55989Q9 ANODIC HEAD, BOLT ASSEMBLYANODIC HEAD, BOLT ASSEMBLY
-
2212-56085 WASHER, ANODIC BOLT ASSEMBLYWASHER, ANODIC BOLT ASSEMBLY
-
2312-32620 WASHER, GIMBAL HOUSING BOLTWASHER, GIMBAL HOUSING BOLT
-
2474639A2 BELLOWS, SHIFT ACTUATING CABLEBELLOWS, SHIFT ACTUATING CABLE
-
2554-8M0090424 CLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLECLAMP, ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
-
2654-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSINGCLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
-
2712-34567 WASHER, GIMBAL HOUSING STUDWASHER, GIMBAL HOUSING STUD
-
2811-34933 NUT, GIMBAL HOUSING STUDNUT, GIMBAL HOUSING STUD
-
2932-41672A01 TUBE, WATER - GIMBAL HOUSINGTUBE, WATER - GIMBAL HOUSING
-
3023-28055 BUSHING, RUBBER - WATER TUBE SEALINGBUSHING, RUBBER - WATER TUBE SEALING
-
3132517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSINGCOVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
-
3210-28635 SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
-
3365533A1 SEAL, GIMBAL HOUSING TO TRANSOMSEAL, GIMBAL HOUSING TO TRANSOM
-
3427-476441 GASKET, HYDRAULIC CONNECTORGASKET, HYDRAULIC CONNECTOR
-
3547347 CONNECTOR, HYDRAULIC - GIMBAL HOUSINGCONNECTOR, HYDRAULIC - GIMBAL HOUSING
-
3611-35888 NUT, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUDNUT, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD
-
3757322T COVER, RETAINING - GIMBAL HOUSINGCOVER, RETAINING - GIMBAL HOUSING
-
3810-28635 SCREW, COVER TO GIMBAL HOUSING (5/8")SCREW, COVER TO GIMBAL HOUSING (5/8")
