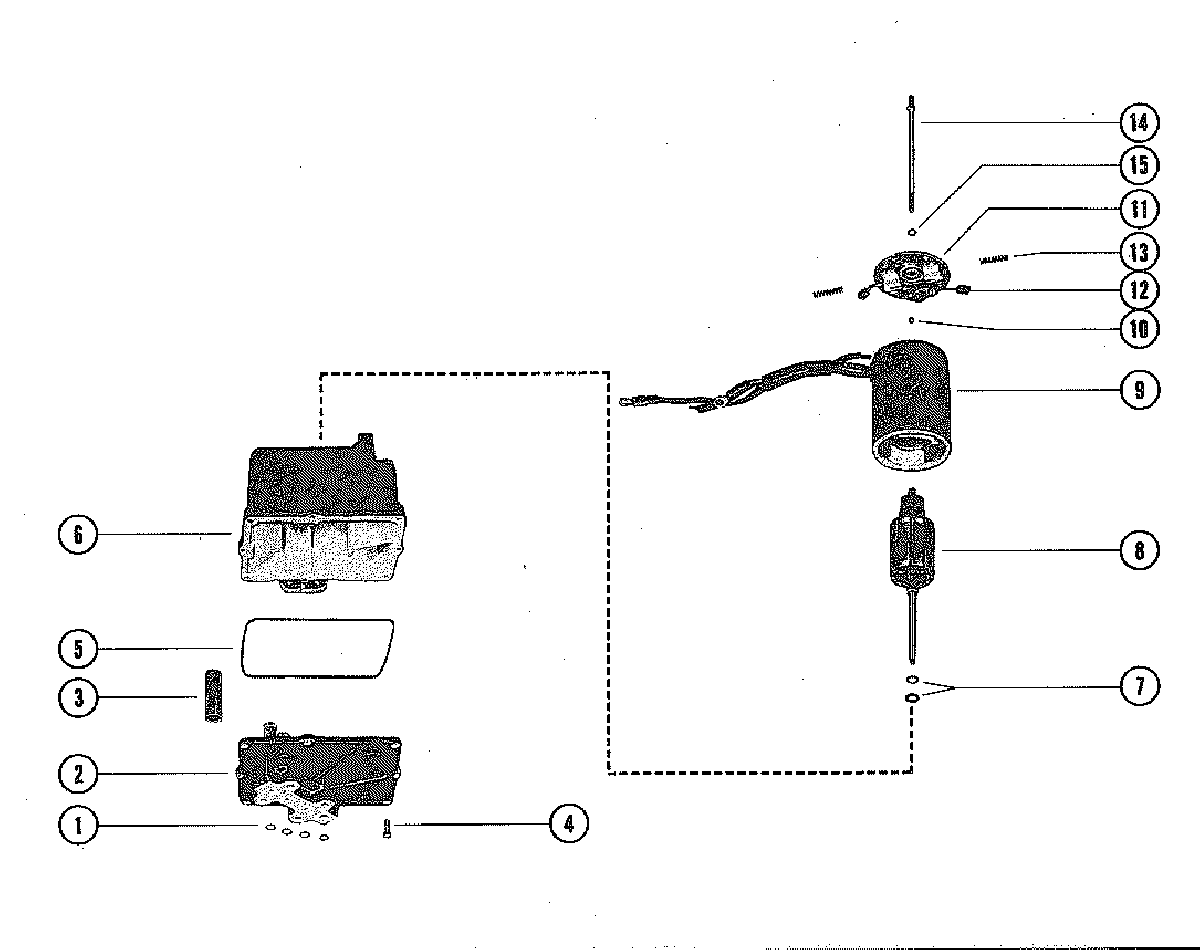

HYDRAULIC PUMP ASSEMBLY, COMPLETE для Mercruiser - 250 1977 4791300 THRU 4898729
-
№АртикулНазвание
-
-93247A7 HYDRAULIC PUMP ASSEMBLY, COMPLETEHYDRAULIC PUMP ASSEMBLY, COMPLETE
-
125-48171 "O" RING, HYDRAULIC PUMP"O" RING, HYDRAULIC PUMP
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
3392-2618 CAM, VALVE BODYCAM, VALVE BODY
-
410-20411 SCREW, VALVE BODY TO RESERVOIR (5/8")SCREW, VALVE BODY TO RESERVOIR (5/8")
-
5392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
6392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
7392-2623 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
8392-2943 ARMATURE. FIELD AND FRAMEARMATURE. FIELD AND FRAME
-
9392-2942 FIELD AND FRAMWE ASSEMBLYFIELD AND FRAMWE ASSEMBLY
-
10392-2944 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
11392-2940 PLATE ASSEMBLY, COMMUTATOR ENDPLATE ASSEMBLY, COMMUTATOR END
-
12392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
13392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
14392-2938 BOLT SET, THRU - PLATE AND FRAME TO RESERVOIRBOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
-
1513-26996 LOCKWASHER, THRU BOLTLOCKWASHER, THRU BOLT
Все узлы модели:
- BELL HOUSING ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GIMBAL HOUSING ASSEMBLY
- GIMBAL RING ASSEMBLY AND STEERING LEVER
- HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL
- • HYDRAULIC PUMP ASSEMBLY, COMPLETE
- POWER STEERING KIT
- POWER TRIM CYLINDER REPAIR KITS
- SHIFT BRACKET AND REVERSE LOCK VALVE
- TRANSOM PLATE AND SHIFT CABLE
- TRIM CYLINDERS AND HYDRAULIC HOSES
