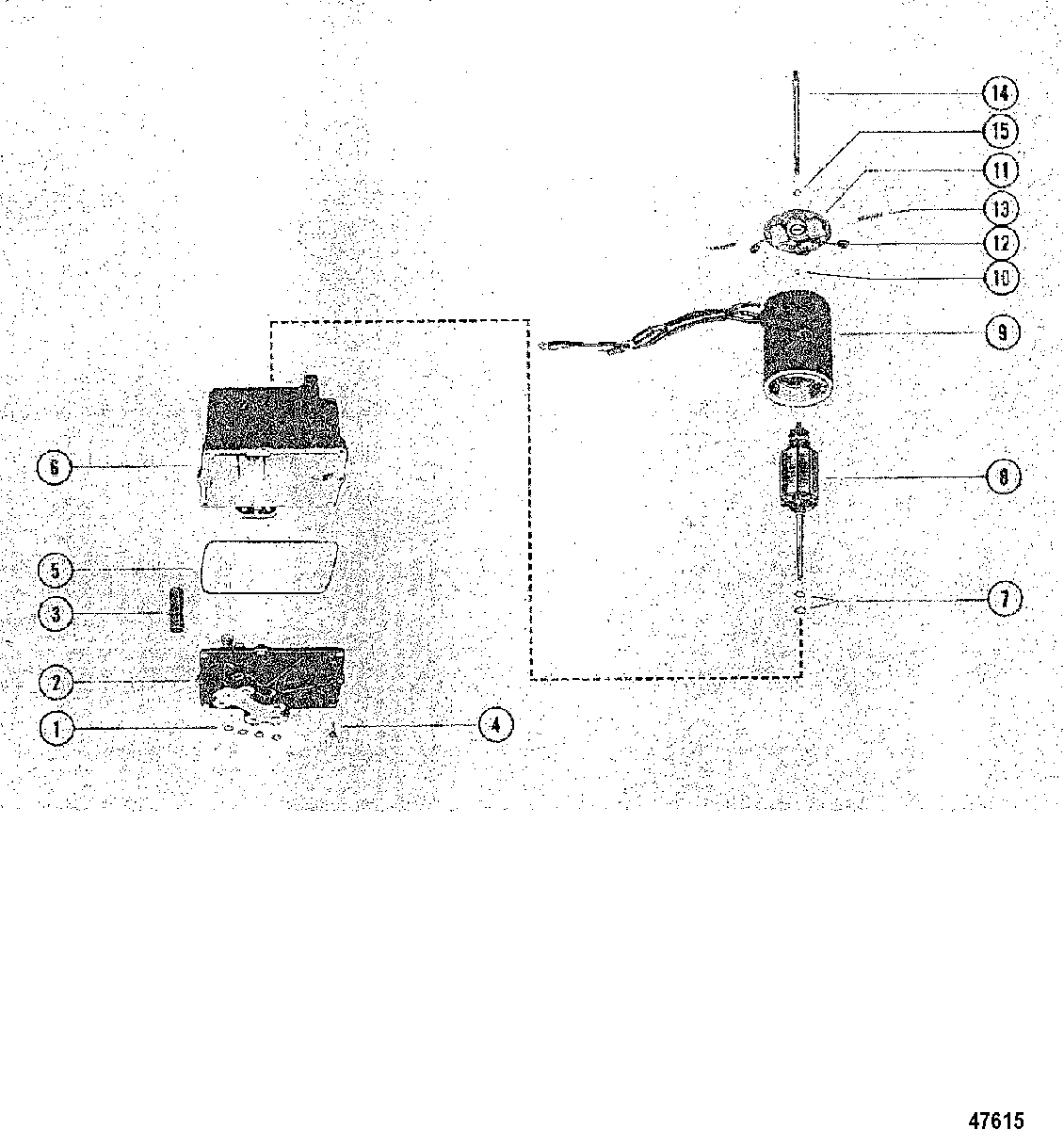

HYDRAULIC PUMP ASSEMBLY, COMPLETE для Mercruiser - 225-S 1974 3856268 THRU 4200499
-
№АртикулНазвание
-
-93247A7 PUMP ASSEMBLY, Hydraulic, COMPLETEPUMP ASSEMBLY, Hydraulic, COMPLETE
-
125-48171 O-RING, HYDRAULIC PUMPO-RING, HYDRAULIC PUMP
-
2392-7734 VALVE BODY AND GEAR ASSEMBLYVALVE BODY AND GEAR ASSEMBLY
-
3392-2618 CAN, VALVE BODYCAN, VALVE BODY
-
410-20411 SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR (5/8")SCREW, (.190-24 x .62), VALVE BODY TO RESERVOIR (5/8")
-
5392-7735 SEAL, RESERVOIR TO VALVE BODY AND GEARSEAL, RESERVOIR TO VALVE BODY AND GEAR
-
6392-2939 RESERVOIR ASSEMBLYRESERVOIR ASSEMBLY
-
7392-2623 WASHER, THRUST - ARMATUREWASHER, THRUST - ARMATURE
-
8392-2943 ARMATURE, FIELD AND FRAMEARMATURE, FIELD AND FRAME
-
9392-2942 FIELD AND FRAME ASSEMBLYFIELD AND FRAME ASSEMBLY
-
10392-2944 BALL, COMMUTATOR END PLATEBALL, COMMUTATOR END PLATE
-
11392-2940 PLATE ASSEMBLY, COMMUATATOR ENDPLATE ASSEMBLY, COMMUATATOR END
-
12392-8989 BRUSH SET, COMMUTATOR END PLATEBRUSH SET, COMMUTATOR END PLATE
-
13392-2529 SPRING SET, BRUSH TENSIONSPRING SET, BRUSH TENSION
-
14392-2938 BOLT SET, THRU - PLATE AND FRAME TO RESERVOIRBOLT SET, THRU - PLATE AND FRAME TO RESERVOIR
-
1513-26996 LOCKWASHER, (#10) Stainless Steel, THRU BOLTLOCKWASHER, (#10) Stainless Steel, THRU BOLT
Все узлы модели:
- BELL HOUSING ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY
- GEAR HOUSING ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE
- GIMBAL HOUSING ASSEMBLY
- GIMBAL RING ASSEMBLY AND STEERING LEVER
- HYDRAULIC PUMP AND TRIM INDICATOR CONTROL PANEL
- • HYDRAULIC PUMP ASSEMBLY, COMPLETE
- POWER TRIM CYLINDER REPAIR KITS(INTERNAL LINE)
- TRANSOM PLATE AND SHIFT CABLE
- TRIM CYLINDERS AND HYDRAULIC HOSES
