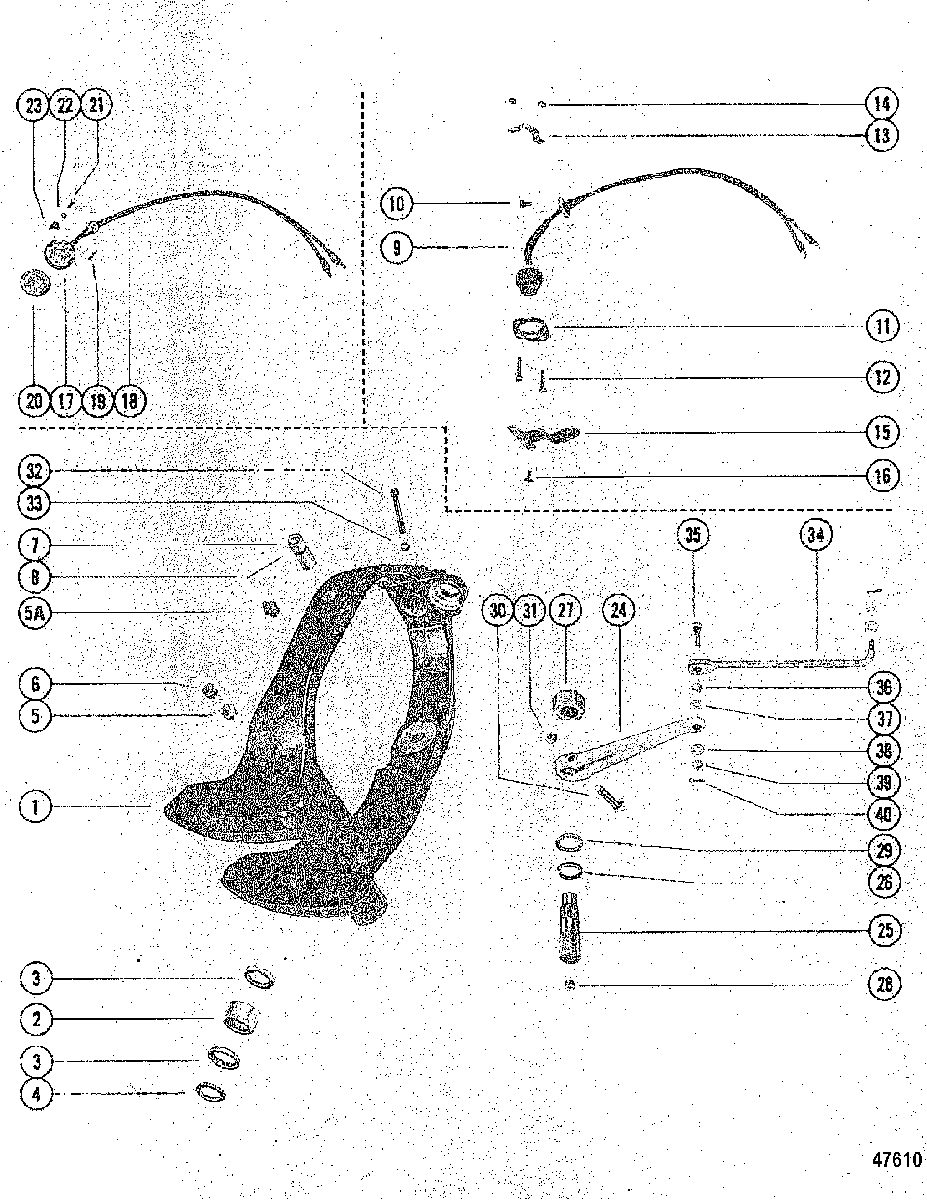

GIMBAL RING ASSEMBLY AND STEERING LEVER для Mercruiser - 225-S 1974 3856268 THRU 4200499

№

Артикул

Название
1

87356A1 GIMBAL RING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)

GIMBAL RING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
1

88302A1 GIMBAL RING ASSEMBLY (WITH GIMBAL TRIM SENDER)

GIMBAL RING ASSEMBLY (WITH GIMBAL TRIM SENDER)
1

88302A1 GIMBAL RING ASSEMBLY
(WITH GIMBAL TRIM SENDER AND GREASE FITTINGS FOR HINGE PINS)

GIMBAL RING ASSEMBLY
(WITH GIMBAL TRIM SENDER AND GREASE FITTINGS FOR HINGE PINS)
2

31-32538 BEARING, ROLLER - GIMBAL RING

BEARING, ROLLER - GIMBAL RING
3

26-32541 SEAL, Oil, GIMBAL RING

SEAL, Oil, GIMBAL RING
4

23-39273 SPACER, GIMBAL RING

SPACER, GIMBAL RING
5

22-69059 FITTING, GREASE - GIMBAL RING (1/8-27)

FITTING, GREASE - GIMBAL RING (1/8-27)
5A

22-74036 FITTING, Grease, GREASE - GIMBAL RING (1/4-28)-USED WITH B-71124A2

FITTING, Grease, GREASE - GIMBAL RING (1/4-28)-USED WITH B-71124A2
6

19-77633Q LUBRICAP, GIMBAL RING GREASE FITTING

LUBRICAP, GIMBAL RING GREASE FITTING
7

17-77361A1 PIN, HINGE - GIMBAL RING TO BELL HOUSING
WITHOUT GIMBAL TRIM SENDER

PIN, HINGE - GIMBAL RING TO BELL HOUSING
WITHOUT GIMBAL TRIM SENDER
8

17-77039 PIN, HINGE PIN RETAINING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER

PIN, HINGE PIN RETAINING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER
7

77123 PIN, HINGE - THREADED(WITHOUT GREASE GROOVE)
WITH GIMBAL TRIM SENDER

PIN, HINGE - THREADED(WITHOUT GREASE GROOVE)
WITH GIMBAL TRIM SENDER
7

77123 PIN, Hinge, HINGE - THREADED(WITH GREASE GROOVE)
WITH GIMBAL TRIM SENDER

PIN, Hinge, HINGE - THREADED(WITH GREASE GROOVE)
WITH GIMBAL TRIM SENDER
9

45942A1 SWITCH ASSEMBLY, Tilt Stop, GIMBAL RING
WITHOUT GIMBAL TRIM SENDER

SWITCH ASSEMBLY, Tilt Stop, GIMBAL RING
WITHOUT GIMBAL TRIM SENDER
10

10-20367 SCREW, SWITCH COVER TO GIMBAL RING (7/16")
WITHOUT GIMBAL TRIM SENDER

SCREW, SWITCH COVER TO GIMBAL RING (7/16")
WITHOUT GIMBAL TRIM SENDER
11

31899 PLATE, RETAINING - SWITCH TO GIMBAL RING
WITHOUT GIMBAL TRIM SENDER

PLATE, RETAINING - SWITCH TO GIMBAL RING
WITHOUT GIMBAL TRIM SENDER
12

10-45862 SCREW, (#10-32 x .875), PLATE AND STRAP TO GIMBAL RING (7/8")
WITHOUT GIMBAL TRIM SENDER

SCREW, (#10-32 x .875), PLATE AND STRAP TO GIMBAL RING (7/8")
WITHOUT GIMBAL TRIM SENDER
13

32637 STRAP, TILT STOP SWITCH RETAINING
WITHOUT GIMBAL TRIM SENDER

STRAP, TILT STOP SWITCH RETAINING
WITHOUT GIMBAL TRIM SENDER
14

11-20110 NUT, (#10-32), PLATE AND STRAP SCREW
WITHOUT GIMBAL TRIM SENDER

NUT, (#10-32), PLATE AND STRAP SCREW
WITHOUT GIMBAL TRIM SENDER
15

49343 LEVER, ACTUATING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER

LEVER, ACTUATING - GIMBAL RING
WITHOUT GIMBAL TRIM SENDER
16

10-31903 SCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
WITHOUT GIMBAL TRIM SENDER

SCREW, ACTUATING LEVER TO GIMBAL RING (3/8")
WITHOUT GIMBAL TRIM SENDER
17

64947 SENDER, DUMMY (STARBOARD)
WITH GIMBAL TRIM SENDER

SENDER, DUMMY (STARBOARD)
WITH GIMBAL TRIM SENDER
18

84-19280 HARNESS ASSEMBLY, DUMMY SENDER
WITH GIMBAL TRIM SENDER

HARNESS ASSEMBLY, DUMMY SENDER
WITH GIMBAL TRIM SENDER
19

10-46942 SCREW, (#6-20 x .3125), HARNESS ATTACHING (5/16")
WITH GIMBAL TRIM SENDER

SCREW, (#6-20 x .3125), HARNESS ATTACHING (5/16")
WITH GIMBAL TRIM SENDER
17

63115A2 SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
WITH GIMBAL TRIM SENDER

SWITCH ASSEMBLY, TRIM LIMIT (PORT SIDE)
WITH GIMBAL TRIM SENDER
18

84-19292 HARNESS ASSEMBLY, TRIM LIMIT SWITCH
WITH GIMBAL TRIM SENDER

HARNESS ASSEMBLY, TRIM LIMIT SWITCH
WITH GIMBAL TRIM SENDER
19

10-63400 SCREW, (#6-32 x .125), HARNESS ATTACHING (5/32")
WITH GIMBAL TRIM SENDER

SCREW, (#6-32 x .125), HARNESS ATTACHING (5/32")
WITH GIMBAL TRIM SENDER
20

85-63990 INSULATOR, SWITCH AND SENDER
WITH GIMBAL TRIM SENDER

INSULATOR, SWITCH AND SENDER
WITH GIMBAL TRIM SENDER
21

10-37978 SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING (3/4")
WITH GIMBAL TRIM SENDER

SCREW, (#10-32 x .750) Stainless Steel, SWITCH AND SENDER TO GIMBAL RING (3/4")
WITH GIMBAL TRIM SENDER
22

13-26996 LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER

LOCKWASHER, (#10) Stainless Steel, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER
23

57008 RETAINER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER

RETAINER, SWITCH AND SENDER SCREW
WITH GIMBAL TRIM SENDER
24

88433 LEVER, Steering

LEVER, Steering
25

32582 SHAFT, UPPER SWIVEL-WITHOUT GIMBAL TRIM SENDER

SHAFT, UPPER SWIVEL-WITHOUT GIMBAL TRIM SENDER
25

88302A1 SHAFT, UPPER SWIVEL
WITH GIMBAL TRIM SENDER

SHAFT, UPPER SWIVEL
WITH GIMBAL TRIM SENDER
26

53-72413 RING, Retaining, UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER

RING, Retaining, UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER
27

11-8M2014641 NUT, (.750-16), UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER

NUT, (.750-16), UPPER SWIVEL SHAFT
WITH GIMBAL TRIM SENDER
28

22-32561 PLUG, Pipe - Allen Head (.250-18), PIPE - UPPER SWIVEL SHAFT

PLUG, Pipe - Allen Head (.250-18), PIPE - UPPER SWIVEL SHAFT
29

12-32996 WASHER, UPPER SWIVEL SHAFT (.015)
WITHOUT GIMBAL TRIM SENDER

WASHER, UPPER SWIVEL SHAFT (.015)
WITHOUT GIMBAL TRIM SENDER
29

12-32997 WASHER, UPPER SWIVEL SHAFT (.063)
WITHOUT GIMBAL TRIM SENDER

WASHER, UPPER SWIVEL SHAFT (.063)
WITHOUT GIMBAL TRIM SENDER
29

12-47683 WASHER, UPPER SWIVEL SHAFT (.031)
WITH GIMBAL TRIM SENDER

WASHER, UPPER SWIVEL SHAFT (.031)
WITH GIMBAL TRIM SENDER
29

12-32997 WASHER, UPPER SWIVEL SHAFT (.062)
WITH GIMBAL TRIM SENDER

WASHER, UPPER SWIVEL SHAFT (.062)
WITH GIMBAL TRIM SENDER
30

10-807204 SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT (2")

SCREW, (.437-20 x 2.00), STEERING LEVER TO UPPER SWIVEL SHAFT (2")
31

11-20696 NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW

NUT, STEERING LEVER TO UPPER SWIVEL SHAFT SCREW
32

10-45833 SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT (2 1/2")
WITHOUT GIMBAL TRIM SENDER

SCREW, (.312-18 x 2.500), UPPER SWIVEL SHAFT (2 1/2")
WITHOUT GIMBAL TRIM SENDER
33

12-20546 WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT SCREW
WITHOUT GIMBAL TRIM SENDER

WASHER, (.330 x .500 x .060), UPPER SWIVEL SHAFT SCREW
WITHOUT GIMBAL TRIM SENDER
34

78790A6 LINK ROD ASSEMBLY, Steering

LINK ROD ASSEMBLY, Steering
35

10-66389 SCREW, (.375-24 x .875), LEVER TO LINK ROD

SCREW, (.375-24 x .875), LEVER TO LINK ROD
36

12-34966 WASHER, STEERING LINK ROD (NYLON)

WASHER, STEERING LINK ROD (NYLON)
37

13-54667 WASHER, SPRING - STEERING LINK ROD

WASHER, SPRING - STEERING LINK ROD
38

12-20086 WASHER, (.390 x .620 x .060), STEERING LINK ROD (STEEL)

WASHER, (.390 x .620 x .060), STEERING LINK ROD (STEEL)
39

11-55438 NUT, (.375-24), STEERING LINK ROD

NUT, (.375-24), STEERING LINK ROD
40

18-45882 COTTER PIN, LINK ROD AND SCREW

COTTER PIN, LINK ROD AND SCREW
