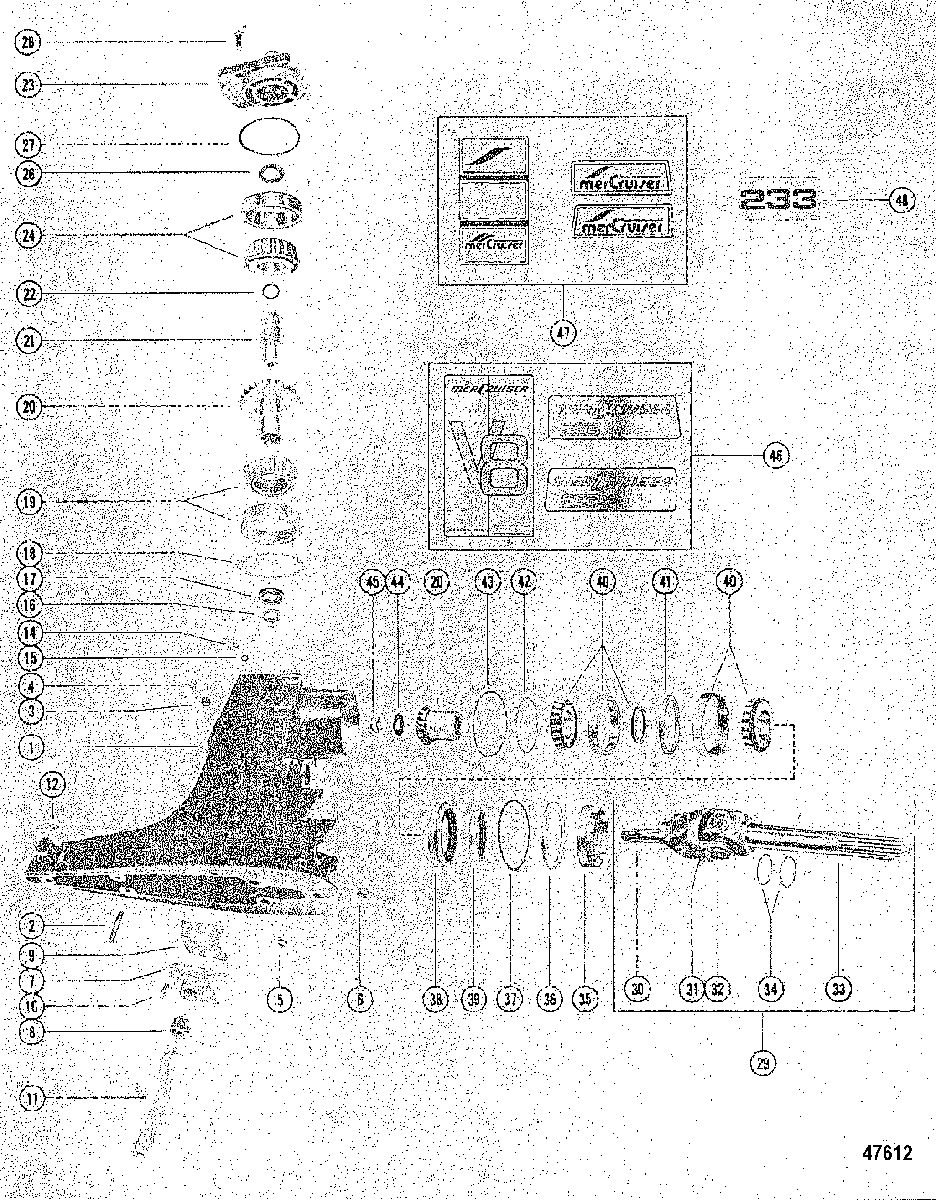

DRIVE SHAFT HOUSING ASSEMBLY AND GEAR ASSEMBLY для Mercruiser - 225-S 1974 3856268 THRU 4200499

№

Артикул

Название
1

1547-9412A18 HOUSING ASSEMBLY, Driveshaft

HOUSING ASSEMBLY, Driveshaft

92 440 ₽
2

16-56295 STUD, (.437 x 2.69), DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")

STUD, (.437 x 2.69), DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")

420 ₽
3

22-31704 PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)

PLUG, PIPE - DRIVE SHAFT HOUSING (WATER POCKET)

0 ₽
4

19-32652 WELCH PLUG, DRIVE SHAFT HOUSING

WELCH PLUG, DRIVE SHAFT HOUSING

800 ₽
5

23-32632 BUSHING, DRIVE SHAFT HOUSING

BUSHING, DRIVE SHAFT HOUSING

3 250 ₽
6

11-34933 NUT, (.437-20) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD

NUT, (.437-20) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING STUD

440 ₽
7

42724A3 COVER ASSEMBLY, WATER POCKET - DRIVE SHAFT HOUSING

COVER ASSEMBLY, WATER POCKET - DRIVE SHAFT HOUSING

4 830 ₽
8

26-36557 SEAL, RUBBER - WATER POCKET COVER

SEAL, RUBBER - WATER POCKET COVER

290 ₽
9

27-558101 GASKET, WATER POCKET COVER

GASKET, WATER POCKET COVER

190 ₽
10

10-28668 SCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")

SCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVE SHAFT HOUSING (7/8")

140 ₽
11

32-54236 TUBE, WATER - WATER POCKET COVER

TUBE, WATER - WATER POCKET COVER

1 220 ₽
12

19-32298 PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING

PLUG, TRIM TAB HOLE - DRIVE SHAFT HOUSING

270 ₽
--

37-70658A1 DECAL SET, DRIVE SHAFT HOUSING-MERCRUISER 225-S

DECAL SET, DRIVE SHAFT HOUSING-MERCRUISER 225-S

0 ₽
--

37-70660A1 DECAL SET, DRIVE SHAFT HOUSING-MERCRUISER 233 1

DECAL SET, DRIVE SHAFT HOUSING-MERCRUISER 233 1

0 ₽
14

10-79953Q04 SCREW, (.375-16), DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE

SCREW, (.375-16), DRIVE SHAFT HOUSING GREASE FILLER AND VENT HOLE

1 000 ₽
15

12-191833 WASHER, DRIVE SHAFT HSG. GREASE FILLER/VENT HOLE SCREW

WASHER, DRIVE SHAFT HSG. GREASE FILLER/VENT HOLE SCREW

60 ₽
16

26-965031 SEAL, Oil, DRIVE SHAFT HOUSING - LOWER

SEAL, Oil, DRIVE SHAFT HOUSING - LOWER

1 880 ₽
17

26-32511 SEAL, Oil, GEAR CHAMBER - DRIVE SHAFT HOUSING

SEAL, Oil, GEAR CHAMBER - DRIVE SHAFT HOUSING

2 620 ₽
18

15-36178A02 SHIM SET, BEARING CUP TO DRIVE SHAFT HSG. (.002-3-5-10-15)

SHIM SET, BEARING CUP TO DRIVE SHAFT HSG. (.002-3-5-10-15)

1 120 ₽
19

31-35990A1 BEARING ASSEMBLY, Roller, PINION GEAR MERCRUISER 225-S

BEARING ASSEMBLY, Roller, PINION GEAR MERCRUISER 225-S

5 560 ₽
20

43-18411A2 GEAR ASSEMBLY, COMPLETE MERCRUISER 225-S

GEAR ASSEMBLY, COMPLETE MERCRUISER 225-S

64 980 ₽
19

31-66818A1 BEARING ASSEMBLY, Tapered Roller, PINION GEAR MERCRUISER 233

BEARING ASSEMBLY, Tapered Roller, PINION GEAR MERCRUISER 233

12 880 ₽
20

43-8M0080756 GEAR ASSEMBLY, COMPLETE MERCRUISER 233

GEAR ASSEMBLY, COMPLETE MERCRUISER 233

89 050 ₽
21

45-55796 DRIVESHAFT, UPPER

DRIVESHAFT, UPPER

15 660 ₽
22

25-55801 O-RING, UPPER DRIVE SHAFT

O-RING, UPPER DRIVE SHAFT

130 ₽
23

76098A1 COVER ASSEMBLY, TOP
SN# 4428019 & Below

COVER ASSEMBLY, TOP
SN# 4428019 & Below

32 580 ₽
24

31-61100A1 BEARING ASSEMBLY, DRIVE SHAFT
SN# 4428019 & Below

BEARING ASSEMBLY, DRIVE SHAFT
SN# 4428019 & Below

8 990 ₽
26

15-45691A1 SHIM, BEARING CUP TO TOP COVER
SN# 4428019 & Below

SHIM, BEARING CUP TO TOP COVER
SN# 4428019 & Below

970 ₽
23

76098A1 COVER ASSEMBLY, TOP
SN# 4428020 & Up

COVER ASSEMBLY, TOP
SN# 4428020 & Up

32 580 ₽
24

31-61100A1 BEARING ASSEMBLY, DRIVE SHAFT
SN# 4428020 & Up

BEARING ASSEMBLY, DRIVE SHAFT
SN# 4428020 & Up

8 990 ₽
26

15-45691A1 SHIM, BEARING CUP TO TOP COVER
SN# 4428020 & Up

SHIM, BEARING CUP TO TOP COVER
SN# 4428020 & Up

970 ₽
27

25-32546 O-RING, TOP COVER SEALING

O-RING, TOP COVER SEALING

480 ₽
28

10-8M0113174 SCREW, (.375-16 x 1.25), TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")

SCREW, (.375-16 x 1.25), TOP COVER TO DRIVE SHAFT HOUSING (1 1/4")

640 ₽
29

814819A2 UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR

UNIVERSAL JOINT ASSEMBLY, DRIVE GEAR

79 870 ₽
30

46020T02 YOKE, UNIVERSAL JOINT - GEAR END

YOKE, UNIVERSAL JOINT - GEAR END

17 540 ₽
31

393831 SOCKET, CENTER - UNIVERSAL JOINT

SOCKET, CENTER - UNIVERSAL JOINT

9 760 ₽
32

75832T1 CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT

CROSS AND BEARING ASSEMBLY, UNIVERSAL JOINT

8 250 ₽
33

59830A7 YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END

YOKE ASSEMBLY, UNIVERSAL JOINT - COUPLING END

26 810 ₽
34

25-25439 O-RING, (.862 x .103), UNIVERSAL JOINT

O-RING, (.862 x .103), UNIVERSAL JOINT

190 ₽
35

8168112 RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT

RETAINER, TAPERED ROLLER BEARING - UNIVERSAL JOINT

3 290 ₽
36

35983 RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER

RING, ROLLER BEARING RETAINER TO OIL SEAL CARRIER

1 420 ₽
37

25-70937 O-RING, OIL SEAL CARRIER

O-RING, OIL SEAL CARRIER

460 ₽
38

66081A2 CARRIER ASSEMBLY, OIL SEAL

CARRIER ASSEMBLY, OIL SEAL

6 040 ₽
39

26-823894 SEAL, Oil, CARRIER

SEAL, Oil, CARRIER

3 220 ₽
40

31-35988A12 BEARING ASSEMBLY, Tapered Roller, DRIVE GEAR MERCRUISER 225-S

BEARING ASSEMBLY, Tapered Roller, DRIVE GEAR MERCRUISER 225-S

29 530 ₽
41

23-35985 SPACER, DRIVE GEAR ROLLER BEARING CUPS MERCRUISER 225-S

SPACER, DRIVE GEAR ROLLER BEARING CUPS MERCRUISER 225-S

1 340 ₽
40

31-35988A3 BEARING ASSEMBLY, Tapered Roller, DRIVE GEAR MERCRUISER 233

BEARING ASSEMBLY, Tapered Roller, DRIVE GEAR MERCRUISER 233

33 410 ₽
41

23-66824 SPACER, DRIVE GEAR ROLLER BEARING CUPS MERCRUISER 233

SPACER, DRIVE GEAR ROLLER BEARING CUPS MERCRUISER 233

5 790 ₽
42

15-35980A1 SHIM SET, BEARING CUP TO DRIVE SHAFT HSG. (.002-3-35-10-25)

SHIM SET, BEARING CUP TO DRIVE SHAFT HSG. (.002-3-35-10-25)

1 180 ₽
43

23-8M0124132 SHIM, Spacer, BEARING CUP TO DRIVE SHAFT HSG.

SHIM, Spacer, BEARING CUP TO DRIVE SHAFT HSG.

490 ₽
44

12-45810 WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT

WASHER, DRIVE GEAR TO UNIVERSAL JOINT NUT

110 ₽
45

11-22339 NUT, (.625-18), DRIVE GEAR TO UNIVERSAL JOINT

NUT, (.625-18), DRIVE GEAR TO UNIVERSAL JOINT

570 ₽
--

37-70658A1 DECAL SET, DRIVE SHAFT HOUSING - MERCRUISER 225-S

DECAL SET, DRIVE SHAFT HOUSING - MERCRUISER 225-S

0 ₽
46

37-70660A1 DECAL SET, DRIVE SHAFT HOUSING - MERCRUISER 233
SN# 4640109 & Below

DECAL SET, DRIVE SHAFT HOUSING - MERCRUISER 233
SN# 4640109 & Below

0 ₽
47

37-76731A1 DECAL SET, DRIVE SHAFT HOUSING - MERCRUISER 233
SN# 4640110 & Up

DECAL SET, DRIVE SHAFT HOUSING - MERCRUISER 233
SN# 4640110 & Up

9 570 ₽
48

37-76753 DECAL 233
SN# 4640110 & Up

DECAL 233
SN# 4640110 & Up

0 ₽
