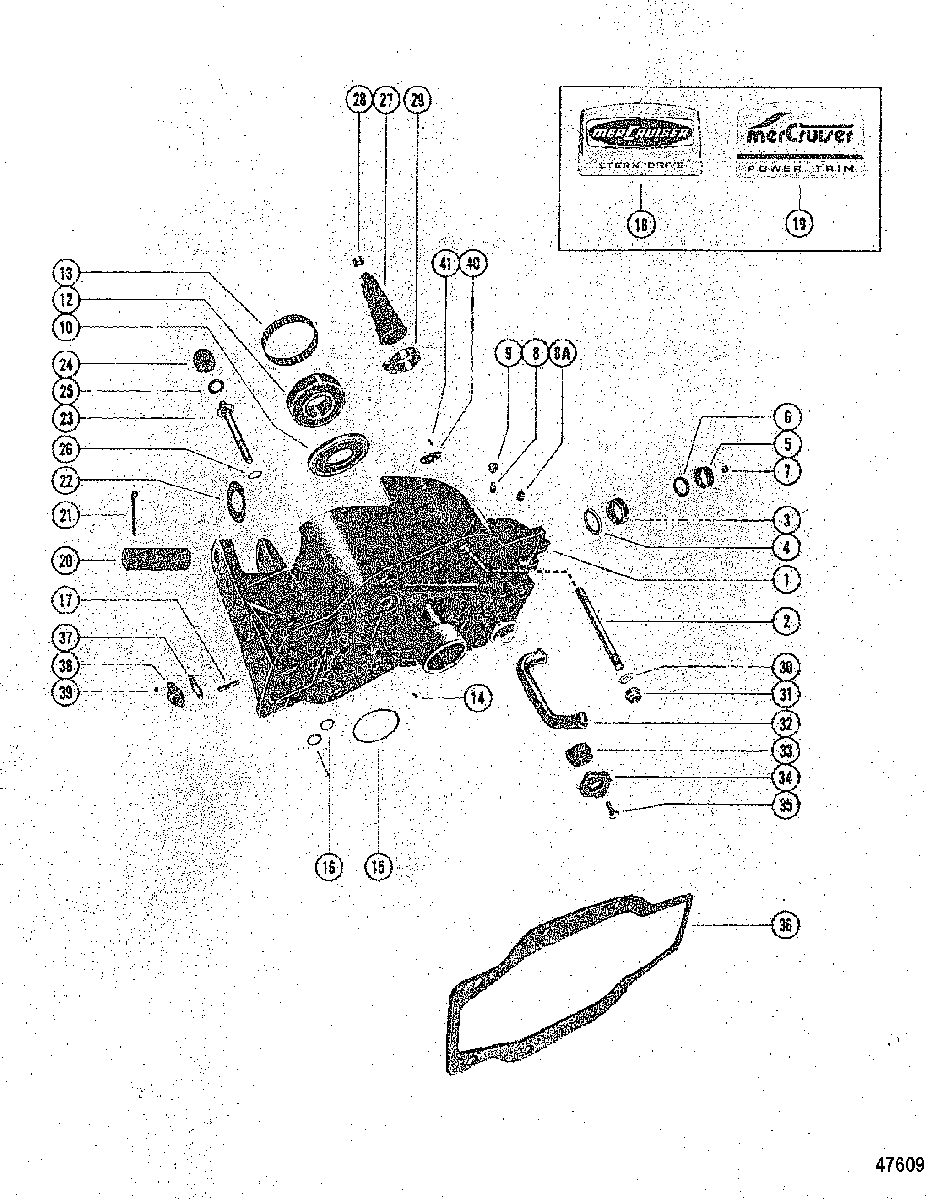

GIMBAL HOUSING ASSEMBLY для Mercruiser - 225-S 1974 3856268 THRU 4200499

  • №
    Артикул
    Название
  • 1
    63504A1 GIMBAL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
    GIMBAL HOUSING ASSEMBLY (WITHOUT GIMBAL TRIM SENDER)
  • 1
    70862A1 GIMBAL HOUSING ASSEMBLY (WITH GIMBAL TRIM SENDER)
    GIMBAL HOUSING ASSEMBLY (WITH GIMBAL TRIM SENDER)
  • 2
    16-56296 STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE (4 3/4")
    STUD, (.437-20 x 4.750), GIMBAL HOUSING TO TRANSOM PLATE (4 3/4")
  • 3
    31-32536 BEARING, ROLLER - GIMBALL HOUSING (LOWER)
    BEARING, ROLLER - GIMBALL HOUSING (LOWER)
  • 4
    26-32911 SEAL, Oil, LOWER GIMBALL HOUSING ROLLER BEARING
    SEAL, Oil, LOWER GIMBALL HOUSING ROLLER BEARING
  • 5
    23-38634 BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER)
    WITHOUT GIMBAL TRIM SENDER
    BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER)
    WITHOUT GIMBAL TRIM SENDER
  • 6
    26-32540 SEAL, Oil, UPPER GIMBAL HOUSING BUSHING
    WITHOUT GIMBAL TRIM SENDER
    SEAL, Oil, UPPER GIMBAL HOUSING BUSHING
    WITHOUT GIMBAL TRIM SENDER
  • 5
    31-21145 BEARING, Roller, GIMBAL HOUSING (UPPER)
    WITH GIMBAL TRIM SENDER
    BEARING, Roller, GIMBAL HOUSING (UPPER)
    WITH GIMBAL TRIM SENDER
  • 6
    26-54925 SEAL, Oil, UPPER GIMBAL HOUSING BEARING
    WITH GIMBAL TRIM SENDER
    SEAL, Oil, UPPER GIMBAL HOUSING BEARING
    WITH GIMBAL TRIM SENDER
  • 7
    22-390721 PLUG, PIPE - GIBAL HOUSING
    PLUG, PIPE - GIBAL HOUSING
  • 8
    22-74036 FITTING, Grease
    (Use with greased bearing)
    FITTING, Grease
    (Use with greased bearing)
  • 8
    10-8M2015913 PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
    PLUG, (.250-28 x .320)
    (Use with non-greased bearing)
  • 8A
    22-428611 PLUG, PLASTIC - GIMBALL HOUSING
    PLUG, PLASTIC - GIMBALL HOUSING
  • 9
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 10
    26-88416 SEAL, Grease, GREASE - GIMBAL HOUSING
    SEAL, Grease, GREASE - GIMBAL HOUSING
  • 12
    30-879194A02 BEARING ASSEMBLY, BALL - GIMBAL HOUSING
    BEARING ASSEMBLY, BALL - GIMBAL HOUSING
  • 13
    61075 TOLERANCE RING, GIMBAL HOUSING BEARING
    TOLERANCE RING, GIMBAL HOUSING BEARING
  • 14
    10-25612 SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
    SCREW, DRIVE - GIMBAL HOUSING EXHAUST FLANGE
  • 15
    25-20863 O-RING, GIMBAL HOUSING
    O-RING, GIMBAL HOUSING
  • 16
    25-23145 O-RING, (.984 x .139), GIMBAL HOUSING
    O-RING, (.984 x .139), GIMBAL HOUSING
  • 17
    16-56766 STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING
    STUD, (.250-20/.250-28 x 1.380), HYDRAULIC CONNECTOR TO GIMBAL HOUSING
  • 18
    37-87018 EMBLEM, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
    EMBLEM, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
  • 19
    37-87018 DECAL, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
    DECAL, GIMBAL HOUSING
    SEE PHOTO FOR CORRECT REPLACEMENT
  • 20
    17-45212 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 21
    18-34212 COTTER PIN, RETAINING - LOWER SWIVEL PIN
    COTTER PIN, RETAINING - LOWER SWIVEL PIN
  • 22
    12-32518 WASHER, GIMBAL HOUSING TO LOWER SWIVEL PIN
    WASHER, GIMBAL HOUSING TO LOWER SWIVEL PIN
  • 23
    8M0030655 BOLT ASSEMBLY, Anodic, ANODIC - GIMBAL HOUSING TO TRANSOM PLATE
    BOLT ASSEMBLY, Anodic, ANODIC - GIMBAL HOUSING TO TRANSOM PLATE
  • 24
    97-55989Q9 ANODE, BOLT ASSEMBLY
    ANODE, BOLT ASSEMBLY
  • 25
    12-56085 WASHER, ANODIC BOLT ASSEMBLY
    WASHER, ANODIC BOLT ASSEMBLY
  • 26
    12-32620 WASHER, GIMBALL HOUSING BOLT
    WASHER, GIMBALL HOUSING BOLT
  • 27
    74639A2 BELLOWS, Shift Cable, SHIFT ACTUATING CABLE
    BELLOWS, Shift Cable, SHIFT ACTUATING CABLE
  • 28
    54-8M0090424 CLAMP, ACTUATING CABLE BELLOW TO SHIFT ACTUATING CABLE
    CLAMP, ACTUATING CABLE BELLOW TO SHIFT ACTUATING CABLE
  • 29
    54-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
    CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
  • 30
    12-34567 WASHER, GIMBAL HOUSING STUD
    WASHER, GIMBAL HOUSING STUD
  • 31
    11-34933 NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD
    NUT, (.437-20) Stainless Steel, GIMBAL HOUSING STUD
  • 32
    32-41672A01 TUBE, WATER - GIMBAL HOUSING
    TUBE, WATER - GIMBAL HOUSING
  • 33
    23-28055 BUSHING, RUBBER - WATER TUBE SEALING
    BUSHING, RUBBER - WATER TUBE SEALING
  • 34
    32517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
    COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
  • 35
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
    SCREW, (.250-20 x .620) Stainless Steel, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
  • 36
    27-65373 GASKET, GIMBAL HSG. TO TRANSOM (WITHOUT GIMBAL TRIM SENDER)
    GASKET, GIMBAL HSG. TO TRANSOM (WITHOUT GIMBAL TRIM SENDER)
  • 36
    65533A1 SEAL, GIMBAL HSG. TO TRANSOM (WITH GIMBAL TRIM SENDER)
    SEAL, GIMBAL HSG. TO TRANSOM (WITH GIMBAL TRIM SENDER)
  • 37
    27-476441 GASKET, HYDRAULIC CONNECTOR
    GASKET, HYDRAULIC CONNECTOR
  • 38
    47347 CONNECTOR, HYDRAULIC - GIMBAL HOUSING
    CONNECTOR, HYDRAULIC - GIMBAL HOUSING
  • 39
    11-35888 NUT, (.250-28) Stainless Steel, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD
    NUT, (.250-28) Stainless Steel, GIMBAL HOUSING TO HYDRAULIC CONNECTOR STUD
  • 40
    57322T COVER, RETAINING - GIMBAL HOUSING
    WITH GIMBAL TRIM SENDER
    COVER, RETAINING - GIMBAL HOUSING
    WITH GIMBAL TRIM SENDER
  • 41
    10-28635 SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING (5/8")
    WITH GIMBAL TRIM SENDER
    SCREW, (.250-20 x .620) Stainless Steel, COVER TO GIMBAL HOUSING (5/8")
    WITH GIMBAL TRIM SENDER
