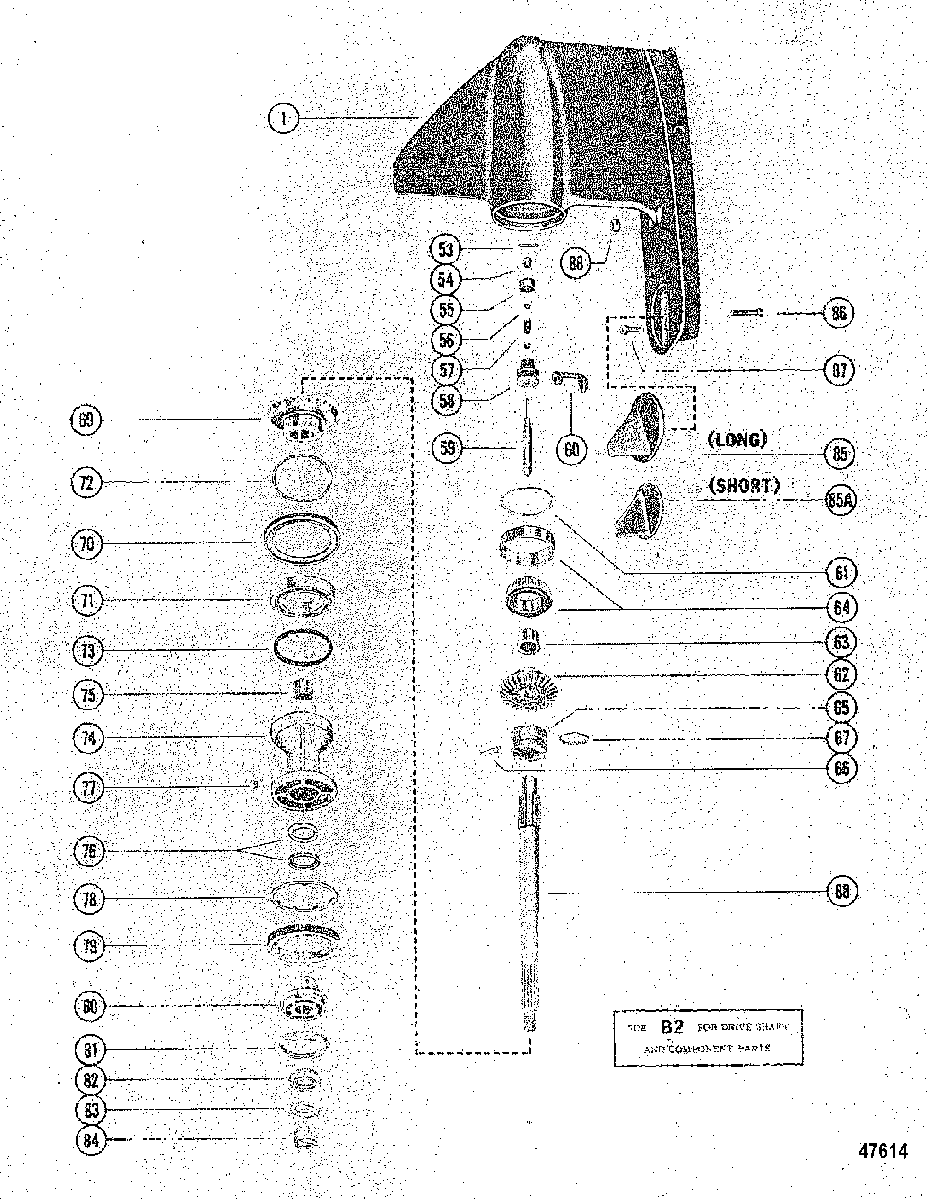

GEAR HOUSING ASSEMBLY для Mercruiser - 225-S 1974 3856268 THRU 4200499

  • №
    Артикул
    Название
  • -
    1623-8951A43 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1623-5356A4 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 53
    18-469501 COTTON PIN, CLUTCH ACTUATING SHAFT
    COTTON PIN, CLUTCH ACTUATING SHAFT
  • 54
    N.S.S. Not Sold Separate, ADJUSTING - REPLACED BY 19755A2
    Not Sold Separate, ADJUSTING - REPLACED BY 19755A2
  • 55
    N.S.S. Not Sold Separate, SPRING - REPLACED BY 19755A2
    Not Sold Separate, SPRING - REPLACED BY 19755A2
  • 56
    N.S.S. Not Sold Separate, REPLACED BY 19755A2
    Not Sold Separate, REPLACED BY 19755A2
  • 57
    N.S.S. Not Sold Separate, REPLACED BY 19755A2
    Not Sold Separate, REPLACED BY 19755A2
  • 58
    N.S.S. Not Sold Separate, REPLACED BY 19755A2
    Not Sold Separate, REPLACED BY 19755A2
  • 59
    N.S.S. Not Sold Separate, REPLACED BY 19755A2
    Not Sold Separate, REPLACED BY 19755A2
  • 60
    8M2009865 CRANK, Shift
    CRANK, Shift
  • 61
    15-47397A1 SHIM SET
    SHIM SET
  • 62
    43-96084A4 GEAR ASSEMBLY, Forward
    GEAR ASSEMBLY, Forward
  • 63
    31-30895T BEARING, Needle, FORWARD GEAR
    BEARING, Needle, FORWARD GEAR
  • 64
    31-35928T1 BEARING ASSEMBLY, Tapered Roller
    BEARING ASSEMBLY, Tapered Roller
  • 65
    52-853594T CLUTCH
    CLUTCH
  • 66
    17-8M0100263 PIN, Cross
    PIN, Cross
  • 67
    24-30893 SPRING, RETAINER - CROSS PIN
    SPRING, RETAINER - CROSS PIN
  • 68
    44-8M0140440 PROPELLER SHAFT
    PROPELLER SHAFT
  • 69
    43-61026T GEAR, Reverse
    GEAR, Reverse
  • 70
    35915 THRUST RING, BEARING CARRIER
    THRUST RING, BEARING CARRIER
  • 71
    30-88957T BEARING, Ball, REVERSE GEAR
    BEARING, Ball, REVERSE GEAR
  • 72
    15-31535A1 SHIM
    SHIM
  • 73
    25-31534 O-RING, BEARING CARRIER
    O-RING, BEARING CARRIER
  • 74
    73020A14 CARRIER ASSEMBLY, Bearing
    CARRIER ASSEMBLY, Bearing
  • 75
    31-30956T BEARING, Needle
    BEARING, Needle
  • 76
    26-76868 SEAL
    SEAL
  • 77
    28-30281 KEY
    KEY
  • 78
    14-79447 TAB WASHER, GEAR HOUSING COVER
    TAB WASHER, GEAR HOUSING COVER
  • 79
    8M2000347 RETAINER, GEAR HOUSING
    RETAINER, GEAR HOUSING
  • 80
    56292Q04 THRUST HUB AND WASHER ASSEMBLY
    THRUST HUB AND WASHER ASSEMBLY
  • 81
    12-35965 WASHER, CUPPED
    WASHER, CUPPED
  • 82
    12-31211Q03 WASHER, Splined, SPLINED - PROPELLER SHAFT
    WASHER, Splined, SPLINED - PROPELLER SHAFT
  • 83
    14-816629Q TAB WASHER, PROPELLER NUT
    TAB WASHER, PROPELLER NUT
  • 84
    11-52707Q1 PROP NUT KIT, (.750-16)
    PROP NUT KIT, (.750-16)
  • 85
    34127T2 TRIM TAB ASSEMBLY
    SN# 4428019 & Below
    TRIM TAB ASSEMBLY
    SN# 4428019 & Below
  • 85
    97-31640Q4 TRIM TAB ASSEMBLY
    SN# 4428020 & Up
    TRIM TAB ASSEMBLY
    SN# 4428020 & Up
  • 86
    10-32470 SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING (1-3/4")
    SCREW, (.437-14 x 1.75), TRIM TAB TO GEAR HOUSING (1-3/4")
  • 87
    10-30206 SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
    SCREW, (.375-16 x 1.00) Stainless Steel, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
  • 88
    11-34933 NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD)
    NUT, (.437-20) Stainless Steel, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD)
