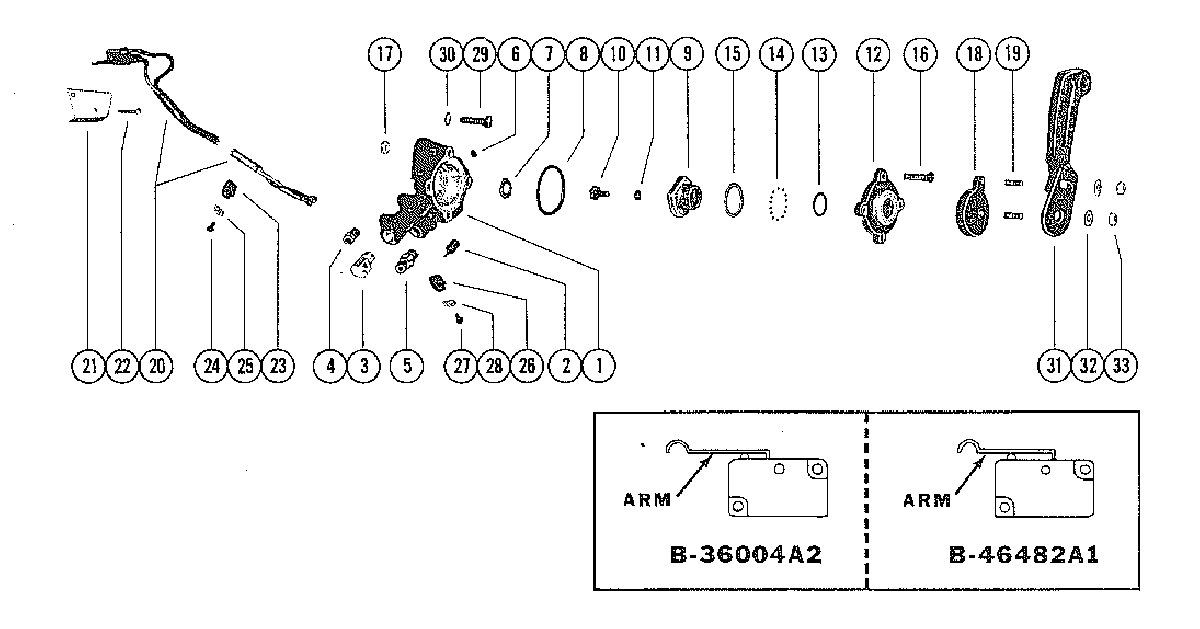

REVERSE LOCK VALVE ASSEMBLY (FOR USE WITH POWER TRIM ONLY) для Mercruiser - 160 1967-1969 2065190 THRU 2763441
-
№АртикулНазвание
-
176812T4 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
176812T4 REVERSE LOCK VALVE ASSEMBLYREVERSE LOCK VALVE ASSEMBLY
-
245709 FOLLOWER, CAMFOLLOWER, CAM
-
322-45794 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
422-48166 ELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVEELBOW, HYDRAULIC TRIM HOSE TO REVERSE LOCK VALVE
-
522-48167 CONNECTOR, ELBOWCONNECTOR, ELBOW
-
622-390721 PLUG, PIPE - REVERSE LOCK VALVEPLUG, PIPE - REVERSE LOCK VALVE
-
713-25906 WASHER, WAVE - REVERSE LOCK VALVEWASHER, WAVE - REVERSE LOCK VALVE
-
825-457101 "O" RING, REVERSE LOCK VALVE"O" RING, REVERSE LOCK VALVE
-
945526 CAM, REVERSE LOCK VALVECAM, REVERSE LOCK VALVE
-
1010-46736 SCREW, CAM TO CAM LEVER (1/2")SCREW, CAM TO CAM LEVER (1/2")
-
1113-26996 LOCKWASHER, CAM SCREWLOCKWASHER, CAM SCREW
-
1245528A2 COVER, REVERSE LOCK VALVECOVER, REVERSE LOCK VALVE
-
1325-45711 "O" RING, VALVE COVER"O" RING, VALVE COVER
-
1430-45712 BALL, VALVE COVERBALL, VALVE COVER
-
1512-45713 WASHER, RETAINING - BALL TO VALVE COVERWASHER, RETAINING - BALL TO VALVE COVER
-
1610-45716 SCREW, COVER TO REVERSE LOCK VALVE (15/16")SCREW, COVER TO REVERSE LOCK VALVE (15/16")
-
1711-20110 NUT, COVER SCREWNUT, COVER SCREW
-
1846732A2 LEVER ASSEMBLY, CAMLEVER ASSEMBLY, CAM
-
1916-45715 STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")STUD, SHIFT CONTROL LEVER TO CAM LEVER (23/32")
-
2046482A5 SWITCH ASSEMBLY, CUT-OUT - REVERSE LOCK VALVE
SEE NOTE BELOWSWITCH ASSEMBLY, CUT-OUT - REVERSE LOCK VALVE
SEE NOTE BELOW -
2145717 SHIELD, CUT-OUT SWITCHSHIELD, CUT-OUT SWITCH
-
2210-36003 SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")SCREW, SHIELD AND SWITCH TO REVERSE LOCK VALVE (3/4")
-
2354-22740 CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATECLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
-
2410-35519 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
-
2354-24836 CLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATECLIP, CUT-OUT SWITCH LEAD TO TRANSOM PLATE
-
2410-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
-
258M0084613 "D" WASHER, CLIP ATTACHING SCREW"D" WASHER, CLIP ATTACHING SCREW
-
2654-24836 CLIP, CUT-OUT SWITCH LEAD TO REVERSE LOCK VALVECLIP, CUT-OUT SWITCH LEAD TO REVERSE LOCK VALVE
-
2654-24836 CLIP, CUT-OUT SWITCH LEAD TO REVERSE LOCK VALVECLIP, CUT-OUT SWITCH LEAD TO REVERSE LOCK VALVE
-
2710-21643 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
-
2710-35519 SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")SCREW, CUT-OUT SWITCH LEAD CLIP ATTACHING (1/2")
-
288M0084613 "D" WASHER, CLIP ATTACHING SCREW"D" WASHER, CLIP ATTACHING SCREW
-
288M0084613 "D" WASHER, CLIP ATTACHING SCREW"D" WASHER, CLIP ATTACHING SCREW
-
2910-25299 SCREW, REVERSE LOCK VALVE TO TRANSOM PLATE (3/4")SCREW, REVERSE LOCK VALVE TO TRANSOM PLATE (3/4")
-
3013-21804 LOCKWASHER, REVERSE LOCK VALVE SCREWLOCKWASHER, REVERSE LOCK VALVE SCREW
-
3163333A2 LEVER, SHIFT CONTROL - CAM LEVERLEVER, SHIFT CONTROL - CAM LEVER
-
3163333A2 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVERLEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
-
3212-21273 WASHER, CAM LEVER STUDWASHER, CAM LEVER STUD
-
3311-20110 NUT, SHIFT CONTROL LEVER TO CAM LEVER STUDNUT, SHIFT CONTROL LEVER TO CAM LEVER STUD
