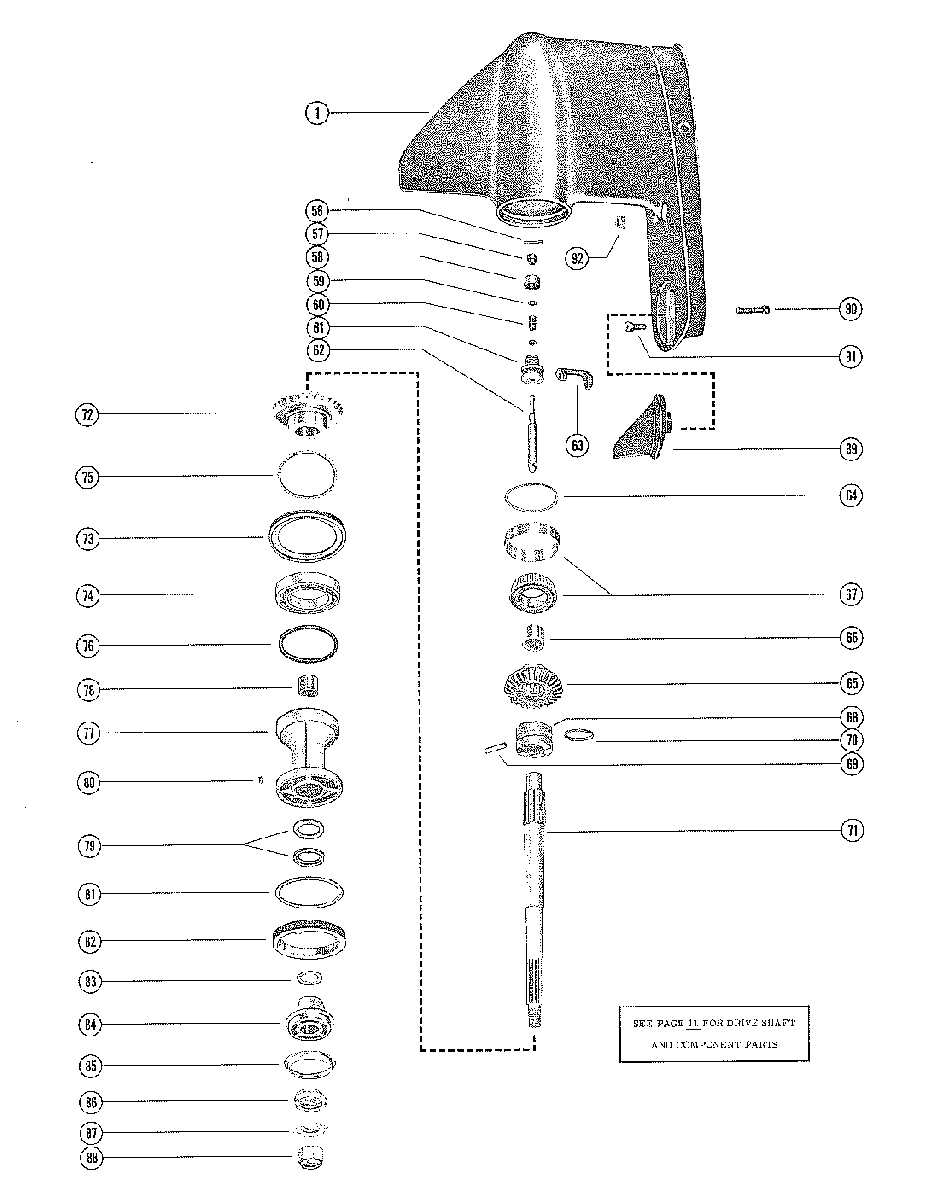

GEAR HOUSING ASSEMBLY для Mercruiser - 160 1967-1969 2065190 THRU 2763441
-
№АртикулНазвание
-
-1623-4110A5 GEAR HOUSING ASSEMBLY, COMPLETEGEAR HOUSING ASSEMBLY, COMPLETE
-
11623-2764A1 GEAR HOUSING ASSEMBLY (ALUMINUM)GEAR HOUSING ASSEMBLY (ALUMINUM)
-
11623-5364A4 GEAR HOUSING ASSEMBLY (PLASTIC)GEAR HOUSING ASSEMBLY (PLASTIC)
-
5618-469501 COTTER PIN, CLUTCH ACTUATING SHAFTCOTTER PIN, CLUTCH ACTUATING SHAFT
-
57N.S.S. SLEEVE, ADJUSTING REPLACED BY 19755A4SLEEVE, ADJUSTING REPLACED BY 19755A4
-
58N.S.S. RETAINER, SPRING REPLACED BY 19755A4RETAINER, SPRING REPLACED BY 19755A4
-
59N.S.S. WASHER REPLACED BY 19755A4WASHER REPLACED BY 19755A4
-
60N.S.S. SPRING REPLACED BY 19755A4SPRING REPLACED BY 19755A4
-
61N.S.S. SPOOL REPLACED BY 19755A4SPOOL REPLACED BY 19755A4
-
62N.S.S. SHAFT REPLACED BY 19755A4SHAFT REPLACED BY 19755A4
-
6337966 SHIFT CRANKSHIFT CRANK
-
6415-47397A1 SHIMSHIM
-
6543-35930A2 FORWARD GEAR ASSEMBLYFORWARD GEAR ASSEMBLY
-
6631-30895T ROLLER BEARING, FORWARD GEARROLLER BEARING, FORWARD GEAR
-
6731-35928T1 ROLLER BEARINGROLLER BEARING
-
6852-37963 CLUTCHCLUTCH
-
6917-8M0100263 CROSS PINCROSS PIN
-
7024-30893 SPRING, RETAINER - CROSS PINSPRING, RETAINER - CROSS PIN
-
7144-45452 PROPELLER SHAFTPROPELLER SHAFT
-
7243-37964 REVERSE GEARREVERSE GEAR
-
7335915 THRUST RING, BEARING CARRIERTHRUST RING, BEARING CARRIER
-
7430-88957T BALL BEARING, REVERSE GEARBALL BEARING, REVERSE GEAR
-
7515-31535A1 SHIMSHIM
-
7625-31534 O-RING, BEARING CARRIERO-RING, BEARING CARRIER
-
7752835A2 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7831-30956T ROLLER BEARINGROLLER BEARING
-
7926-76868 OIL SEALOIL SEAL
-
8028-30281 KEYKEY
-
8112-31536 WASHER, GEAR HOUSING COVER (ALUMINUM)WASHER, GEAR HOUSING COVER (ALUMINUM)
-
8114-79447 TAB, WASHER, GEAR HOUSING COVER (PLASTIC)TAB, WASHER, GEAR HOUSING COVER (PLASTIC)
-
828M2000347 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
8312-45450 THRUST WASHER, BEARING CARIERTHRUST WASHER, BEARING CARIER
-
8445451A1 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
8512-35965 WASHER, CUPPEDWASHER, CUPPED
-
8612-31211Q03 WASHER, SPLINED - PROPELLER SHAFTWASHER, SPLINED - PROPELLER SHAFT
-
8714-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
8811-29594 PROPELLER NUTPROPELLER NUT
-
8997-31640Q4 TRIM TAB ASSEMBLY (120)TRIM TAB ASSEMBLY (120)
-
8934127T2 TRIM TAB ASSEMBLY (140/160)TRIM TAB ASSEMBLY (140/160)
-
9010-32470 SCREW, TRIM TAB (1-3/4")SCREW, TRIM TAB (1-3/4")
-
9110-30206 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
-
9211-34933 NUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUDNUT, DRIVE SHAFT HOUSING TO GEAR HOUSING STUD
