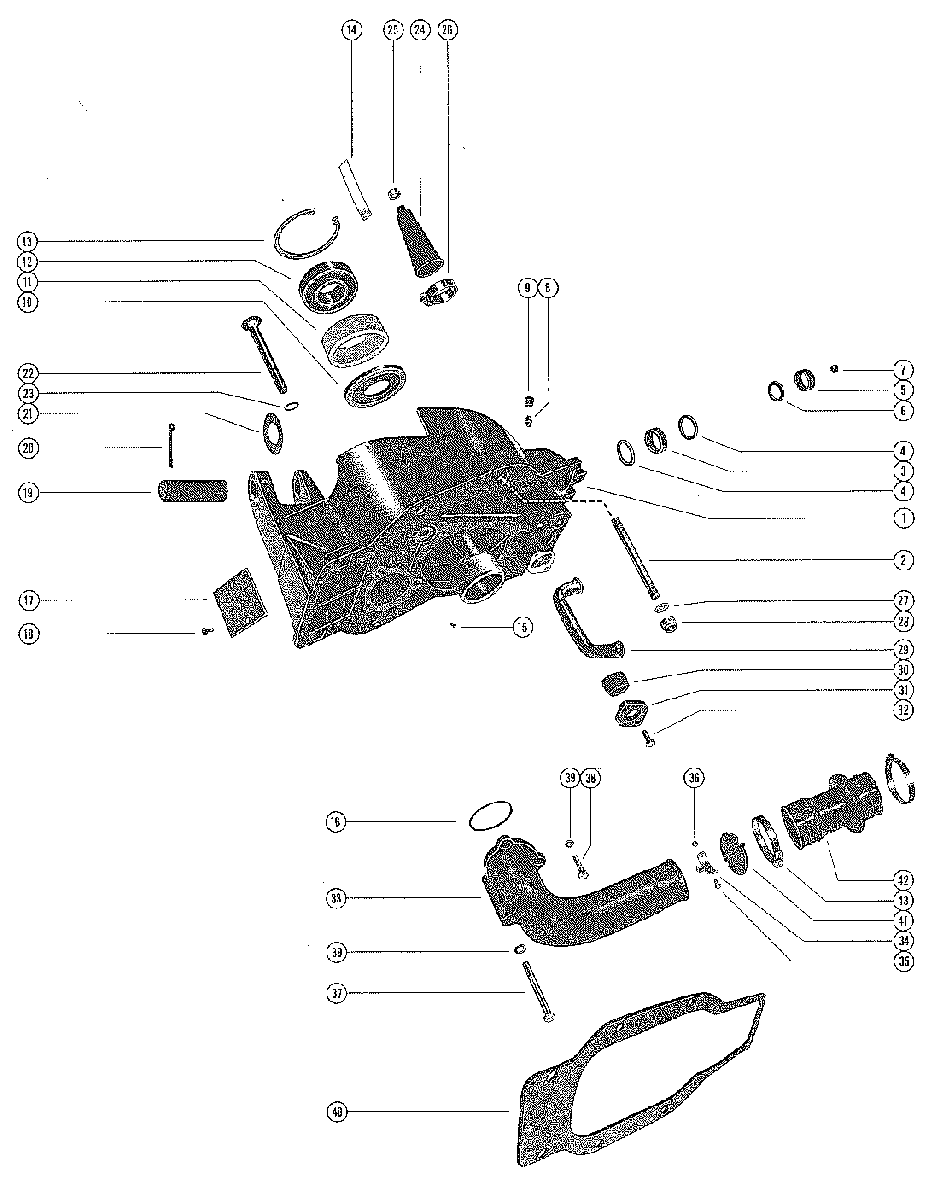

GIMBAL HOUSING ASSEMBLY AND EXHAUST ELBOW для Mercruiser - 160 1967-1969 2065190 THRU 2763441

  • №
    Артикул
    Название
  • 1
    60187A1 GIMBAL HOUSING ASSEMBLY (STANDARD)
    GIMBAL HOUSING ASSEMBLY (STANDARD)
  • 1
    60188A1 GIMBAL HOUSING ASSEMBLY (POWER TILT)
    GIMBAL HOUSING ASSEMBLY (POWER TILT)
  • 1
    60189A1 GIMBAL HOUSING ASSEMBLY (POWER TRIM)
    GIMBAL HOUSING ASSEMBLY (POWER TRIM)
  • 2
    16-56296 STUD, GIMBAL HOUSING TO TRANSON PLATE (4 3/4")
    STUD, GIMBAL HOUSING TO TRANSON PLATE (4 3/4")
  • 3
    31-32536 BEARING, ROLLER - GIMBAL HOUSING (LOWER)
    BEARING, ROLLER - GIMBAL HOUSING (LOWER)
  • 4
    26-32911 OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
    OIL SEAL, LOWER GIMBAL HOUSING ROLLER BEARING
  • 5
    23-38634 BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER)
    BUSHING, SYNTHANE - GIMBAL HOUSING (UPPER)
  • 6
    26-32540 OIL SEAL, UPPER GIMBAL HOUSING BUSHING
    OIL SEAL, UPPER GIMBAL HOUSING BUSHING
  • 7
    22-390721 PLUG, PIPE - GIMBAL HOUSING
    PLUG, PIPE - GIMBAL HOUSING
  • 8
    22-74036 FITTING, GREASE - GIMBAL HOUSING
    FITTING, GREASE - GIMBAL HOUSING
  • 9
    19-77633Q LUBRICAP, GIMBAL HOUSING GREASE FITTING
    LUBRICAP, GIMBAL HOUSING GREASE FITTING
  • 10
    26-88416 SEAL, GREASE - GIMBAL HOUSING
    SEAL, GREASE - GIMBAL HOUSING
  • 11
    23-35130 ADAPTOR, BEARING CARRIER
    ADAPTOR, BEARING CARRIER
  • 12
    30-36418 BEARING, BALL - GIMBAL HOUSING
    BEARING, BALL - GIMBAL HOUSING
  • 13
    53-35128 RING, RETAINING - BEARING CARRIER (LARGE)
    RING, RETAINING - BEARING CARRIER (LARGE)
  • 14
    15-35244A1 SHIM, GIMBAL HOUSING BEARING (.002-3-4-5-6-7-8-10)
    SHIM, GIMBAL HOUSING BEARING (.002-3-4-5-6-7-8-10)
  • 15
    10-25612 SCREW, DRIVE-GIMBAL HOUSING EXHAUST FLANGE
    SCREW, DRIVE-GIMBAL HOUSING EXHAUST FLANGE
  • 16
    25-20863 "O" RING, GIMBAL HOUSING
    "O" RING, GIMBAL HOUSING
  • --
    37-1368211 EMBLEM, GIMBAL HOUSING
    EMBLEM, GIMBAL HOUSING
  • 17
    34762A1 PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
    PLATE ASSEMBLY, INHIBITOR - GIMBAL HOUSING
  • 18
    10-34763 SCREW, INDIBITOR PLATE TO GIMBAL HOUSING (3/4")
    SCREW, INDIBITOR PLATE TO GIMBAL HOUSING (3/4")
  • 19
    17-45212 PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
    PIN, SWIVEL - GIMBAL HOUSING TO GIMBAL RING (LOWER)
  • 20
    18-34212 COTTER PIN, RETAINING - LOWER SWIVEL PIN
    COTTER PIN, RETAINING - LOWER SWIVEL PIN
  • 21
    12-32518 WASHER, GIMBAL HOUSING TO LOWER SWIVEL
    WASHER, GIMBAL HOUSING TO LOWER SWIVEL
  • 22
    10-43691 BOLT, GIMBAL HOUSING TO TRANSOM PLATE (4")
    BOLT, GIMBAL HOUSING TO TRANSOM PLATE (4")
  • 23
    12-32620 WASHER, GIMBAL HOUSING BOLT
    WASHER, GIMBAL HOUSING BOLT
  • 24
    74639A2 BELLOWS, SHIFT ACTUATING CABLE
    BELLOWS, SHIFT ACTUATING CABLE
  • 25
    54-8M0090424 CLAMP,ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
    CLAMP,ACTUATING CABLE BELLOWS TO SHIFT ACTUATING CABLE
  • 26
    54-815504320 CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
    CLAMP, SHIFT ACTUATING CABLE BELLOWS TO GIMBAL HOUSING
  • 27
    12-22248 WASHER, GIMBAL HOUSING STUD
    WASHER, GIMBAL HOUSING STUD
  • 28
    11-34933 NUT, GIMBAL HOUSING STUD
    NUT, GIMBAL HOUSING STUD
  • 29
    32-41672A01 TUBE, WATER - GIMBAL HOUSING
    TUBE, WATER - GIMBAL HOUSING
  • 30
    23-28055 BUSHING, RUBBER - WATER TUBE SEALING
    BUSHING, RUBBER - WATER TUBE SEALING
  • 31
    32517 COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
    COVER, WATER TUBE SEALING BUSHING - GIMBAL HOUSING
  • 32
    10-28635 SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
    SCREW, WATER TUBE SEALING COVER TO GIMBAL HOUSING (5/8")
  • 33
    53272A5 ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - EARLY MODE)
    ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - EARLY MODE)
  • 33
    53272A5 ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - LATER MODE)
    ELBOW ASSEMBLY, EXHAUST (MERCRUISER 120 AND 160 - LATER MODE)
  • 33
    53113A7 ELBOW ASSEMBLY, EXHAUST (MERCRUISER 140)
    ELBOW ASSEMBLY, EXHAUST (MERCRUISER 140)
  • 34
    45798 BRACKET,SUPPORT - WATER SHUTTER
    BRACKET,SUPPORT - WATER SHUTTER
  • 35
    10-37655 SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")
    SCREW, SUPPORT BRACKET TO EXHAUST ELBOW (1/2")
  • 36
    11-859124 NUT, SUPPORT BRACKET SCREW
    NUT, SUPPORT BRACKET SCREW
  • 37
    10-60410 SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (4 1/4")
    USE WITH B-45530A2 ELBOW ASSEMBLY
    SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (4 1/4")
    USE WITH B-45530A2 ELBOW ASSEMBLY
  • 38
    10-37612 SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (1 1/4")
    USE WITH B-45530A2 ELBOW ASSEMBLY
    SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (1 1/4")
    USE WITH B-45530A2 ELBOW ASSEMBLY
  • 38
    10-35787 SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (2 1/4")
    USE WITH B-53272A1 AND B-53113A2 ELBOW ASSEMBLY
    SCREW, EXHAUST ELBOW TO GIMBAL HOUSING (2 1/4")
    USE WITH B-53272A1 AND B-53113A2 ELBOW ASSEMBLY
  • 39
    13-35048 LOCKWASHER, EXHAUST ELBOW SCREW
    LOCKWASHER, EXHAUST ELBOW SCREW
  • 40
    27-70974 GASKET, GIMBAL HOUSING TO TRANSOM
    GASKET, GIMBAL HOUSING TO TRANSOM
  • 41
    45586 SHUTTER, WATER - EXHAUST ELBOW
    SHUTTER, WATER - EXHAUST ELBOW
  • 42
    45597A1 BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 120 AND 160)
    BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 120 AND 160)
  • 42
    53114A1 BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 140)
    BELLOWS, EXHAUST ELBOW TO ENGINE (MERCRUISER 140)
  • 43
    54-815504352 CLAMP, BELLOWS TO EXHAUST ELBOW AND ENGINE
    CLAMP, BELLOWS TO EXHAUST ELBOW AND ENGINE
  • --
    337491 SEALER, EXHAUST BELLOWS ATTACHING
    SEALER, EXHAUST BELLOWS ATTACHING
