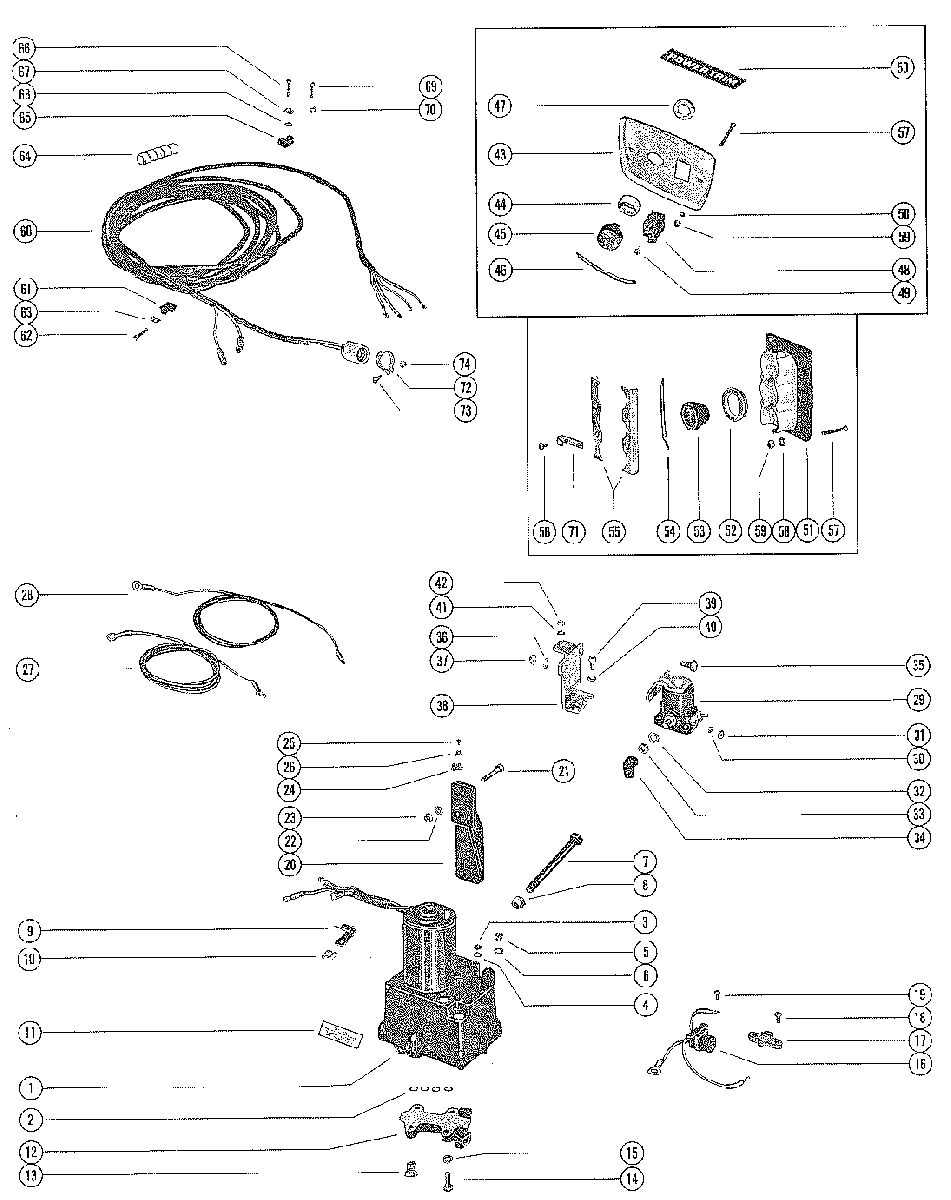

HYDRAULIC PUMP AND CONTROL PANEL (POWER TILT AND POWER TRIM) для Mercruiser - 160 1967-1969 2065190 THRU 2763441
-
№АртикулНазвание
-
145060A7 HYDRAULIC PUMP ASSEMBLY
SEE B4 FOR PARTS BREAKDOWNHYDRAULIC PUMP ASSEMBLY
SEE B4 FOR PARTS BREAKDOWN -
225-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE"O" RING, HYDRAULIC PUMP TO CONTROL VALVE
-
310-22028 SCREW, VENT - HYDRAULIC PUMPSCREW, VENT - HYDRAULIC PUMP
-
413-46917 LOCKWASHER, SEALING - VENT SCREWLOCKWASHER, SEALING - VENT SCREW
-
510-79953Q04 SCREW, FILLER - HYDRAULIC PUMPSCREW, FILLER - HYDRAULIC PUMP
-
612-191833 WASHER, SEALING - HYDRAULIC PUMP FILLER SCREWWASHER, SEALING - HYDRAULIC PUMP FILLER SCREW
-
710-29877 SCREW, HYDRALULIC PUMP TO TRANSOM PLATE (3 1/4")SCREW, HYDRALULIC PUMP TO TRANSOM PLATE (3 1/4")
-
710-45765 SCREW, HYDRAULIC PUMP TO TRANSOM PLATE (4 1/4")SCREW, HYDRAULIC PUMP TO TRANSOM PLATE (4 1/4")
-
811-82670911 NUT, HYDRAULIC PUMP SCREWNUT, HYDRAULIC PUMP SCREW
-
954-37282 CLAMP, HYDRAULIC PUMP HARNESSCLAMP, HYDRAULIC PUMP HARNESS
-
1037281 "D" WASHER, HYDRAULIC PUMP HARNESS CLAMP"D" WASHER, HYDRAULIC PUMP HARNESS CLAMP
-
1138-55823 DECAL, INSTRUCTIONS - HYDRAULIC PUMPDECAL, INSTRUCTIONS - HYDRAULIC PUMP
-
1245382A1 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
1245764A2 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
1248077T3 CONTROL VALVE ASSEMBLYCONTROL VALVE ASSEMBLY
-
--25-48171 "O" RING, HYDRAULIC PUMP TO CONTROL VALVE
SEE REFERENCE #2"O" RING, HYDRAULIC PUMP TO CONTROL VALVE
SEE REFERENCE #2 -
1322-38609 PLUG, CONTROL VALVE (3/8-24")PLUG, CONTROL VALVE (3/8-24")
-
1322-38609 PLUG, CONTROL VALVE (3/8-24")PLUG, CONTROL VALVE (3/8-24")
-
1410-21091 SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")SCREW, CONTROL VALVE TO HYDRAULIC PUMP (1 1/8")
-
1513-26992 LOCKWASHER, CONTROL VALVE SCREWLOCKWASHER, CONTROL VALVE SCREW
-
1645325A1 CONNECTOR AND HARNESSCONNECTOR AND HARNESS
-
1745559 TERMINAL BLOCK, HYDRAULIC PUMPTERMINAL BLOCK, HYDRAULIC PUMP
-
1810-72169 SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")SCREW, TERMINAL BLOCK TO HYDRAULIC PUMP (1/2")
-
1910-62568 SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")SCREW, HARNESS LEADS TO TERMINAL BLOCK (3/8")
-
2094225A1 BRACKET ASSEMBLY, PUMP MOUNTINGBRACKET ASSEMBLY, PUMP MOUNTING
-
2110-26066 SCREW, PUMP MOUNTING BRACKETSCREW, PUMP MOUNTING BRACKET
-
2212-20546 WASHER, PUMP MOUNTING BRACKET SCREWWASHER, PUMP MOUNTING BRACKET SCREW
-
2311-82670911 NUT, PUMP MOUNTING BRACKET SCREWNUT, PUMP MOUNTING BRACKET SCREW
-
2454-22740 CLAMP, PUMP MOUNTING BRACKETCLAMP, PUMP MOUNTING BRACKET
-
2510-35519 SCREW, CLAMP TO MOUNTING BRACKETSCREW, CLAMP TO MOUNTING BRACKET
-
268M0084613 "D" WASHER, CLAMP ATTACHING SCREW"D" WASHER, CLAMP ATTACHING SCREW
-
2745552 BATTERY LEAD (POSITIVE)BATTERY LEAD (POSITIVE)
-
2845551 BATTERY LEAD ( NEGATIVE)BATTERY LEAD ( NEGATIVE)
-
2925661T1 STARTER SOLENOIDSTARTER SOLENOID
-
3090634 LOCKWASHER, STARTER SOLENOID TERMINAL (#10)LOCKWASHER, STARTER SOLENOID TERMINAL (#10)
-
3111-68219 NUT, STARTER SOLENOID TERMINAL (#10)NUT, STARTER SOLENOID TERMINAL (#10)
-
3213-26993 LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")LOCKWASHER, STARTER SOLENOID TERMINAL (5/16")
-
3311-22053 NUT, STARTER SOLENOID TERMINAL (5/16")NUT, STARTER SOLENOID TERMINAL (5/16")
-
3446265 BOOT, RUBBER - STARTER SOLENOID TERMINALBOOT, RUBBER - STARTER SOLENOID TERMINAL
-
3510-34290 SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")SCREW, STARTER SOLENOID TO MOUNTING BRACKET (5/8")
-
3613-26992 LOCKWASHER, STARTER SOLENOID SCREWLOCKWASHER, STARTER SOLENOID SCREW
-
3711-21825 NUT, STARTER SOLENOID SCREWNUT, STARTER SOLENOID SCREW
-
3874407T BRACKET, MOUNTING - STARTER SOLENOIDBRACKET, MOUNTING - STARTER SOLENOID
-
3910-21140 SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")SCREW, MOUNTING BRACKET TO HYDRAULIC PUMP (1/2")
-
4013-26992 LOCKWASHER, MOUNTING BRACKET SCREWLOCKWASHER, MOUNTING BRACKET SCREW
-
4113-27660 LOCKWASHER, HYDRAULIC PUMP THRU BOLTLOCKWASHER, HYDRAULIC PUMP THRU BOLT
-
4211-68219 NUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLTNUT, MOUNTING BRACKET TO HYDRAULIC PUMP THRU BOLT
-
--45448A7 CONTROL PANEL ASSEMBLY, COMPLETECONTROL PANEL ASSEMBLY, COMPLETE
-
--45341A6 CONTROL PANEL ASSEMBLY, COMPLETECONTROL PANEL ASSEMBLY, COMPLETE
-
--48413A5 CONTROL PANEL ASSEMBLY, COMPLETE
GREEN, WHITE AND YELLOW PUSH BUTTONSCONTROL PANEL ASSEMBLY, COMPLETE
GREEN, WHITE AND YELLOW PUSH BUTTONS -
--48413A5 CONTROL PANEL ASSEMBLY, COMPLETE
RED/GREEN, WHITE AND RED PUSH BUTTONSCONTROL PANEL ASSEMBLY, COMPLETE
RED/GREEN, WHITE AND RED PUSH BUTTONS -
4335978 PANEL, CONTROLPANEL, CONTROL
-
4423-45773 SPACER, IGNITION SWITCHSPACER, IGNITION SWITCH
-
4554211T SWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEYSWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEY -
4554212A9 SWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEYSWITCH, IGNITION (WITH KEY #30431)
WHEN ORDERING REPLACEMENT KEY ALSO LIST NUMBER STAMED ON KEY -
4645340 JUMPER WIRE, IGNITION SWITCH TO ROCKER SWITCH (RED - 4")JUMPER WIRE, IGNITION SWITCH TO ROCKER SWITCH (RED - 4")
-
4737275 BEZEL, IGNITION SWITCH TO CONTROL PANELBEZEL, IGNITION SWITCH TO CONTROL PANEL
-
4834959 SWITCH, ROCKER - C0NTROL PANELSWITCH, ROCKER - C0NTROL PANEL
-
4910-32989 SCREW, ROCKER SWITCH TO CONTROL PANEL (5/16")SCREW, ROCKER SWITCH TO CONTROL PANEL (5/16")
-
5037-45889 DECAL, CONTROL PANEL (POWER TILT)DECAL, CONTROL PANEL (POWER TILT)
-
5037-45891 DECAL, CONTROL PANEL (POWER TRIM)DECAL, CONTROL PANEL (POWER TRIM)
-
5148413 PANEL, CONTROLPANEL, CONTROL
-
5248055 PUSH BUTTON, CONTROL PANEL (OUT - GREEN)PUSH BUTTON, CONTROL PANEL (OUT - GREEN)
-
5248056 PUSH BUTTON, CONTROL PANEL (DOWN/IN - WHITE)PUSH BUTTON, CONTROL PANEL (DOWN/IN - WHITE)
-
5248057 PUSH BUTTON, CONTROL PANEL (UP - YELLOW)PUSH BUTTON, CONTROL PANEL (UP - YELLOW)
-
5253108 PUSH BUTTON, CONTROL PANEL (UP/OUT - RED/ GREEN)PUSH BUTTON, CONTROL PANEL (UP/OUT - RED/ GREEN)
-
5253109 PUSH BUTTON, CONTROL PANEL (IN - WHITE)PUSH BUTTON, CONTROL PANEL (IN - WHITE)
-
5253110 PUSH BUTTON, CONTROL PANEL (UP - RED)PUSH BUTTON, CONTROL PANEL (UP - RED)
-
5329759 SWITCH, PUSH BUTTONSWITCH, PUSH BUTTON
-
5448078 JUMPER WIRE, PUSH BUTTON SWITCHJUMPER WIRE, PUSH BUTTON SWITCH
-
5453107 JUMPER WIRE, PUSH BUTTON SWITCHJUMPER WIRE, PUSH BUTTON SWITCH
-
5548438 RETAINER, SWITCH TO CONTROL PANELRETAINER, SWITCH TO CONTROL PANEL
-
5610-48409 SCREW, SWITCH RETAINER TO CONTROL PANELSCREW, SWITCH RETAINER TO CONTROL PANEL
-
5710-32866 SCREW, CONTROL PANEL TO BOAT (2")SCREW, CONTROL PANEL TO BOAT (2")
-
5710-32866 SCREW, CONTROL PANEL TO BOAT (2")SCREW, CONTROL PANEL TO BOAT (2")
-
5812-33110 WASHER, FIBER - CONTROL PANEL SCREWWASHER, FIBER - CONTROL PANEL SCREW
-
5812-24676 WASHER, CONTROL PANEL SCREWWASHER, CONTROL PANEL SCREW
-
5911-8267086 NUT, CONTROL PANEL SCREWNUT, CONTROL PANEL SCREW
-
5911-8267086 NUT, CONTROL PANEL SCREWNUT, CONTROL PANEL SCREW
-
6045448 HARNESS, CONTROL PANELHARNESS, CONTROL PANEL
-
6084-87394A20 HARNESS, CONTROL PANELHARNESS, CONTROL PANEL
-
6154-22875 CLAMP, HARNESS TO BOATCLAMP, HARNESS TO BOAT
-
6210-35401 SCREW, HARNESS CLAMP TO BOAT (1")SCREW, HARNESS CLAMP TO BOAT (1")
-
638M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW"D" WASHER, HARNESS CLAMP ATTACHING SCREW
-
638M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW"D" WASHER, HARNESS CLAMP ATTACHING SCREW
-
6433865 BINDER, NYLON - CONTROL PANEL HARNESSBINDER, NYLON - CONTROL PANEL HARNESS
-
6554-23567 CLAMP, HARNESS ATTACHINGCLAMP, HARNESS ATTACHING
-
6610-35401 SCREW, HARNESS CLAMP TO BOAT (1")SCREW, HARNESS CLAMP TO BOAT (1")
-
6610-35401 SCREW, HARNESS CLAMP TO BOAT (1")SCREW, HARNESS CLAMP TO BOAT (1")
-
678M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW"D" WASHER, HARNESS CLAMP ATTACHING SCREW
-
678M0084613 "D" WASHER, HARNESS CLAMP ATTACHING SCREW"D" WASHER, HARNESS CLAMP ATTACHING SCREW
-
6812-20878 WASHER, HARNESS CLAMP ATTACHING SCREWWASHER, HARNESS CLAMP ATTACHING SCREW
-
6812-24676 WASHER, HARNESS CLAMP ATTACHING SCREWWASHER, HARNESS CLAMP ATTACHING SCREW
-
6910-20644 SCREW, HARNESS CLAMP TO BOAT (1")SCREW, HARNESS CLAMP TO BOAT (1")
-
7011-68219 NUT, HARNESS CLAMP ATTACHING SCREWNUT, HARNESS CLAMP ATTACHING SCREW
-
7153517 ANCHOR STRIPANCHOR STRIP
-
7295814 CLAMP, HARNESS FASTENINGCLAMP, HARNESS FASTENING
-
7310-29227 SCREW, HARNESS FASTENING CLAMPSCREW, HARNESS FASTENING CLAMP
-
7411-34388 NUT, HARNESS FASTENING SCREWNUT, HARNESS FASTENING SCREW
