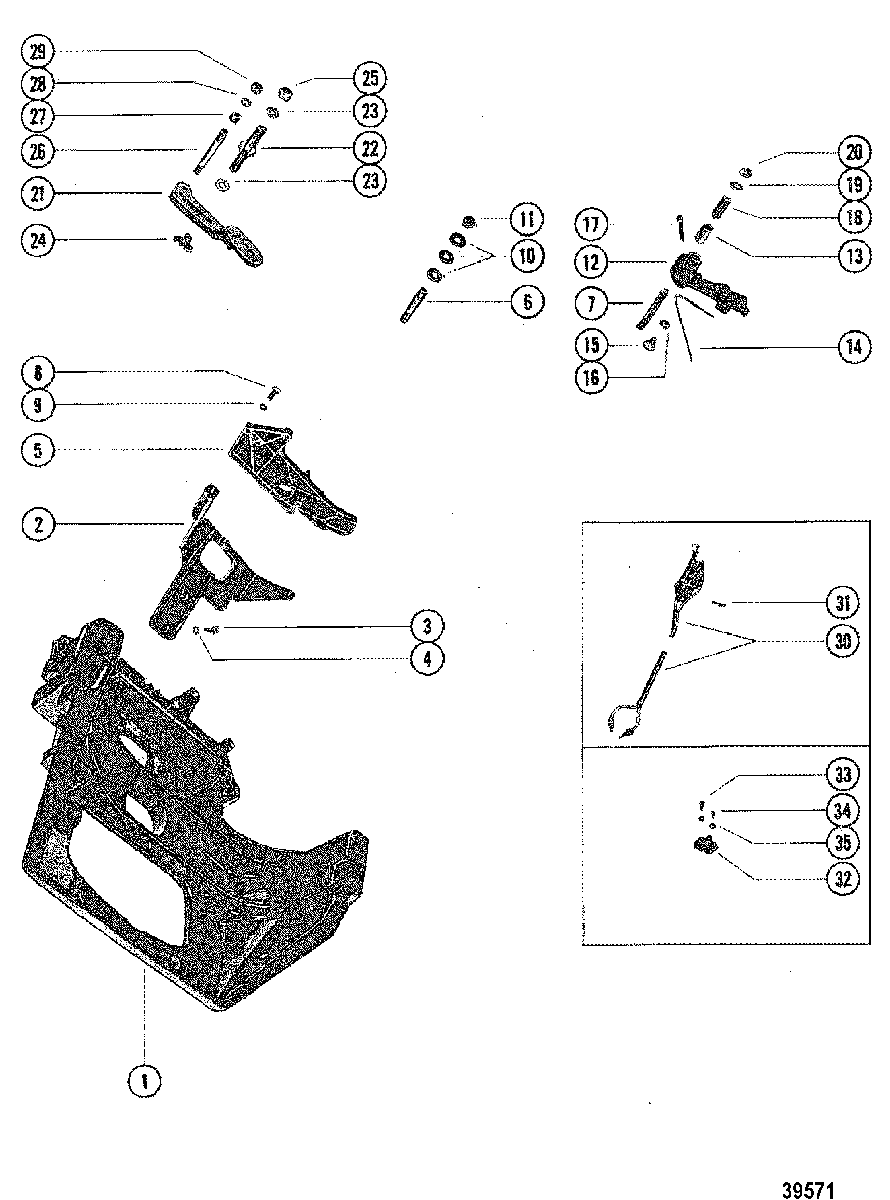

TRANSOM PLATE AND SHIFT LEVER(IN-LINE ENGINES) для Mercruiser - 120/140 1978-1982 4893635 THRU 6225576

  • №
    Артикул
    Название
  • 1
    65550A2 PLATE ASSEMBLY, TRANSOM
    PLATE ASSEMBLY, TRANSOM
  • 2
    66058 BRACKET, SHIFT MOUNTING
    BRACKET, SHIFT MOUNTING
  • 3
    10-23703 BOLT, SHIFT MOUNTING BRACKET TO TRANSOM PLATE (7/8")
    BOLT, SHIFT MOUNTING BRACKET TO TRANSOM PLATE (7/8")
  • 4
    13-21804 LOCKWASHER
    LOCKWASHER
  • 5
    66057A3 BRACKET ASSEMBLY, Shift
    BRACKET ASSEMBLY, Shift
  • 6
    16-79661 STUD, (1.75 In.), SHIFT CABLE TO SHIFT BRACKET
    STUD, (1.75 In.), SHIFT CABLE TO SHIFT BRACKET
  • 7
    16-73563 STUD, (.312-18/.312-24 x 2.310), SWITCH ACTUATING ARM TO SHIFT BRACKET
    STUD, (.312-18/.312-24 x 2.310), SWITCH ACTUATING ARM TO SHIFT BRACKET
  • 8
    10-35386 SCREW, (.312-18 x 1.00), SHIFT BRACKET TO SHIFT MOUNTING BRACKET
    SCREW, (.312-18 x 1.00), SHIFT BRACKET TO SHIFT MOUNTING BRACKET
  • 9
    13-21804 LOCKWASHER, SHIFT BRACKET SCREW
    LOCKWASHER, SHIFT BRACKET SCREW
  • 10
    12-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
    WASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
  • 11
    11-8267089 NUT, (.250-28), SHIFT CABLE STUD
    NUT, (.250-28), SHIFT CABLE STUD
  • 12
    13051A4 ARM ASSEMBLY, SWITCH ACTUATING
    ARM ASSEMBLY, SWITCH ACTUATING
  • 13
    23-45600 SLEEVE, SWITCH ACTUATING STUD
    SLEEVE, SWITCH ACTUATING STUD
  • 14
    24-862850 SPRING, TENSION - SWITCH ACTUATING ARM
    SPRING, TENSION - SWITCH ACTUATING ARM
  • 15
    10-98257 SCREW, (1/2 In.), TENSION SPRING TO ARM
    SCREW, (1/2 In.), TENSION SPRING TO ARM
  • 16
    12-26825 WASHER, (.328 x .750 x .06), TENSION SPRING SCREW
    WASHER, (.328 x .750 x .06), TENSION SPRING SCREW
  • 17
    18-328571 COTTER PIN, SHIFT ACTUATING CABLE TO SHIFT BRACKET
    COTTER PIN, SHIFT ACTUATING CABLE TO SHIFT BRACKET
  • 18
    23-37981 SPACER, SWITCH ACTUATING ARM TO SHIFT BRACKET
    SPACER, SWITCH ACTUATING ARM TO SHIFT BRACKET
  • 19
    12-26825 WASHER, (.328 x .750 x .06), SWITCH ACTUATING ARM STUD
    WASHER, (.328 x .750 x .06), SWITCH ACTUATING ARM STUD
  • 20
    11-82670911 NUT, (.312-24) Stainless Steel, SWITCH ACTUATING ARM STUD
    NUT, (.312-24) Stainless Steel, SWITCH ACTUATING ARM STUD
  • 21
    66397A1 LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
    LEVER ASSEMBLY, SHIFT CONTROL - CAM LEVER
  • 22
    16-63335 STUD, (.250-28 x 2.00), SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    STUD, (.250-28 x 2.00), SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
  • 23
    12-39143 WASHER, (.253 x .625 x .0937), SHIFT ACTUATING CABLE STUD
    WASHER, (.253 x .625 x .0937), SHIFT ACTUATING CABLE STUD
  • 24
    11-63341 TEE NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
    TEE NUT, SHIFT ACTUATING CABLE TO SHIFT CONTROL LEVER
  • 25
    11-8267089 NUT, (.250-28), SHIFT CABLE STUD
    NUT, (.250-28), SHIFT CABLE STUD
  • 26
    16-79661 STUD, (1.75 In.), SHIFT CABLE TO LEVER
    STUD, (1.75 In.), SHIFT CABLE TO LEVER
  • 27
    23-31866 SPACER, (.256 x .313 x .625), SHIFT CABLE STUD
    SPACER, (.256 x .313 x .625), SHIFT CABLE STUD
  • 28
    12-39143 WASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
    WASHER, (.253 x .625 x .0937), SHIFT CABLE STUD
  • 29
    11-8267089 NUT, (.250-28), SHIFT ACTUATING LEVER
    NUT, (.250-28), SHIFT ACTUATING LEVER
  • 30
    39670A28 SWITCH ASSEMBLY, CUT-OUT - SHIFT BRACKET
    SWITCH ASSEMBLY, CUT-OUT - SHIFT BRACKET
  • 31
    10-30902 SCREW, (#6-32 x .750), SWITCH ASSEMBLY TO SHIFT BRACKET
    SCREW, (#6-32 x .750), SWITCH ASSEMBLY TO SHIFT BRACKET
  • 32
    86-66986 TERMINAL BLOCK, CUT-OUT SWITCH LEADS
    TERMINAL BLOCK, CUT-OUT SWITCH LEADS
  • 33
    10-24637 SCREW, (#10-32 x .875), GROUND LEADS/TERMINAL BLOCK TO BRACKET
    SCREW, (#10-32 x .875), GROUND LEADS/TERMINAL BLOCK TO BRACKET
  • 34
    10-45218 SCREW, (#10-32 x .380), CUT-OUT SWITCH LEAD TO TERMINAL BLOCK
    SCREW, (#10-32 x .380), CUT-OUT SWITCH LEAD TO TERMINAL BLOCK
  • 35
    13-26996 LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREWS
    LOCKWASHER, (#10) Stainless Steel, TERMINAL BLOCK SCREWS
