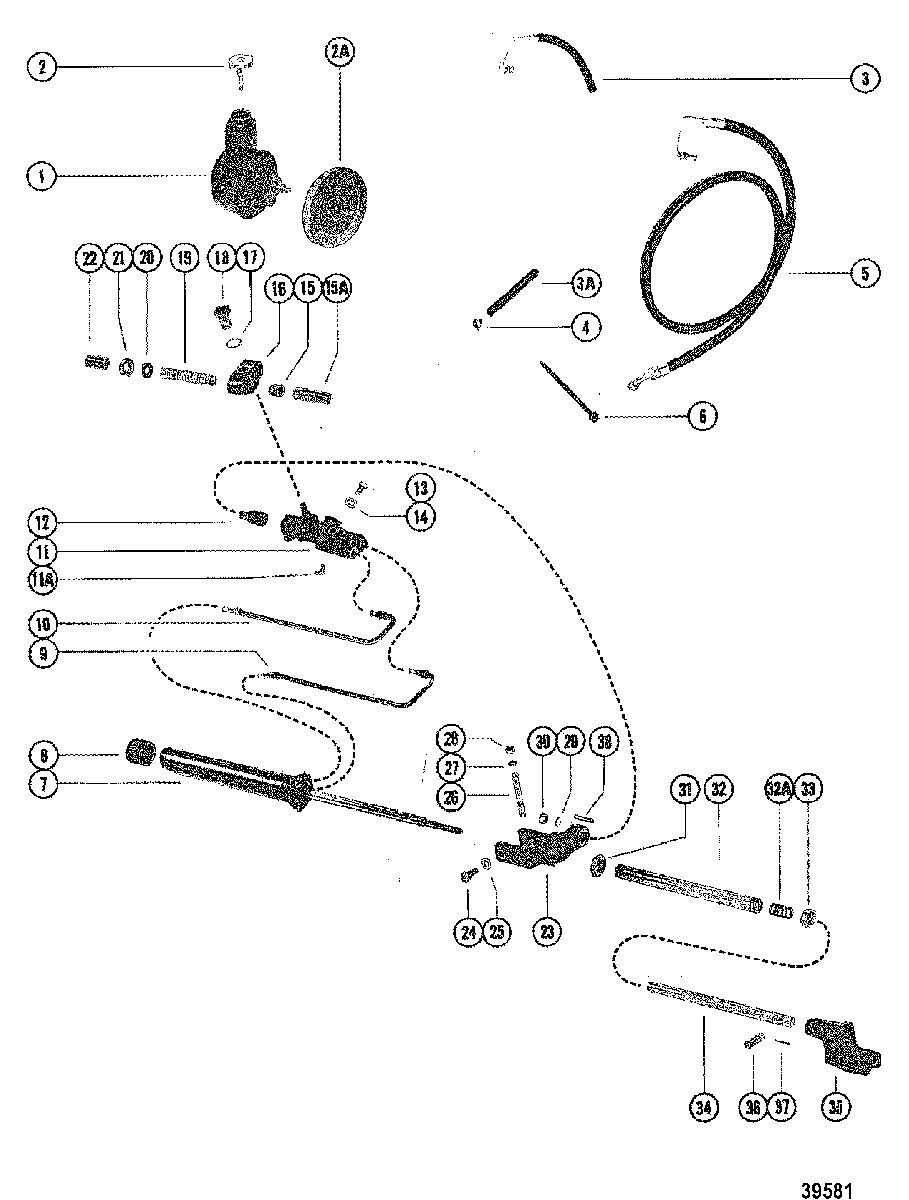

POWER STEERING COMPONENTS(V-ENGINES) для Mercruiser - 120/140 1978-1982 4893635 THRU 6225576

№

Артикул

Название
1

90507A5 PUMP ASSEMBLY, Power-Assisted Steering
(NON METRIC)

PUMP ASSEMBLY, Power-Assisted Steering
(NON METRIC)
1

90507A12 PUMP ASSEMBLY, Power-Assisted Steering
(METRIC)

PUMP ASSEMBLY, Power-Assisted Steering
(METRIC)
2

19-39924 CAP, FILLER-HYDRAULIC PUMP

CAP, FILLER-HYDRAULIC PUMP
2A

73873A1 PULLEY, HYDRAULIC PUMP

PULLEY, HYDRAULIC PUMP
3

32-9884339 HOSE, RETURN-VALVE TO OIL COOLER (32")

HOSE, RETURN-VALVE TO OIL COOLER (32")
3A

65231 HOSE, RETURN-OIL COLLER TO HYDRAULIC PUMP (40")

HOSE, RETURN-OIL COLLER TO HYDRAULIC PUMP (40")
4

54-815504206 CLAMP, RETURN HOSE TO HYDRAULIC PUMP

CLAMP, RETURN HOSE TO HYDRAULIC PUMP
5

32-55116 HOSE, (72 Inches), PRESSURE-POWER STEERING (60")-NON METRIC

HOSE, (72 Inches), PRESSURE-POWER STEERING (60")-NON METRIC
5

32-90494 HOSE, PRESSURE-POWER STEERING (60")-METRIC

HOSE, PRESSURE-POWER STEERING (60")-METRIC
6

61990 TIE STRAP, (14.00 Inches), HYDRAULIC HOSES

TIE STRAP, (14.00 Inches), HYDRAULIC HOSES
7

57969A12 CYLINDER, BOOSTER

CYLINDER, BOOSTER
-

25-58224 O-RING KIT

O-RING KIT
8

26059 CAP, RUBBER-BOOSTER CYLINDER

CAP, RUBBER-BOOSTER CYLINDER
9

32-57633 TUBE, EXTENDING-POWER STEERING

TUBE, EXTENDING-POWER STEERING
10

32-57634 TUBE, RETRACTING-POWER STEERING

TUBE, RETRACTING-POWER STEERING
11

816458A1 VALVE ASSEMBLY, POWER STEERING

VALVE ASSEMBLY, POWER STEERING
-

25-58226A1 O-RING KIT

O-RING KIT
11A

22-67305 FITTING, Grease, POWER STEERING VALVE

FITTING, Grease, POWER STEERING VALVE
12

16-55109T STUD, ADAPTOR-POWER STEERING VALVE

STUD, ADAPTOR-POWER STEERING VALVE
13

10-37612 SCREW, (.375-16 x 1.250), CLAMPING

SCREW, (.375-16 x 1.250), CLAMPING
14

13-35048 LOCKWASHER, (3/8), CLAMPING SCREW

LOCKWASHER, (3/8), CLAMPING SCREW
15

23-60773 SLEEVE, ADJUSTING-CABLE GUIDE TUBE

SLEEVE, ADJUSTING-CABLE GUIDE TUBE
15A

23-60652 SLEEVE, ADJUSTING-CABLE GUIDE TUBE

SLEEVE, ADJUSTING-CABLE GUIDE TUBE
16

55110T ADAPTOR, CABLE GUIDE TUBE (DUAL)

ADAPTOR, CABLE GUIDE TUBE (DUAL)
17

13-20897 LOCKWASHER, DUAL ADAPTOR NUT

LOCKWASHER, DUAL ADAPTOR NUT
18

11-55111 NUT, DUAL ADAPTOR TO POWER STEERING VALVE

NUT, DUAL ADAPTOR TO POWER STEERING VALVE
19

32-55112 TUBE, CABLE GUIDE

TUBE, CABLE GUIDE
20

12-37985 WASHER, CABLE GUIDE TUBE

WASHER, CABLE GUIDE TUBE
21

11-8M0041651 NUT, (.875-14), CABLE GUIDE TUBE

NUT, (.875-14), CABLE GUIDE TUBE
22

64414 GUIDE, CABLE GUIDE TUBE

GUIDE, CABLE GUIDE TUBE
23

57286 BRACKET, MOUNTING-TRANSOM PLATE

BRACKET, MOUNTING-TRANSOM PLATE
24

10-31832 BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE

BOLT, (.500-20 x 1.00), MOUNTING BRACKET TO TRANSOM PLATE
25

13-31848 LOCKWASHER, (.500), MOUNTING BRACKET SCREW

LOCKWASHER, (.500), MOUNTING BRACKET SCREW
26

10-57968 SCREW, (.375-24 x 3.00), ADJUSTING-MOUNTING BRACKET

SCREW, (.375-24 x 3.00), ADJUSTING-MOUNTING BRACKET
27

13-35048 LOCKWASHER, (3/8), ADJUSTING SCREW

LOCKWASHER, (3/8), ADJUSTING SCREW
28

11-46335 NUT, ADJUSTING SCREW

NUT, ADJUSTING SCREW
29

12-20959 WASHER, VALVE ADAPTOR STUD

WASHER, VALVE ADAPTOR STUD
30

11-898832 NUT, (.500-20), VALVE ADAPTOR STUD

NUT, (.500-20), VALVE ADAPTOR STUD
31

11-32882 NUT, (.875-14), MOUNTING TUBE

NUT, (.875-14), MOUNTING TUBE
32

57971 TUBE, MOUNTING-BOOSTER ROD EXTENSION

TUBE, MOUNTING-BOOSTER ROD EXTENSION
32A

24-78498 SPRING, TORSION-MOUNTING TUBE

SPRING, TORSION-MOUNTING TUBE
33

11-55983 NUT, (.875-14), JAM-MOUNTING TUBE

NUT, (.875-14), JAM-MOUNTING TUBE
34

57970 ROD, Extender, CYLINDER BOOSTER ROD

ROD, Extender, CYLINDER BOOSTER ROD
35

86069T ADAPTOR, ROD END

ADAPTOR, ROD END
36

17-52798 PIN, Clevis, STEERING CABLE AND CLEVIS ATTACHING

PIN, Clevis, STEERING CABLE AND CLEVIS ATTACHING
37

18-46950 COTTER PIN, CLEVIS PIN RETAINING

COTTER PIN, CLEVIS PIN RETAINING
38

17-239281 PIN, MOUNTING BRACKET

PIN, MOUNTING BRACKET
