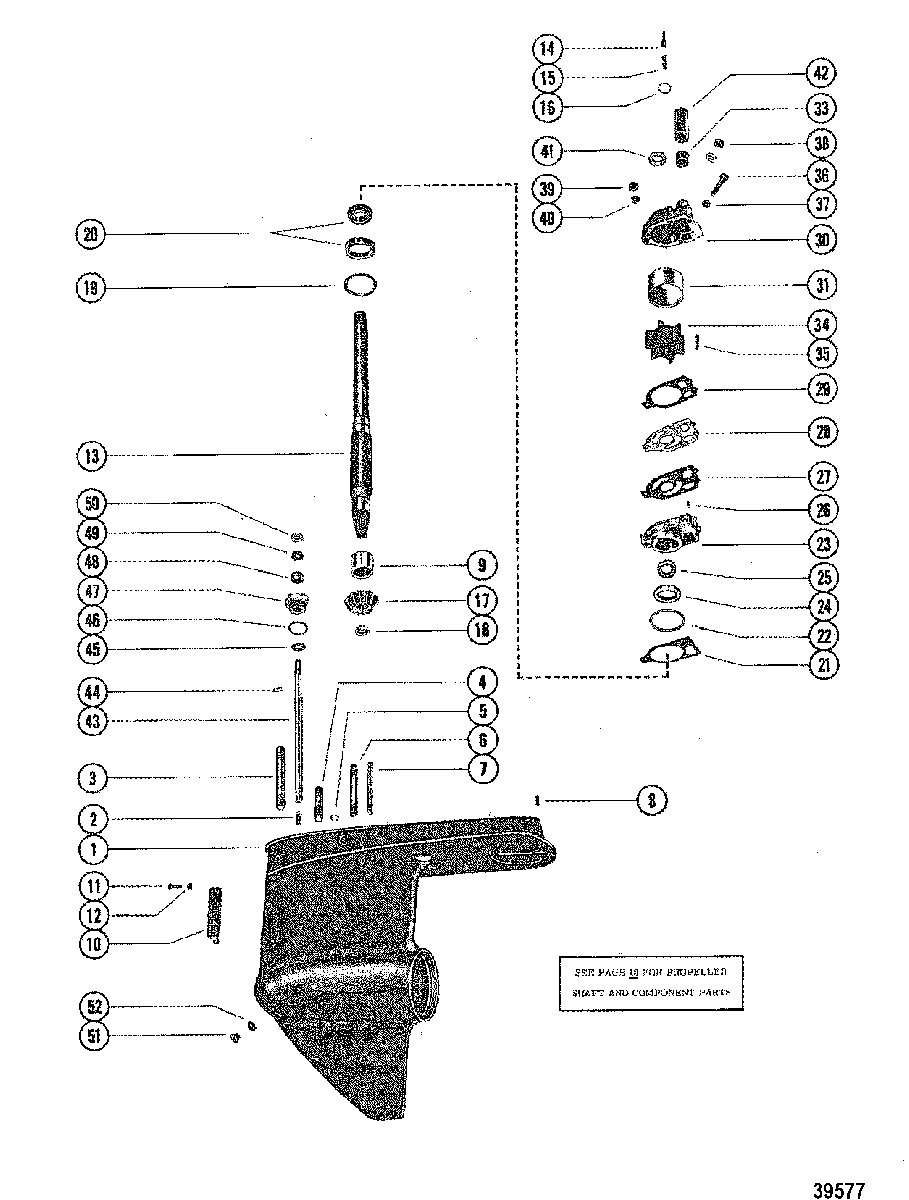

GEAR HOUSING ASSEMBLY, COMPLETE для Mercruiser - 120/140 1978-1982 4893635 THRU 6225576

  • №
    Артикул
    Название
  • -
    1623-8951A43 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 1
    1623-5356A4 GEAR HOUSING ASSEMBLY
    GEAR HOUSING ASSEMBLY
  • 2
    17-379721 PIN, SHIFT CRANK-GEAR HOUSING
    PIN, SHIFT CRANK-GEAR HOUSING
  • 3
    16-46911 STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (3 3/16")
    STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (3 3/16")
  • 4
    16-56298 STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (1 31/32")
    STUD, GEAR HOUSING TO DRIVESHAFT HOUSING (1 31/32")
  • 5
    26-455771 SEAL, GEAR HOUSING
    SEAL, GEAR HOUSING
  • 6
    16-8M0034463 STUD, (.312 x 3.38), WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
    STUD, (.312 x 3.38), WATER PUMP BASE AND BODY TO GEAR HOUSING (3 3/8")
  • 7
    16-69501 STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
    STUD, WATER PUMP BASE AND BODY TO GEAR HOUSING (3 1/4")
  • 8
    17-8M0084726 PIN, Dowel (.187 x .530), GEAR HOUSING TO DRIVESHAFT HOUSING
    PIN, Dowel (.187 x .530), GEAR HOUSING TO DRIVESHAFT HOUSING
  • 9
    31-92366A1 BEARING, ROLLER-DRIVESHAFT
    BEARING, ROLLER-DRIVESHAFT
  • 10
    66884 INSERT, WATER PICKUP
    (PORT SIDE)
    INSERT, WATER PICKUP
    (PORT SIDE)
  • 10
    66885 INSERT, WATER PICKUP
    (STARBOARD SIDE)
    INSERT, WATER PICKUP
    (STARBOARD SIDE)
  • 11
    10-76156 SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
    SCREW, (#10-32 x 1.88), INSERT TO GEAR HOUSING
  • 12
    11-859124 NUT, (#10-32) Stainless Steel, INSERT SCREW
    NUT, (#10-32) Stainless Steel, INSERT SCREW
  • 13
    45-41939F1 DRIVESHAFT ASSEMBLY
    DRIVESHAFT ASSEMBLY
  • 14
    17-30545 PIN, DRIVESHAFT
    PIN, DRIVESHAFT
  • 15
    24-34576 SPRING, COMPRESSION-DRIVESHAFT
    SPRING, COMPRESSION-DRIVESHAFT
  • 16
    25-30613 O-RING, UPPER-DRIVESHAFT
    O-RING, UPPER-DRIVESHAFT
  • 17
    43-96084A4 GEAR SET (INCLUDES PINION, FORWARD AND REVERSE GEARS)
    GEAR SET (INCLUDES PINION, FORWARD AND REVERSE GEARS)
  • 18
    11-35921 NUT, (.625-18), PINION GEAR TO DRIVESHAFT
    NUT, (.625-18), PINION GEAR TO DRIVESHAFT
  • 19
    15-57007A1 SHIM, DRIVESHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20)
    SHIM, DRIVESHAFT BEARING TO GEAR HOUSING (.002-3-5-10-20)
  • 20
    31-53079A1 BEARING ASSEMBLY, Tapered Roller, DRIVESHAFT
    BEARING ASSEMBLY, Tapered Roller, DRIVESHAFT
  • 21
    27-856704 GASKET, WATER PUMP BASE TO GEAR HOUSING
    GASKET, WATER PUMP BASE TO GEAR HOUSING
  • 22
    25-33145 O-RING, (1.984 x .139), WATER PUMP BASE
    O-RING, (1.984 x .139), WATER PUMP BASE
  • 23
    46-57234A1 BASE ASSEMBLY, Water Pump
    BASE ASSEMBLY, Water Pump
  • 24
    26-89238 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 25
    26-16977 SEAL, Oil, WATER PUMP BASE
    SEAL, Oil, WATER PUMP BASE
  • 26
    17-8M0084627 PIN, Dowel, WATER PUMP BASE TO WATER PUMP BODY
    PIN, Dowel, WATER PUMP BASE TO WATER PUMP BODY
  • 27
    27-8M0090319 GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
    GASKET, LOWER-WATER PUMP BASE TO FACE PLATE
  • 28
    324351 FACE PLATE, WATER PUMP BASE TO WATER PUMP BODY
    FACE PLATE, WATER PUMP BASE TO WATER PUMP BODY
  • 29
    27-858524 GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
    GASKET, UPPER-FACE PLATE TO WATER PUMP BODY
  • 30
    46-96148T1 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • 31
    48752T INSERT, WATER PUMP BODY
    INSERT, WATER PUMP BODY
  • 33
    26-38970 SEAL, RUBBER-WATER INLET TUBE
    SEAL, RUBBER-WATER INLET TUBE
  • 34
    47-89984T4 IMPELLER, WATER PUMP
    IMPELLER, WATER PUMP
  • 35
    28-8M0032834 KEY, IMPELLER DRIVE
    KEY, IMPELLER DRIVE
  • 36
    10-30720 SCREW, (.250-20 x 2.25), WATER PUMP BODY TO GEAR HOUSING
    SCREW, (.250-20 x 2.25), WATER PUMP BODY TO GEAR HOUSING
  • 37
    12-36001 WASHER, WATER PUMP BODY SCREW
    WASHER, WATER PUMP BODY SCREW
  • 38
    11-35888 NUT, (.250-28) Stainless Steel, WATER PUMP BODY STUDS (1/4-28)
    NUT, (.250-28) Stainless Steel, WATER PUMP BODY STUDS (1/4-28)
  • 39
    11-826709111 NUT, (.312-24), WATER PUMP BODY STUDS
    NUT, (.312-24), WATER PUMP BODY STUDS
  • 40
    12-29245 WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP BODY STUD
    WASHER, (.281 x .500 x .060) Stainless Steel, WATER PUMP BODY STUD
  • 41
    25-30271 RING, Rubber, CENTRIFUGAL SLINGER (DRIVESHAFT)
    RING, Rubber, CENTRIFUGAL SLINGER (DRIVESHAFT)
  • 42
    23-29804T SLEEVE, GUIDE-WATER INLET TUBE
    SLEEVE, GUIDE-WATER INLET TUBE
  • 43
    774811 SHAFT, SHIFT-LOWER
    SHAFT, SHIFT-LOWER
  • 44
    53-29641 CLIP, RETAINING-SHIFT SHAFT
    CLIP, RETAINING-SHIFT SHAFT
  • 45
    12-27880 WASHER, LOWER SHIFT SHAFT AND CRANK
    WASHER, LOWER SHIFT SHAFT AND CRANK
  • 46
    25-25439 O-RING, (.862 x .103), SHIFT SHAFT BUSHING
    O-RING, (.862 x .103), SHIFT SHAFT BUSHING
  • 47
    23-8M0112749 BUSHING ASSEMBLY, SHIFT SHAFT
    BUSHING ASSEMBLY, SHIFT SHAFT
  • 48
    26-892361 SEAL, Oil, SHIFT SHAFT BUSHING
    SEAL, Oil, SHIFT SHAFT BUSHING
  • 49
    12-31266 WASHER, RUBBER-SHIFT SHAFT BUSHING
    WASHER, RUBBER-SHIFT SHAFT BUSHING
  • 50
    12-8M0042641 WASHER, (.390 x 1.00 x .06), SHIFT SHAFT
    WASHER, (.390 x 1.00 x .06), SHIFT SHAFT
  • 51
    10-79953Q04 SCREW, (.375-16 x .250), GEAR HOUSING GREASE FILLER AND VENT HOLE
    SCREW, (.375-16 x .250), GEAR HOUSING GREASE FILLER AND VENT HOLE
  • 52
    12-191833 WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
    WASHER, GEAR HOUSING GREASE FILLER AND VENT HOLE SCREW
  • -
    26-33144A2 SEAL KIT
    SEAL KIT
  • -
    26-32511A1 SEAL KIT
    SEAL KIT
  • -
    46-96148A8 BODY ASSEMBLY, Water Pump
    BODY ASSEMBLY, Water Pump
  • -
    43-96084A08 GEAR REPLACEMENT KIT
    GEAR REPLACEMENT KIT
