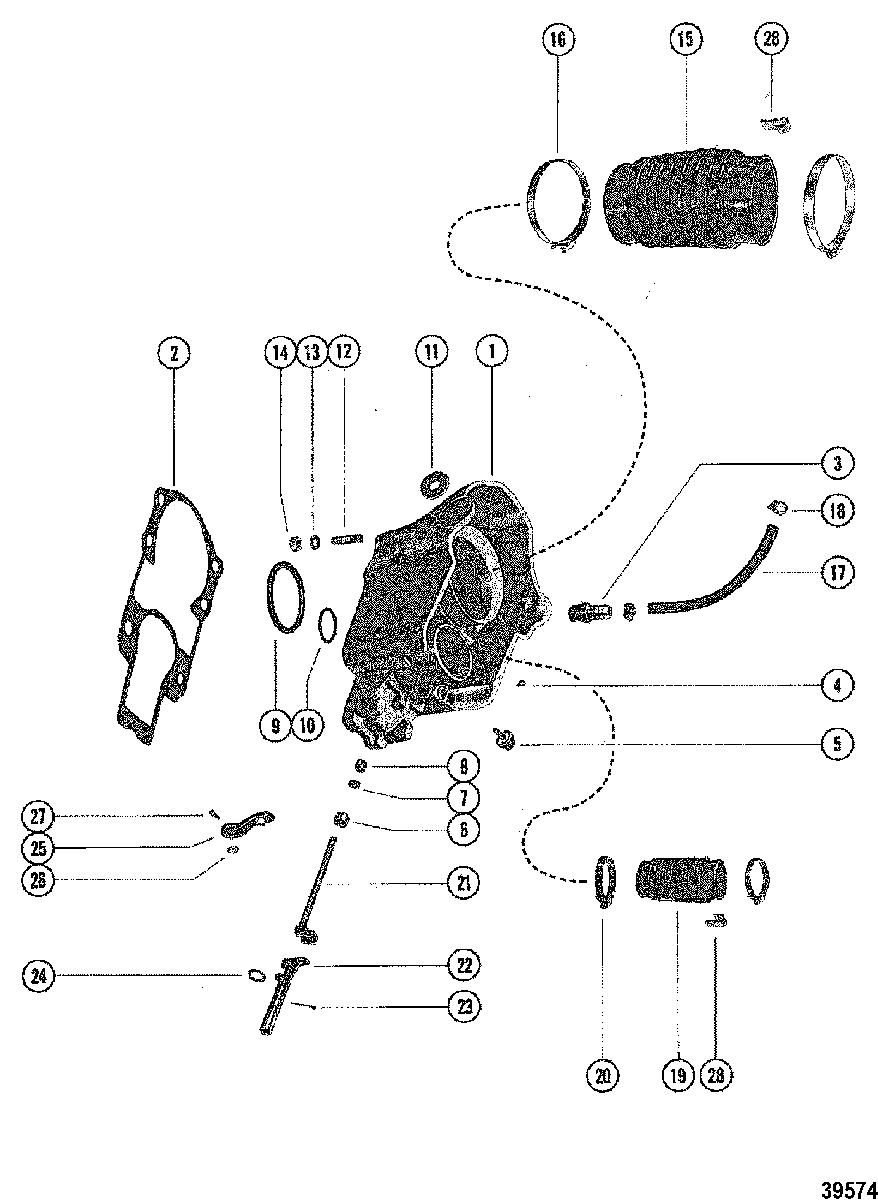

BELL HOUSING ASSEMBLY для Mercruiser - 120/140 1978-1982 4893635 THRU 6225576
-
№АртикулНазвание
-
142815A6 BELL HOUSING ASSEMBLYBELL HOUSING ASSEMBLY
-
227-64818Q4 GASKET, DRIVESHAFT HSG. TO BELL HSGGASKET, DRIVESHAFT HSG. TO BELL HSG
-
322-33066 CONNECTOR, (.500-14) Straight - Brass, WATER HOSE TO BELL HOUSINGCONNECTOR, (.500-14) Straight - Brass, WATER HOSE TO BELL HOUSING
-
410-69707 SCREW, BELL HOUSING FLANGESCREW, BELL HOUSING FLANGE
-
563679 BUMPER, BELL HOUSINGBUMPER, BELL HOUSING
-
623-814308 BUSHING, BELL HOUSING (5/8")BUSHING, BELL HOUSING (5/8")
-
726-45587 SEAL, Oil, BELL HOUSINGSEAL, Oil, BELL HOUSING
-
823-805041A2 BUSHING, BELL HOUSING (5/16")BUSHING, BELL HOUSING (5/16")
-
927-35982 GASKET, Rubber, BELL HOUSINGGASKET, Rubber, BELL HOUSING
-
1025-33504 O-RING, BELL HOUSINGO-RING, BELL HOUSING
-
1112-72498 WASHER, Synthane, BELL HOUSINGWASHER, Synthane, BELL HOUSING
-
1216-59579 STUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVESHAFT HOUSINGSTUD, (.437-14/.437-20 x 2.812), BELL HOUSING TO DRIVESHAFT HOUSING
-
1312-35935 WASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUDWASHER, (.435 x .875 x .105) Stainless Steel, BELL HOUSING STUD
-
1411-34933 NUT, (.437-20) Stainless Steel, BELL HOUSING STUDNUT, (.437-20) Stainless Steel, BELL HOUSING STUD
-
1560932A4 BELLOWS ASSEMBLY, UNIVERSAL JOINTBELLOWS ASSEMBLY, UNIVERSAL JOINT
-
1654-815504372 CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HSG. AND GIMBAL HSG.CLAMP, UNIVERSAL JOINT BELLOWS TO BELL HSG. AND GIMBAL HSG.
-
1732-32461 HOSE, WATER - BELL HOUSING TO GIMBAL HOUSING (13 3/4")HOSE, WATER - BELL HOUSING TO GIMBAL HOUSING (13 3/4")
-
1854-815504310 CLAMP, WATER HOSE ATTACHINGCLAMP, WATER HOSE ATTACHING
-
1918654A1 BELLOWS, EXHAUST
(IN-LINE ENGINES)BELLOWS, EXHAUST
(IN-LINE ENGINES) -
1978458A1 TUBE, EXHAUST
(V-8 ENGINES)TUBE, EXHAUST
(V-8 ENGINES) -
2054-815504348 CLAMP, EXHAUST BELLOWS ATTACHINGCLAMP, EXHAUST BELLOWS ATTACHING
-
2145589A3 SHAFT ASSEMBLY, SHIFT - UPPERSHAFT ASSEMBLY, SHIFT - UPPER
-
22621041 SHAFT, SHIFT - INTERMEDIATESHAFT, SHIFT - INTERMEDIATE
-
2318-32665 COTTER PIN, INTERMEDIATE SHIFT SHAFT RETAININGCOTTER PIN, INTERMEDIATE SHIFT SHAFT RETAINING
-
2412-32666 WASHER, INTERMEDIATE SHIFT SHAFTWASHER, INTERMEDIATE SHIFT SHAFT
-
2545518A3 LEVER ASEMBLY, UPPER SHIFT SHAFTLEVER ASEMBLY, UPPER SHIFT SHAFT
-
2612-39116 WASHER, UPPER SHIFT LEVERWASHER, UPPER SHIFT LEVER
-
2710-8M0084649 SCREW, (.250-28), UPPER SHIFT LEVER TO SHIFT SHAFTSCREW, (.250-28), UPPER SHIFT LEVER TO SHIFT SHAFT
-
2854-8M0126505 CLIP, Grounding, BELLOWSCLIP, Grounding, BELLOWS
