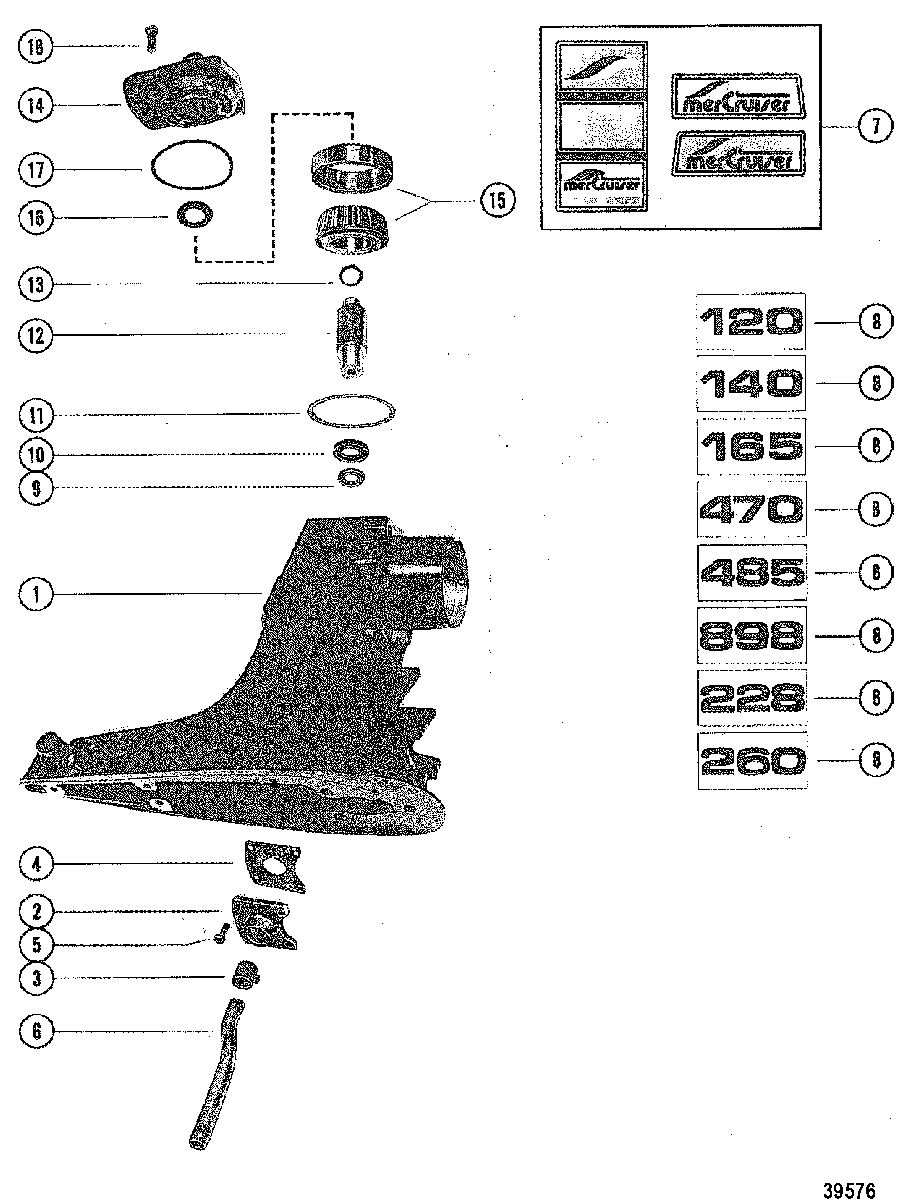

DRIVESHAFT HOUSING ASSEMBLY AND DRIVESHAFT для Mercruiser - 120/140 1978-1982 4893635 THRU 6225576

  • №
    Артикул
    Название
  • 1
    1547-9412A18 HOUSING ASSEMBLY, Driveshaft
    HOUSING ASSEMBLY, Driveshaft
  • 2
    42724A3 COVER ASSEMBLY, WATER POCKET COVER
    COVER ASSEMBLY, WATER POCKET COVER
  • 3
    26-36557 SEAL, RUBBER-WATER POCKET COVER
    SEAL, RUBBER-WATER POCKET COVER
  • 4
    27-558101 GASKET, WATER POCKET COVER
    GASKET, WATER POCKET COVER
  • 5
    10-28668 SCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVESHAFT HOUSING
    SCREW, (.250-20 x .875) Stainless Steel, WATER POCKET COVER TO DRIVESHAFT HOUSING
  • 6
    32-54236 TUBE, WATER-WATER POCKET COVER
    TUBE, WATER-WATER POCKET COVER
  • 7
    37-76731A1 DECAL SET, DRIVESHAFT HOUSING
    DECAL SET, DRIVESHAFT HOUSING
  • 8
    37-76749 DECAL, DRIVESHAFT HOUSING
    (120)
    DECAL, DRIVESHAFT HOUSING
    (120)
  • 8
    37-76750 DECAL, DRIVESHAFT HOUSING
    (140)
    DECAL, DRIVESHAFT HOUSING
    (140)
  • 8
    37-76751 DECAL, DRIVESHAFT HOUSING
    (165)
    DECAL, DRIVESHAFT HOUSING
    (165)
  • 8
    37-76730 DECAL, DRIVESHAFT HOUSING
    (470)
    DECAL, DRIVESHAFT HOUSING
    (470)
  • 8
    37-91969 DECAL, DRIVESHAFT HOUSING
    (485)
    DECAL, DRIVESHAFT HOUSING
    (485)
  • 8
    37-77649 DECAL, DRIVESHAFT HOUSING
    (898)
    DECAL, DRIVESHAFT HOUSING
    (898)
  • 8
    37-76998 DECAL, DRIVESHAFT HOUSING
    (228)
    DECAL, DRIVESHAFT HOUSING
    (228)
  • 8
    37-79411 DECAL, DRIVESHAFT HOUSING
    (260)
    DECAL, DRIVESHAFT HOUSING
    (260)
  • 9
    26-965031 SEAL, Oil, DRIVESHAFT HOUSING-LOWER
    SEAL, Oil, DRIVESHAFT HOUSING-LOWER
  • 10
    26-32511 SEAL, Oil, GEAR CHAMBER-DRIVESHAFT HOUSING
    SEAL, Oil, GEAR CHAMBER-DRIVESHAFT HOUSING
  • 11
    15-36178A02 SHIM SET, BEARING CUP TO DRIVESHAFT HOUSING (.002-3-5-10-15)
    SHIM SET, BEARING CUP TO DRIVESHAFT HOUSING (.002-3-5-10-15)
  • 12
    45-55796 DRIVESHAFT, UPPER
    DRIVESHAFT, UPPER
  • 13
    25-55801 O-RING, UPPER DRIVESHAFT
    O-RING, UPPER DRIVESHAFT
  • 14
    76098A1 COVER ASSEMBLY, TOP-DRIVESHAFT HOUSING
    COVER ASSEMBLY, TOP-DRIVESHAFT HOUSING
  • 15
    31-61100A1 BEARING ASSEMBLY, DRIVESHAFT
    BEARING ASSEMBLY, DRIVESHAFT
  • 16
    15-45691A1 SHIM, BEARING CUP TO TOP COVER
    SHIM, BEARING CUP TO TOP COVER
  • 17
    25-32546 O-RING, TOP COVER SEALING
    O-RING, TOP COVER SEALING
  • 18
    10-8M0113174 SCREW, (.375-16 x 1.25), TOP COVER TO DRIVESHAFT HOUSING
    SCREW, (.375-16 x 1.25), TOP COVER TO DRIVESHAFT HOUSING
  • -
    26-32511A1 SEAL KIT
    SEAL KIT
