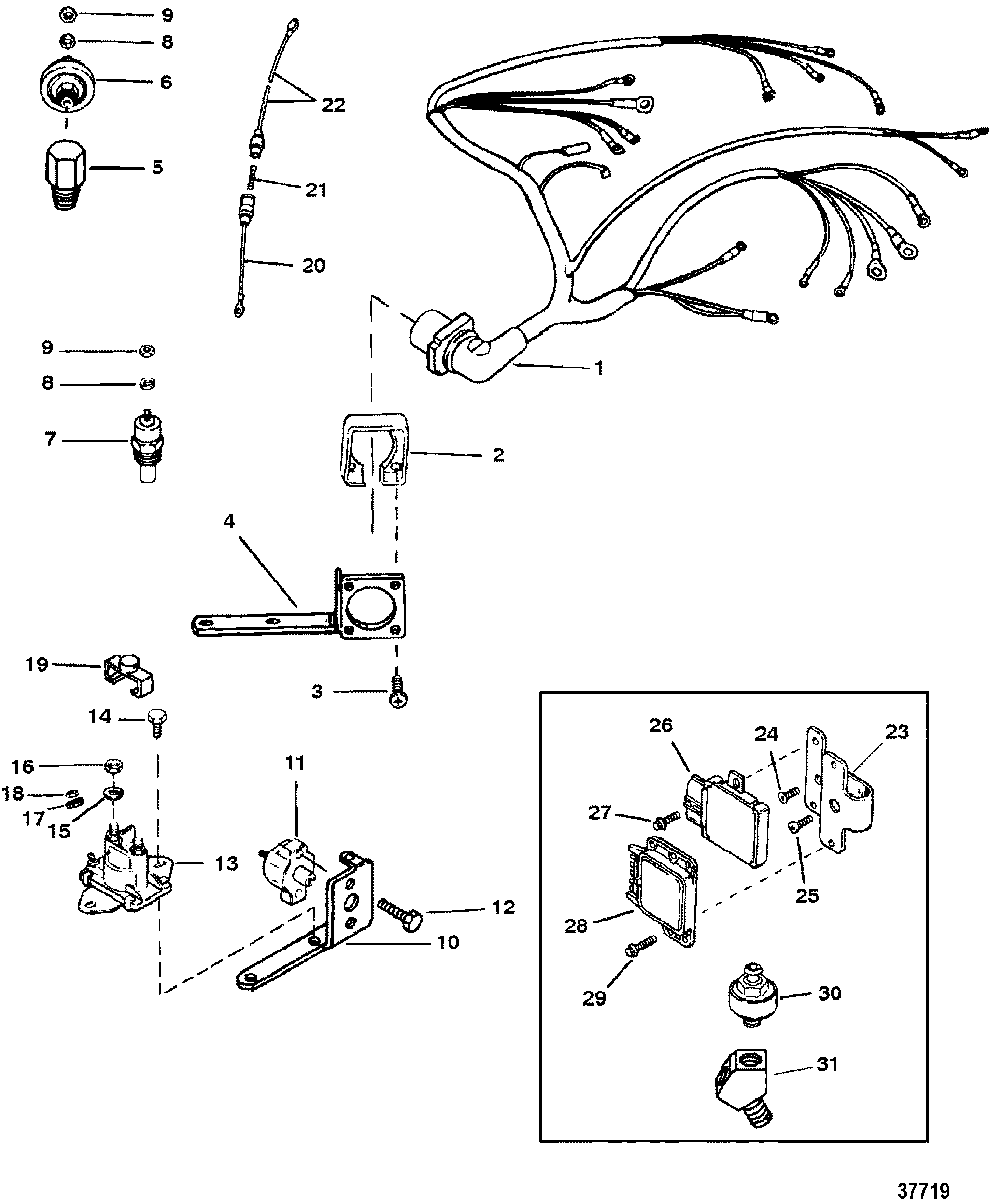

WIRING HARNESS AND ELECTRICAL COMPONENTS для Mercruiser - 5.7LX (4 BBL) GM 350 V-8 1996 0F601000 THRU 0K001526

  • №
    Артикул
    Название
  • 1
    84-807229A2 HARNESS ASSEMBLY
    (5.7L ALPHA/BRAVO)
    HARNESS ASSEMBLY
    (5.7L ALPHA/BRAVO)
  • 1
    84-806966A2 HARNESS ASSEMBLY
    (5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA)
    HARNESS ASSEMBLY
    (5.7LX ALPHA/BRAVO AND 350 MAGNUM ALPHA)
  • 2
    26079A2 PLATE KIT, Wire Harness Mount
    PLATE KIT, Wire Harness Mount
  • 3
    10-15001 SCREW, (#8-16 x .875)
    SCREW, (#8-16 x .875)
  • 4
    805383T BRACKET, Harness Mounting
    BRACKET, Harness Mounting
  • 5
    22-8053281 FITTING, Elbow (90 Degree - .125)
    FITTING, Elbow (90 Degree - .125)
  • 6
    8M0068784 SENDER ASSEMBLY, Oil Pressure
    SENDER ASSEMBLY, Oil Pressure
  • 6
    37293T SENDER ASSEMBLY, Oil Pressure
    (DUAL STATION)
    SENDER ASSEMBLY, Oil Pressure
    (DUAL STATION)
  • 7
    806490T SENDER ASSEMBLY, Water Temperature
    SENDER ASSEMBLY, Water Temperature
  • 7
    49734 SENDER ASSEMBLY, Water Temperature
    (DUAL STATION)
    SENDER ASSEMBLY, Water Temperature
    (DUAL STATION)
  • 8
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 9
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 10
    899719T01 BRACKET, Electrical
    BRACKET, Electrical
  • 11
    88-11178A01 BREAKER, Circuit - 50 Ampere
    BREAKER, Circuit - 50 Ampere
  • 12
    10-57583T SCREW, (#8-32 x .375)
    SCREW, (#8-32 x .375)
  • 13
    89-96158T SOLENOID, Starter
    SOLENOID, Starter
  • 14
    10-805564 SCREW, (.250-20 x .750)
    SCREW, (.250-20 x .750)
  • 15
    13-26992 LOCKWASHER, (.250) Stainless Steel
    LOCKWASHER, (.250) Stainless Steel
  • 16
    11-94330 NUT, (.250-20) Brass
    NUT, (.250-20) Brass
  • 17
    13-26996 LOCKWASHER, (#10) Stainless Steel
    LOCKWASHER, (#10) Stainless Steel
  • 18
    11-68219 NUT, (#10-32) Stainless Steel
    NUT, (#10-32) Stainless Steel
  • 19
    85-97861 INSULATOR
    INSULATOR
  • 20
    84-95084A9 CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    BRAVO ENGINES
    CABLE ASSEMBLY, (91.00 Inches) Red/Purple Strip
    BRAVO ENGINES
  • 21
    88-79091 FUSE, 20 Ampere
    BRAVO ENGINES
    FUSE, 20 Ampere
    BRAVO ENGINES
  • 22
    84-95084A10 CABLE ASSEMBLY, (5.00 Inches) Red
    BRAVO ENGINES
    CABLE ASSEMBLY, (5.00 Inches) Red
    BRAVO ENGINES
  • 23
    807763T BRACKET
    BRACKET
  • 24
    10-806834 SCREW
    (FLATHEAD)
    SCREW
    (FLATHEAD)
  • 25
    10-861520 SCREW, (10-32 x .50)
    SCREW, (10-32 x .50)
  • 26
    807264A01 ICM MODULE, Ignition Control Module
    (5.7L ALPHA)
    ICM MODULE, Ignition Control Module
    (5.7L ALPHA)
  • 26
    807645A01 ICM MODULE, Ignition Control Module
    (5.7L BRAVO)
    ICM MODULE, Ignition Control Module
    (5.7L BRAVO)
  • 26
    807264A01 ICM MODULE, Ignition Control Module
    (5.7LX ALPHA AND 350 MAGNUM ALPHA)
    ICM MODULE, Ignition Control Module
    (5.7LX ALPHA AND 350 MAGNUM ALPHA)
  • 26
    806956A01 ICM MODULE, Ignition Control Module
    (5.7LX BRAVO)
    ICM MODULE, Ignition Control Module
    (5.7LX BRAVO)
  • 27
    10-806826 SCREW, (#8-32 x .250)
    SCREW, (#8-32 x .250)
  • 28
    806611T MODULE, Knock Control
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
    MODULE, Knock Control
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
  • 29
    10-806827 SCREW, (#8-32 x .380)
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
    SCREW, (#8-32 x .380)
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
  • 30
    806612T SENSOR, Knock
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
    SENSOR, Knock
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
  • 31
    22-806705 Y-FITTING
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
    Y-FITTING
    5.7LX ALPHA/BRAVO 7 350 MAGNUM ALPHA
