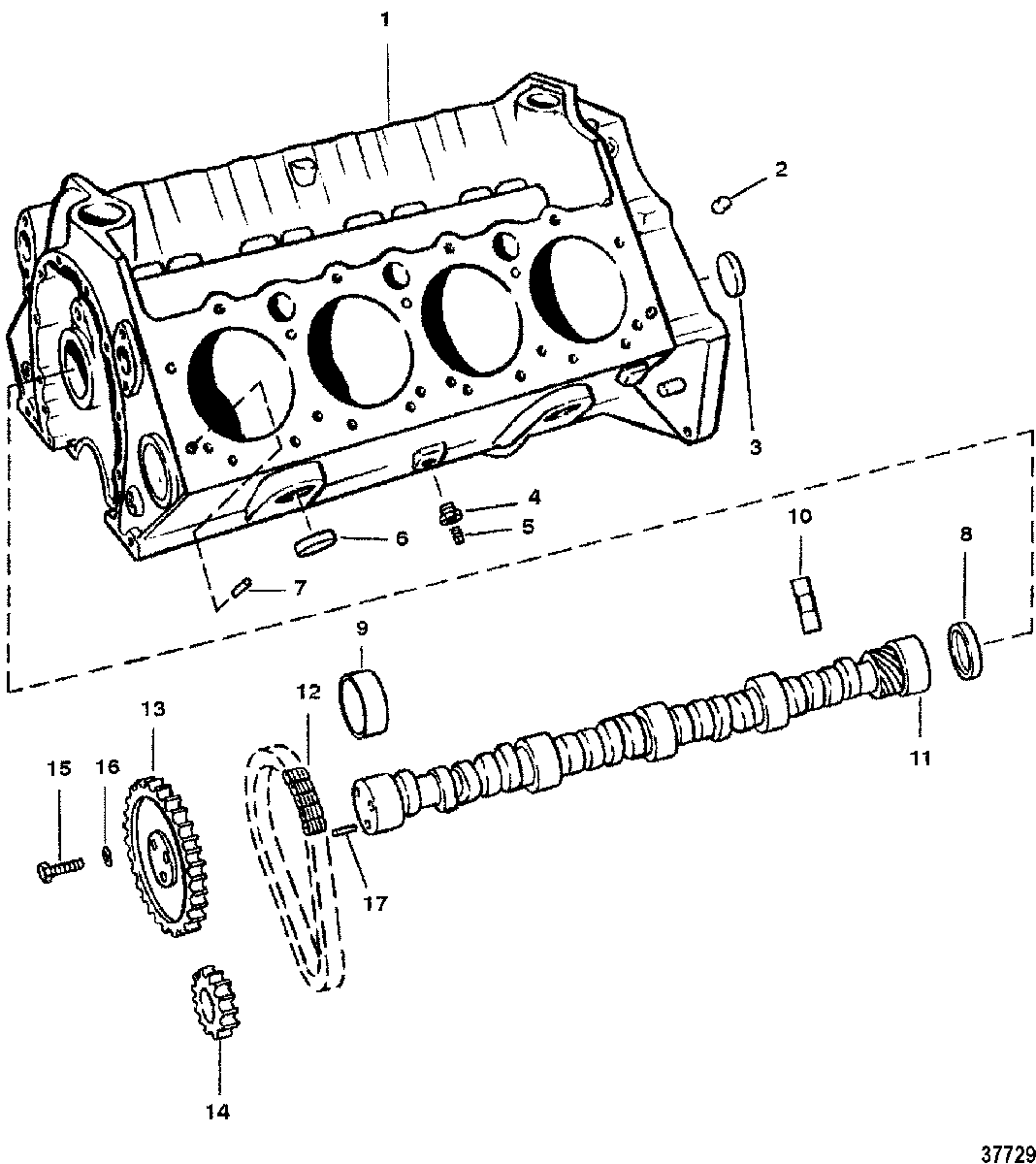

CYLINDER BLOCK AND CAMSHAFT(5.7L ALPHA/BRAVO) для Mercruiser - 5.7LX (4 BBL) GM 350 V-8 1996 0F601000 THRU 0K001526

  • №
    Артикул
    Название
  • 1
    NSS NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
    (ORDER LONG BLOCK 807315A1)
    NOT SOLD SEPARATE, CYLINDER BLOCK ASSEMBLY
    (ORDER LONG BLOCK 807315A1)
  • 2
    22-32561 PLUG, (.250-18 x .41)
    PLUG, (.250-18 x .41)
  • 3
    19-816565 PLUG, Pipe(.468)
    PLUG, Pipe(.468)
  • 4
    22-48556 BUSHING , Reducer (.250 To .125)
    BUSHING , Reducer (.250 To .125)
  • 5
    22-328022 PLUG, Pipe (.125-27)
    PLUG, Pipe (.125-27)
  • 6
    19-34270 EXPANSION PLUG, (1.625)
    EXPANSION PLUG, (1.625)
  • 7
    17-35465 PIN, Dowel (.312)
    PIN, Dowel (.312)
  • 8
    22-72640 PLUG, Expansion
    PLUG, Expansion
  • 9
    23-85674 BEARING SET
    BEARING SET
  • 10
    72638 LIFTER
    LIFTER
  • 11
    431-5943 CAMSHAFT
    CAMSHAFT
  • 12
    17161T CHAIN, Timing
    CHAIN, Timing
  • 13
    43-17159 SPROCKET
    SPROCKET
  • 14
    43-17160 SPROCKET, Crankshaft
    SPROCKET, Crankshaft
  • 15
    10-8M0043993 SCREW, (.312-18 x .750)
    SCREW, (.312-18 x .750)
  • 16
    12-848136 WASHER, (.328 x .680 x .190)
    WASHER, (.328 x .680 x .190)
  • 17
    17-843378 PIN, Dowel (1/4 n. Diameter)
    PIN, Dowel (1/4 n. Diameter)
  • -
    883944R5 MARINE LONG BLOCK ENGINE (2 BBL CARBURETOR)
    MARINE LONG BLOCK ENGINE (2 BBL CARBURETOR)
  • -
    92-809825 RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)
    RTV SILICONE, (3 Ounce Tube) Metallic Blue (WHERE APPLICABLE)
  • -
    92-34227Q02 SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
    SEALING COMPOUND, (16 Ounce) (WHERE APPLICABLE)
