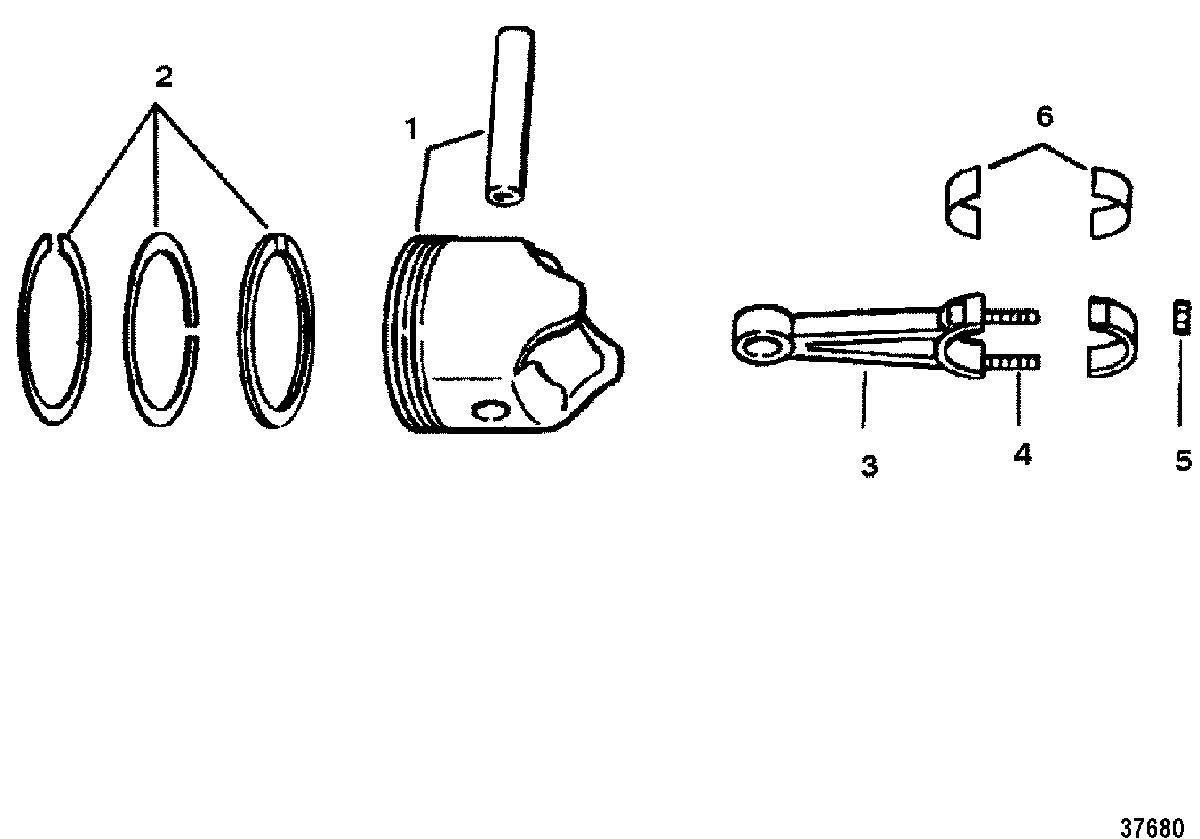

PISTONS AND CONNECTING RODS для Mercruiser - 5.7LX (4 BBL) GM 350 V-8 1996 0F601000 THRU 0K001526

  • №
    Артикул
    Название
  • 1
    735-850097 PISTON ASSEMBLY
    (STANDARD)
    PISTON ASSEMBLY
    (STANDARD)
  • 1
    735-850098 PISTON ASSEMBLY
    (.030 O.S.)
    PISTON ASSEMBLY
    (.030 O.S.)
  • 2
    39-17464 RING SET, Piston (Standard), See Parts Bulletin 2001-2 For Proper Ring Selection
    RING SET, Piston (Standard), See Parts Bulletin 2001-2 For Proper Ring Selection
  • 2
    39-17465 RING, Piston, See Parts Bulletin 2001-2 For Proper Ring Selection
    (.030 O.S.)
    RING, Piston, See Parts Bulletin 2001-2 For Proper Ring Selection
    (.030 O.S.)
  • 3
    614-8164T CONNECTING ROD
    CONNECTING ROD
  • 4
    10-85802 SCREW, (.375-24 x Special)
    SCREW, (.375-24 x Special)
  • 5
    11-37493 NUT, (.375-24)
    NUT, (.375-24)
  • 6
    23-85701 BEARING
    (PAIR - STANDARD)
    BEARING
    (PAIR - STANDARD)
  • 6
    23-85702 BEARING
    (PAIR - .001 U.S.)
    BEARING
    (PAIR - .001 U.S.)
  • 6
    23-85703 BEARING
    (PAIR - .002 U.S.)
    BEARING
    (PAIR - .002 U.S.)
  • 6
    23-85704 BEARING
    (PAIR - .010 U.S.)
    BEARING
    (PAIR - .010 U.S.)
  • 6
    23-85705 BEARING
    (PAIR - .020 U.S.)
    BEARING
    (PAIR - .020 U.S.)
