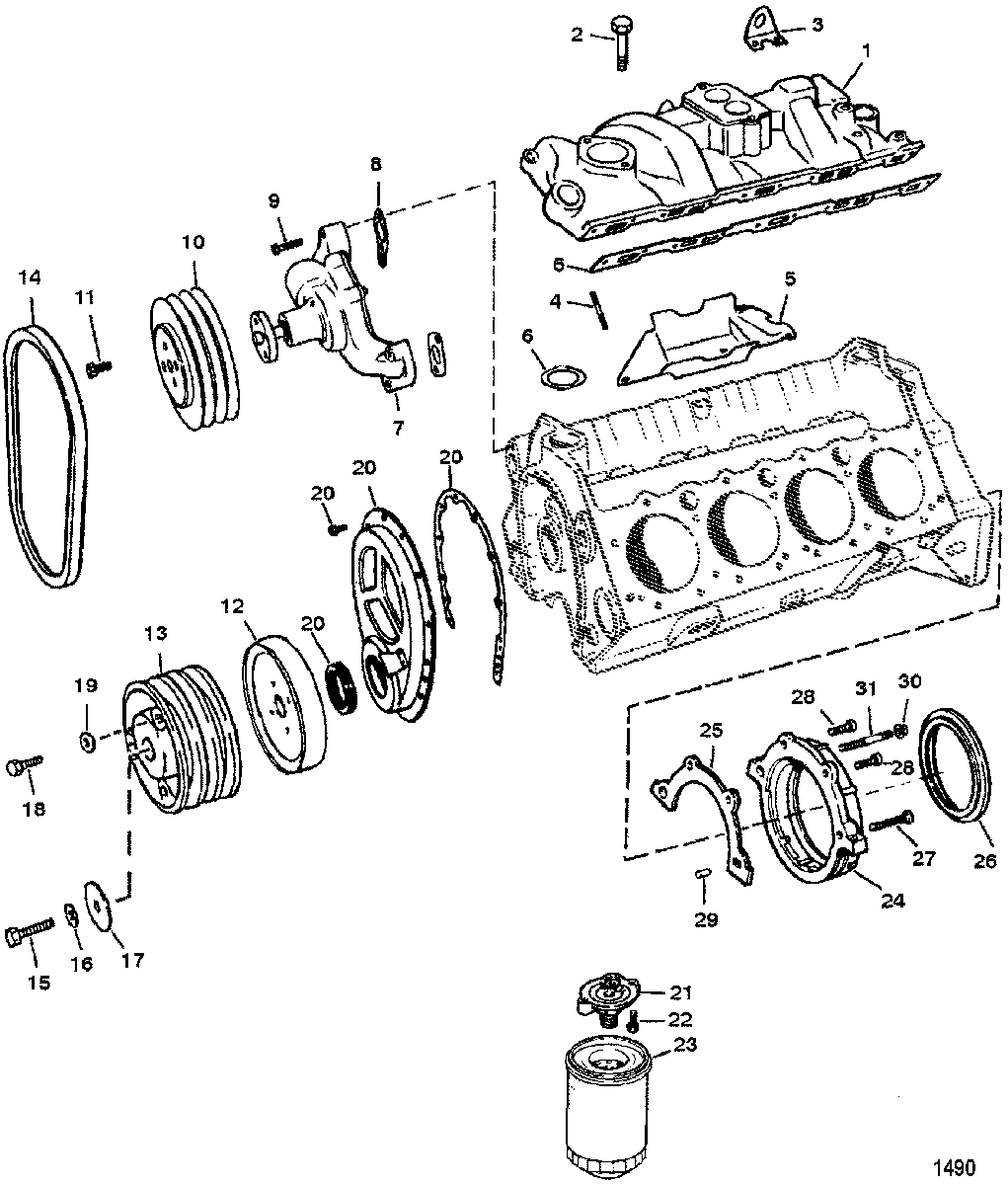

INTAKE MANIFOLD AND FRONT COVER для Mercruiser - 5.7LX (4 BBL) GM 350 V-8 1996 0F601000 THRU 0K001526

  • №
    Артикул
    Название
  • 1
    17619 MANIFOLD, Intake
    (2 BARREL)
    MANIFOLD, Intake
    (2 BARREL)
  • 1
    17620 MANIFOLD, Intake
    (4 BARREL - HI-RISE)
    MANIFOLD, Intake
    (4 BARREL - HI-RISE)
  • 2
    10-11976 SCREW, (.375-16 x 1.00)
    SCREW, (.375-16 x 1.00)
  • 2
    10-802655 BOLT
    BOLT
  • 3
    54-47512 LIFTING EYE
    LIFTING EYE
  • 4
    NSS NOT SOLD SEPARATE, STUD (GM#3959544)
    NOT SOLD SEPARATE, STUD (GM#3959544)
  • 5
    72647 GUARD
    GUARD
  • 6
    27-17145 GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
    GASKET SET
    (Use RTV Silicone Sealant for end gasket - See Service Manual)
  • 7
    46-8M0113734 PUMP ASSEMBLY, Water
    PUMP ASSEMBLY, Water
  • 8
    27-34897 GASKET
    GASKET
  • 9
    10-32132 SCREW, (.375-16 x 1.750)
    SCREW, (.375-16 x 1.750)
  • 9
    10-47688 SCREW, (.375-16 x 2.750)
    SCREW, (.375-16 x 2.750)
  • 9
    10-52200 SCREW, (1.625 In.) (1-1/2 IN.)
    SCREW, (1.625 In.) (1-1/2 IN.)
  • 10
    19692T01 PULLEY, (7 In. Diameter)
    PULLEY, (7 In. Diameter)
  • 11
    10-47277 SCREW, (.312-24 x .750)
    SCREW, (.312-24 x .750)
  • 12
    809892T BALANCER, Harmonic
    BALANCER, Harmonic
  • 13
    90081A1 PULLEY
    PULLEY
  • 14
    57-48120Q1 V BELT, (46 Inch)
    V BELT, (46 Inch)
  • 15
    10-8M2021674 SCREW, (.437-20 x 2.50)
    SCREW, (.437-20 x 2.50)
  • 16
    13-39131 LOCKWASHER, (.437)
    LOCKWASHER, (.437)
  • 17
    12-35332001 WASHER
    WASHER
  • 18
    10-53833 BOLT, (.375-24 x 2.00)
    BOLT, (.375-24 x 2.00)
  • 19
    12-34714 WASHER
    WASHER
  • 20
    835005 COVER ASSEMBLY, Timing
    SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.
    COVER ASSEMBLY, Timing
    SCREWS-GROMMETS-OIL SEAL AND GASKET ARE NOT SOLD SEPARATELY.
  • 21
    71920 VALVE ASSEMBLY, Filter
    WITHOUT REMOTE OIL FILTER
    VALVE ASSEMBLY, Filter
    WITHOUT REMOTE OIL FILTER
  • 22
    10-54786 SCREW, (.312-18 x 1.250)
    WITHOUT REMOTE OIL FILTER
    SCREW, (.312-18 x 1.250)
    WITHOUT REMOTE OIL FILTER
  • 23
    35-866340Q03 FILTER, Oil
    WITHOUT REMOTE OIL FILTER
    FILTER, Oil
    WITHOUT REMOTE OIL FILTER
  • 24
    14239 RETAINER, Oil Seal (REAR)
    RETAINER, Oil Seal (REAR)
  • 25
    27-881715 GASKET
    GASKET
  • 26
    26-8M0077606 SEAL, Oil (REAR)
    SEAL, Oil (REAR)
  • 27
    10-8M0064241 BOLT, (.250-20 x 1.750)
    BOLT, (.250-20 x 1.750)
  • 28
    10-14242 BOLT, (.250-20 x .875)
    BOLT, (.250-20 x .875)
  • 29
    17-14263 PIN, Dowel
    PIN, Dowel
  • 30
    11-8M0098315 NUT, (.250-20)
    NUT, (.250-20)
  • 31
    16-14827 STUD, (.250-20 x 2.180)
    STUD, (.250-20 x 2.180)
  • -
    27-806871A96 GASKET SET, Overhaul
    GASKET SET, Overhaul
